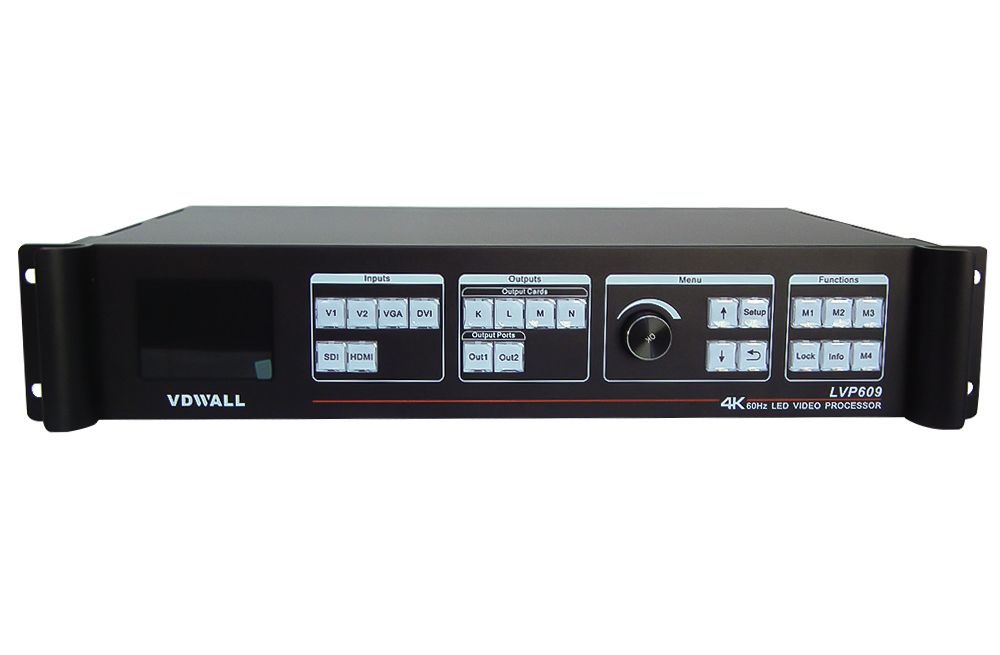

VDWall LVP609 4K 60Hz LED Video Processor – Discontinued
$ 2,393.00
The LVP609 is listed as discontinued. This 4K 60Hz LED processor provides HDMI 2.0 input and eight DVI outputs. Confirm remaining availability or review the VDWall A6000 alternative before ordering.
VDWall LVP609 legacy product information
Discontinued: This product page identifies the LVP609 as no longer in production. Check remaining availability before ordering. The listed alternative is the VDWall A6000 video processor; compare its inputs and output layout with your existing installation.
The LVP609 processes 4K2K content at 60Hz for large LED screens. HDMI 2.0 accepts the UHD source, while eight DVI outputs distribute the processed image. The listed single-unit loading capacity is 16 million pixels.
Processing and operation
Seamless and fade switching support transitions between analog and digital sources. Preset modes can be recalled with one button. Synchronous monitoring allows a 1080p monitor to show the 4K2K input image, while front-panel controls and RS232, USB or LAN provide setup access.
LVP609 specifications
| Parameter | Specification |
|---|---|
| Inputs | 2 × Video; 1 × VGA; 1 × DVI; 1 × HDMI 2.0; 1 × SDI |
| HDMI input | Up to 3840 × 2160 at 60Hz |
| VGA / DVI input | Up to 1920 × 1200 at 60Hz |
| SDI types | SDI / HD-SDI / 3G-SDI |
| Outputs | 8 × DVI |
| Single DVI output timing | 1920 × 1080 at 60Hz |
| Listed loading capacity | 16 million pixels |
| Control | Front panel; RS232 / USB / LAN |
| Input voltage | 100–240VAC, 50/60Hz |
| Power consumption | ≤70W |
| Temperature | 0–45°C |
| Humidity | 15–85% |
| Product dimensions | 483 × 338 × 94 mm (L × W × H) |
| Carton dimensions | 540 × 400 × 180 mm (L × W × H) |
| Weight | Net 5.95 kg; gross 8.8 kg |
Frequently asked questions
Is the LVP609 still in production?
This listing states that production has ended. Confirm any remaining stock before ordering, and check the A6000 alternative shown above.
Can the LVP609 receive a 4K signal at 60Hz?
Yes. The listed HDMI 2.0 input supports up to 3840 × 2160 at 60Hz.
Does each DVI output carry a full 4K image?
No. Each DVI output is listed at 1920 × 1080 at 60Hz. The processor distributes the display across its outputs.
Can I replace an LVP609 directly with an A6000?
The A6000 is the alternative named on this page. Check source connections, output mapping, screen dimensions and control requirements before selecting a replacement.

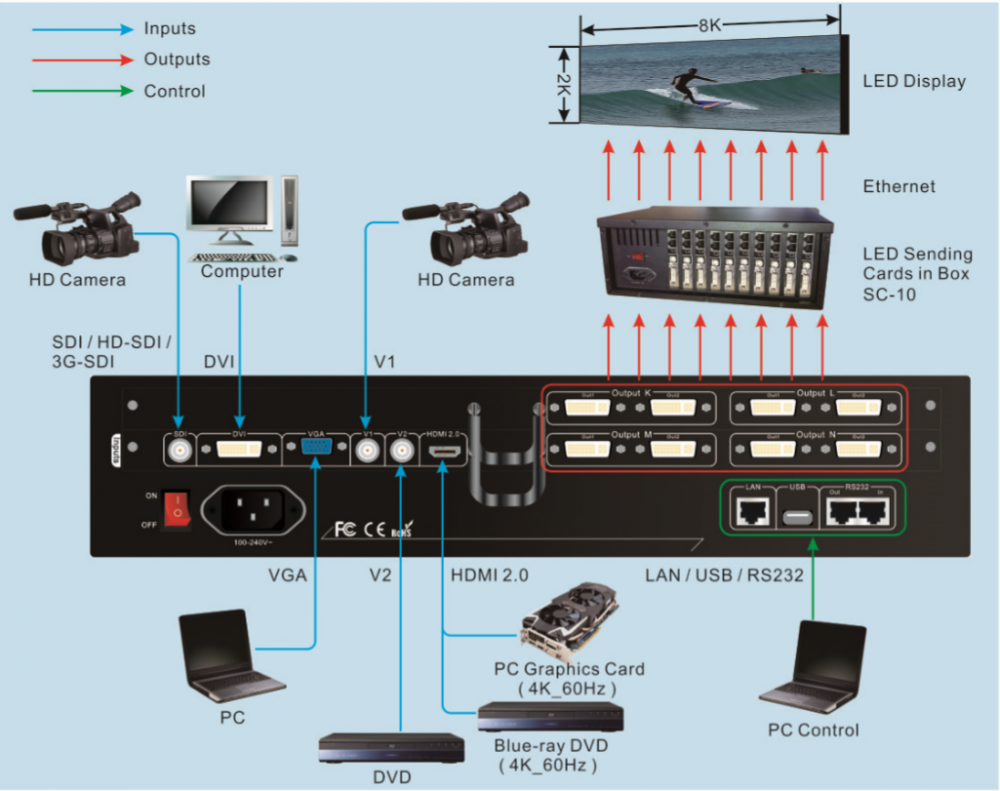

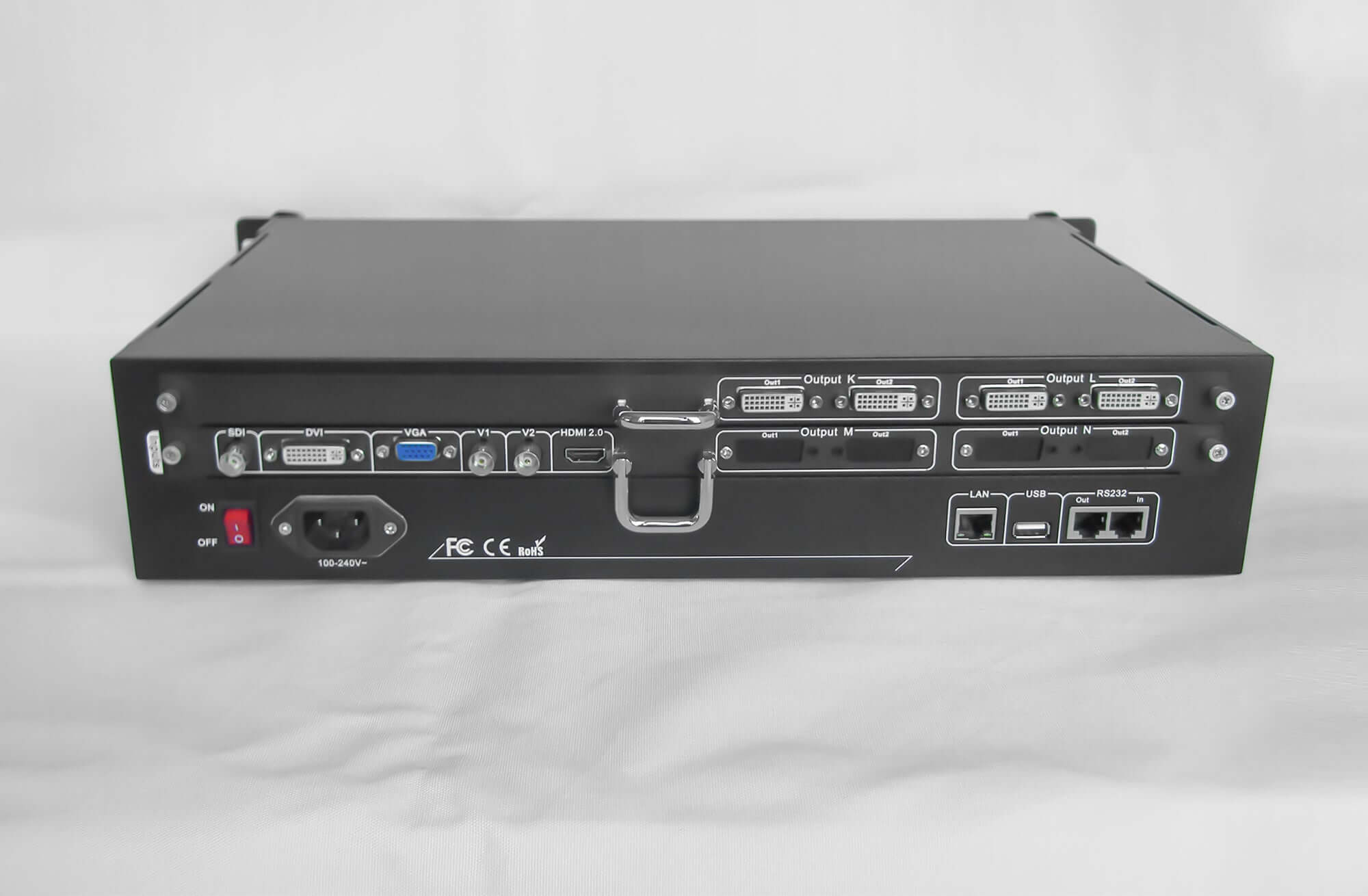

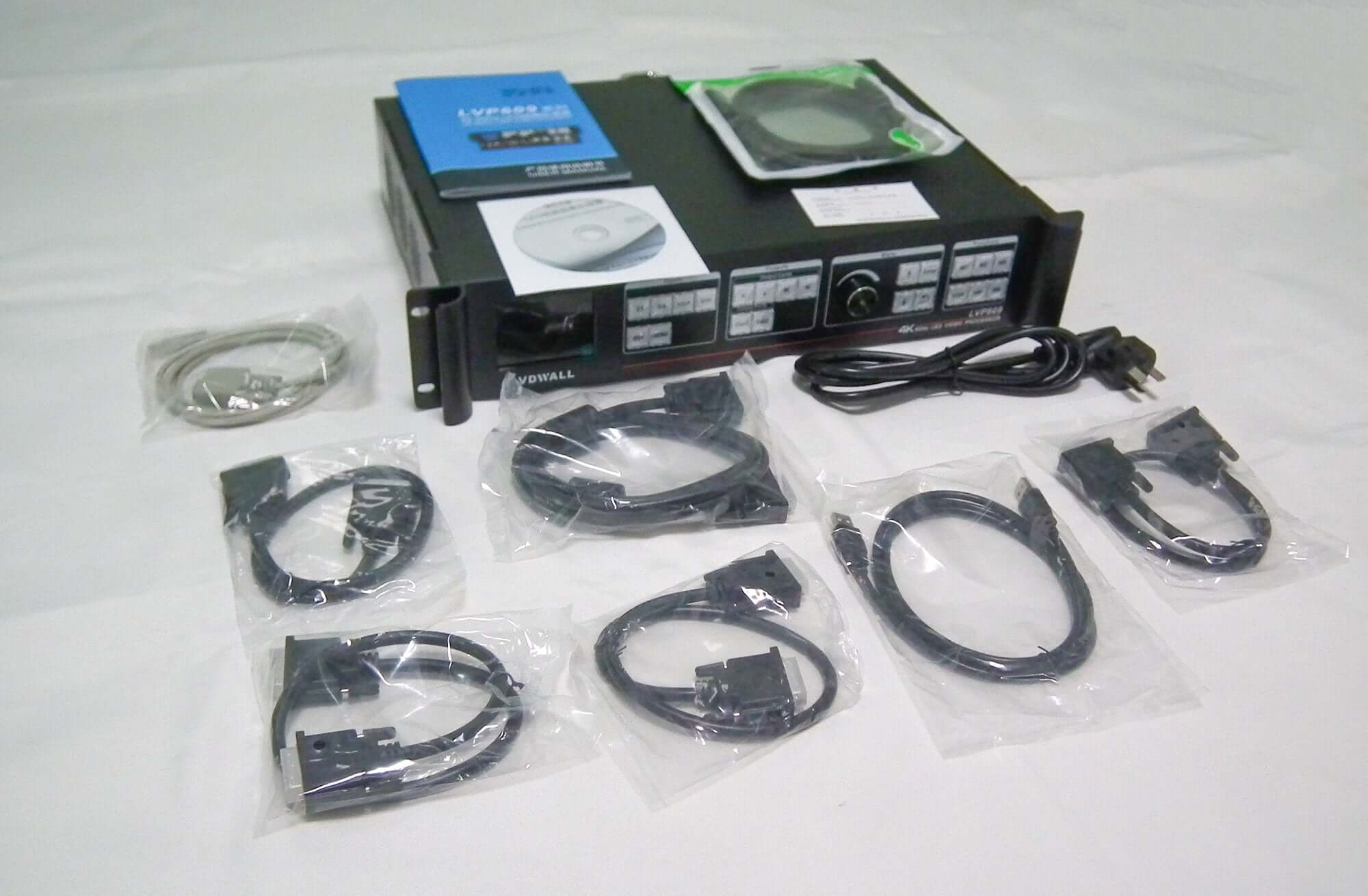

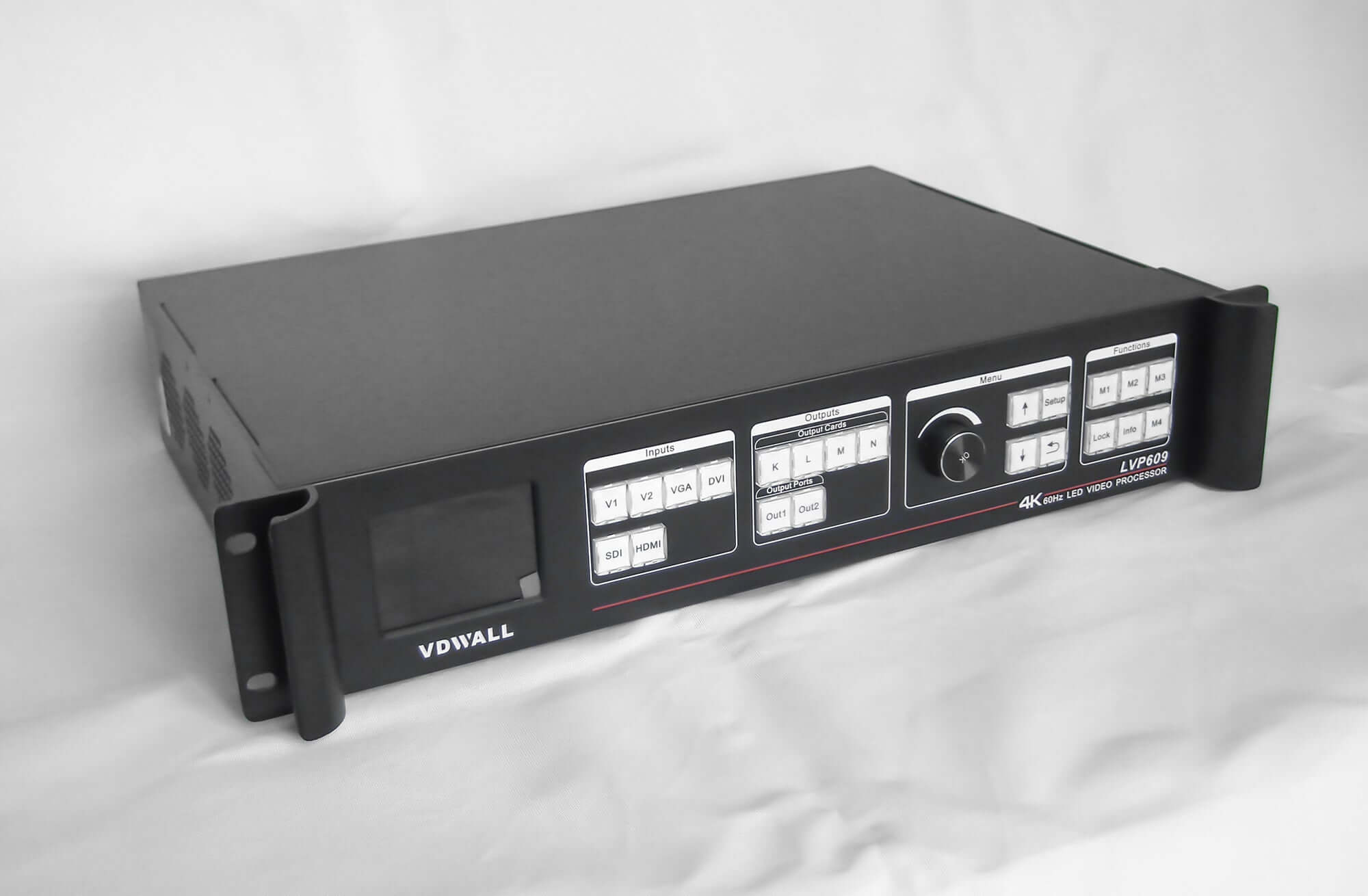

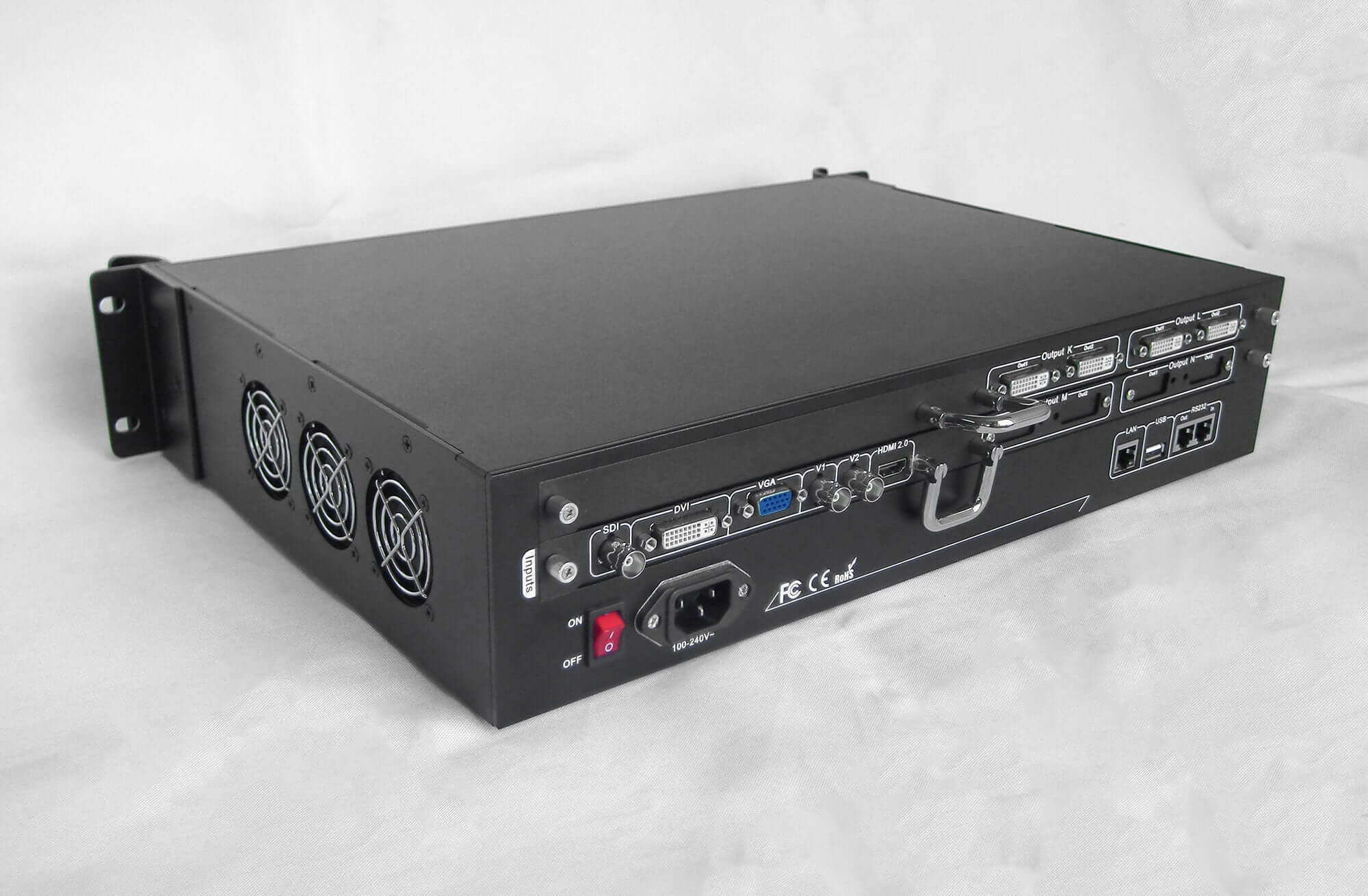

Product images and connection diagram
| Weight | 10 kg |
|---|
