VDWall LVP605S HD LED Video Processor with SDI
$ 420.00
VDWall LVP605S HD LED video processor for SDI/HD-SDI applications. Supports four PIP/POP presets, seamless and fade switching, image freeze and AIAO cropping. Confirm the supplied expansion module.
9999 in stock
HD source switching for LED displays
The VDWall LVP605S combines HD video switching, scaling and screen layout functions for LED displays. Its listed features include SDI/HD-SDI input, HDMI with HDCP, and mixed analog sources. Confirm the installed expansion module for the required camera connection.
Four PIP/POP display presets can be recalled with a button. Text, graphics and logo overlays, picture freeze and AIAO cropping help prepare the content shown on screen. Seamless and fade transitions support changes between sources.
LVP605S key parameters
| Parameter | Specification |
|---|---|
| Image processing | 10-bit processing; Faroudja DCDI, Real Color and TrueLife |
| Scaling | 4 × 4 pixel interpolation |
| Listed HDMI input | HDMI 1.3a with HDCP; HD 1080p |
| Listed analog inputs | 3 × CVBS; 2 × VGA; 1 × YPbPr/YCbCr; 1 × S-Video |
| Main digital inputs | 1 × DVI; 1 × HDMI |
| Expansion input | SDI/HD-SDI or VGA/DVI/HDMI module; confirm supplied configuration |
| PIP/POP presets | 4 |
| Listed single-unit output | 2048 × 1152 |
| Control | Front-panel keys/knob; RS232 |
| Sending-card accommodation | Up to 2 cards; cards optional |
Frequently asked questions
Does the LVP605S accept SDI camera input?
SDI/HD-SDI input is listed for this product. The description also identifies an expansion module, so confirm the installed SDI configuration and camera timing before ordering.
Can I display a second picture or overlay a logo?
Yes. Four PIP/POP presets and text, graphics and logo overlays are listed features.
Are sending cards included?
The processor can accommodate two sending cards, but the listing identifies them as optional. Confirm the card models and supplied items.
How do I operate the LVP605S?
Use the front-panel keys and knob for source selection and setup, or RS232 commands for control. The retained PDF provides the product specification.

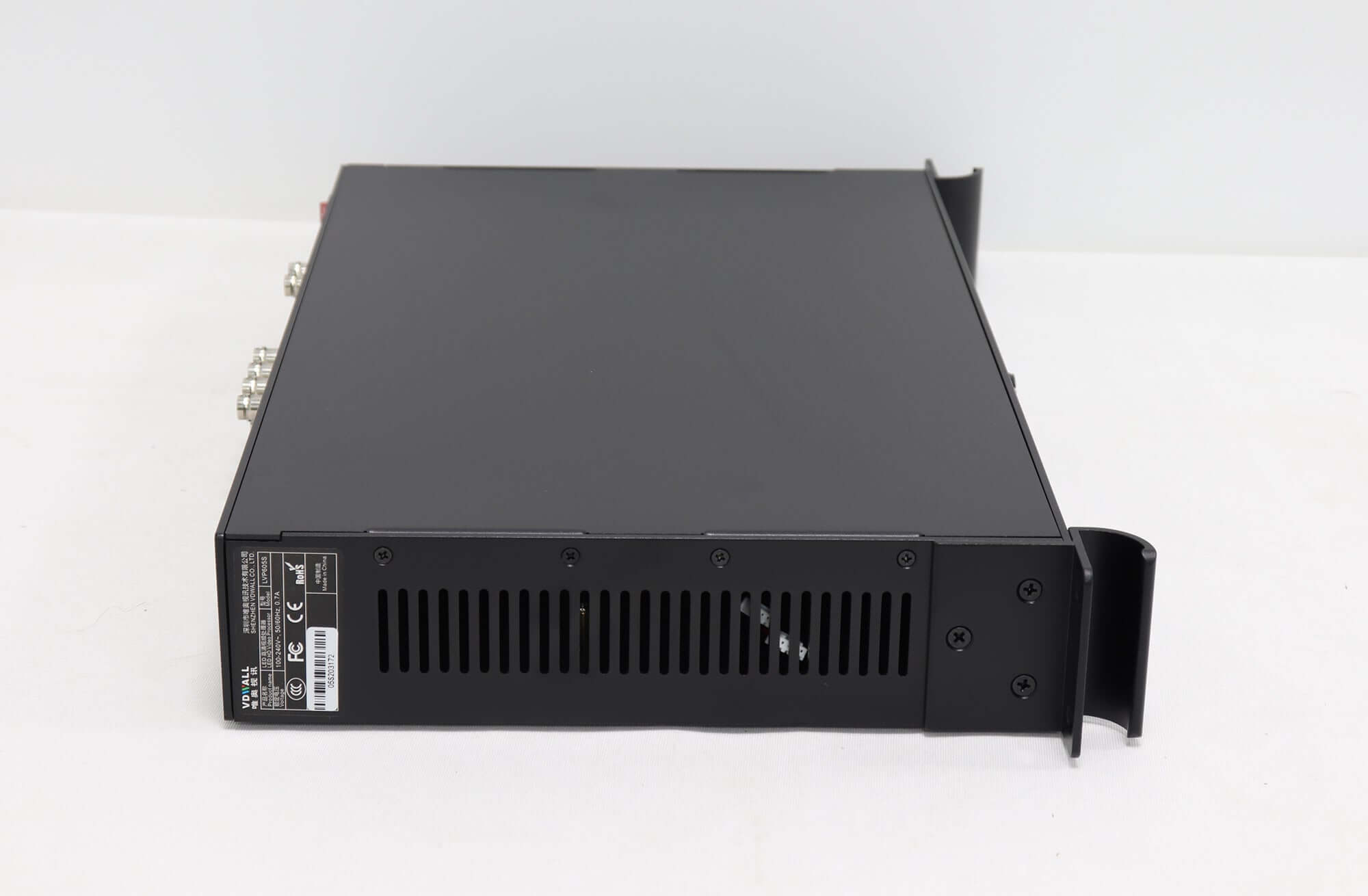

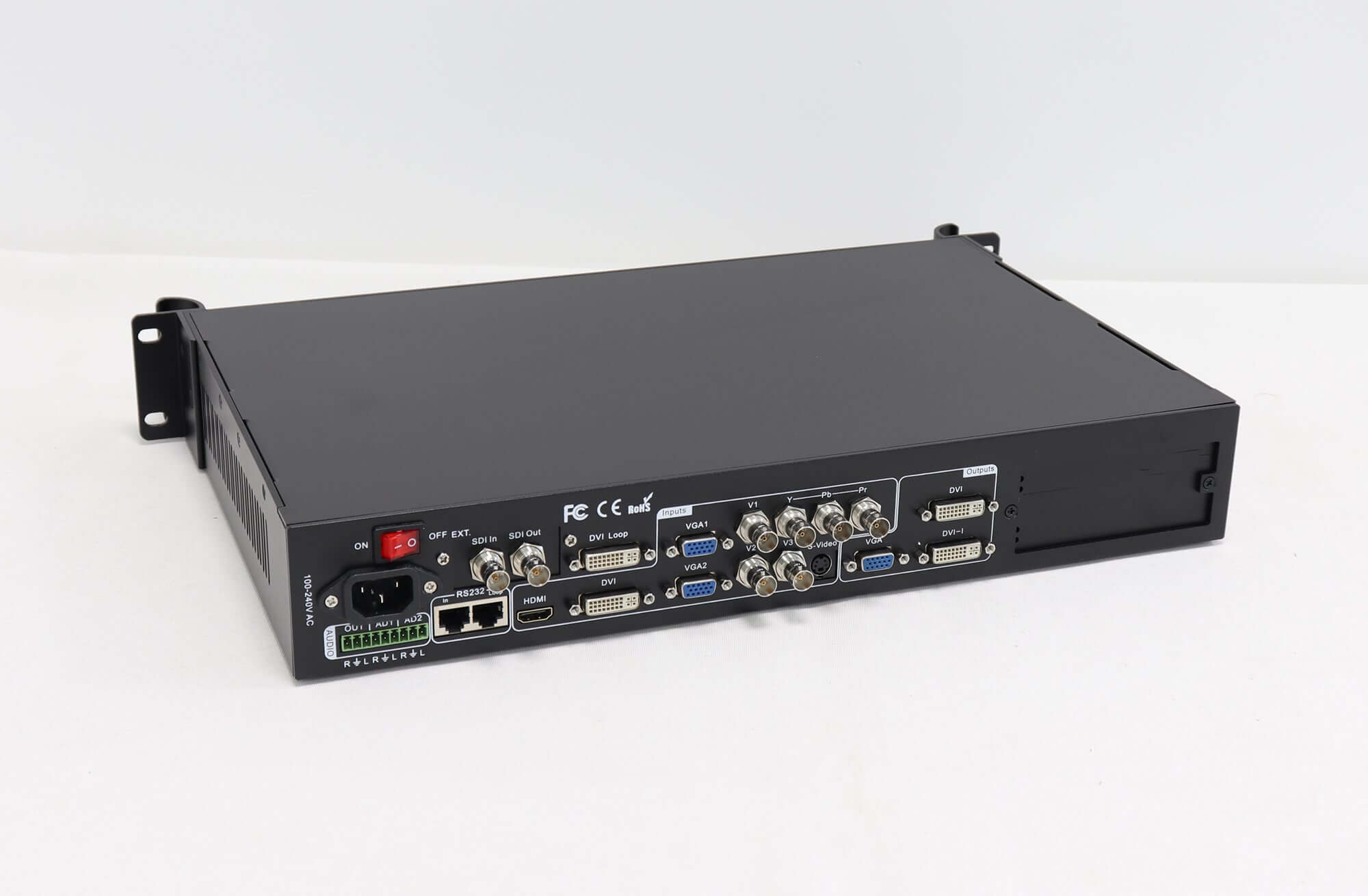

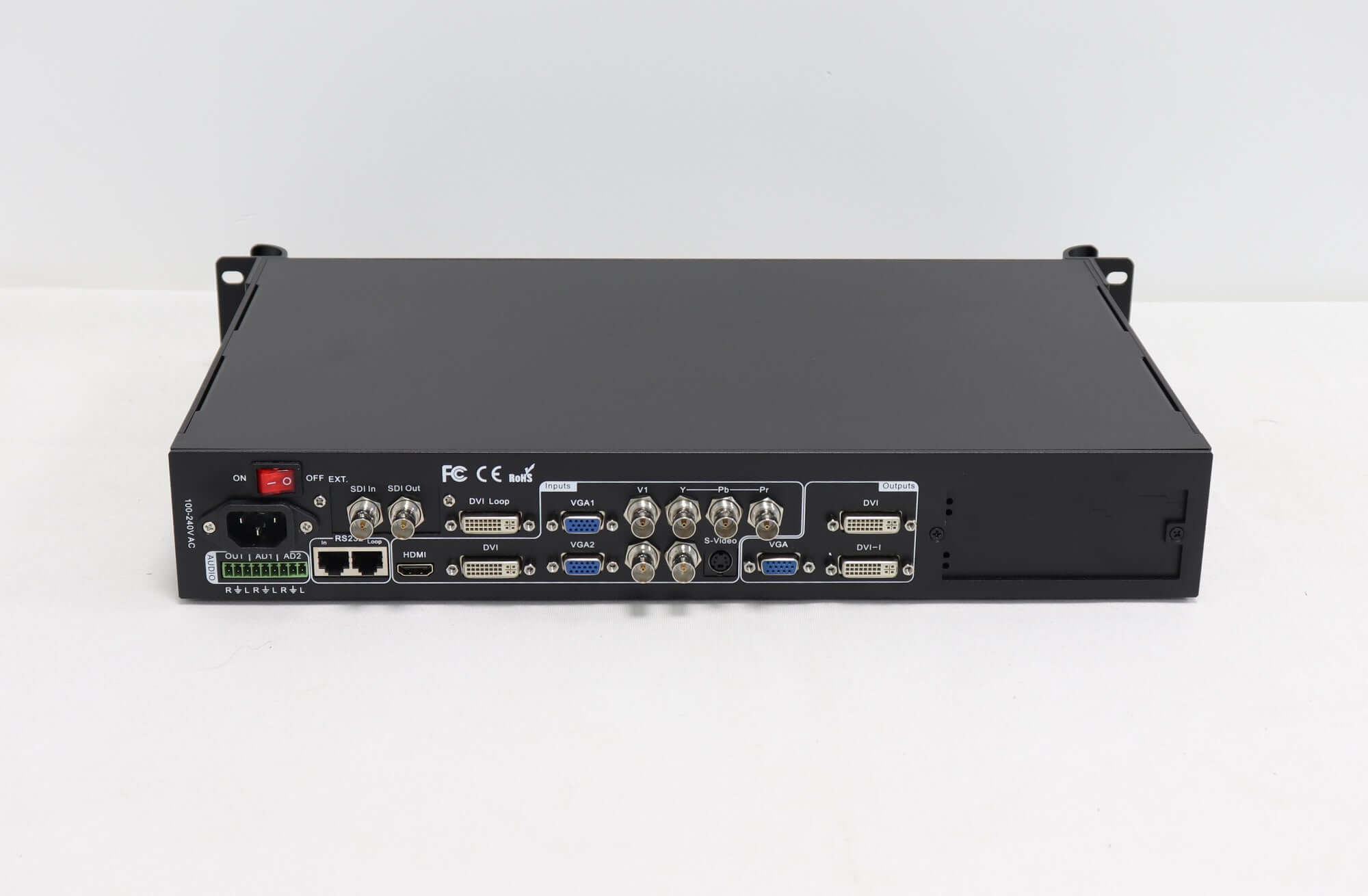

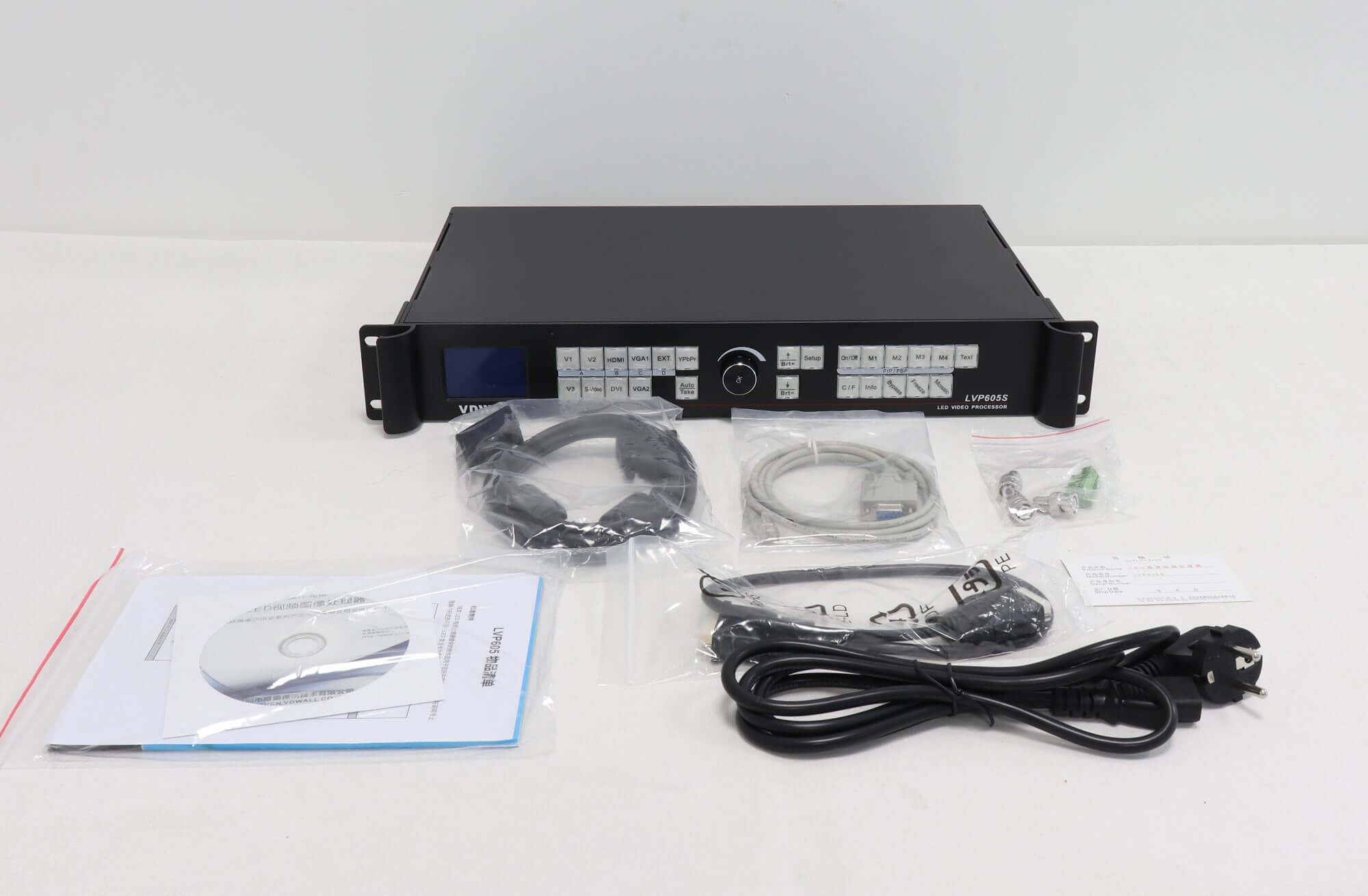

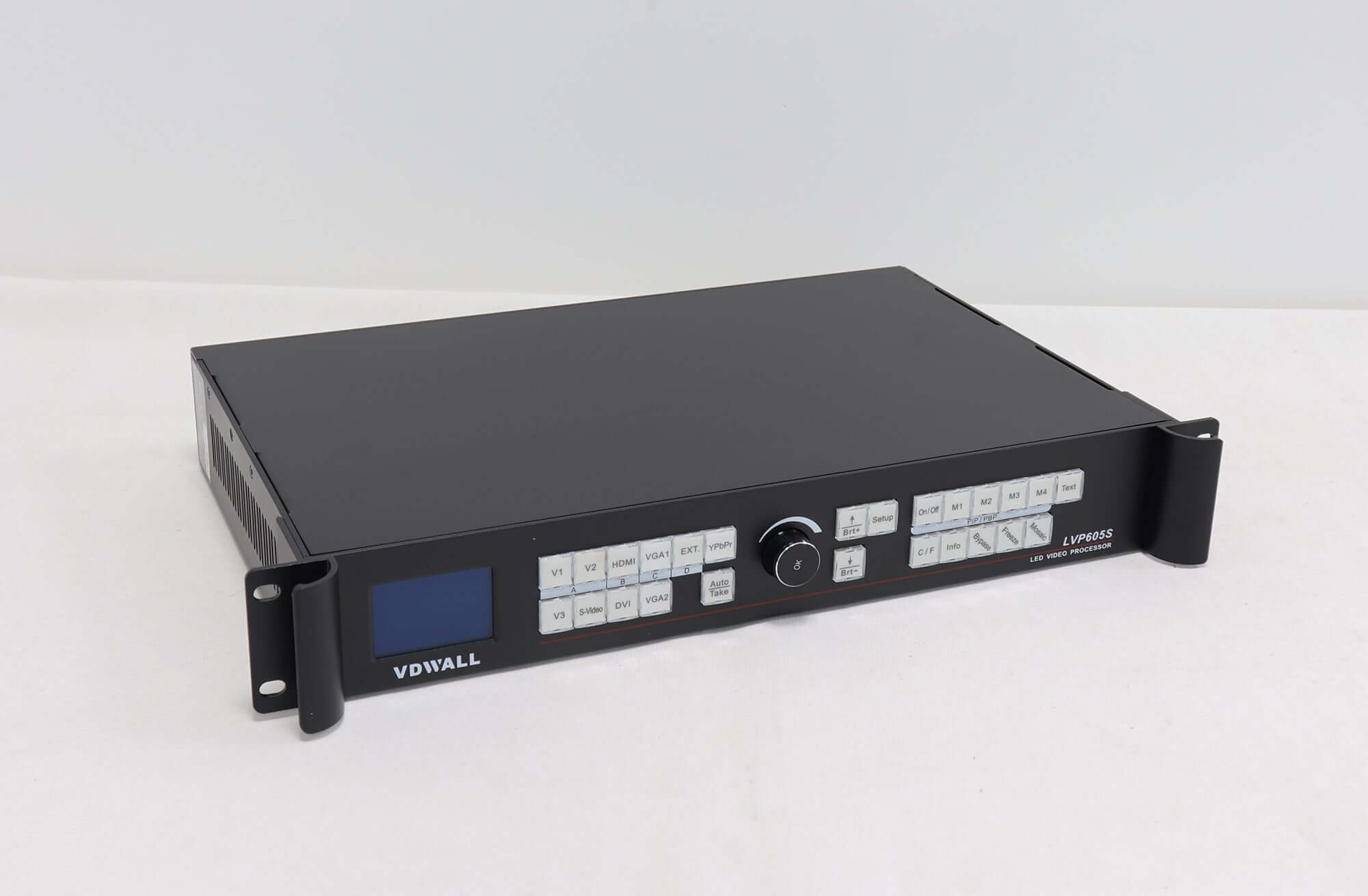

Product images and PDF specification
| Weight | 7 kg |
|---|
