VDWall A6000 4K HD Multi-window Video Processor
VDWall A6000 4K HD Multi-window Video Processor Key Applications - Real 4k display specialized for small pitches LED screen, LCD wall and projector splicing - Designed for high-end occasions, such as stage performance, exhibition, convention hall, school auditorium, church, advertising, monitor and control center etc.
If you are not sure which model fits your LED display, please contact us.
Optinal modules: 4K input module(2xHDMI2.0, 1xDP1.2), 2K input module(1xCVBS, 1xDVI, 1xSDI), 4-DVI output module(4xDVI).
| Model |
Quantity of 4K input module |
Quantity of 2K input module |
Quantity of 4-DVI output module |
Remark |
| A6101 | 1 | 0 | 1 | 1image,4xDVI splicing |
| A6111 | 1 | 1 | 1 | 2 windows,3 images, 4xDVI splicing |
| A6121 | 1 | 2 | 1 | 3 windows,5 images, 4xDVI splicing |
| A6211 | 2 | 1 | 1 | 3 windwos,4 images, 4xDVI splicing |
| A6221 | 2 | 2 | 1 | 4 windows,6 images, 4xDVI splicing |
| A6122 | 1 | 2 | 2 | 3 windows,5 images, 8xDVI splicing |
| A6212 | 2 | 1 | 2 | 3 windows,4 images, 8xDVI splicing |
| A6222 | 2 | 2 | 2 | 4 windows,6 images, 8xDVI splicing |
| Weight(kg) | 11.50 kgs |
|---|---|
| Manufacturer | VDWall |
VDWall A6000 4K HD Multi-window Video Processor Features:
VDWall A6000 4K HD Multi-window Video Processor Inputs
- 12 input ports, support mixed SD(Standard Definition)、HD(High Definition)、UHD(Ultra High-Definition) input
- 6 UHD Inputs@ 4K2K_60Hz, maximum resolution up to 4096×2160@60Hz, including HDMI2.0 × 4 DP1.2 × 2
- Seamless switching between different inputs, no black, splash, jitters
VDWall A6000 4K HD Multi-window Video Processor Multi-window Processing
- 4k -4 windows 6 images display, random zoom in/out and overlay display
- 4K seamless switching and Fade-in / Fade-out switching
- Any in any out(AIAO) 4K image crop
- Accurate image quality adjustment
- Image frame function, clearly identify different layer
- 16 preset display modes, seamless mode switching without black screen or blurred screen
VDWall A6000 4K HD Multi-window Video Processor Outputs
- Maximum 8 DVI outputs, synchronized joint split, driving capability up to 8K*2K
- Any size and position of cropped image
- Accurate image quality adjustment realize uniform color of different screen batches
- 16 preset display modes, conveniently save/load
- Adaptive calculation aided splicing, auto calculate mosaic parameters according to the size and position of screen units
- User-defined output resolution, 8 Outputs reach to 17280 pixels in width or 12800 pixels in height. High efficient outputs utilization
VDWall A6000 4K HD Multi-window Video Processor Key Applications
- Real 4k display specialized for small pitches LED screen, LCD wall and projector splicing
- Designed for high-end occasions, such as stage performance, exhibition, convention hall, school auditorium, church, advertising, monitor and control center etc
Others
- Power on self test, convenient configuration data export and import
- Plug-in card design, customized input card and output card built in, convenient maintenance
- High stability and reliability, 7/24 operation
VDWall A6000 4K HD Multi-window Video Processor Parameter:
| Features of Input Signals | ||
| Quantity/Type | 4×HDMI 2.0（VESA/CEA-861） | |
| 2×DP1.2（VESA） | ||
| 2×CVBS | ||
|
2×DVI（VESA/CEA-861）compatible with HDMI1.3a/VGA |
||
| 2×SDI（SDI/HD-SDI/3G-SDI） | ||
| Composite Video Input SYS | PAL/NTSC | |
| Composite Video Amplitude Impedance | 1V（p_p）/ 75Ω | |
| VGA Format | PC（VESA） |
≤1920× 1200_60Hz |
| VGA Amplitude the impedance | R、G、B = 0.7 V（p_p）/ 75Ω | |
| DVI Format | PC（VESA） |
≤1920× 1200_60Hz |
| DMI Format（HDCP2.2） | PC（VESA） |
≤4096× 2160_60Hz |
|
HDMI2.0 （CEA-861） |
||
| DP Format（HDCP2.2） |
DisplayPort1.2 （VESA） |
≤4096× 2160_60Hz |
| SDI Format | SMPTE259M-C | 480i_60Hz |
| SMPTE 292M | 576i_50Hz | |
| SMPTE 274M/296M |
720p、 1080i、 1080p. |
|
| SMPTE 424M/425M | ||
| Input Interface | CVBS: BNC/ 75Ω | |
| DVI: 24+1 DVI_D | ||
|
HDMI： Type A-HDMI format |
||
| DP: DisplayPort1.2 | ||
| SDI: BNC/ 75Ω | ||
| Specification of Outputs | ||
| Quantity / Type | 8×DVI | |
| DVI Format |
1200x1600_60Hz、 1440x1440_60Hz、 |
|
|
1600x1344_60Hz、 1920×1080_60Hz、 2160x960_60Hz |
||
| Output Interface | DVI：24+1 DVI_D | |
| Others | ||
| Control Ports | RS232/USB/LAN | |
| Voltage of Input |
100-240VAC 50/60Hz |
|
| Max Power Consumption | 75W | |
| Ambient Temperature | 0-45℃ | |
|
Ambient Humidity |
15-85% | |
| Product Size | 482x465.5x89mm | |
| Package Size | 500x510x160mm | |
| Net Weight | 7.6KG | |

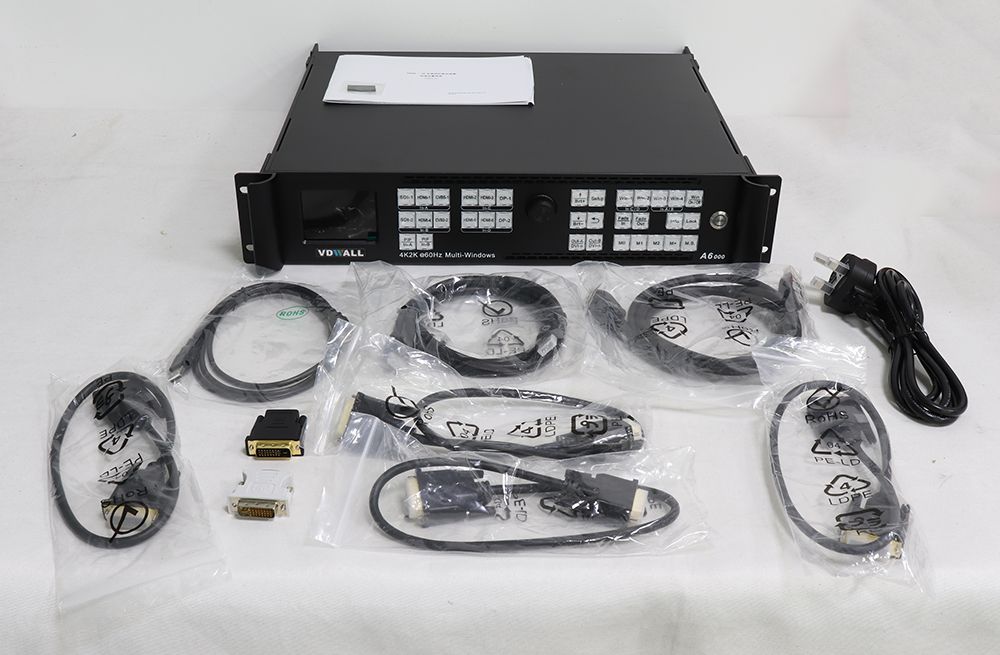

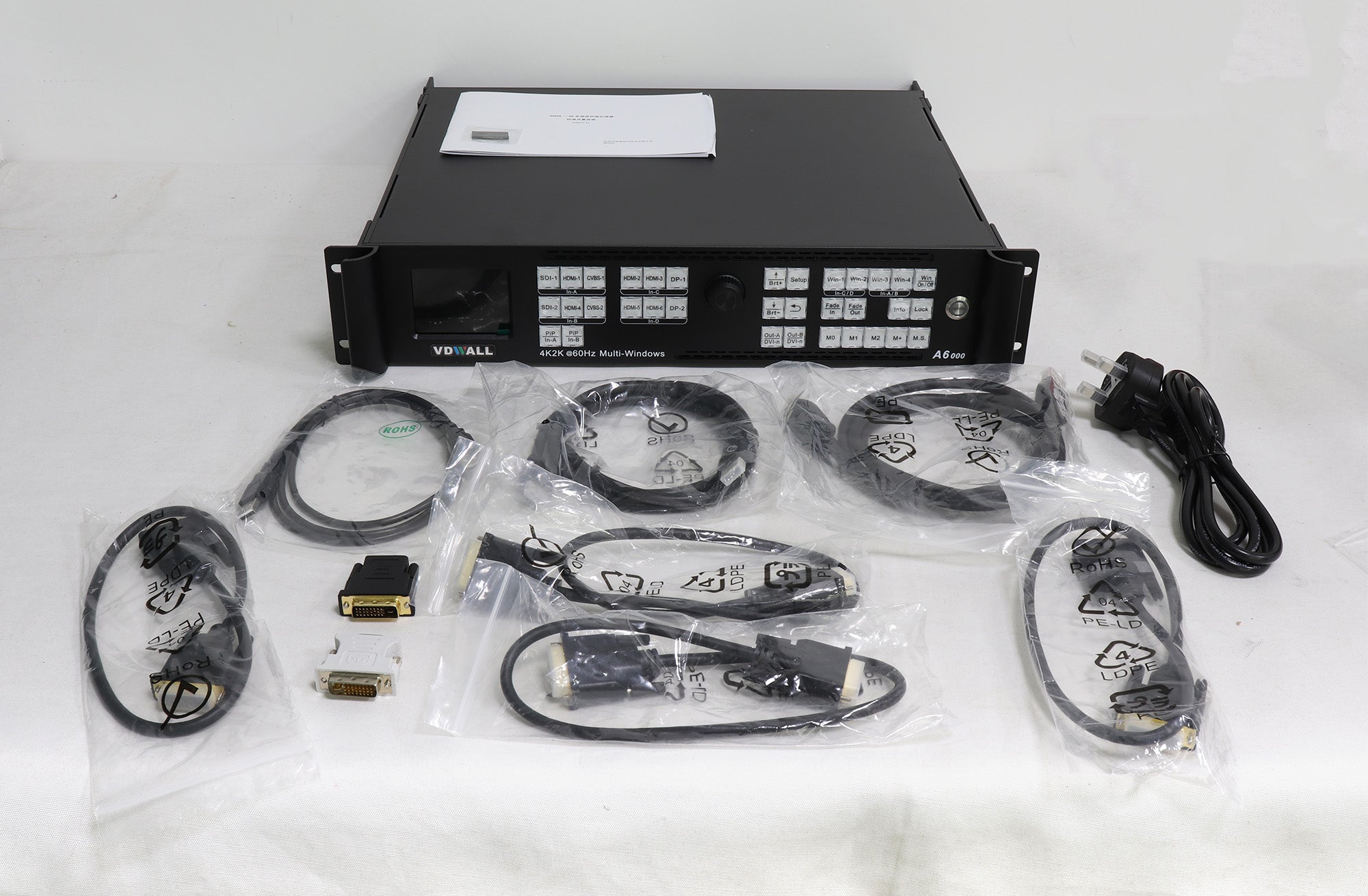

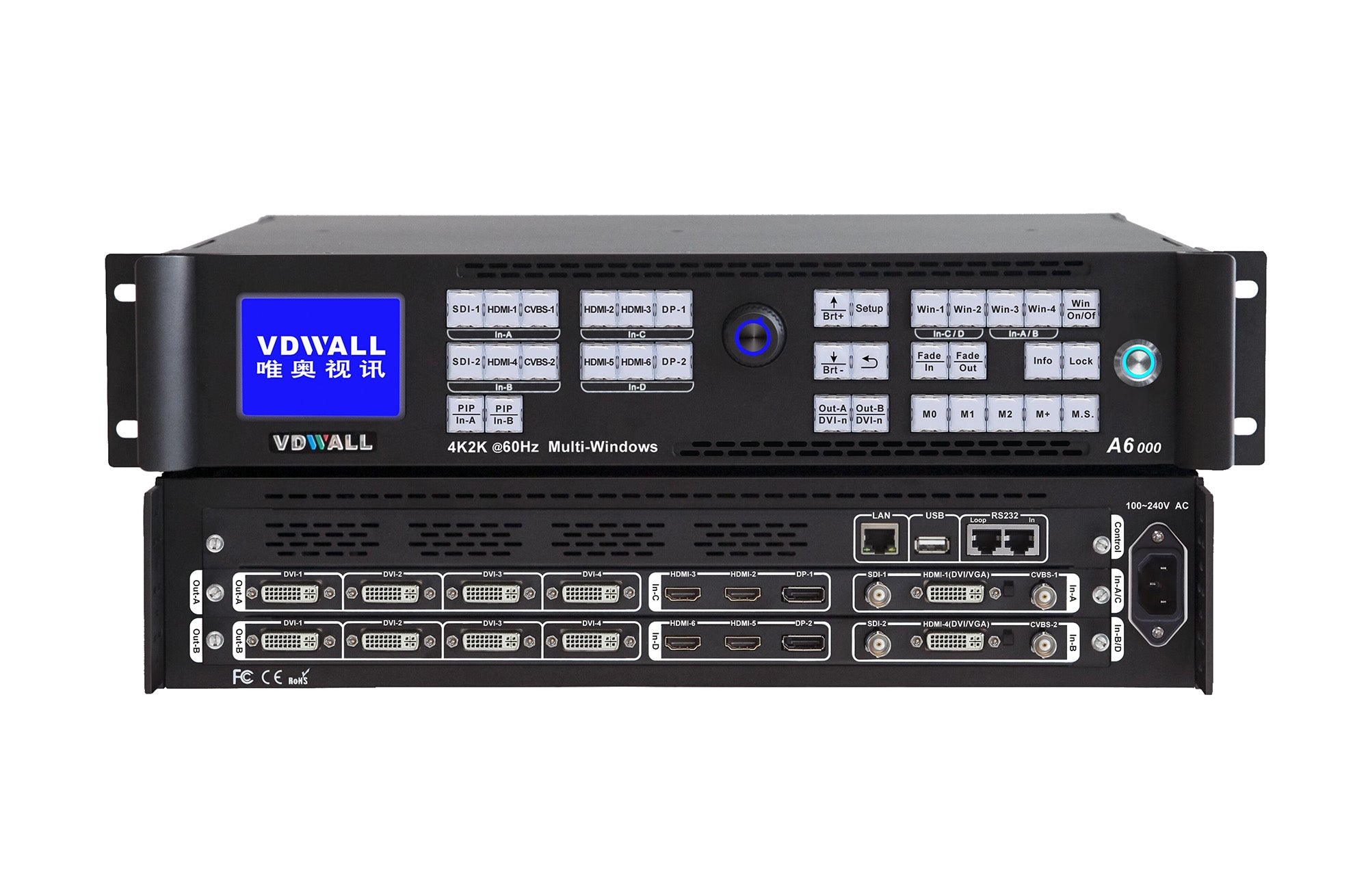

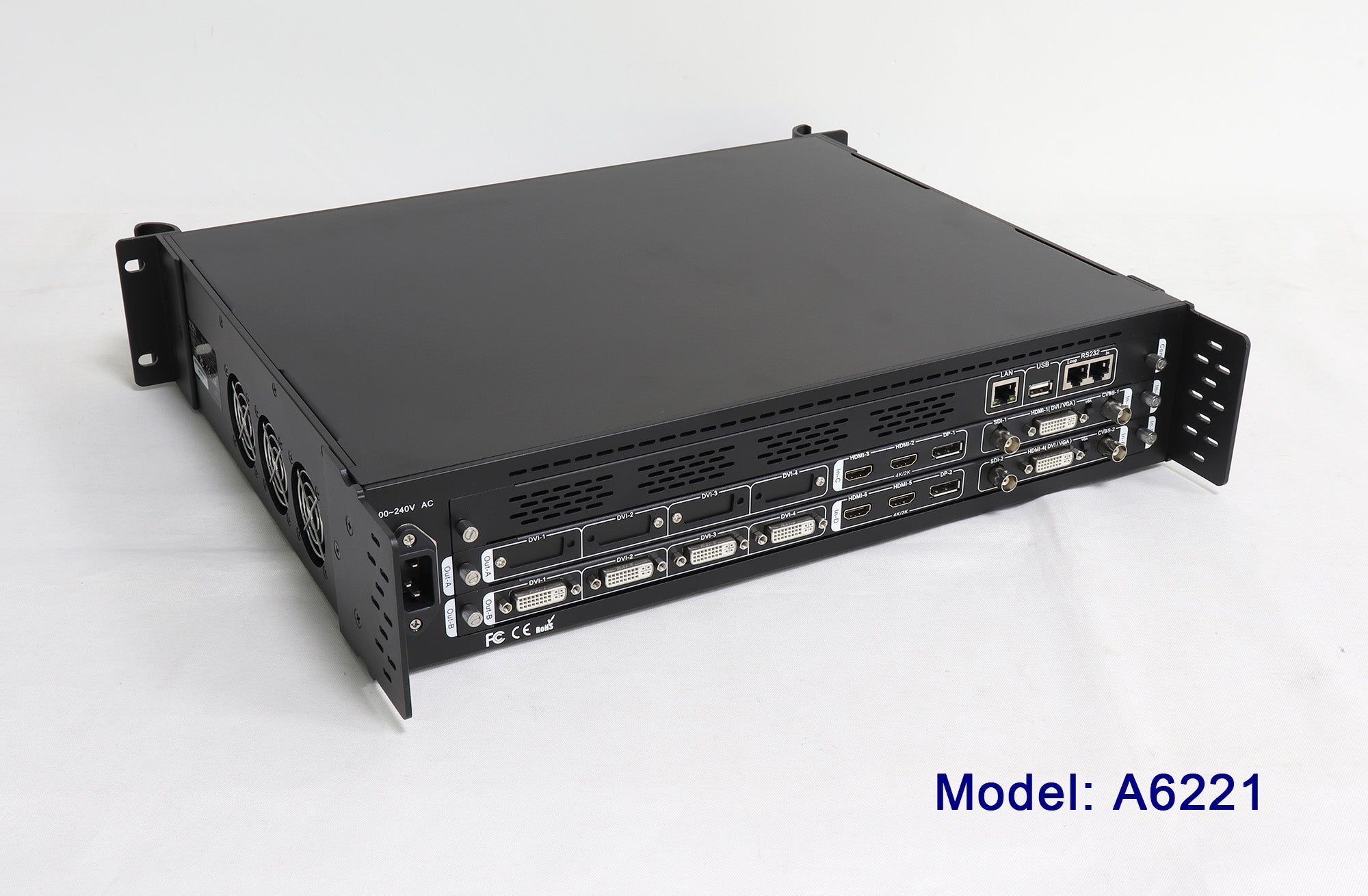

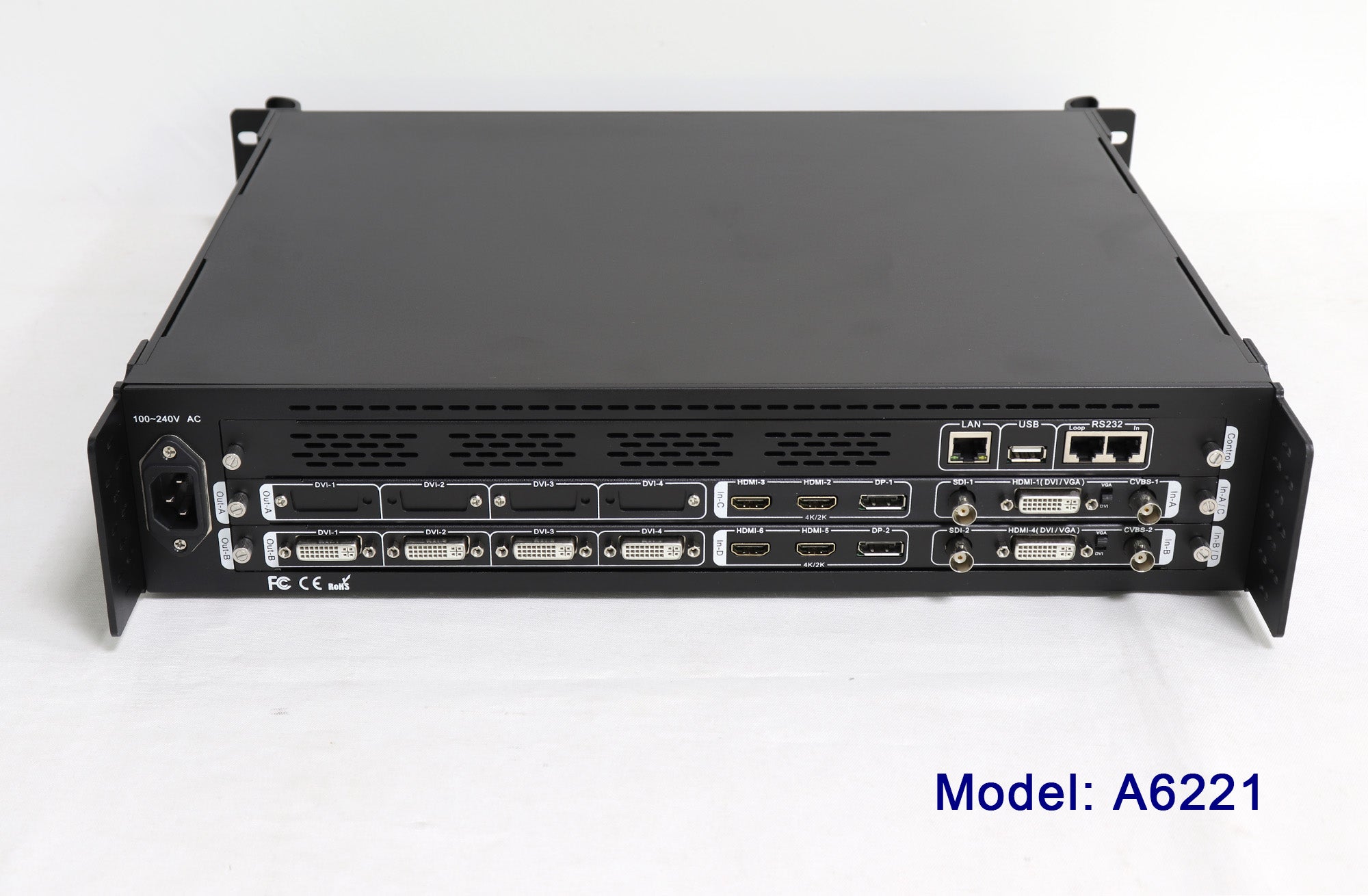

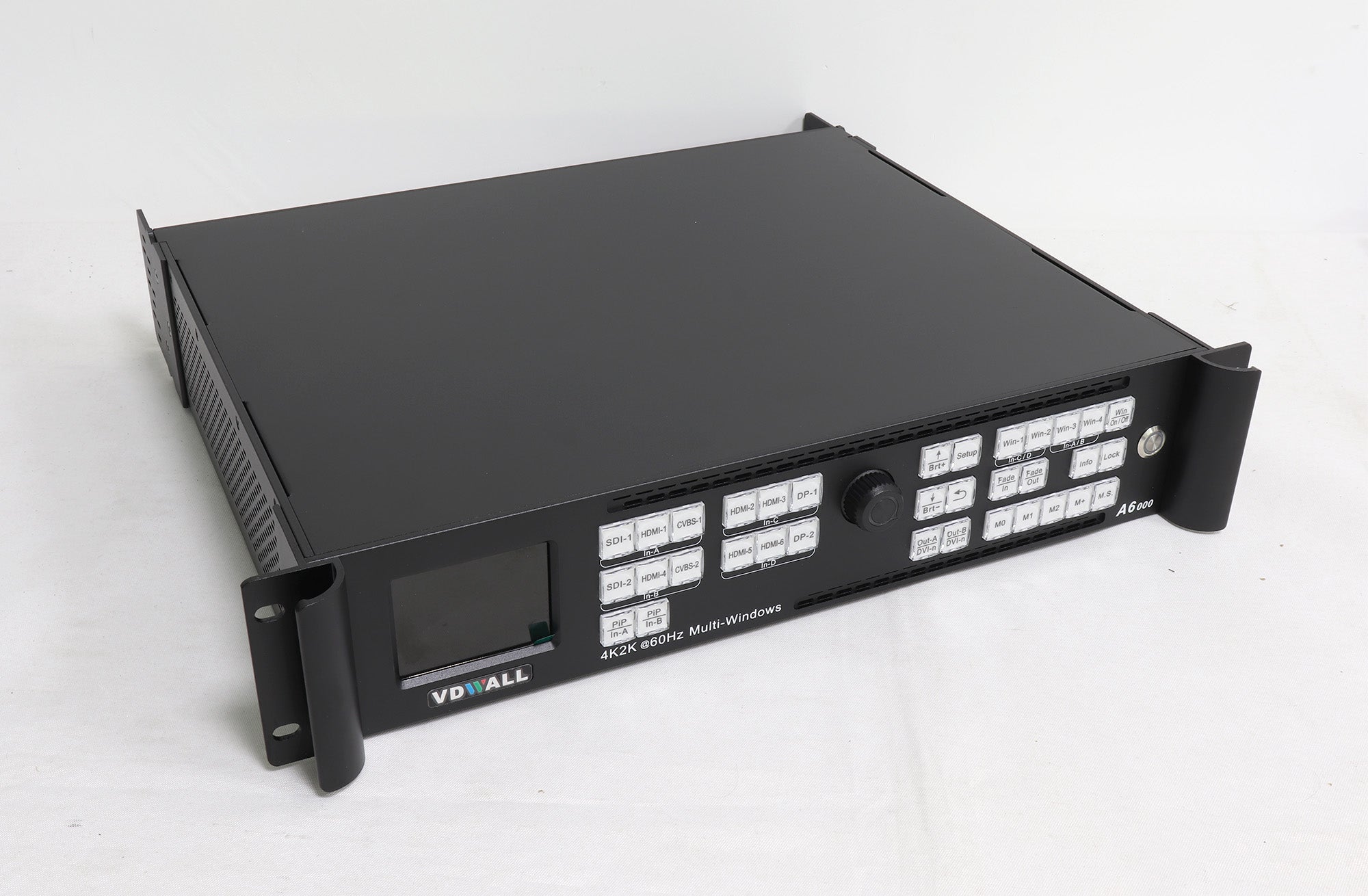

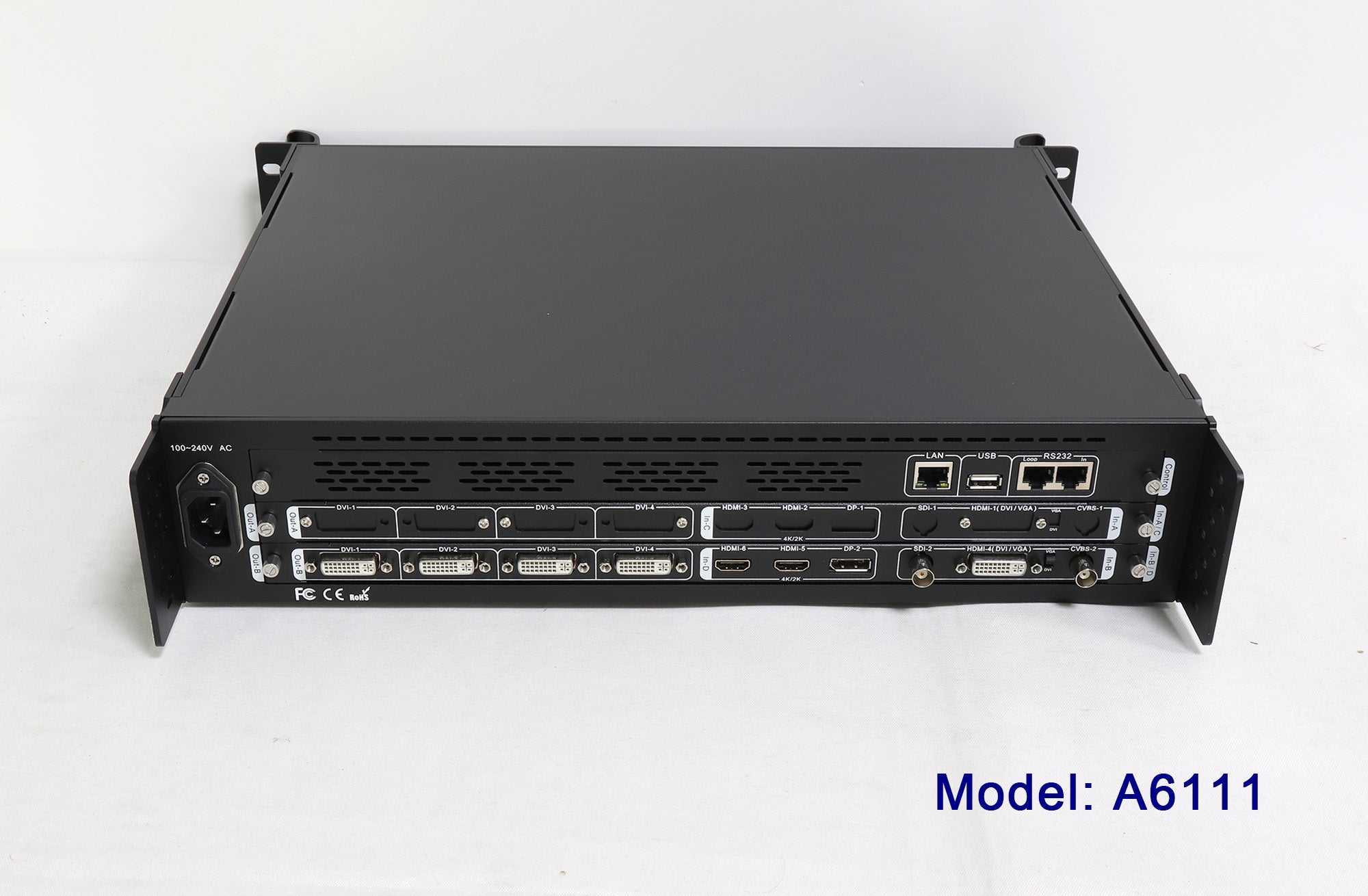

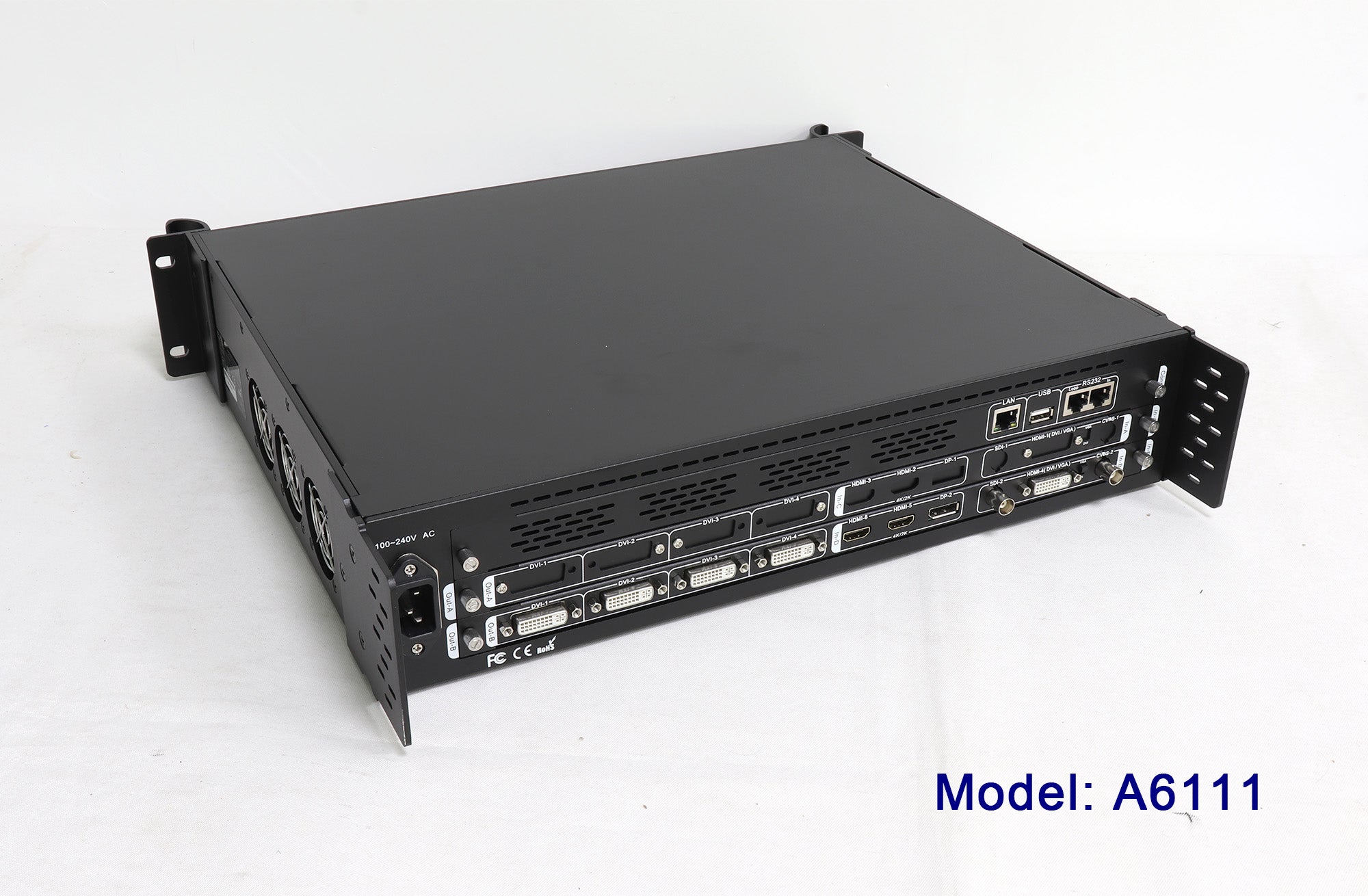

More Pictures of VDWall A6000 4K HD Multi-window Video Processor:
Download Specification
VDWall A6000 4K HD Multi-window Video Processor Specification
