Colorlight H16F Fiber Optic Transceiver – 16 RJ45 Ports
Original price was: $ 2,500.00.$ 2,200.00Current price is: $ 2,200.00.
Colorlight H16F single-mode fiber transceiver with 16 RJ45 Gigabit Ethernet ports and two 10G optical interfaces. Supports a 1 km module or optional 20 km module.
10000 in stock
Colorlight H16F for LED Video Wall Fiber Links
The Colorlight H16F is a single-mode fiber optic transceiver with 16 RJ45 Gigabit Ethernet ports and two 10G optical interfaces. It carries LED display control data across a fiber link using full-duplex LC connectors.
Choose the optical module for the cable route: the specification lists a 1 km module and an optional 20 km module. A 20 km range is therefore configuration-dependent.
Technical Specifications
H16F V1.0 specification, September 29, 2018.
| Parameter | Specification |
|---|---|
| Ethernet interfaces | 16 RJ45 Gigabit Ethernet ports |
| Optical interfaces | 2 ports × 10G bandwidth |
| Data rate | 20 Gb/s |
| Working mode | Single-mode |
| Fiber connector | Full-duplex LC |
| Transmission distance | 1 km module; 20 km module optional |
| Input power | AC 100–240 V |
| Laser | DFB |
| Operating temperature | 0°C to +70°C |
| Storage temperature | −40°C to +85°C |
Before Installing the Fiber Link
Verify the optical module at each endpoint, the LC fiber connections and the Ethernet port allocation. The front panel provides separate status indicators for the optical and Ethernet interfaces, helping identify which part of the link needs attention.

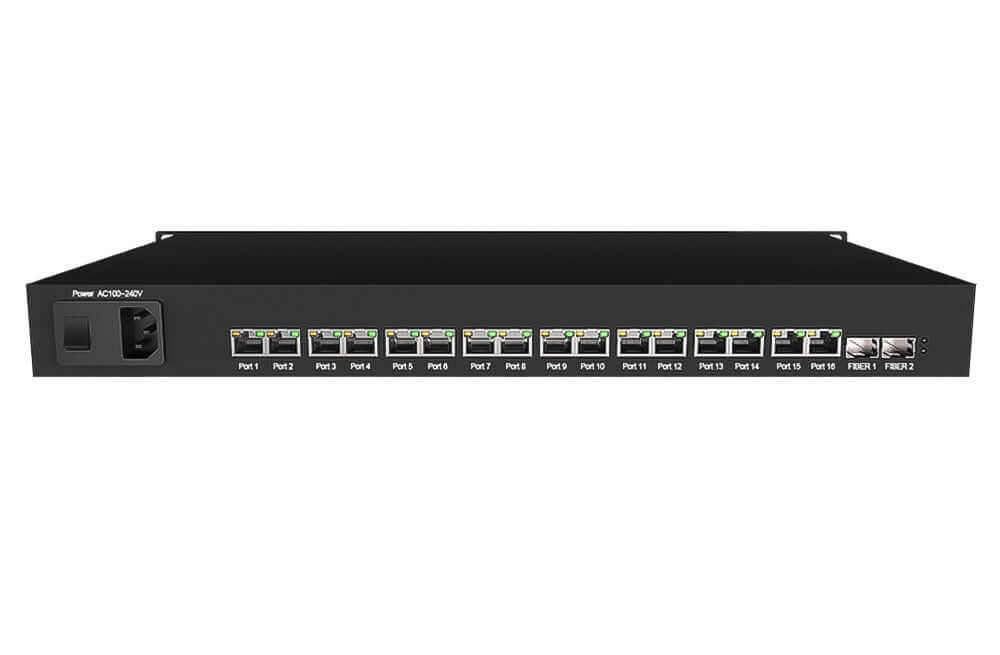

Product Images
Specification Download
Download the Colorlight H16F specification (PDF) for interface locations, system diagrams and dimensions.
Frequently Asked Questions
How many RJ45 ports does the Colorlight H16F provide?
The H16F has 16 Gigabit Ethernet RJ45 ports. It also has two optical ports with 10G bandwidth per port.
What fiber connection does the H16F use?
It uses single-mode fiber and full-duplex LC connectors.
Is the 20 km optical module standard?
No. The specification lists a 1 km module and an optional 20 km module. Check the fitted module before planning the link distance.
Does the H16F need a DC adapter?
The H16F specification lists an AC 100–240 V power input.
What is the difference between H16F and H16F-N Ethernet ports?
The H16F specification lists 16 RJ45 Gigabit Ethernet ports. The H16F-N specification identifies its 16 Ethernet connectors as Neutrik ports. Check the exact model when ordering.
| Weight | 5 kg |
|---|
