VDWall LVP615 HD LED Video Processor – Base Model
Original price was: $ 431.00.$ 410.00Current price is: $ 410.00.
VDWall LVP615 base-model video processor with VIDEO expansion, three PIP/PBP presets and AIAO cropping. Supports DVI loop-through, custom output formats and flexible source switching.
10000 in stock
LVP615 base-model video processing
The VDWall LVP615 combines input switching, dual-picture layouts and scaling for LED screens. This base-model listing uses the VIDEO extended-input configuration. Select the model by the input required by your source, as LVP615 series variants have different expansion options.

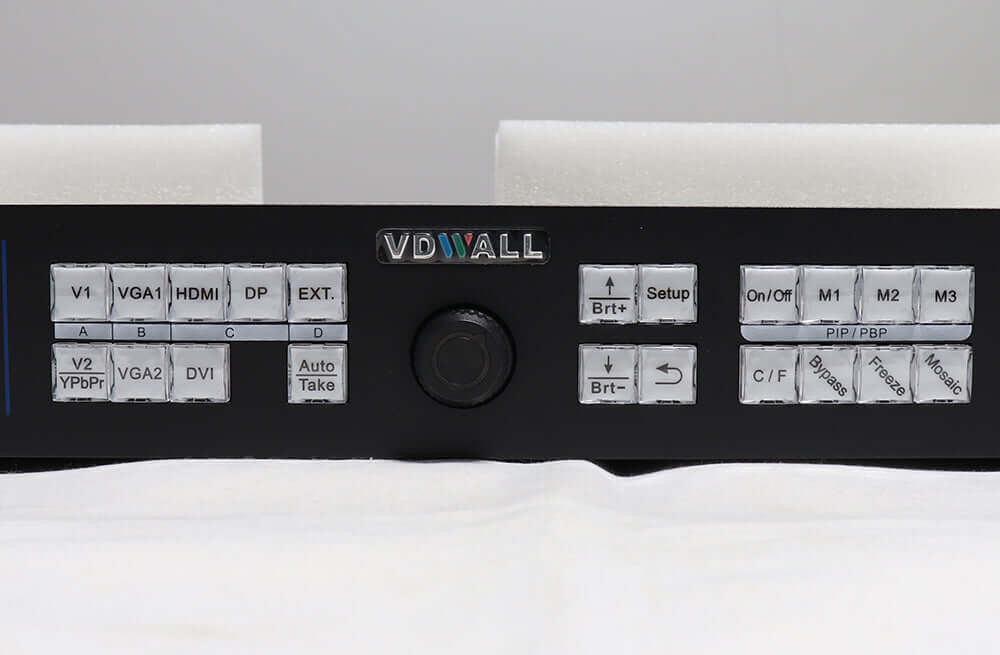

Seamless, fade and blend switching are available through one-key or Preselect + TAKE operation. Three custom PIP/PBP display modes support quick layout changes. AIAO cropping, editable DVI EDID and DVI loop-through support display matching and synchronized multi-unit layouts.
Technical specifications
Parameters below follow the linked LVP615 overview, version 1.1.
| Parameter | Specification |
|---|---|

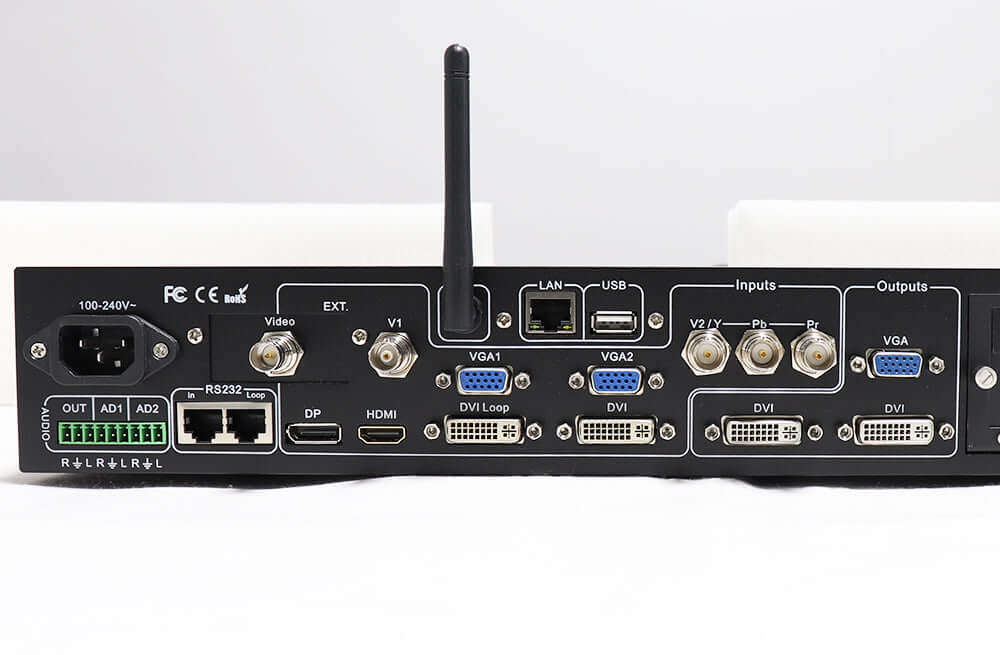

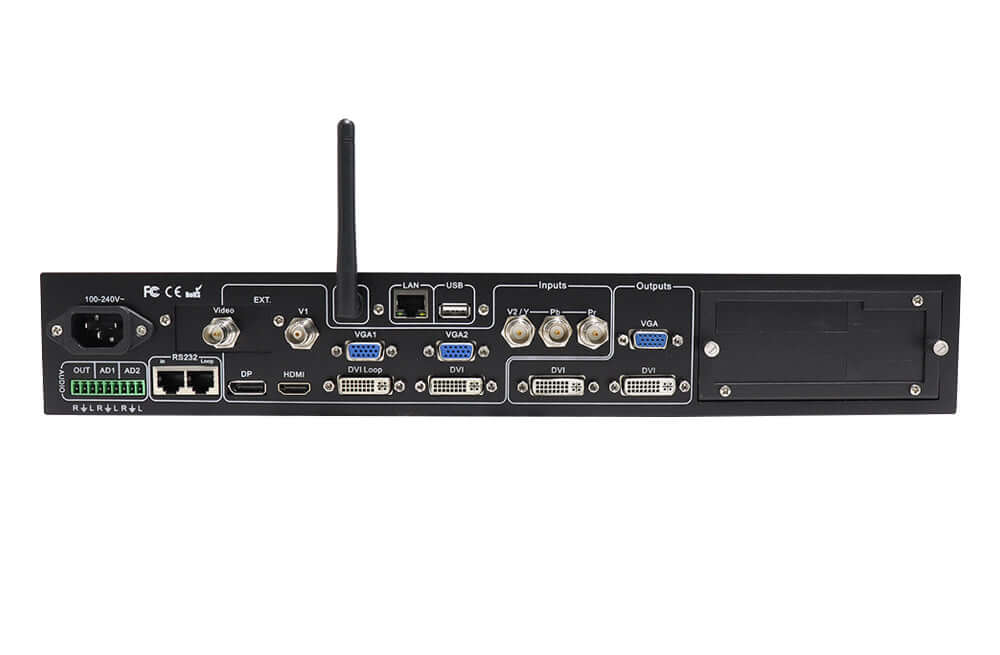

| Main inputs | 2 × Video; 1 × YPbPr; 2 × VGA; 1 × DP; 1 × DVI; 1 × HDMI |
| Extended input | VIDEO |
| Outputs | 1 × VGA; 2 × DVI |
| VGA input | Up to 2048 × 1152 at 60Hz |
| DVI / HDMI PC input | Up to 2304 × 1152 at 60Hz |
| HDMI video input | Up to 1920 × 1080p at 60Hz |
| Custom output limits | Width up to 3840 pixels or height up to 1920 pixels |
| Control | RS232 / USB / LAN / Wi-Fi / infrared |
| Input voltage | 100–240VAC, 50/60Hz |
| Maximum power consumption | ≤25W |
| Temperature | 0–45°C |
| Humidity | 15–85% |
| Package size | 130 × 350 × 520 mm (H × W × L) |
| Weight | Net 4.0 kg; gross 5.7 kg |
Frequently asked questions
Which expansion input does this LVP615 include?
The linked base-model specification identifies the extended input as VIDEO. Confirm the exact configuration if you need SDI, additional digital inputs or USB media playback.
Can the LVP615 display picture-in-picture?
Yes. It supports PIP/PBP and three custom dual-picture modes with one-key switching.
Are LED sending cards included?
The specification describes accommodation for two LED sending cards and identifies the cards as optional. Confirm the supplied configuration before purchase.
Can I set a 3840 × 1920 output?
The maximum horizontal and vertical values are separate limits. Use a supported output timing from the specification instead of combining both maximum values.
Product images and specification PDF
| Weight | 7 kg |
|---|
