CZCL A-200AF-4.5 4.5V 40A Fanless LED Power Supply
$ 7.20
CZCL A-200AF-4.5 fanless LED power supply rated at 4.5 V, 40 A and 180 W. The low-profile enclosure measures 190 × 82 × 30 mm and requires auxiliary heat sinking at full load.
9987 in stock
A-200AF-4.5 low-profile 4.5 V LED supply
The CZCL A-200AF-4.5 is the 180 W, 4.5 V version of the A-200AF series. Its fanless design and 30 mm enclosure height suit compatible LED cabinet layouts, with short-circuit and overload protection.
Use the exact model column when selecting the supply: the series includes different output voltages and power ratings. Full-load operation requires the specified aluminum heat-sink plate, and the temperature derating curve remains applicable.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | CZCL A-200AF-4.5 |
| Rated output | 4.5 V DC, 40 A, 180 W |
| AC input / frequency | 180–264 V AC / 47–63 Hz |
| Input-current entry | 2.5 A at 230 V AC |
| Efficiency | ≥85% for the 4.5 V model; electrical testing at 25°C |
| Cold-start inrush / leakage | 60 A at 230 V AC / less than 1 mA at 240 V AC |
| Output adjustment / tolerance | ±3.0% / ±3.0% |
| Line / load regulation | ±0.5% / ±2.0% |
| Ripple and noise | 150 mVp-p with the PDF’s 20 MHz measurement method |
| Setup / rise / hold-up time | 2000 ms / 50 ms / 20 ms at 230 V AC and full load |
| Overload protection | 110–150% rated load; hiccup mode, automatic recovery after fault removal |
| Short-circuit protection | Automatic output recovery after the short is removed |
| Cooling | Fanless free-air cooling; full load requires a 400 × 400 × 3 mm auxiliary aluminum plate |
| Operating conditions | −20 to 70°C; 20–95% RH non-condensing; temperature derating applies |
| Storage conditions | −40 to 85°C; 10–95% RH non-condensing |
| Dimensions / listed unit weight | 190 × 82 × 30 mm / 0.36 kg |
| Mounting | M3 × 6 mm screws; maximum housing penetration 4 mm |

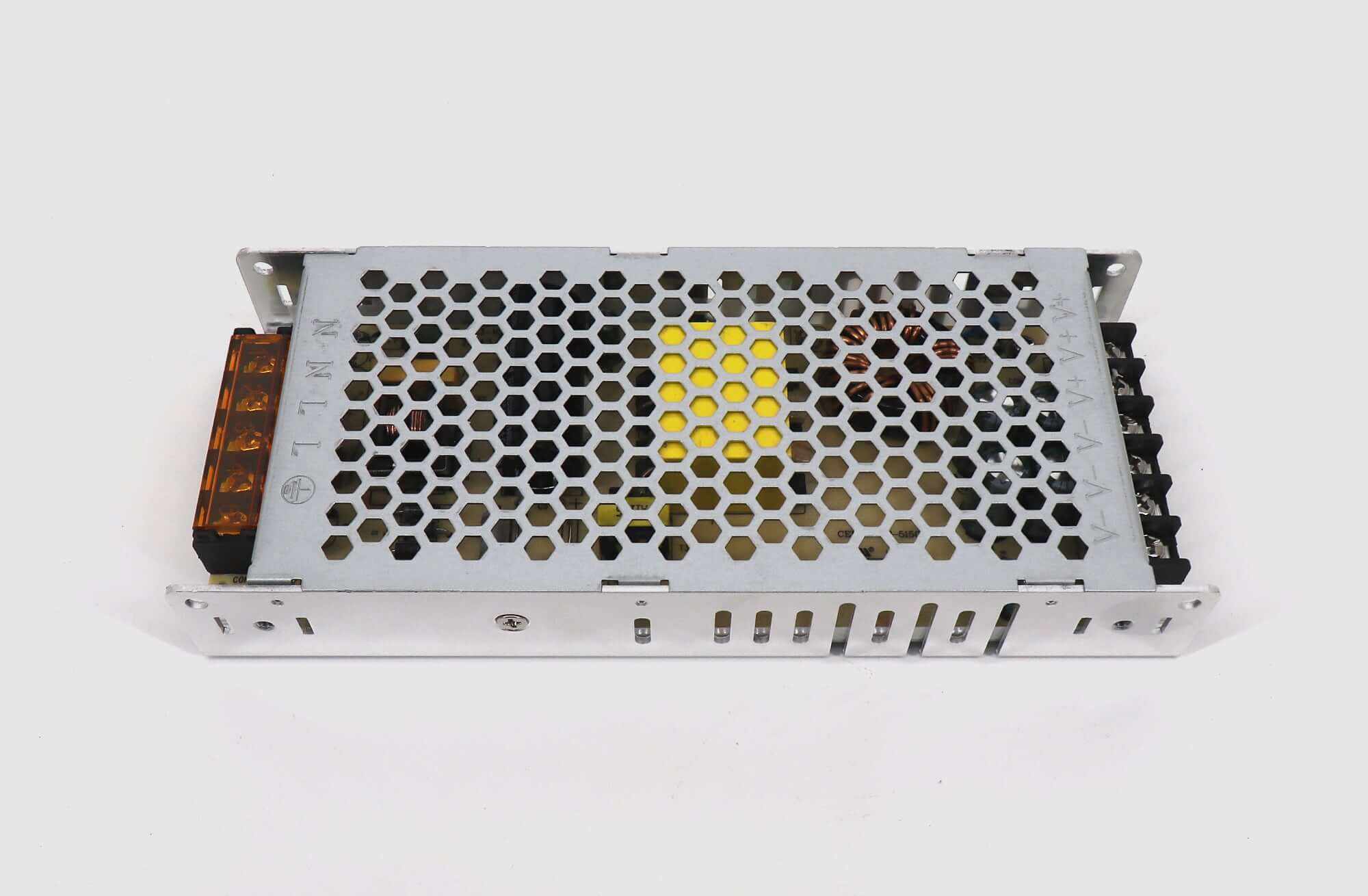

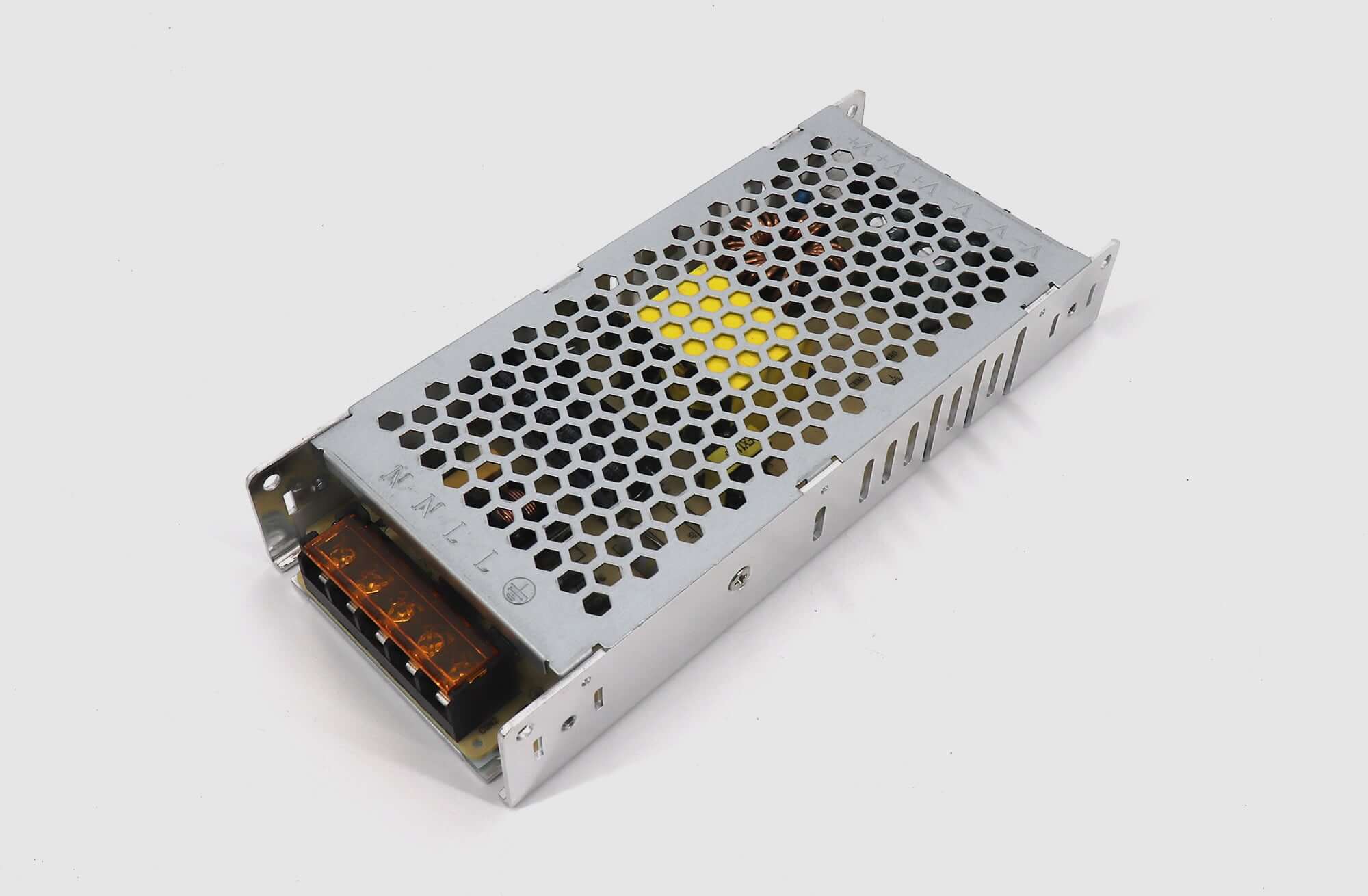

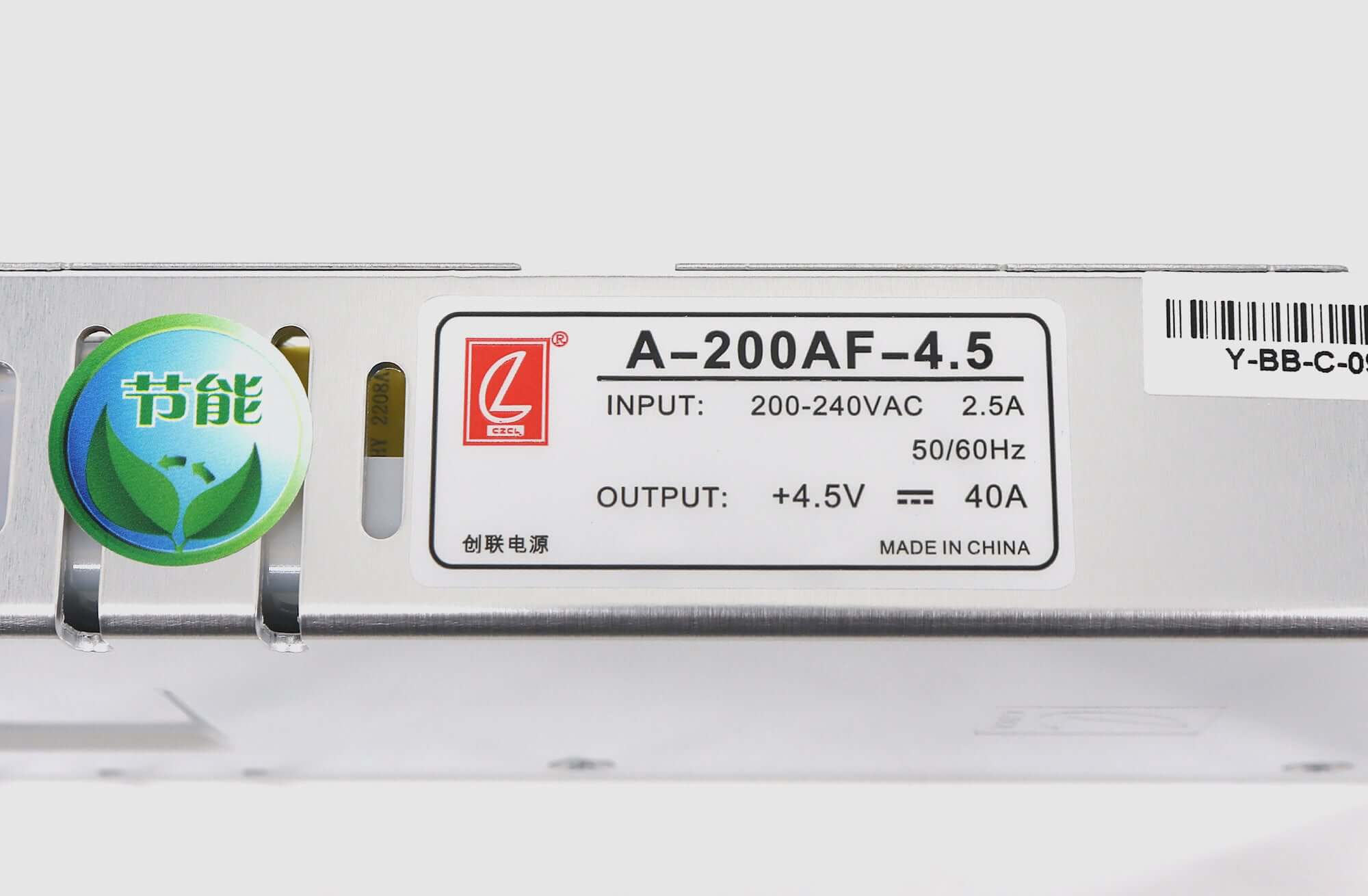

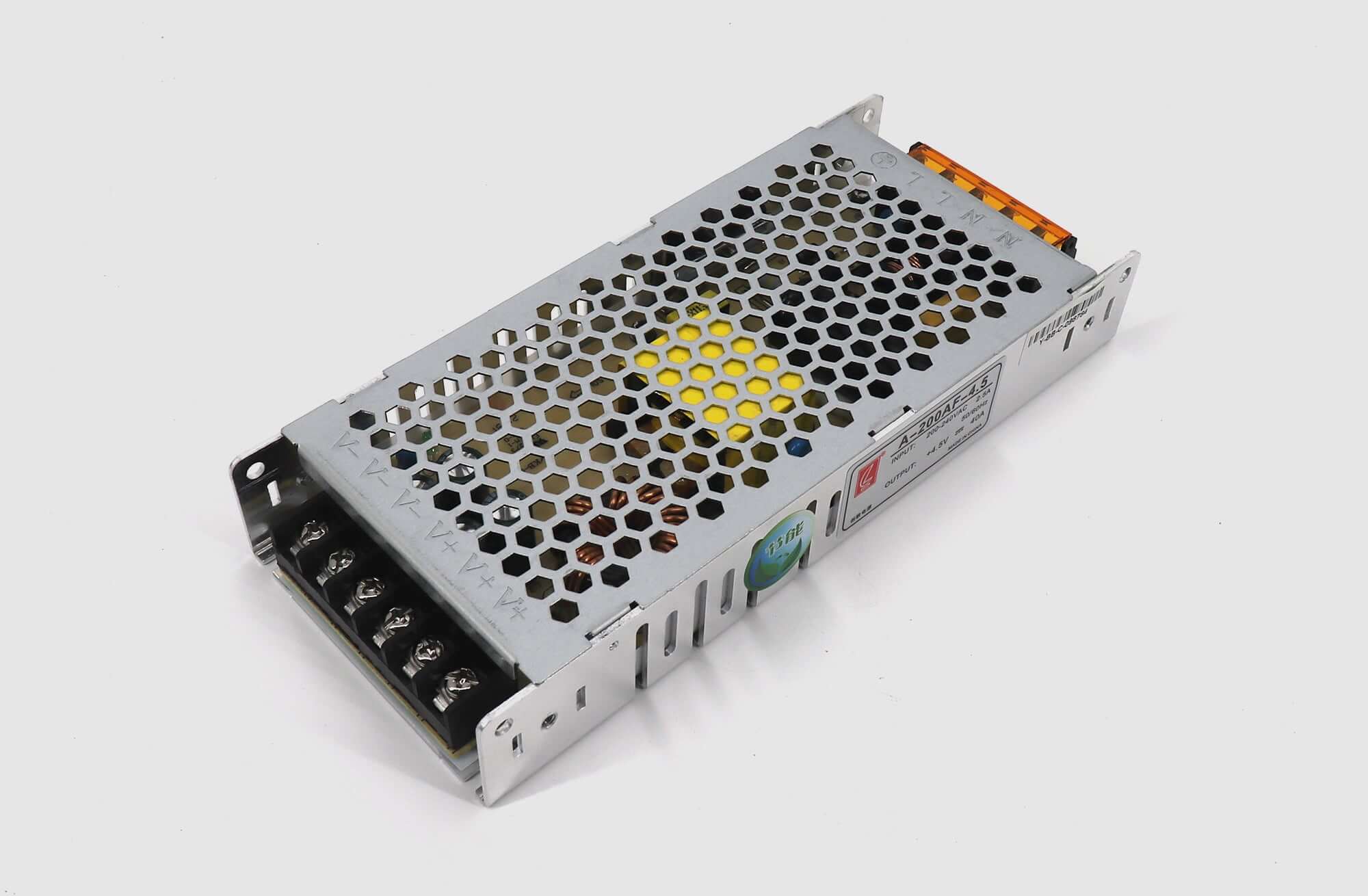

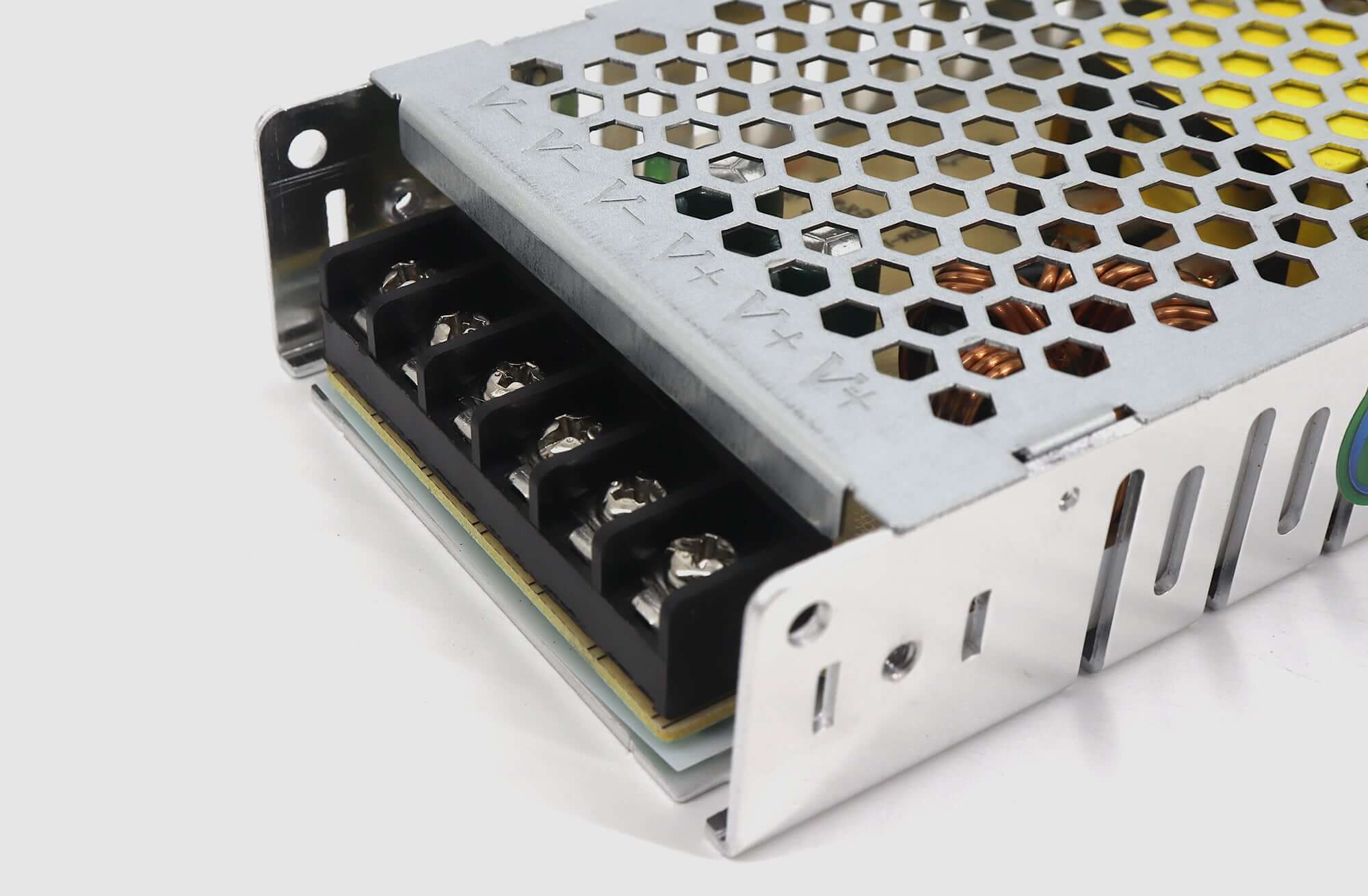

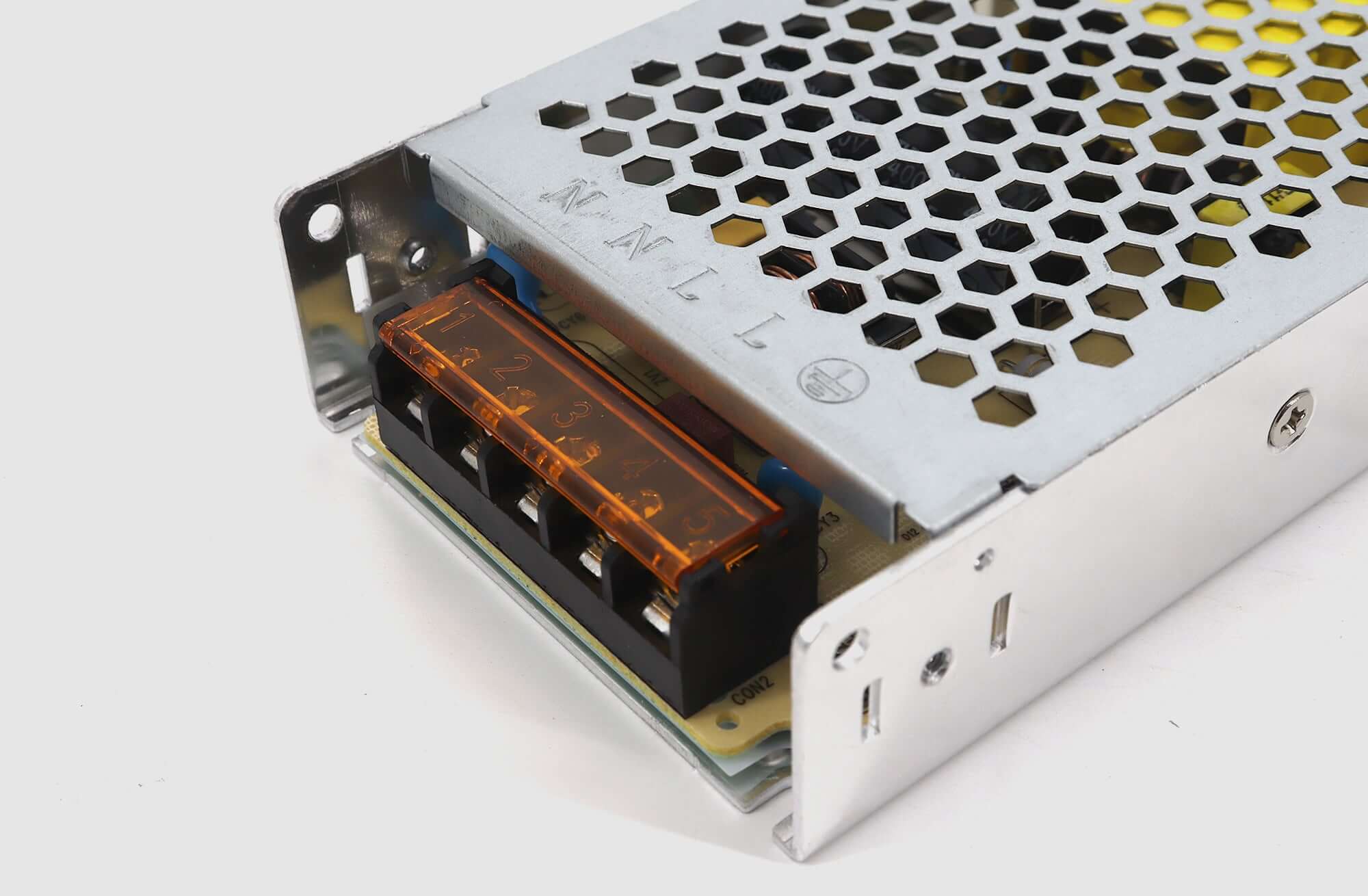

Product images and specification download
CZCL A-200AF-4.5 Low Profile LED Power Supply Specification
Frequently asked questions
Is the A-200AF-4.5 rated at 200 W?
The exact 4.5 V model column lists 40 A and 180 W. The 200 W figure belongs to the 5 V model in the series; it should not be applied to the 4.5 V variant.
Can this supply replace a 5 V model?
The nominal output is 4.5 V with a documented ±3% adjustment range. Match the LED module’s voltage requirement and the complete electrical and mechanical specification before considering a replacement.
What AC input is supported?
The specified range is 180–264 V AC at 47–63 Hz. The document does not list 110 V AC operation for this series.
Does the fanless supply need an aluminum plate?
Yes. The manual requires a 400 × 400 × 3 mm aluminum plate for full-load operation. Follow the derating curve as cabinet temperature rises.
How does it recover from overload or a short circuit?
Overload protection is specified at 110–150% of rated load in hiccup mode, with recovery after the fault is removed. Short-circuit protection also recovers automatically after the short is cleared.
| Weight | 0.6 kg |
|---|
