Colorlight A35 Networked LED Player – 350,000 Pixels
Price range: $ 127.00 through $ 247.00
Colorlight A35 LED player with 350,000-pixel capacity, dual-band Wi-Fi, LAN and USB updates. Includes 8 GB storage with 4 GB available for programs; 4G and GPS are optional.

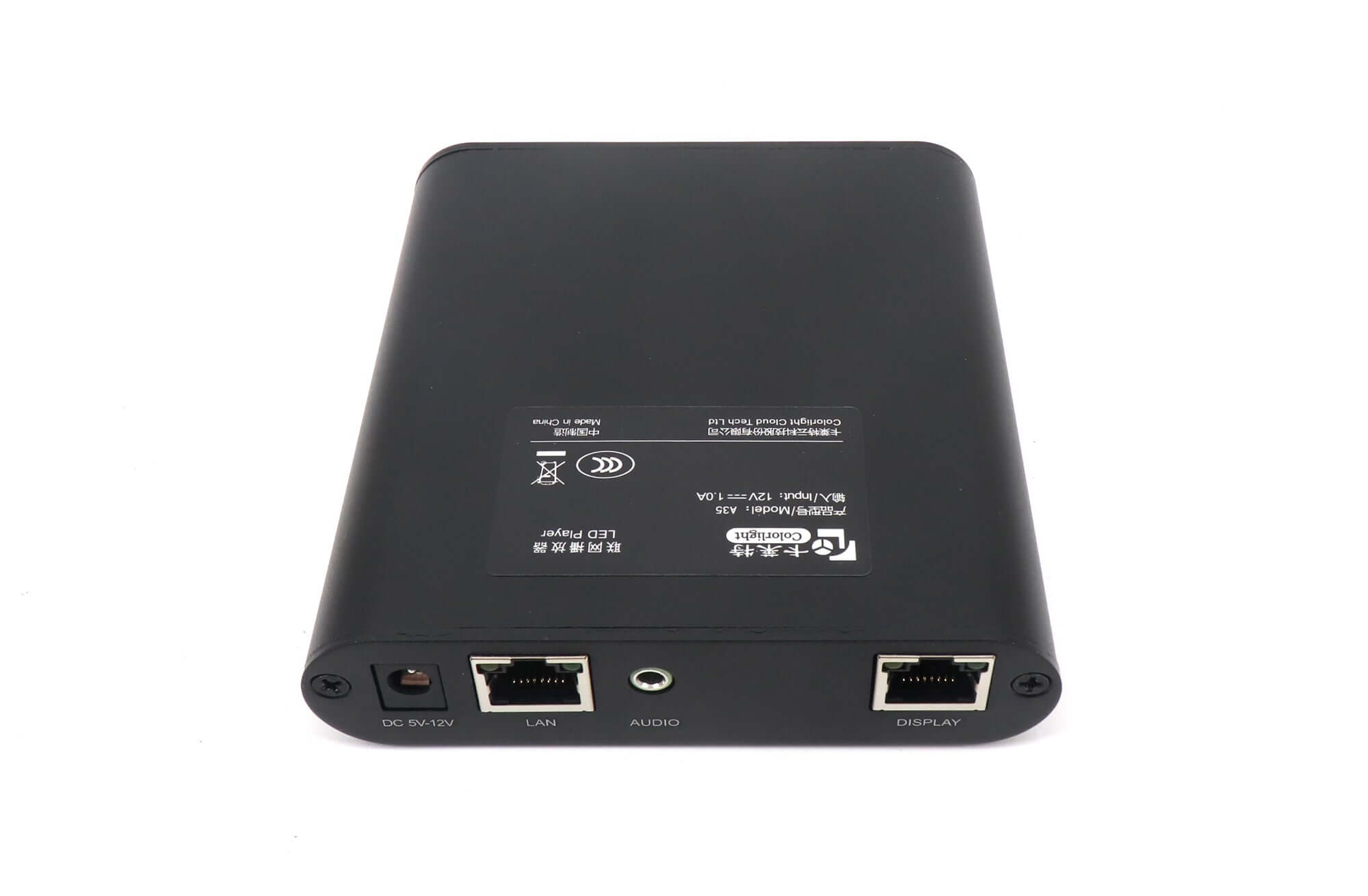

Colorlight A35 Networked LED Player
The Colorlight A35 is a compact networked player for LED displays up to 350,000 pixels. It combines local program storage, USB updates and network management, with dual-band Wi-Fi and a dedicated output to the LED receiving card. Optional 4G and GPS configurations are available.
Program Playback and Remote Management
Create multi-page programs with video, images, text and clocks. The A35 supports adjustable window positions, overlapping content and up to 32 program pages. It can decode one 4K video or play up to two HD video windows simultaneously; this describes media processing, while the LED screen remains limited to 350,000 pixels.
Wi-Fi supports hotspot and client modes, and LAN networking supports DHCP or a static address. Cloud functions include permission levels, role-based publishing, monitoring and alarms. USB storage supports plug-and-play content and playlist updates, while scheduled commands support routine display operation.
Technical Specifications
Based on the linked A35 specification V1.0 dated April 9, 2020.
| Parameter | Specification |
|---|---|
| Maximum LED loading capacity | 350,000 pixels |
| Maximum width / height | 2,048 pixels / 1,200 pixels; within total capacity |
| Video processing | 4K hardware decoding; one 4K or up to two HD video windows |
| Storage / RAM | 8 GB storage, 4 GB available for programs; 1 GB RAM |
| Operating system | Android 9.0 (Android Pie) |
| Receiving cards | Colorlight receiving-card series |

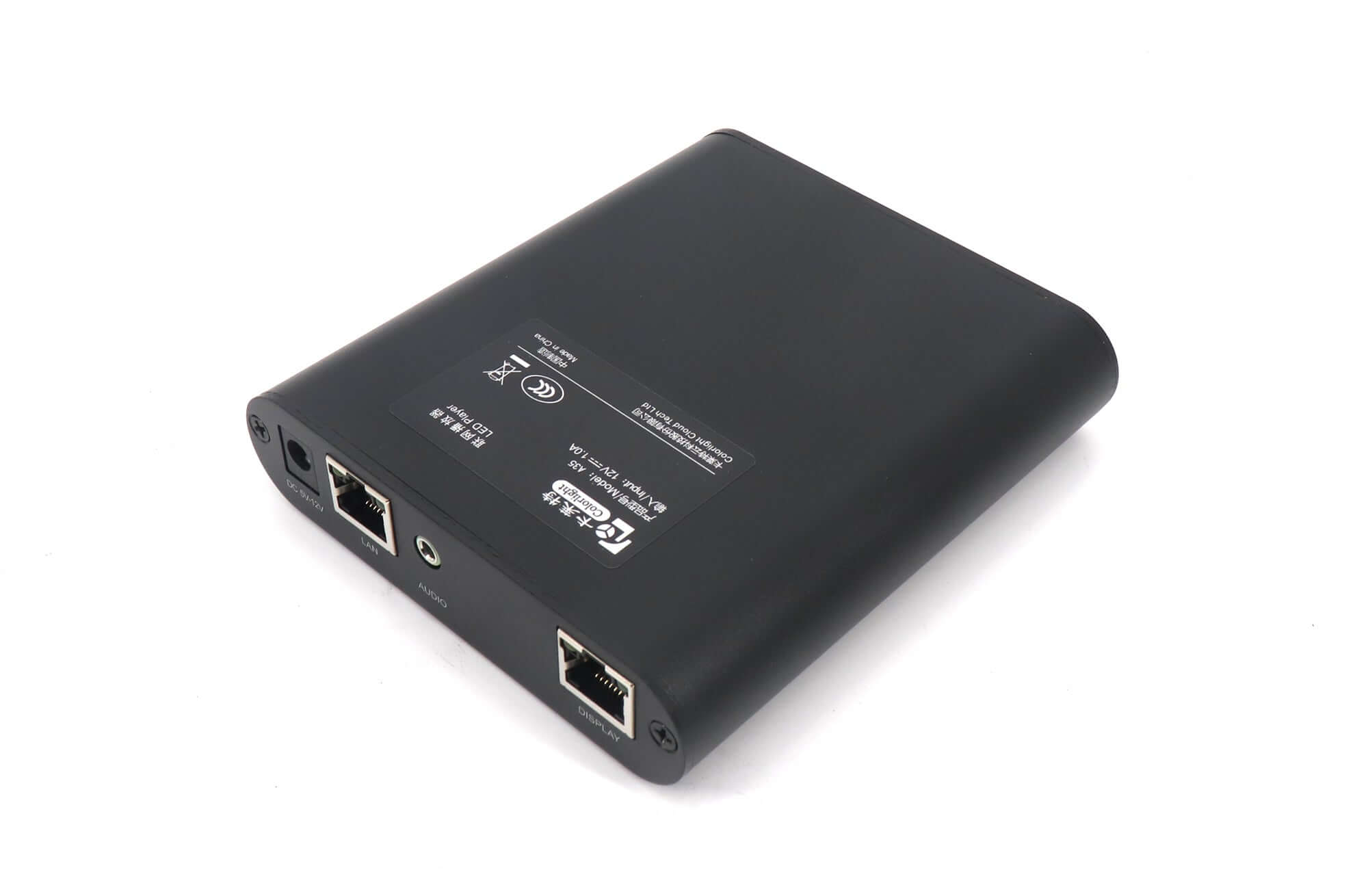

| Display output | RJ45 signal output to receiving card |
| Network | LAN with DHCP/static addressing; 2.4 GHz / 5 GHz Wi-Fi hotspot or client mode |
| Optional functions | 4G networking; GPS positioning |
| USB | USB-A 3.0 for program updates; USB-B CONFIG for settings and publishing |

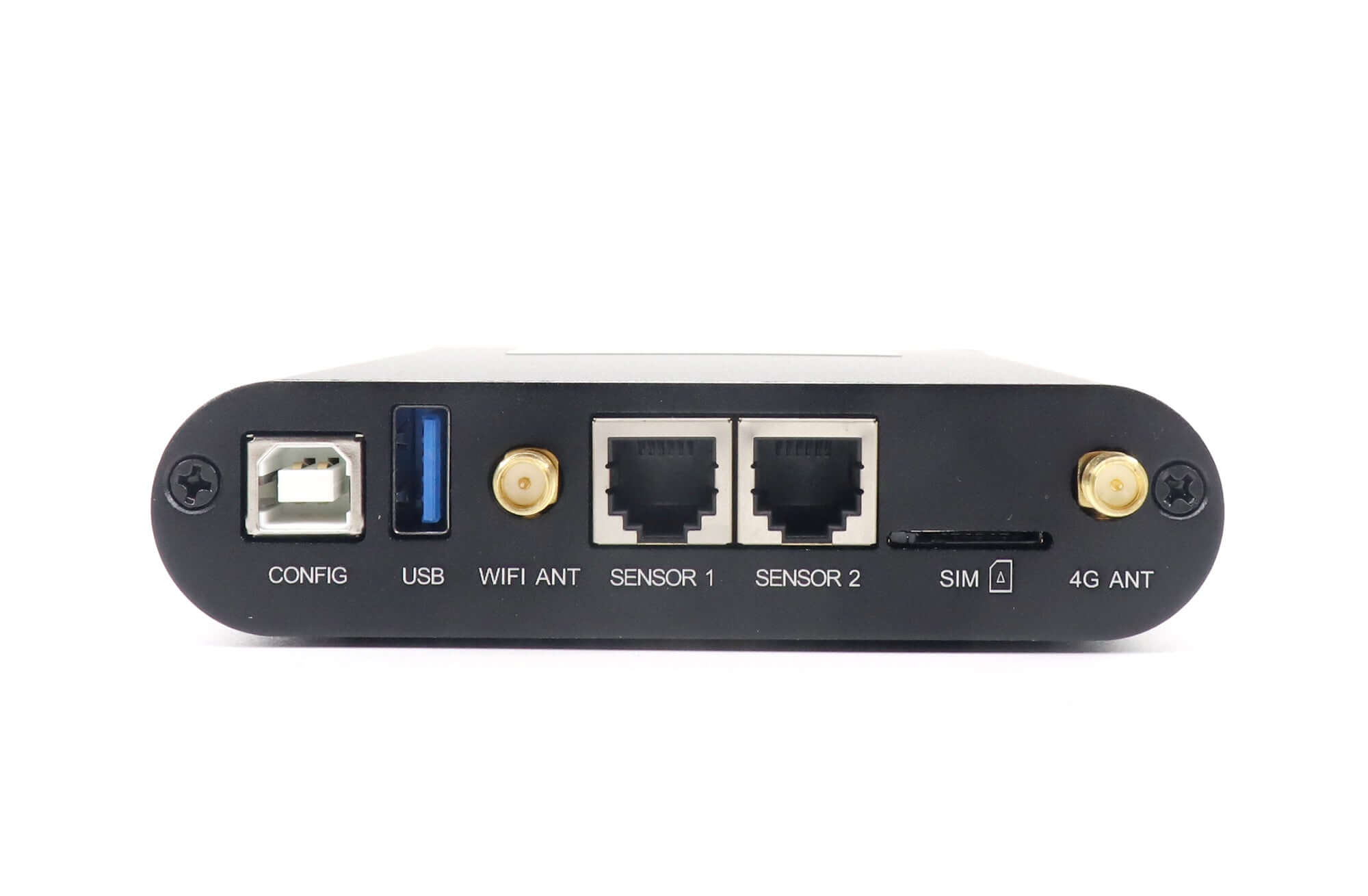

| Other interfaces | 2 × RJ11 sensor ports; Micro-SIM slot; 3.5 mm stereo audio output |
| Dimensions / weight | 108 × 128 × 26 mm / 0.33 kg |

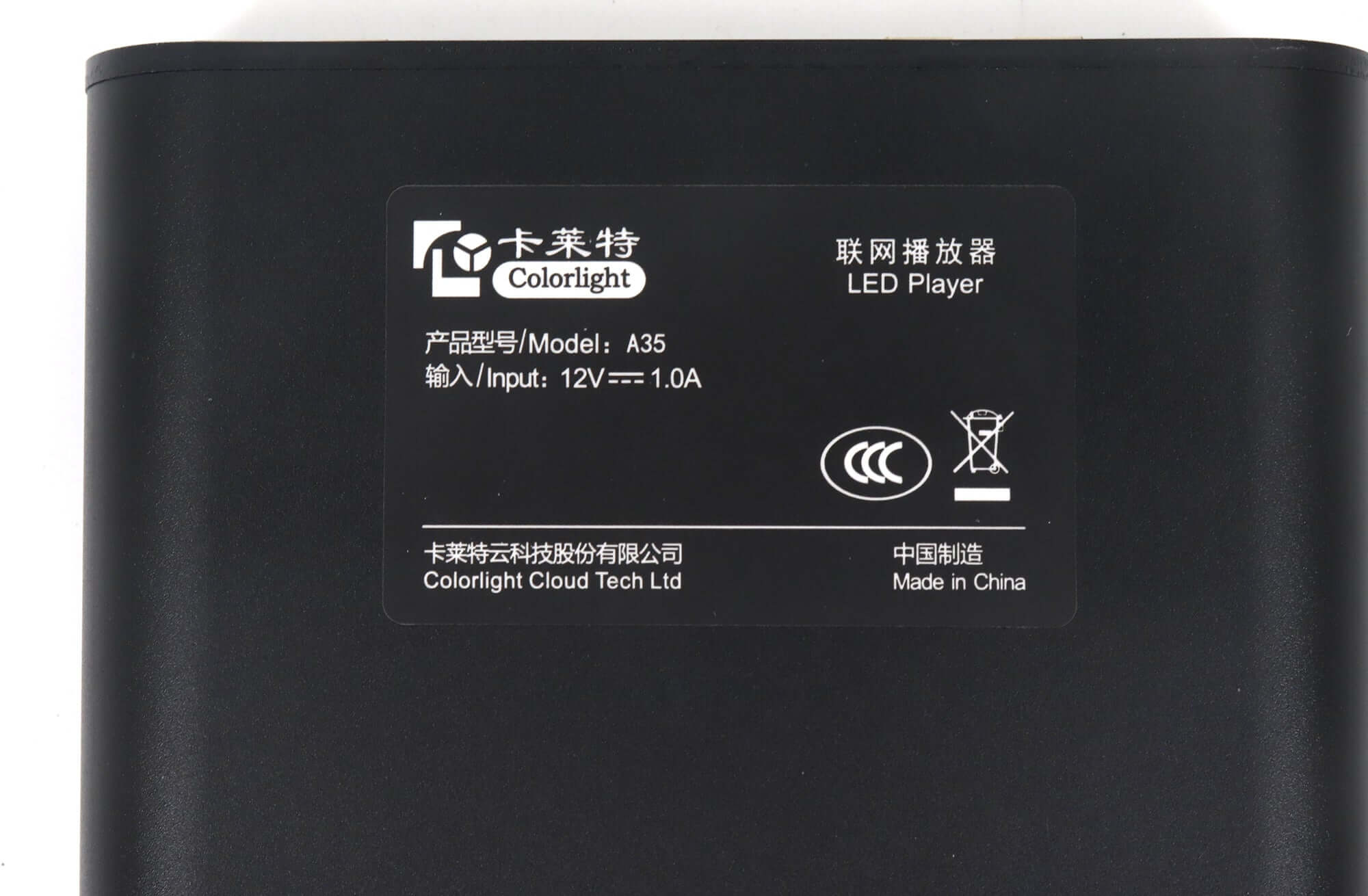

| Operating voltage | DC 5–12 V |
| Adapter input | AC 100–240 V, 50 Hz |
| Maximum power | 15 W |
| Operating temperature | −40°C to 80°C |
| Humidity | 0–95%, non-condensing |
Frequently Asked Questions
How many pixels can the Colorlight A35 load?
The maximum LED load is 350,000 pixels. Width can reach 2,048 pixels and height can reach 1,200 pixels, subject to the total capacity.
Does 4K decoding mean A35 can drive a 4K LED screen?
No. 4K decoding is a video-processing capability. The LED display output is still limited to 350,000 pixels.
Can A35 work over Wi-Fi without a network cable?
Yes. It supports 2.4 GHz and 5 GHz Wi-Fi in hotspot or client mode. Wired LAN is also available.
Are 4G and GPS standard on A35?
The specification identifies 4G networking and GPS positioning as optional. Confirm the required configuration before ordering.
Can I update A35 programs with a USB drive?
Yes. Its USB-A 3.0 port supports program updates, and the player supports USB plug-and-play content and playlist updates.
Product Images
