Colorlight iM9 Multifunction Card | LED Display Monitoring
$ 68.00
Colorlight iM9 multifunction card with eight relay switches for LED display power and equipment control. Supports temperature and humidity monitoring, automatic brightness adjustment and optional smoke monitoring.
10000 in stock
The Colorlight iM9 multifunction card adds environmental monitoring, automatic brightness adjustment and remote power control to a Colorlight LED display system. Its eight relay switches let operators control display power and supporting equipment from computer software.
Monitoring and Remote Control
The iM9 supports temperature and humidity monitoring, with optional smoke monitoring. Ambient brightness detection enables automatic screen brightness adjustment. Four switches are assigned to the LED display, while four serve air conditioning, fans or other switching functions; temperature-based automatic control is supported.
Audio transmission works in conjunction with the sending device. The automatic power-off function turns the display off when the sender signal is lost and back on when the signal returns.
iM9 Specifications
| Parameter | Specification |
|---|---|
| Relay switches | 8: 4 for the LED display and 4 for air conditioning, fans or other control |
| Input voltage | DC 3.8–5.5V |
| Rated power consumption | 4W |
| Dimensions | 149.9 × 96.5 mm |
| Weight | 180 g |
| Operating temperature | −25°C to +70°C |
| Storage and transportation temperature | −40°C to +125°C |
| Environmental monitoring | Temperature and humidity; smoke monitoring optional |
| Brightness control | Automatic adjustment according to ambient brightness |
| System compatibility | All series of Colorlight sending devices and receiver cards, as listed in V2.1 |
| Transmission equipment | Gigabit switch and fiber converter support |
| Audio transmission | Supported in conjunction with the sending device |
Connection Planning
Ethernet ports A and B connect to the controller or receiving card and identify the input/output direction automatically. RS232 is available for equipment control. Use only one of the two power inputs. Consult the specification for relay wiring, sensor connections and current limits before installation.
Frequently Asked Questions
What is the Colorlight iM9 used for?
It provides environmental monitoring, automatic brightness adjustment and remote power control for a Colorlight LED display system.
How many relay switches does the iM9 have?
The V2.1 specification lists eight: four for display power and four for air conditioning, fans or other switching functions.
Can iM9 adjust LED screen brightness automatically?
Yes. It supports automatic display brightness adjustment based on ambient brightness detection.
Does iM9 monitor temperature, humidity and smoke?
Temperature and humidity monitoring are supported. Smoke monitoring is optional, so check the required sensor configuration for your installation.
What power supply does iM9 require?
V2.1 specifies DC 3.8–5.5V input and 4W rated consumption. Only one of the two power inputs should be used.

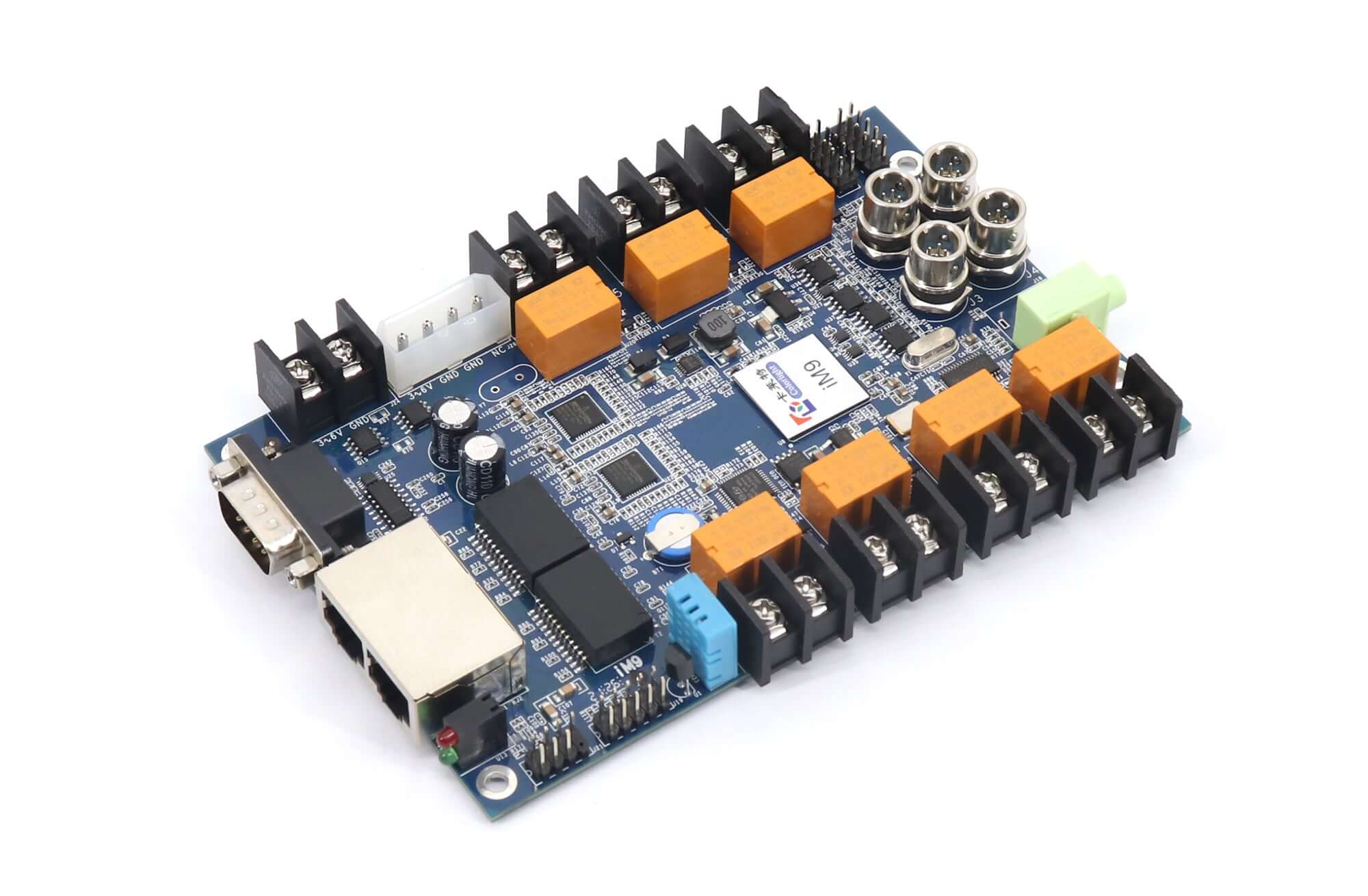

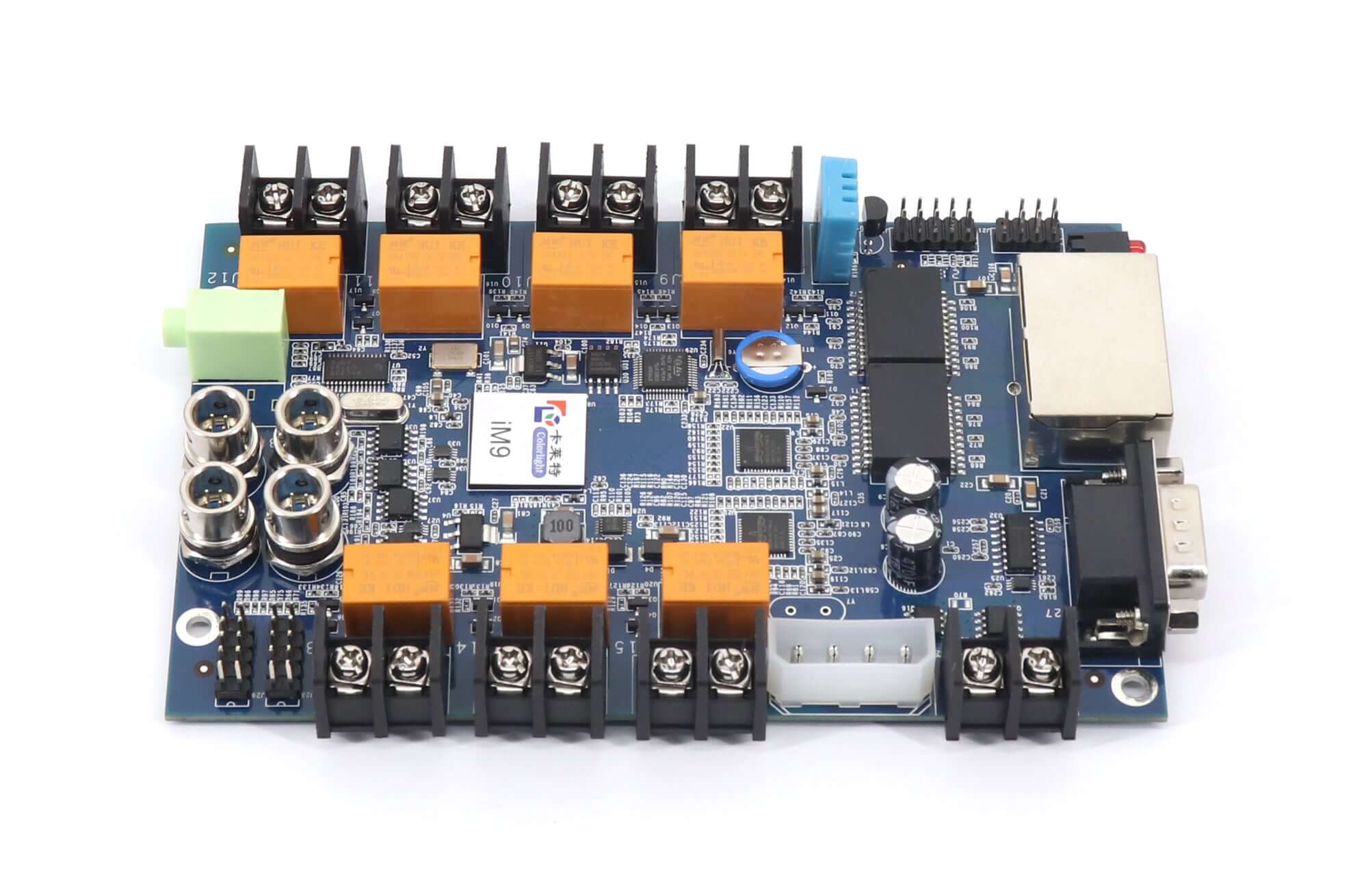

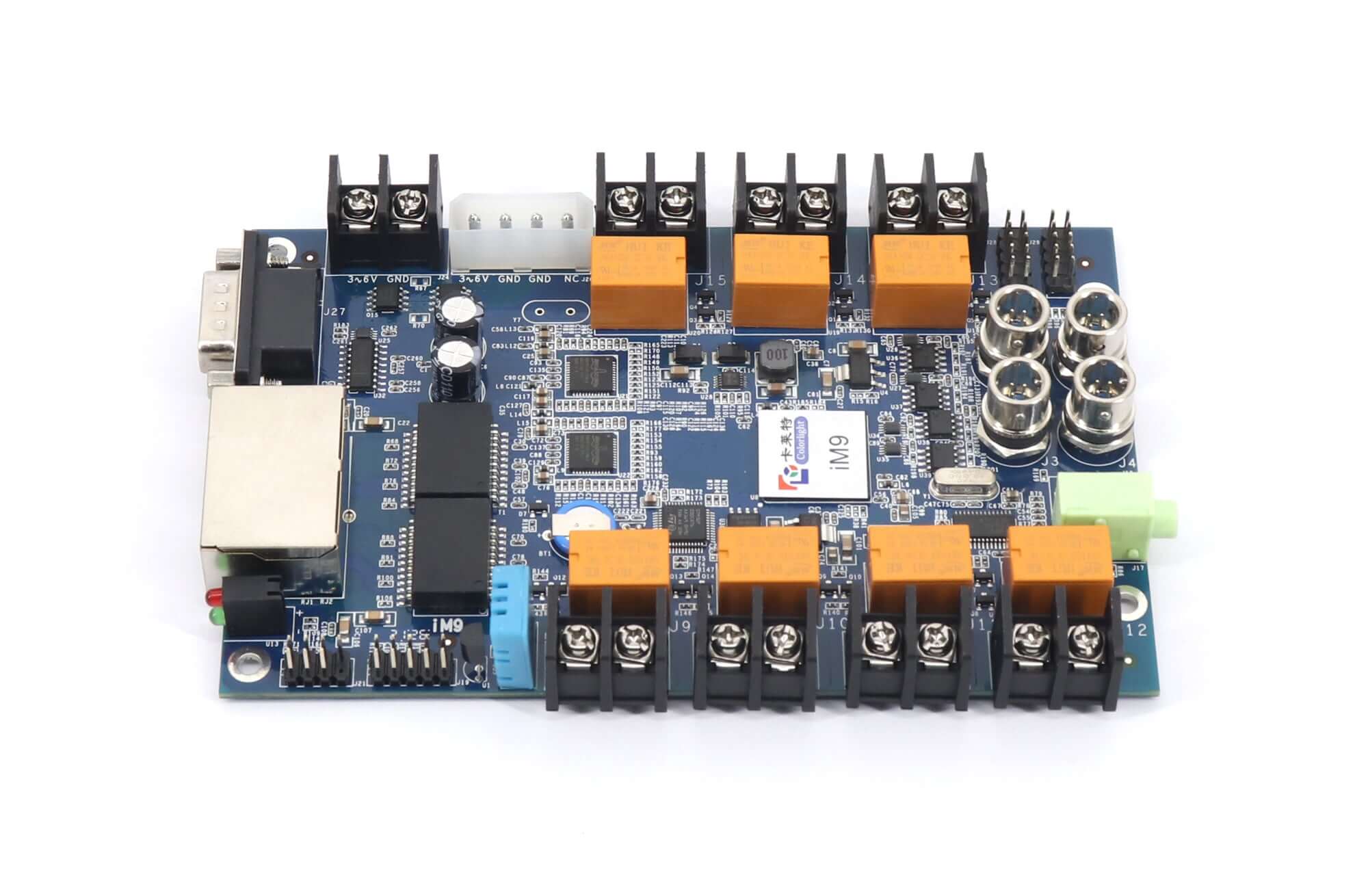

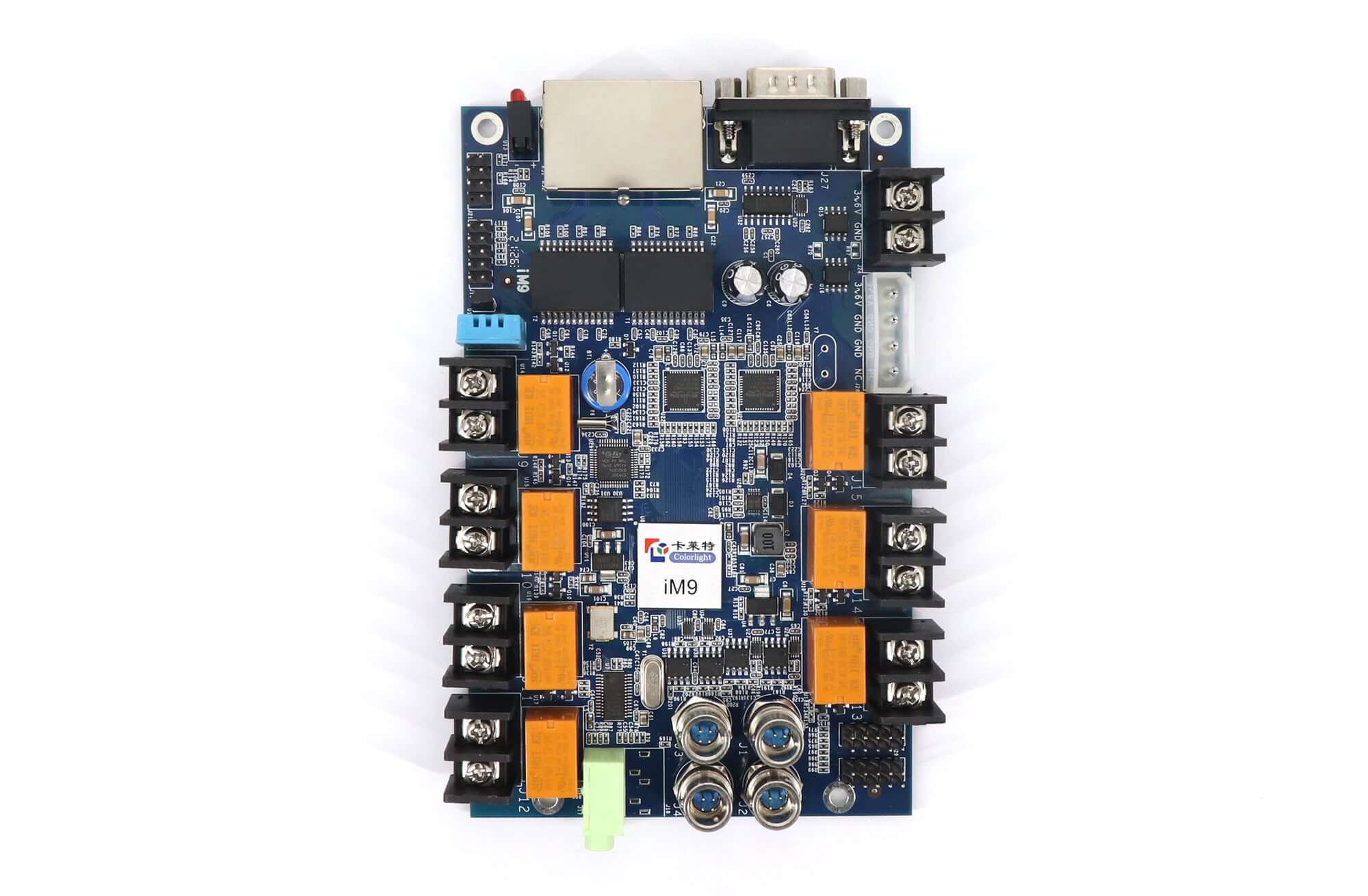

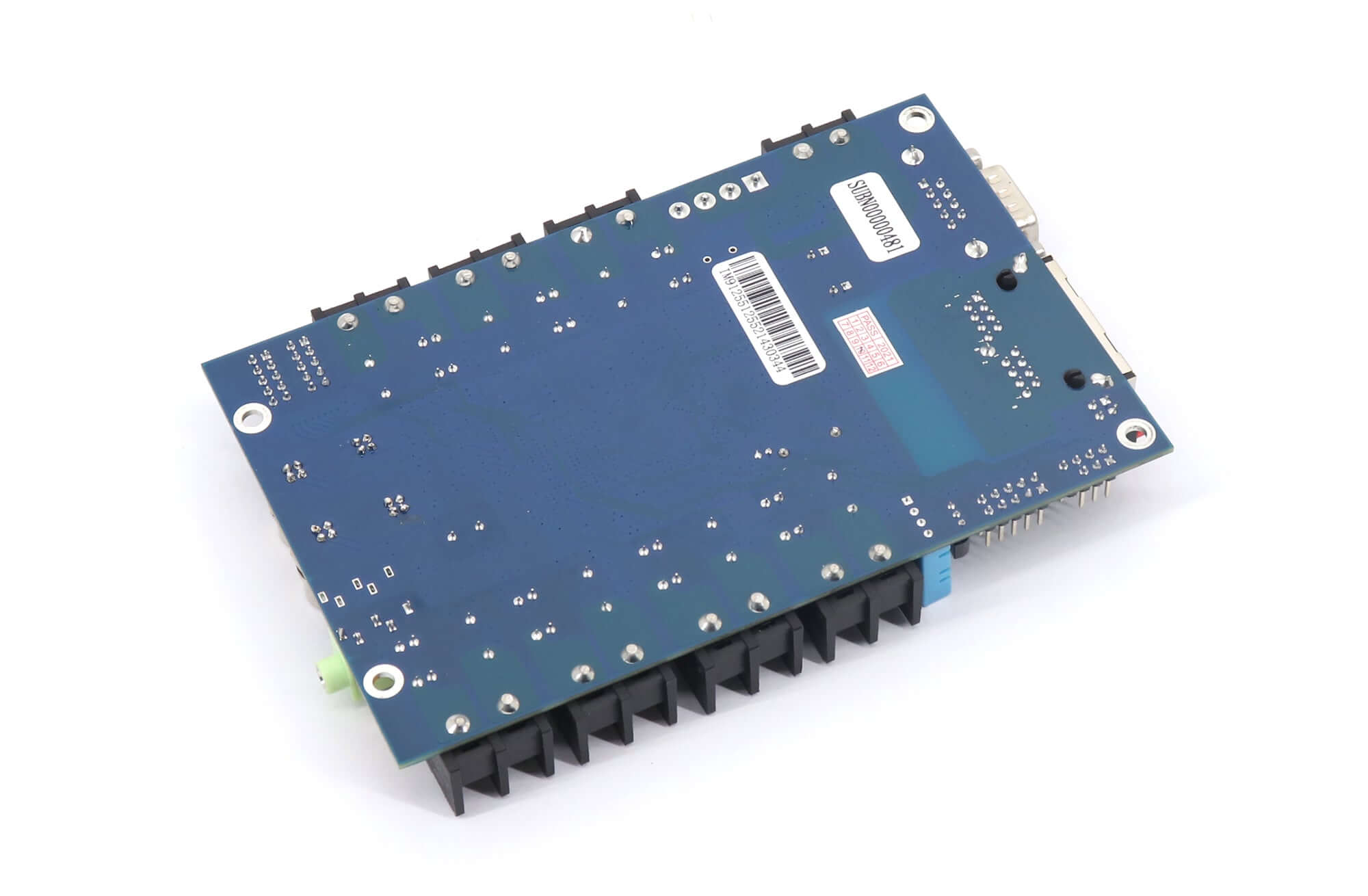

Product Images
Specification Download
| Weight | 0.6 kg |
|---|
