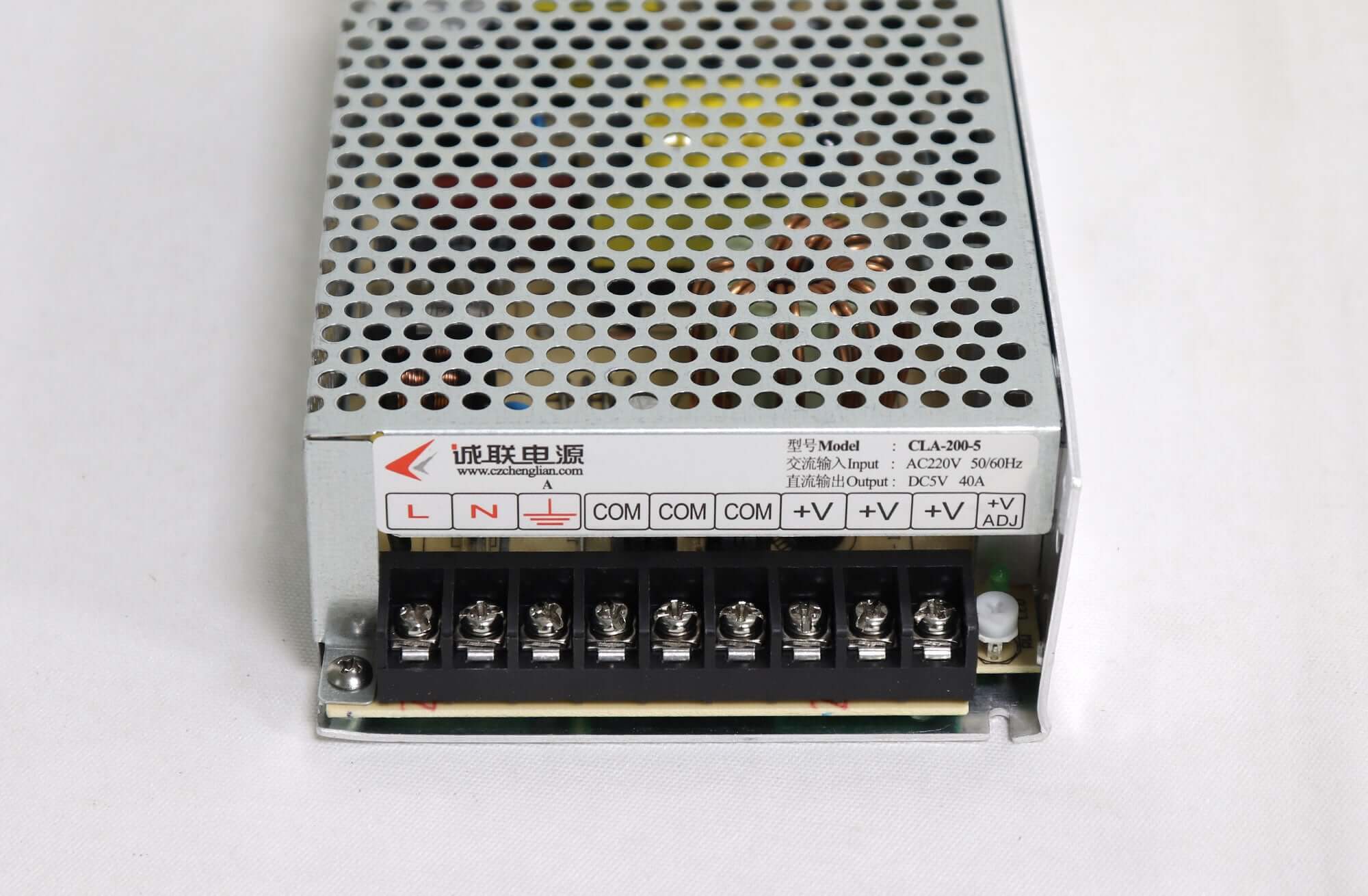

Check the selector position against the mains feed when fitting this supply. The 50–60 A figure describes the overcurrent protection threshold. Use the 40 A rated output when sizing the display load.
Product specifications
| Parameter | Specification |
|---|---|
| Model | CLA-200-5 |
| Input bands | 90–132 V AC or 190–264 V AC, switchable |
| Output | 5 V DC, 40 A, 200 W maximum |
| Output tolerance | ±2% |
| Ripple and noise | ≤150 mV peak-to-peak |
| Efficiency listed | ≥77% at 220 V AC |
| Power-on delay | Less than 2 s |
| Overcurrent protection | 50–60 A |
| Short-circuit response | Lockout, recovery after restart |
| Leakage current | Less than 0.75 mA at 240 V AC |
| Working temperature / humidity | −10 to +50 °C / 5–90% RH |
| Storage temperature | −20 to +85 °C |
| Cooling | Air convection |

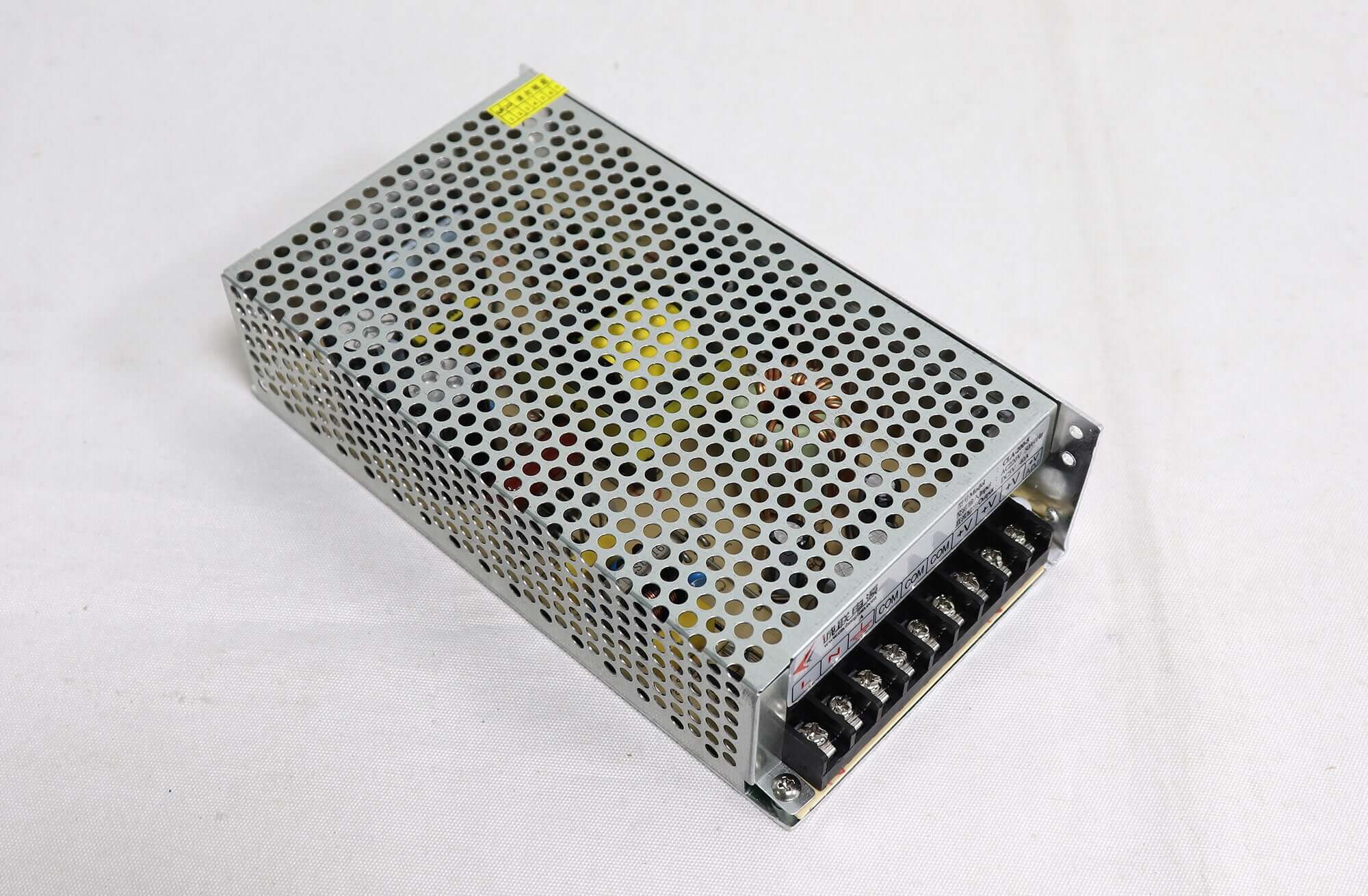

| Enclosure | 199 × 110 × 50 mm |


Frequently asked questions
Is 60 A the normal output rating?
The rated output is 40 A. The 50–60 A range is the listed overcurrent trip range.
Does the CLA-200-5 restart automatically after a short circuit?
The listed response is lockout with recovery after a restart. Correct the fault before restarting.
What space does this supply occupy?
The enclosure measures 199 mm long, 110 mm wide and 50 mm high. Allow space for wiring and convection cooling.
