XingXiu DSP500B-4232 Dual-Output LED Power Supply
$ 39.50
The XingXiu DSP500B-4232 is a 385W dual-output LED power supply providing 4.2V and 3.2V DC. It accepts 90–264V AC input and uses an LLC control design with input-to-output isolation.
10000 in stock
Dual 4.2V and 3.2V outputs for LED equipment
The XingXiu DSP500B-4232 provides two DC rails from a 100–240V AC nominal supply. Its specified rated output power is 385W, with typical efficiency of 90% at 230V AC and full load.
This LLC power supply uses input-to-output isolation and ventilation cooling in a 180 × 68 × 26mm enclosure. When replacing a dual-rail supply, compare each load requirement and the terminal layout using the specification PDF; matching total power alone is not enough.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | XingXiu DSP500B-4232 |
| DC output rails | 4.2 V and 3.2 V |
| Rated output power | 385 W |
| Input voltage range | 90–264 V AC |
| Nominal input | 100–240 V AC |
| Frequency | 47–63 Hz |
| Maximum AC input current | 6 A at 100 V AC |
| Cold-start inrush current | Less than 60 A at 230 V |
| Typical full-load efficiency | 90% at 230 V AC |
| Leakage current | Less than 1 mA at 230 V AC |
| Input fuse | T6.3AL / 250 V AC |
| Power factor | Greater than 0.95 at 230 V AC |
| Cooling | Ventilation cooling |
| Dimensions | 180 × 68 × 26 mm |

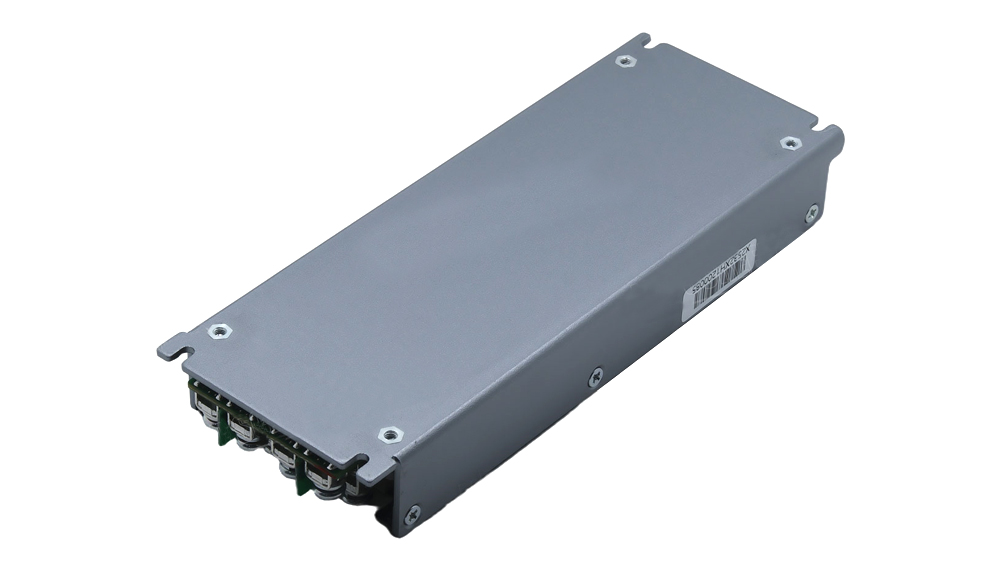

Product images and specification download
Download Specification:
XingXiu DSP500B-4232 LED Power Supply Specification
Frequently asked questions
Is the DSP500B-4232 a single-output or dual-output supply?
It is a dual-output power supply with 4.2V and 3.2V DC rails. Check the requirements of both connected loads when selecting it.
Is this model rated at 500W?
The listed rated output power is 385W. The model designation DSP500B-4232 should not be used as a substitute for the specified output rating.
Can it operate from 110V or 230V AC?
Yes, both fall within its 100–240V AC nominal input range. The full specified input range is 90–264V AC at 47–63Hz.
What efficiency and enclosure size are specified?
Typical efficiency is 90% at 230V AC and full load. The enclosure measures 180 × 68 × 26mm and uses ventilation cooling; check the PDF for installation details.
| Weight | 1 kg |
|---|
