CZCL A-350AA-5 5V 70A 350W LED Power Supply
$ 15.20
Discontinued — no longer available.
CZCL A-350AA-5 low-profile LED power supply.
- 5V / 70A output
- 350W maximum output power
- Switchable 100–120VAC / 200–240VAC
- 218 × 117 × 30.5mm enclosure
CZCL A-350AA-5 power supply overview
The CZCL A-350AA-5 is the 5V, 70A, 350W LED power supply identified in the original listing. It has a low-profile 218 × 117 × 30.5mm enclosure and switchable AC input ranges of 100–120VAC or 200–240VAC.
The original listing recommends CZCL A-350AK-5 as an alternative. Check the input selection, output requirements, connections and mounting dimensions before choosing a replacement.
CZCL A-350AA-5 electrical specifications
| Item | Specification |
|---|---|
| Output voltage | 5V |
| Output current | 70A |
| Maximum output power | 350W |
| AC input ranges | 100–120VAC or 200–240VAC; switchable |
| Input frequency | 47–63Hz |
| Power factor | 0.80 at 230VAC |
| Inrush current | 60A at 230VAC |
| Leakage current | 0.30mA at 230VAC |
Protection and insulation ratings
| Item | Specification |
|---|---|
| Protection functions | Input undervoltage, overload and short circuit |
| Overload behavior | 110%–140%; output is cut down, with recovery after resetting the input, as listed |
| Input to output | 3.0kVAC |
| Input to frame ground | 1.5kVAC |
| Output to frame ground | 0.5kVAC; original insulation entry specifies 1 minute |
| Listed safety standards | GB4943, UL60950-1, EN60950-1 |
| Listed EMC standards | GB9254, EN55022 |
Dimensions, cooling and original product notes
| Item | Specification |
|---|---|
| Dimensions | 218 × 117 × 30.5mm |
| Working temperature | −30°C to +60°C |
| Cooling | Air cooling |
| Original warranty statement | 2 years, as stated in the legacy listing |
- Original feature claims include dust, moisture and static protection.
- The listing describes high-standard components and 100% full-load high-temperature aging tests.
- These retained details identify the discontinued model; confirm the applicable terms and specifications for any alternative product.

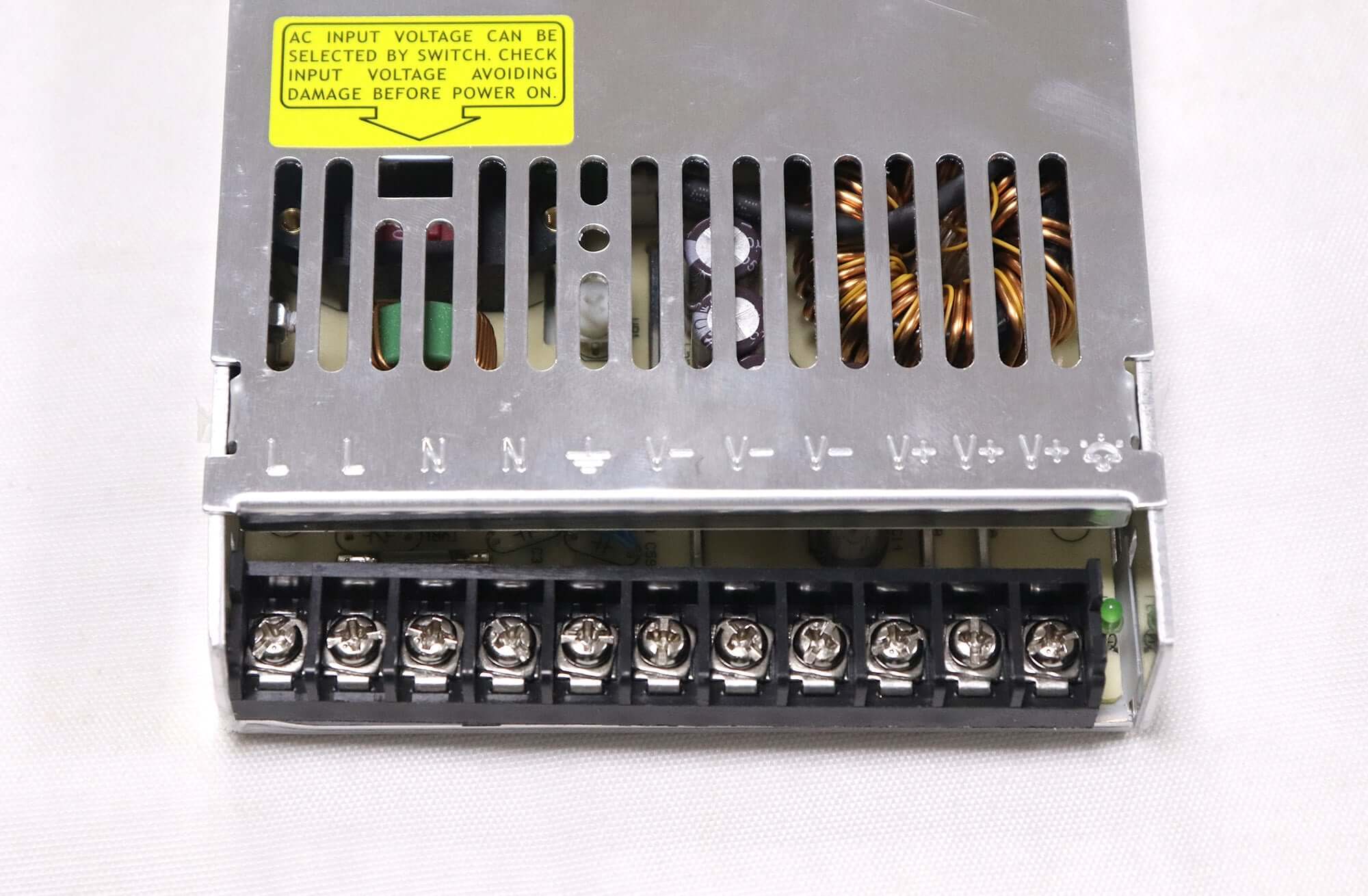

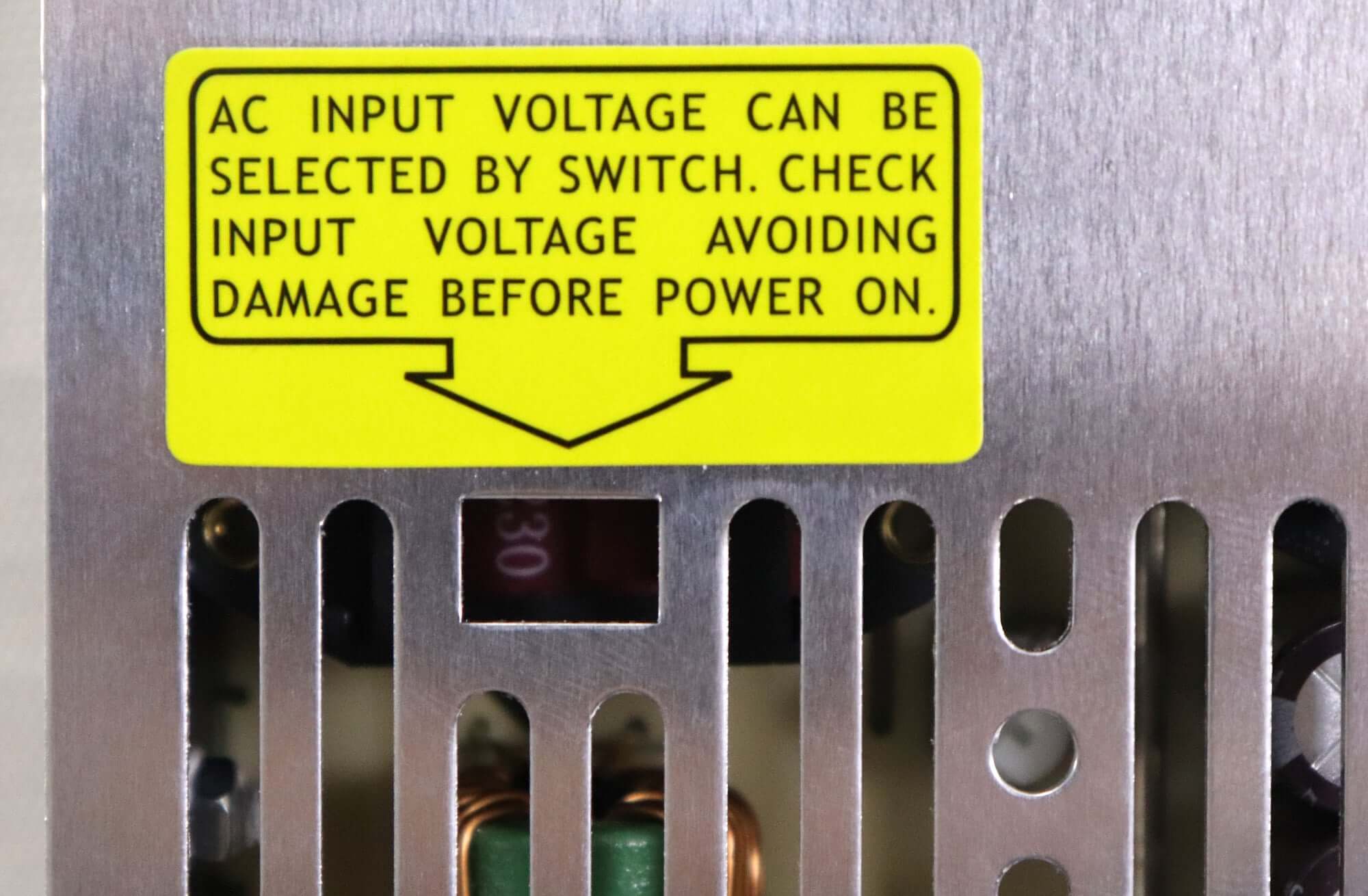

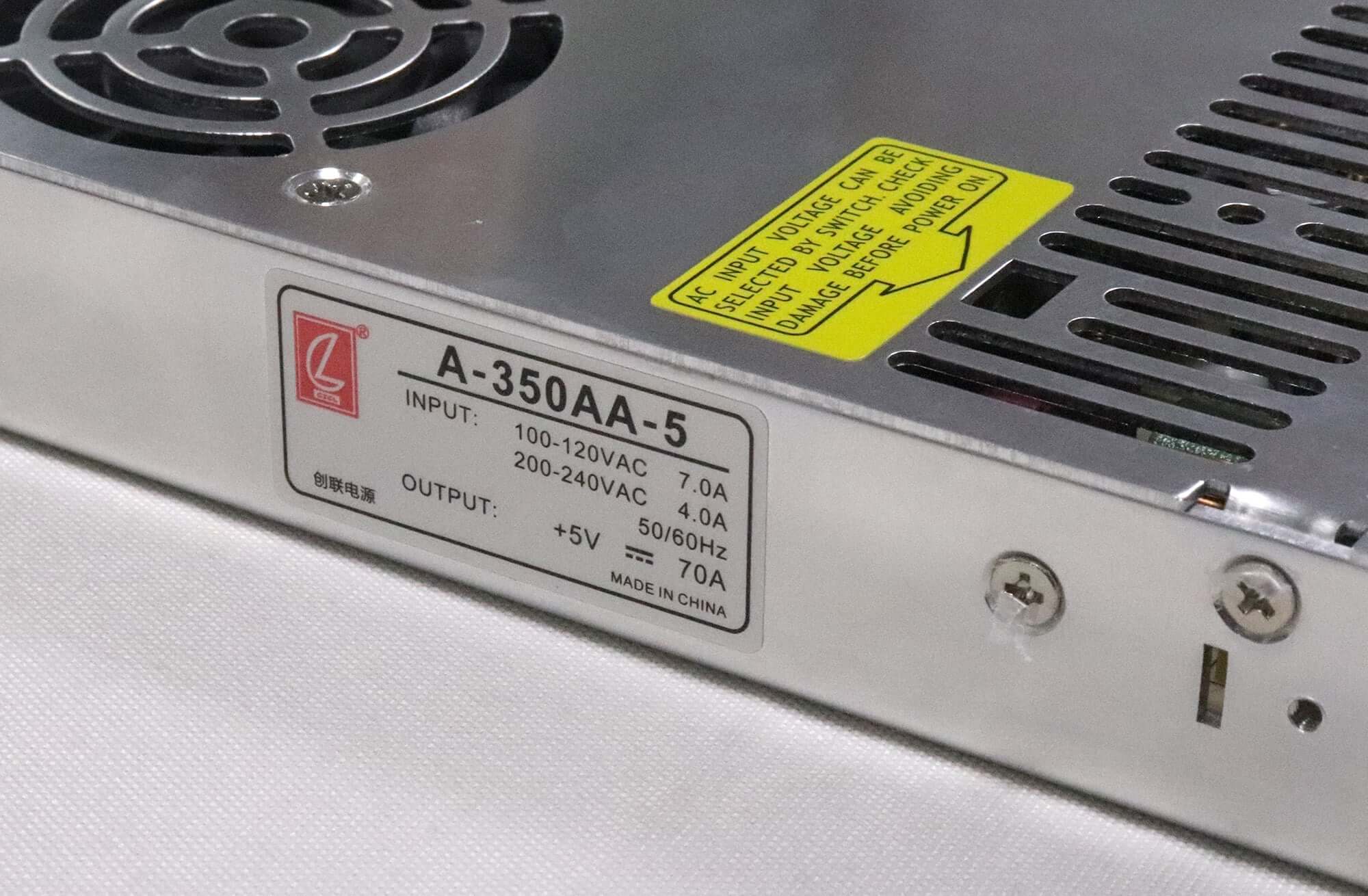

Original product images
Frequently asked questions
Q1Is the A-350AA-5 input automatically universal?
The original page lists switchable 100–120VAC and 200–240VAC ranges. Confirm the unit’s selected range and label rather than assuming automatic selection.
Q2What enclosure dimensions are listed?
The original dimensions are 218 × 117 × 30.5mm. Compare the actual mounting arrangement and connections as well as the overall enclosure when evaluating another power supply.
Q3Does the A-350AK-5 recommendation confirm a direct replacement?
It is the alternative recommended in the original listing. Confirm the input selection, output voltage and current, mounting and connections for the intended installation before choosing it.
Discuss your power-supply requirements
Send the full model code, clear connector photos and the input selection and output requirements through LED Mall’s contact page. Check the shipping policy and returns policy when planning an alternative order.
| Weight | 1.1 kg |
|---|
