JPS225V5.0-GS supply for compatible LED displays
The G-Energy JPS225V5.0-GS is listed as a 5 V LED display supply using natural cooling with an auxiliary aluminum plate. Its specification provides input, regulation, ripple and mechanical details for cabinet selection.
Several source entries need confirmation: the original 225 W claim, the nominal voltage versus adjustment range, and the protection recovery description. These differences are kept explicit instead of combining them into a new rating.
Technical specifications
| Parameter | Specification |
|---|---|
| Model / reference | G-Energy JPS225V5.0-GS; PDF V1.0, 2015-05-20 |
| Nominal output | +5.0 V DC; 0–40.0 A |
| Power statement | Original listing states 225 W. The supplied voltage/current and power statements require confirmation as a consistent rating. |
| Adjustment-range conflict | PDF lists 3.8–4.5 V DC adjustment despite its +5.0 V nominal output; confirm before using an adjustable-voltage setting |
| AC input / frequency | 100–240 V AC / 47–63 Hz |
| Efficiency | ≥84.0% at 220 V AC, full load, room temperature |
| Power factor | ≥0.95 at rated input and full load |
| Maximum input / inrush | ≤5 A / ≤60 A cold-start inrush |
| Voltage accuracy / load regulation | ±2% / ±1% |
| Ripple and noise | ≤150 mVp-p at rated input, full load, 20 MHz bandwidth with 47 µF at the load |
| Startup / hold-up / rise time | ≤2.5 s at 110 V AC / ≥10 ms at 220 V AC / ≤50 ms |
| Current limiting | 44–65 A; hiccup self-recovery described |
| Short-circuit protection note | Table gives ≥44 A; a following note describes latched protection and AC removal for at least 2 s after fault removal. Confirm recovery behavior for the supplied unit. |
| Cooling | Natural cooling with a 200 × 145 × 3 mm auxiliary aluminum plate |
| Working temperature | −30 to 40°C with the specified auxiliary cooling |
| Storage / humidity | Environment table: −40 to 80°C and 10–50% RH. Storage instructions separately state −10 to 80°C and 10–90% RH. |
| Altitude / pressure | 2,000 m / 80–106 kPa listed |
| Dimensions | 182 × 60 × 33 mm; PDF appends ±0.5 tolerance |

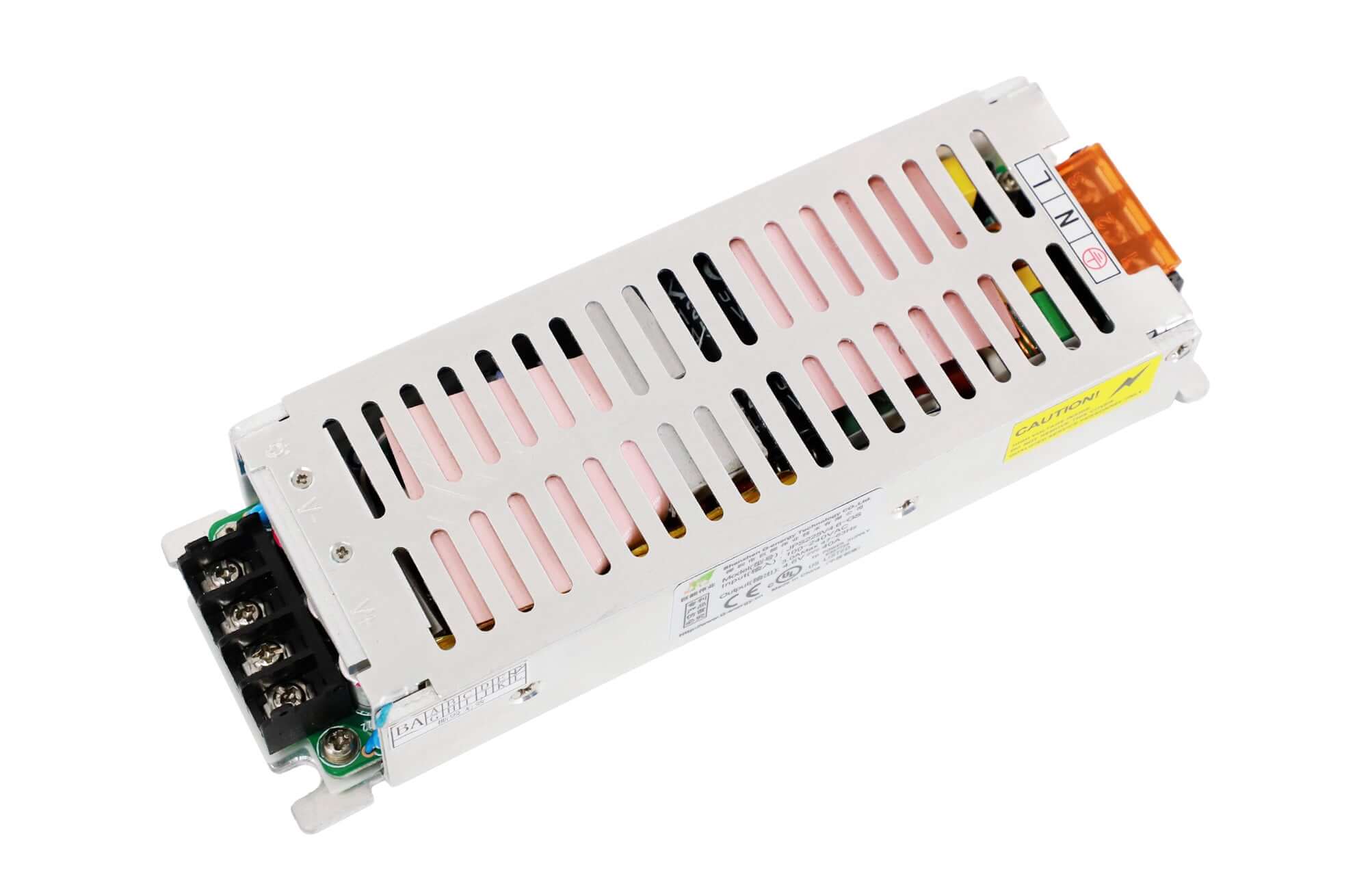

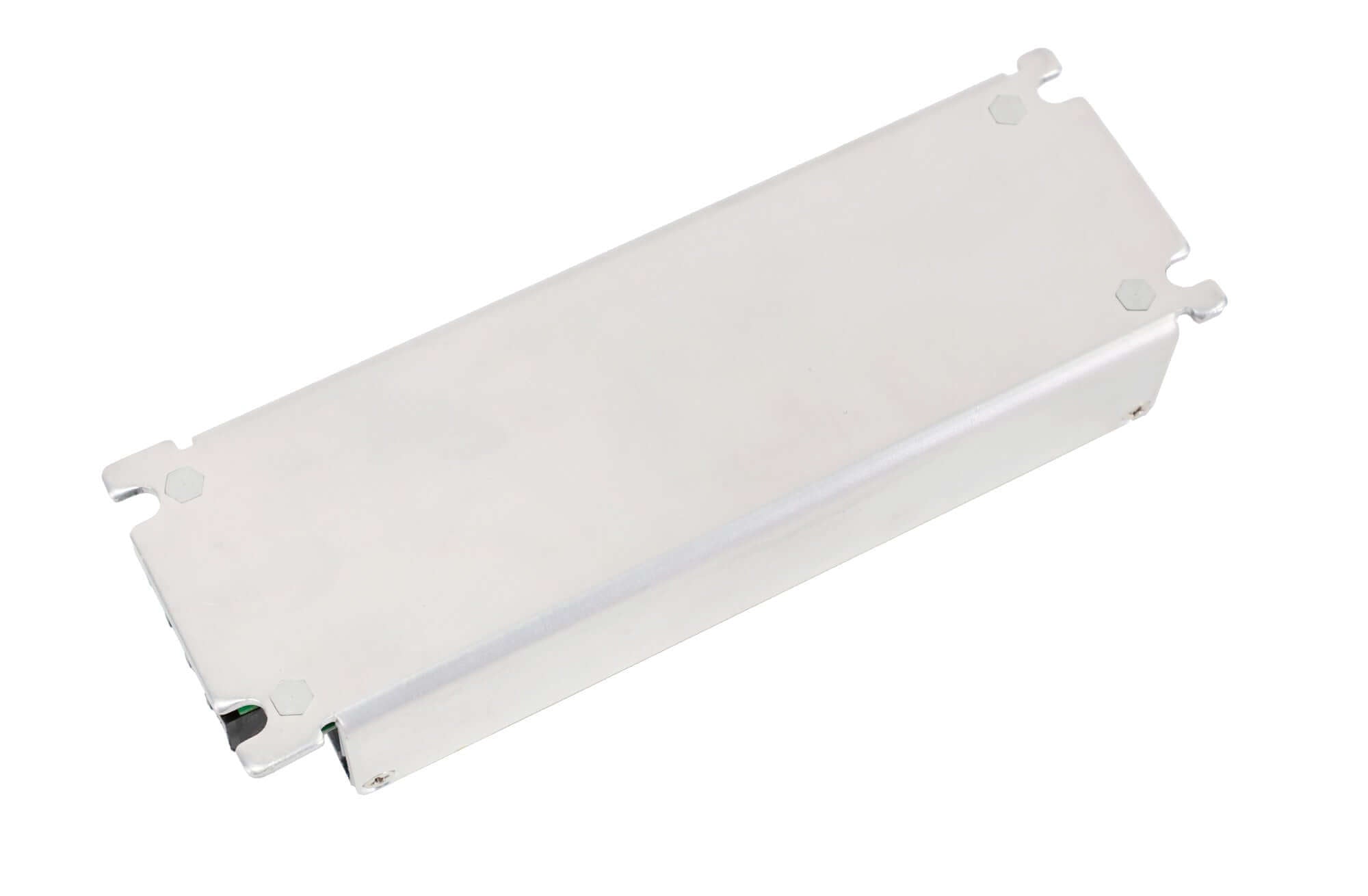

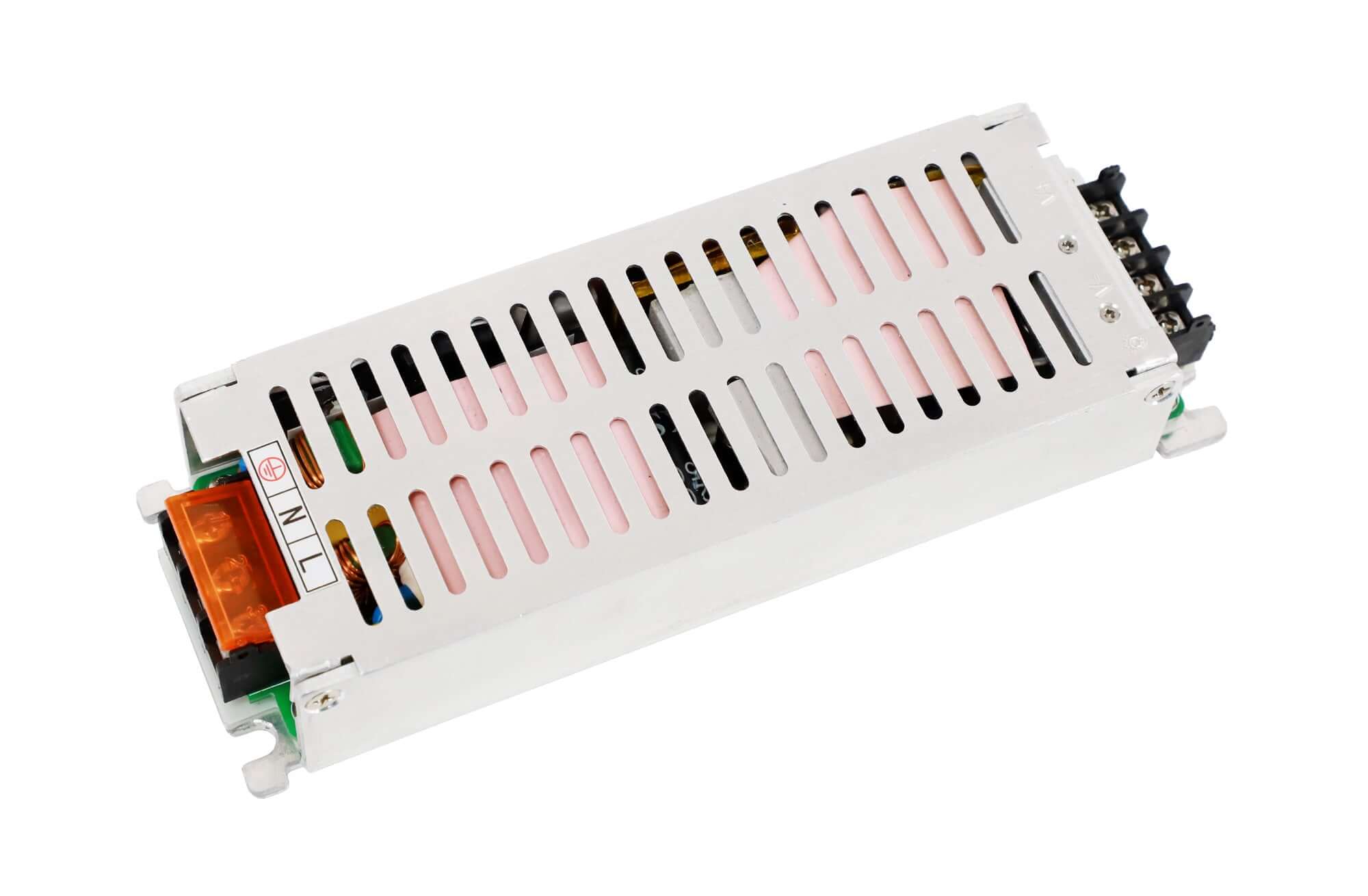

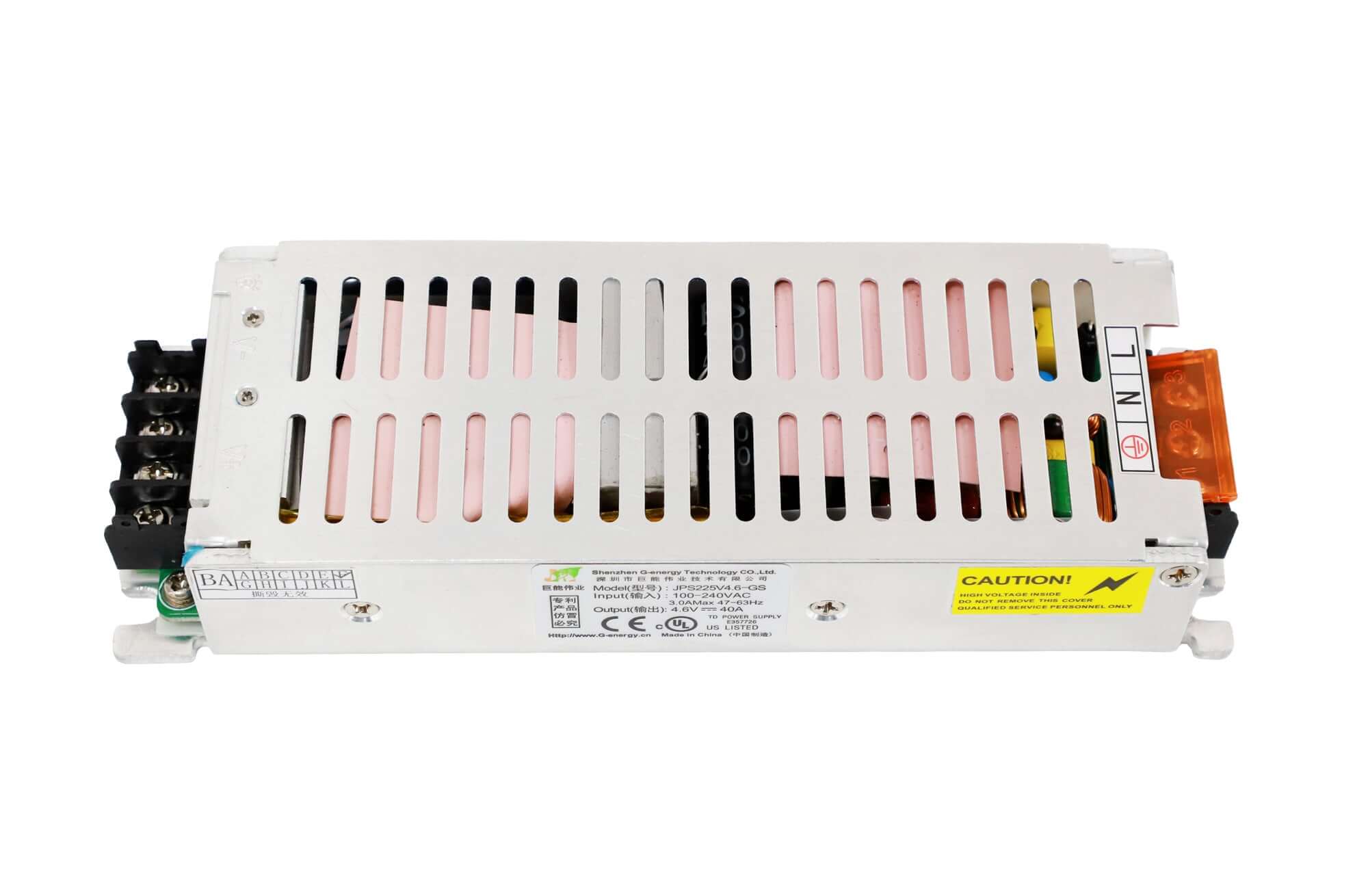

Product images and specification download



G-Energy JPS225V5.0-GS LED Display Power Supply Specification
Frequently asked questions
Is this a 5 V, 40 A power supply?
The product text and PDF specify a nominal +5.0 V output and 0–40 A current range. The original listing also states 225 W; confirm the complete rating on the supplied unit because these statements are not a consistent set.
Can the output be adjusted from 3.8 to 4.5 V?
That range appears in the PDF, but it conflicts with the same document’s nominal +5.0 V output. Do not assume it is the correct adjustment range for this unit without manufacturer confirmation.
What cooling does the JPS225V5.0-GS need?
The specification calls for natural cooling with an external 200 × 145 × 3 mm aluminum plate. Its −30 to 40°C working-temperature entry explicitly includes that auxiliary-cooling requirement.
Does short-circuit protection recover automatically?
The current-limit row describes hiccup self-recovery, while the following protection note describes a latched condition requiring AC removal for at least two seconds after the fault is cleared. Confirm the recovery behavior for the supplied hardware.
What should I check before replacing an existing LED power supply?
Match the exact model, confirmed output rating, AC input range, terminal layout and mounting space. The documented dimensions are 182 × 60 × 33 mm, and the auxiliary heat-sink requirement must also fit the cabinet.
