XingXiu DNP400L-4.2 LED Power Supply – 4.2V, 336W
$ 19.00
The XingXiu DNP400L-4.2 provides 4.2V DC with a rated output power of 336W. Its 180–264V AC input range is intended for 200–240V nominal supplies. Case dimensions are 180 × 68 × 26mm.
10000 in stock
4.2V power supply for LED display equipment
The XingXiu DNP400L-4.2 supplies 4.2V DC at a rated output power of 336W. It uses a double-transistor forward design with input-to-output isolation and accepts 180–264V AC input.
This model is suited to installations with a nominal 200–240V AC supply. Its input range is an important selection point when replacing a cabinet power supply: it does not include 110V AC. Check the output requirements and mounting arrangement against your existing equipment.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | XingXiu DNP400L-4.2 |
| DC output voltage | 4.2 V |
| Rated output power | 336 W |
| Input voltage range | 180–264 V AC |
| Nominal input voltage | 200–240 V AC |
| Frequency | 47–63 Hz |
| Maximum AC input current | 4.7 A at 180 V AC |
| Cold-start inrush current | Less than 120 A at 230 V |
| Efficiency at full load | At least 88% at 230 V AC |
| Leakage current | At most 1 mA at 230 V AC |
| Input fuse | T6.3AL / 250 V AC |
| Power factor | Greater than 0.95 at 230 V AC |
| Cooling method | Ventilation cooling |
| Dimensions | 180 × 68 × 26 mm |

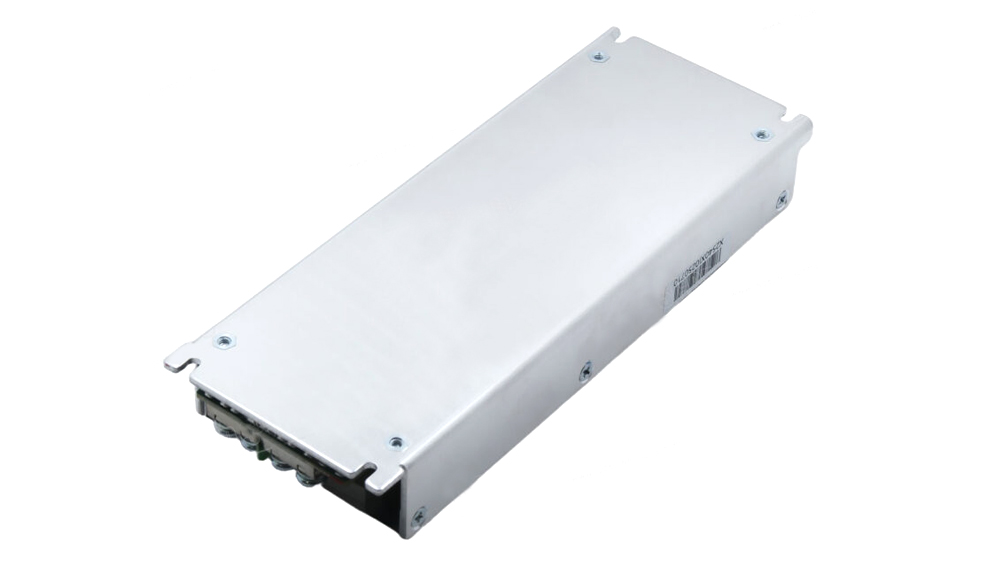

Product images and specification download
Download Specification:
XingXiu DNP400L-4.2 LED Power Supply Specification
Frequently asked questions
Does the DNP400L-4.2 work with a 110V AC supply?
No. Its specified input range is 180–264V AC, with a nominal range of 200–240V AC. A 110V supply is outside that range.
Is the rated output power 400W?
The specified rated output power for this model is 336W. Use this rating rather than interpreting the number in the model name as an output rating.
What output voltage does this model provide?
The DNP400L-4.2 converts AC input to 4.2V DC. Check that the connected LED display equipment requires this voltage.
How efficient is the power supply?
The stated efficiency is at least 88% at 230V AC and full load. This figure applies to those stated test conditions.
What should I check before replacing an existing supply?
Compare the output requirements, 180–264V AC input range, terminals and mounting layout. The listed case size is 180 × 68 × 26mm; use the linked specification PDF to check the installation details.
| Weight | 1 kg |
|---|
