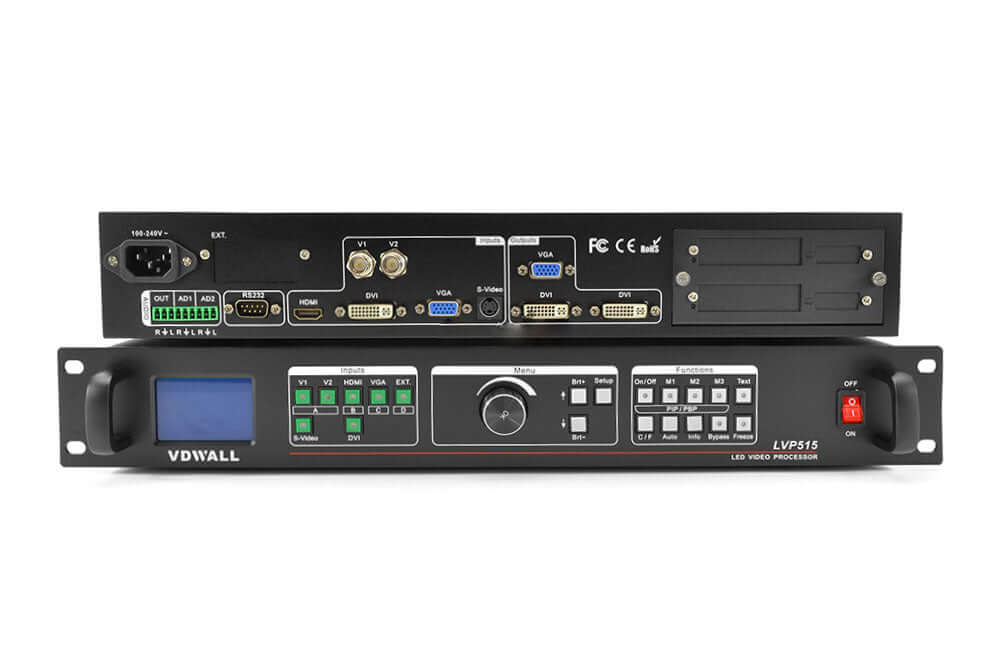

VDWall LVP515 HD LED Display Video Processor
$ 432.00
VDWall LVP515 LED video processor with adjustable PIP/PBP layouts, three custom display presets and two DVI outputs. Supports custom output formats and DVI EDID for screen matching.
10000 in stock
HD processing and dual-picture layouts
The VDWall LVP515 processes video sources for LED screens used in rental stages, studios, theaters and conferences. Adjustable PIP/PBP layouts place images at the required size and position. Three custom presets allow layouts to be recalled by button.
Seamless, fade and blend transitions support source changes. Faroudja DCDI, Real Color and TrueLife processing provide the listed image-processing features. Custom DVI EDID and output timings help match the source and screen.
LVP515 specifications
| Parameter | Specification |
|---|---|
| Main inputs | 2 × Video; 1 × S-Video; 1 × VGA; 1 × HDMI; 1 × DVI |
| Listed expansion | SD-SDI / HD-SDI / 3G-SDI |
| Outputs | 1 × VGA; 2 × DVI |
| VGA input | Up to 2048 × 1152 at 60Hz |
| DVI / HDMI PC input | Up to 2304 × 1152 at 60Hz |
| HDMI video input | Up to 1920 × 1080p at 60Hz |
| Custom output limits | Up to 3840 pixels wide or 1920 pixels high |
| Display presets | 3 custom modes |
| Audio | 2 configurable external stereo inputs; HDMI and SDI audio listed |
| Sending-card accommodation | 2 cards; optional |
| Control | Panel buttons or PC software |
| Input voltage | 100–240VAC, 50/60Hz |
| Power | ≤20W |
| Temperature | 5–40°C |
| Humidity | 15–85% |
| Package size | 145 × 370 × 535 mm (H × W × L) |
| Weight | Net 3.2 kg; gross 5.0 kg |
Frequently asked questions
Can I show two pictures on the LVP515?
Yes. It supports PIP/PBP with adjustable picture size and position, plus three custom display presets.
Does the LVP515 support SDI input?
The listing includes an SDI expansion input and SDI loop application. Confirm the installed expansion module and supported camera format before purchase.
What is the maximum custom output size?
The listed limits are 3840 pixels horizontally or 1920 vertically. These are separate maxima; choose a supported timing for the screen layout.
Are sending cards included?
The enclosure can accommodate two LED sending cards, but the listing identifies the cards as optional. Confirm the supplied configuration.
Product image and specification PDF
| Weight | 7 kg |
|---|
