Mooncell MP1, MP2, MB4 & MB6 LED Video Player Boxes
Price range: $ 112.00 through $ 305.00
Mooncell LED player-box listing for MP1, MP2, MB4 and MB6. Compare documented capacities, playback and networking features carefully: the first two linked manuals name MB1/MB2, and MB4/MB6 power entries require confirmation.
Select the player box by its exact model and connections
This listing covers Mooncell MP1, MP2, MB4 and MB6 LED player boxes for scheduled video, image and text playback. The linked documents describe integrated media playback and LED sending, with LAN/Wi-Fi management, USB program updates and optional 4G connectivity.
Model identification matters here. The first two downloads are MB1 and MB2 specifications even though the listing names MP1 and MP2. The table labels those data by their actual document names and does not assume the names are interchangeable. MB4 and MB6 electrical descriptions also conflict within their PDFs; verify the unit label and adapter before applying power.
Technical specifications
| Parameter | Specification |
|---|---|
| Listing / document identities | The listing names MP1, MP2, MB4 and MB6. The first two linked PDFs identify MB1 and MB2, not MP1 and MP2; equivalence is unconfirmed. |
| MB1 documented output / load | 1 Gigabit LED output; 650,000 pixels; maximum width 1920 or height 1080 pixels |
| MB1 processing | 4-core CPU + 4-core GPU; 1 GB DDR3; 8 GB eMMC; 1080p hardware decoding; Android 7.1 |
| MB1 HDMI | Monitor output; the linked MB1 document does not establish HDMI input. |
| MB1 power / size | 5 V; rated 8 W; 158 × 112.2 × 29.75 mm; net weight 1.5 kg as printed in its PDF |
| MB1 environment | −20 to 70°C; 10–90% RH, non-condensing |

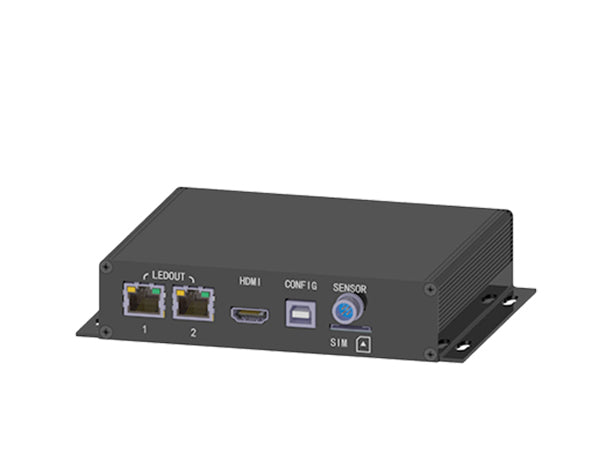

| MB2 documented output / load | 2 Gigabit LED outputs; processing-performance entry states 1.3 million pixels; maximum width 1920 or height 1080 pixels |
| MB2 processing | 4-core CPU + 4-core GPU; 1 GB DDR3; 8 GB eMMC; 1080p hardware decoding; Android 7.1 |
| MB2 HDMI | Monitor output; the linked MB2 document does not establish HDMI input. |
| MB2 power / size | 5 V; rated 6 W; 158 × 112.2 × 29.75 mm; 0.5 kg; aluminum-alloy enclosure |
| MB2 environment | −25 to 75°C; 0–95% RH, non-condensing |

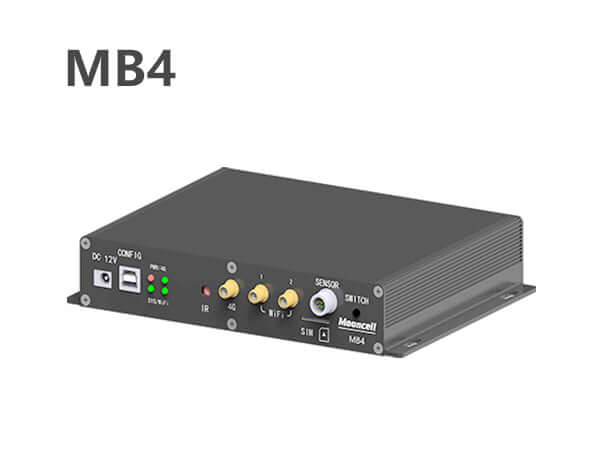

| MB4 output / load | 2 Gigabit LED outputs; 1.3 million pixels; maximum width 3840 or height 2160 pixels |
| MB4 processing | 8-core CPU; 2 GB DDR3; 8 GB eMMC; H.265 hardware decoding; Android 7.1 |
| MB4 playback / HDMI qualification | Feature text lists synchronous/asynchronous switching, HDMI input and HDMI loop output. Its rear-interface table lists only one HDMI output; verify the fitted input configuration. |
| MB4 power discrepancy | Input table and electrical table state 5 V; the package list specifies a 12 V/2 A adapter. Rated power is listed as 8 W. Verify the actual unit label and matching adapter before powering it. |
| MB4 size / environment | 193 × 139 × 33 mm; 1 kg; −20 to 70°C; 10–90% RH, non-condensing |

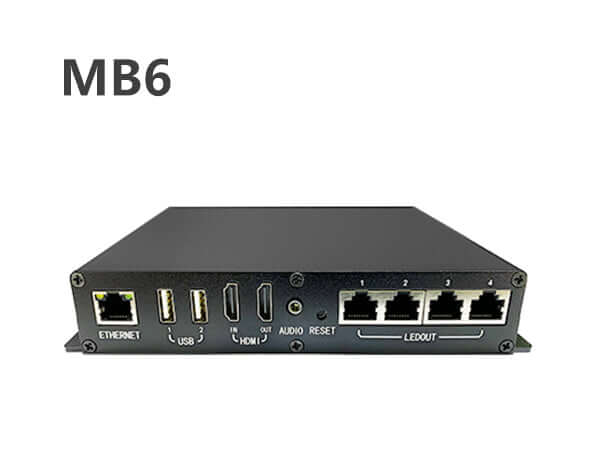

| MB6 output / load | 4 Gigabit LED outputs; 2.3 million pixels; maximum width 3840 or height 2160 pixels |
| MB6 processing | 8-core CPU; 2 GB DDR3; 8 GB eMMC; H.265 4K hardware decoding; Android 7.1 |
| MB6 playback | Synchronous/asynchronous switching, HDMI input and loop output, and cloud cluster management are listed. |
| MB6 power discrepancy | The front-interface table labels the power input DC 5 V; the electrical table states 12 V and the package list specifies a 12 V/2 A adapter. Rated power is 15 W. Confirm the actual label and supplied adapter. |
| MB6 size / environment | 193 × 139 × 33 mm; 1 kg; −20 to 70°C; 10–90% RH, non-condensing |
| Networking and 4G option | The four documents list LAN, Wi-Fi AP/station and 4G-module support; 4G modules are optional. |
| Content and management | Video, images, text, weather and clock programs; window overlay, USB/network program updates, playlists, scheduled screen switching and NTP timing are described. |
| Sensor / brightness features | The documents describe RS485 environmental-sensor support and automatic or scheduled brightness control. Confirm the required sensor accessories. |
| Pixel-limit interpretation | Width and height maxima are separate limits. Decoding resolution is also separate from the LED pixel capacity of each model. |
Product images and specification download
MB1 specification PDF (original MP1-labelled download)
MB2 specification PDF (original MP2-labelled download)
MB4 specification PDF
MB6 specification PDF
Frequently asked questions
Are MP1 and MP2 the same as MB1 and MB2?
That equivalence is not established by this listing’s source files. The title names MP1 and MP2, but the retained downloads identify MB1 and MB2. Confirm the product label and selected option before using the MB1/MB2 specifications.
Do all four models accept HDMI input?
The MB1 and MB2 PDFs describe HDMI monitor output, not HDMI input. MB4 feature text mentions HDMI input and loop output but its interface table only lists output. MB6 explicitly describes input and loop output. Check the exact model and rear panel.
What LED pixel capacities do the PDFs list?
MB1 lists 650,000 pixels, MB2 lists 1.3 million, MB4 lists 1.3 million and MB6 lists 2.3 million. These are document-specific figures; MB1/MB2 values are not automatically assigned to MP1/MP2.
Is 4G included, and can programs be updated without it?
The documents list 4G modules as optional. LAN, Wi-Fi and USB-drive program updates are also described, so a cellular connection is not the only update method. Verify the supplied module and network configuration.
Which power adapter should I use for MB4 or MB6?
Do not choose solely from the inconsistent PDF entries. MB4 lists a 5 V input but a 12 V adapter; MB6’s interface table says 5 V while its electrical and adapter entries say 12 V. Match the actual unit’s input label and the manufacturer-confirmed adapter before connection.
