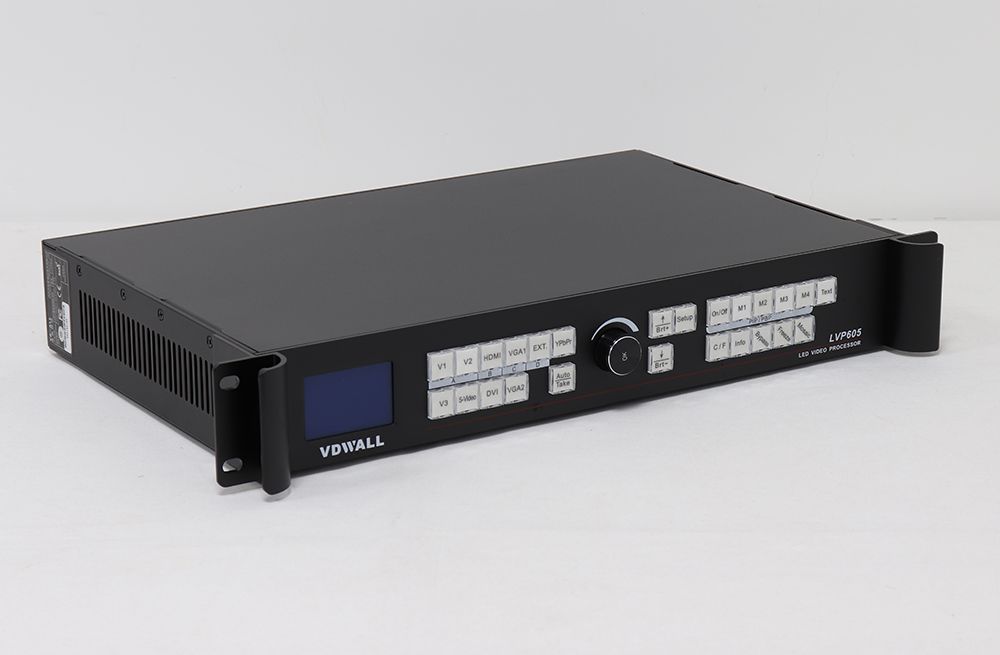

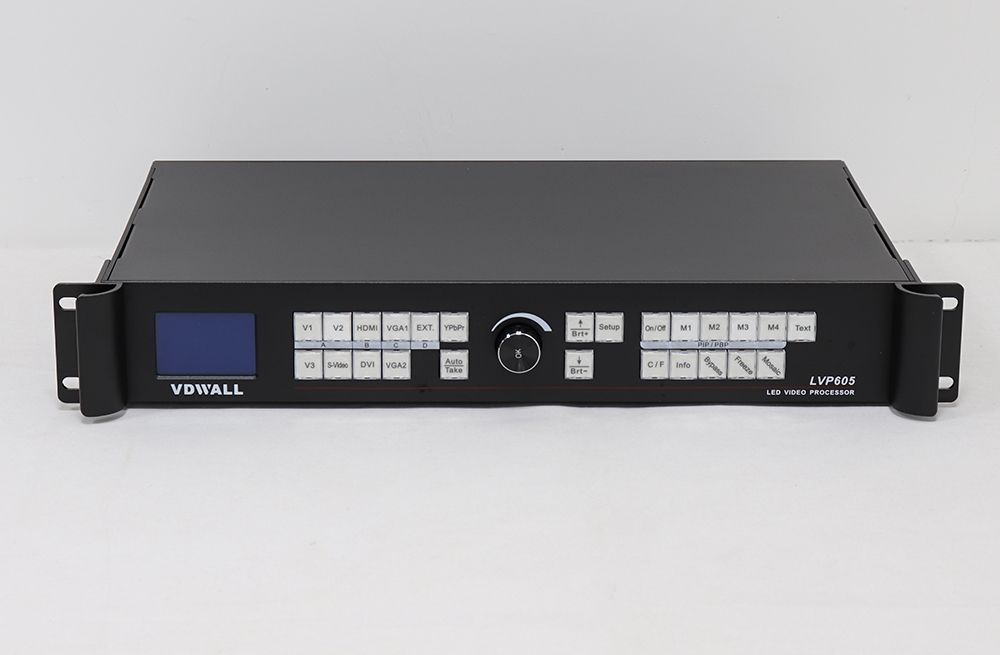

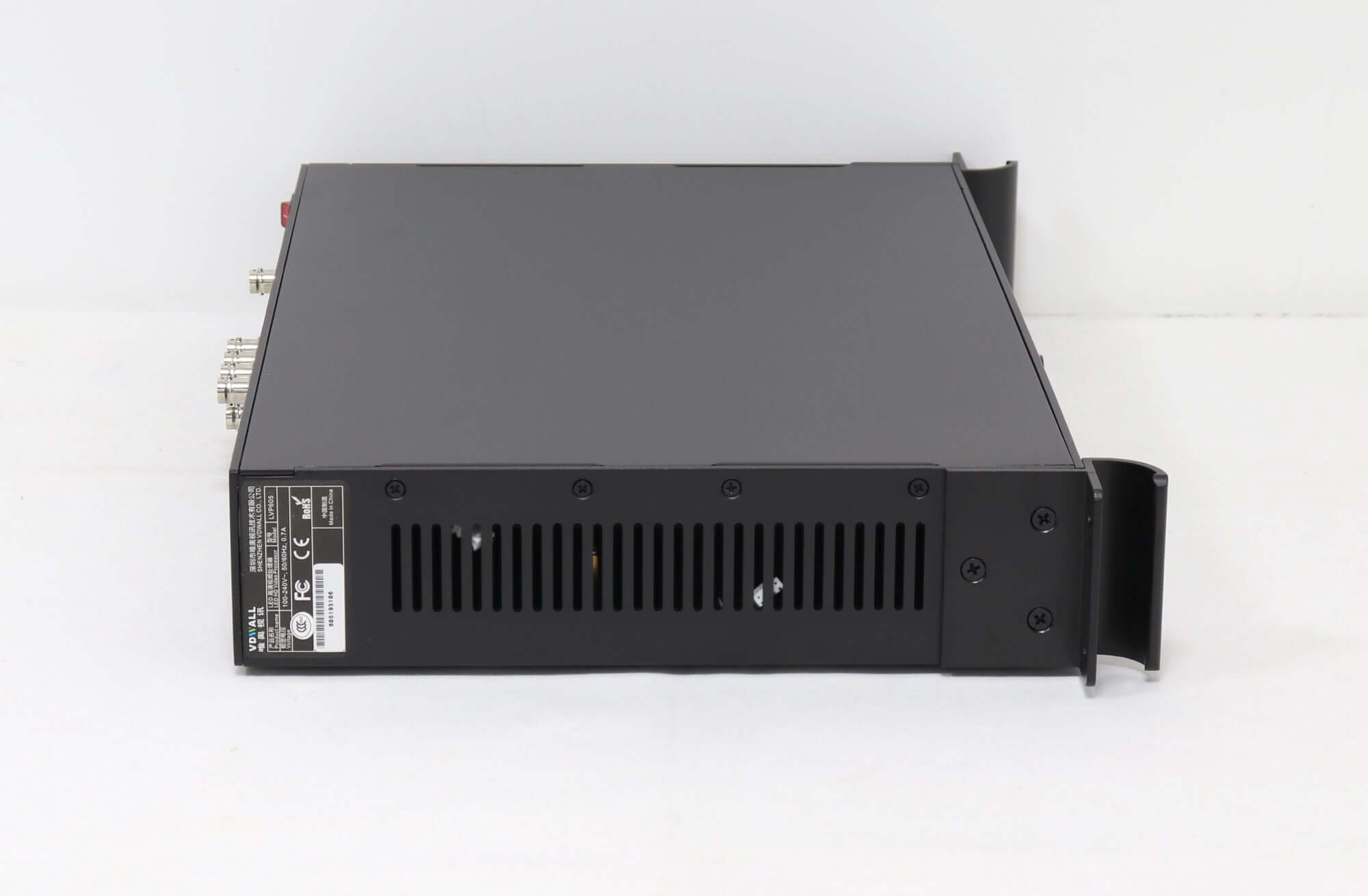

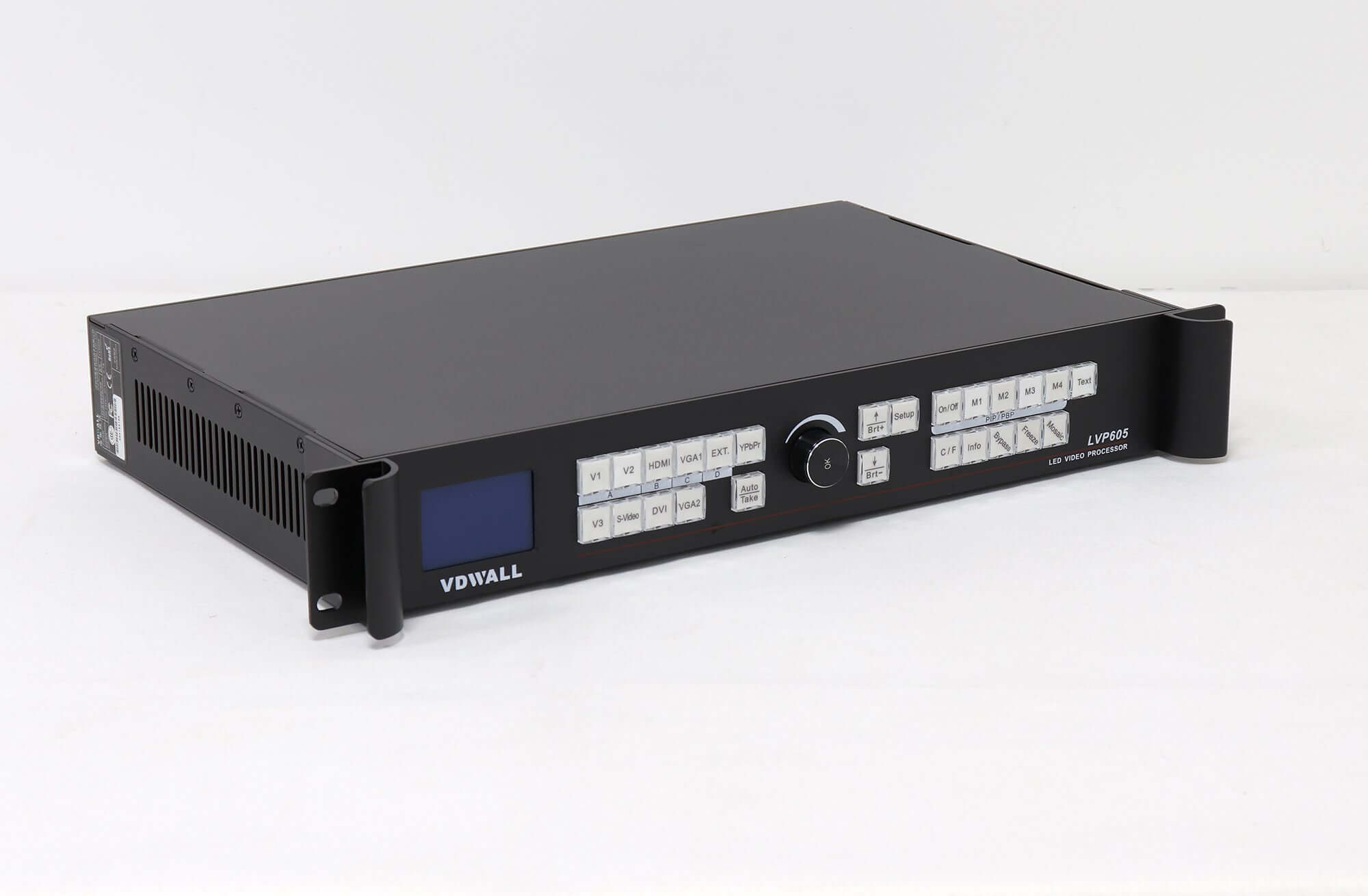

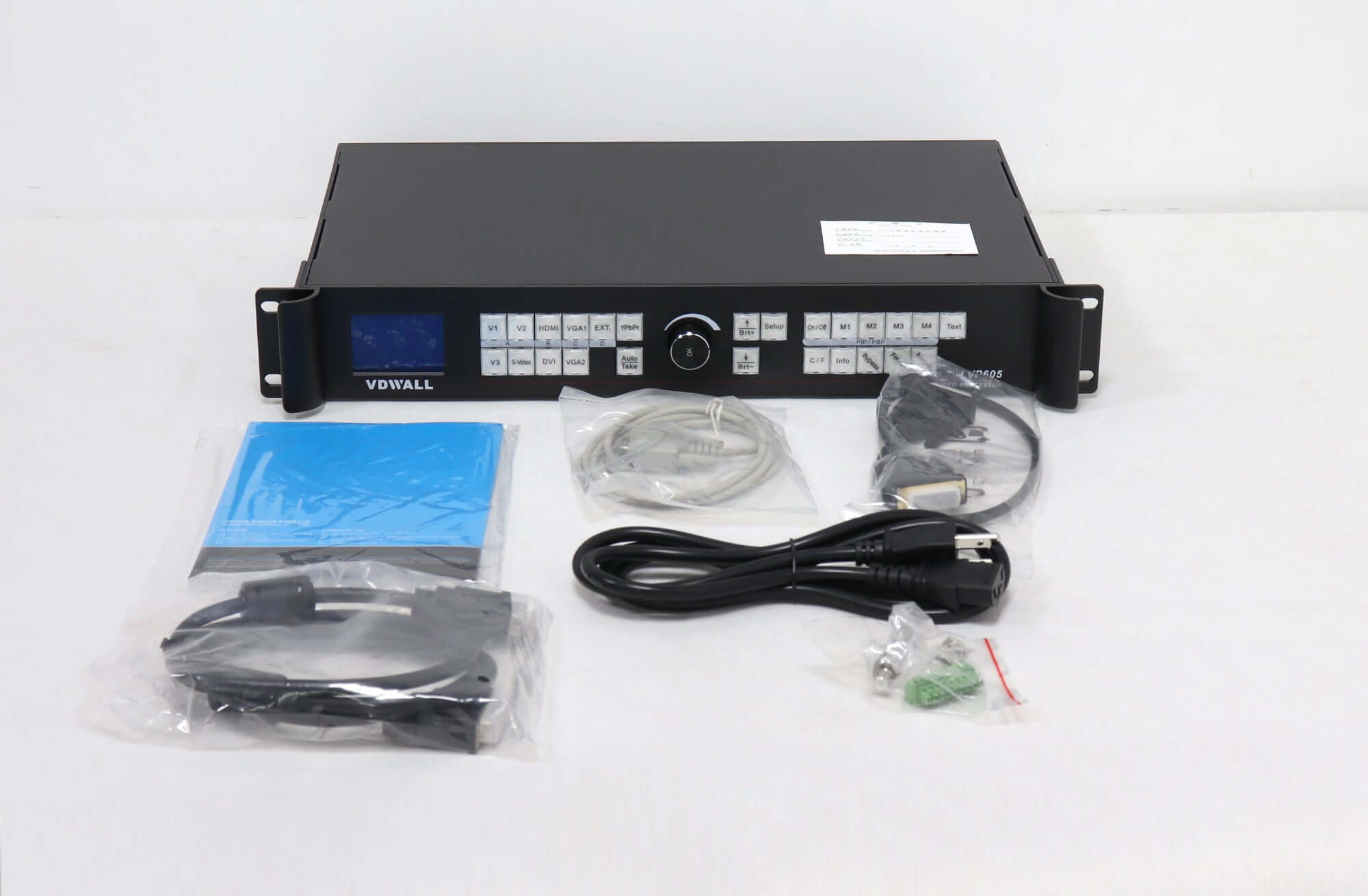

VDWall LVP605 HD LED Video Controller & Processor
$ 449.00
VDWall LVP605 HD LED video controller with four PIP/POP presets, image overlays, freeze and AIAO cropping. Supports HDMI and mixed analog inputs; expansion input and sending cards depend on configuration.
10000 in stock
Source switching and layout control for LED screens
The VDWall LVP605 video controller combines HD video processing with source switching and image layout tools. Four custom PIP/POP modes support reusable dual-picture layouts, while text and logo overlays, picture freeze and AIAO cropping control the content shown on screen.
Seamless and fade transitions support live source changes. Faroudja DCDI, Real Color and TrueLife processing, together with 4 × 4 pixel interpolation scaling, provide the listed image-processing functions. Front-panel keys and a knob allow setup and selection; RS232 supports remote operation.
LVP605 key parameters
| Parameter | Specification |
|---|---|

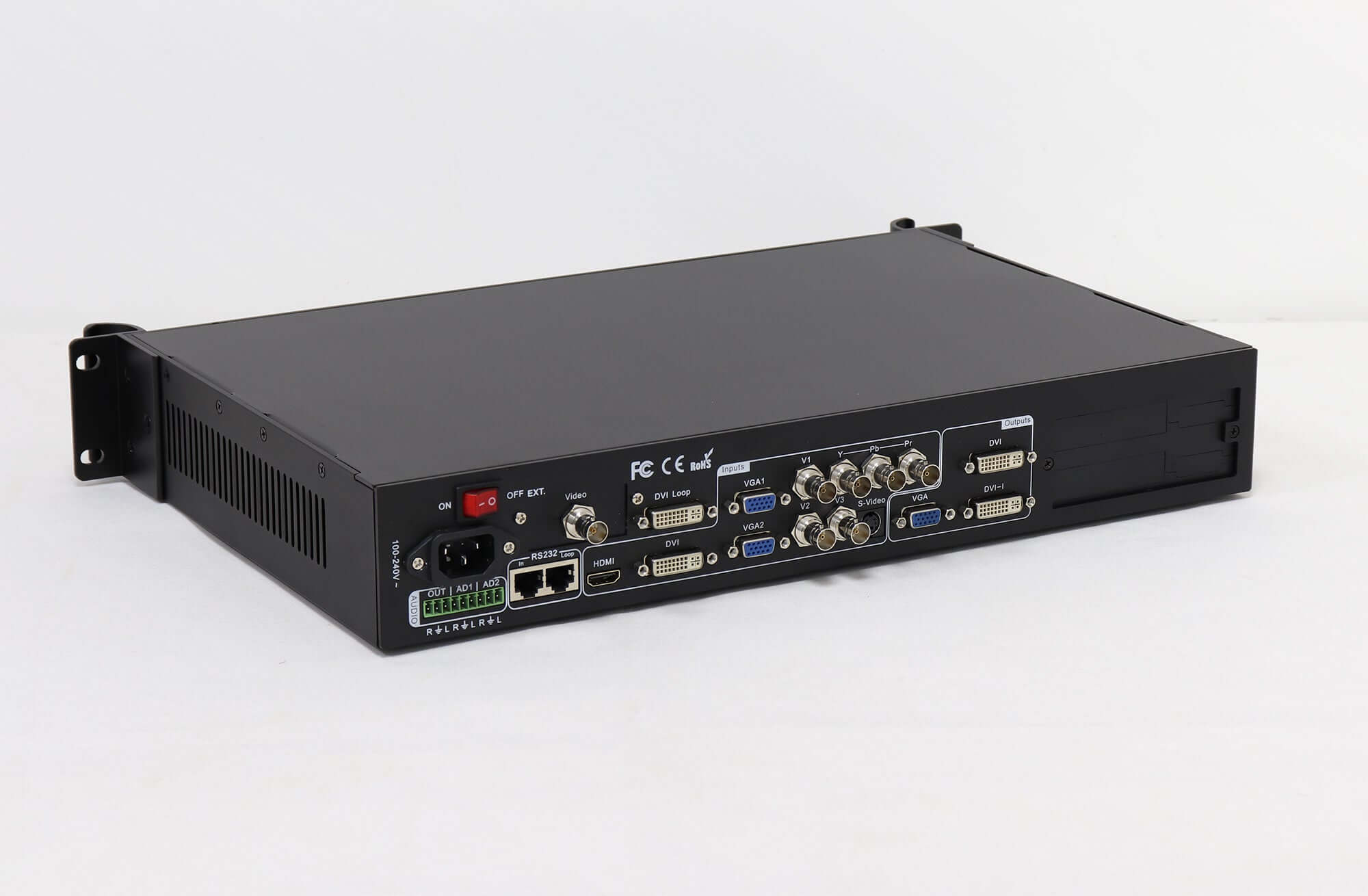

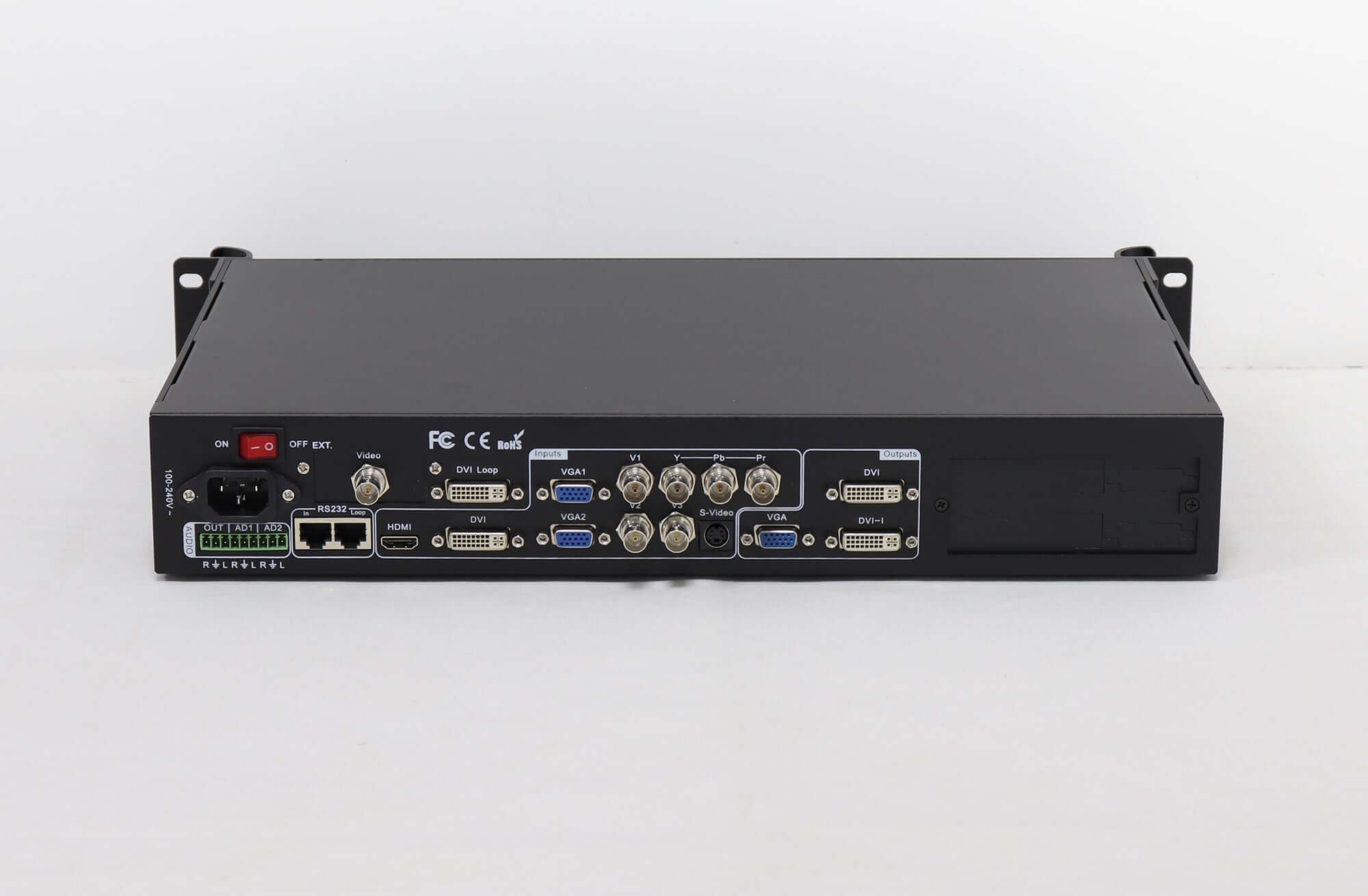

| Main inputs | 3 × CVBS; 1 × DVI; 1 × HDMI; 2 × VGA; 1 × YPbPr/YCbCr; 1 × S-Video |
| Extended input | 1 × EXT; VIDEO, SDI/HD-SDI or VGA/DVI/HDMI module options |
| HDMI format | HDMI 1.3a with HDCP; HD 1080p |
| Processing | 10-bit |
| PIP/POP presets | 4 custom modes |
| Listed single-unit output | 2048 × 1152 |
| Control | Front-panel keys/knob; RS232 |
| Sending-card accommodation | 2 cards; sending cards optional |
Match the installed expansion module to the signal source. An SDI option in the series does not establish that every LVP605 unit is supplied with SDI input.
Frequently asked questions
Does every LVP605 have SDI input?
The listing describes an EXT input with VIDEO, SDI/HD-SDI or VGA/DVI/HDMI module options. Confirm the installed module before buying for an SDI camera.
Can I save picture-in-picture layouts?
Yes. Four custom PIP/POP display modes are listed, with one-button switching between modes.
Does the LVP605 include sending cards?
The unit can accommodate two sending cards, but the cards are optional. Confirm the supplied cards and their compatibility with the receiving system.
Can the LVP605 crop and freeze an image?
Yes. It supports picture freeze and AIAO cropping to display a selected source region within a defined area of the screen.
Product images and specification PDF
| Weight | 7 kg |
|---|
