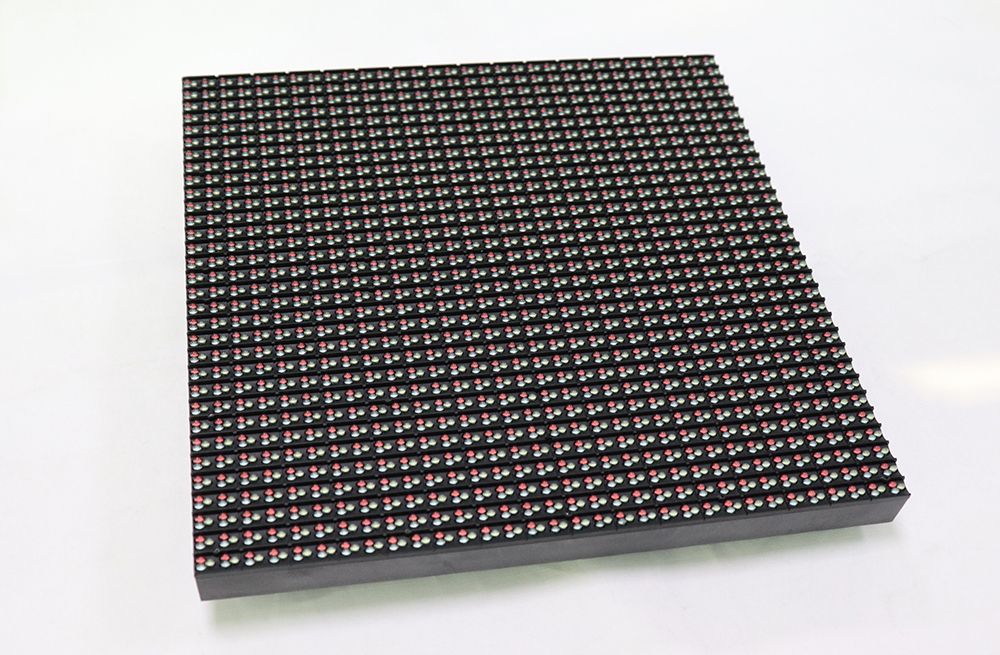

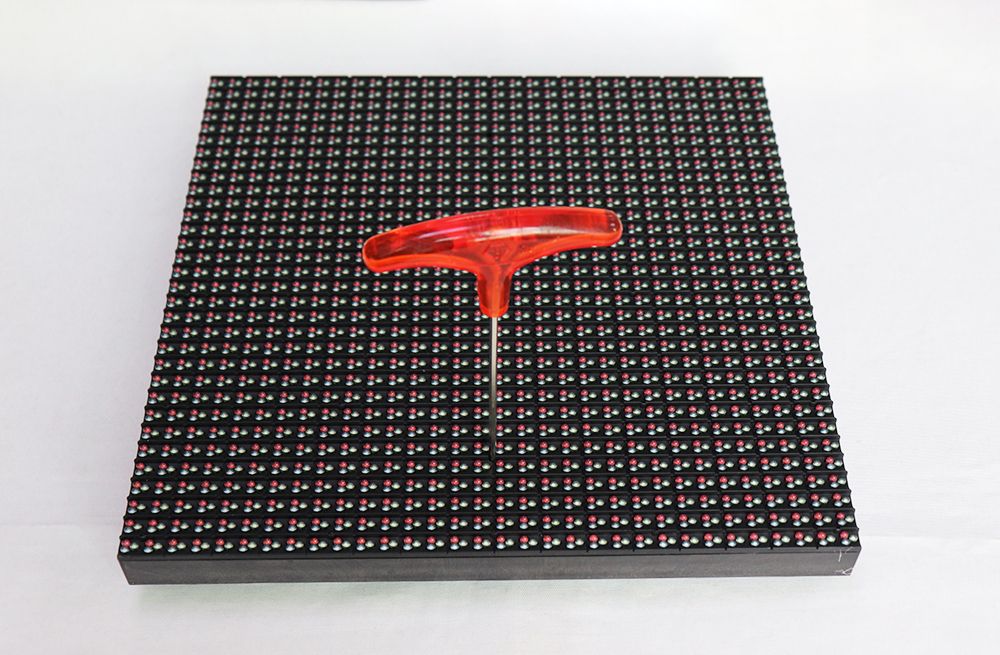

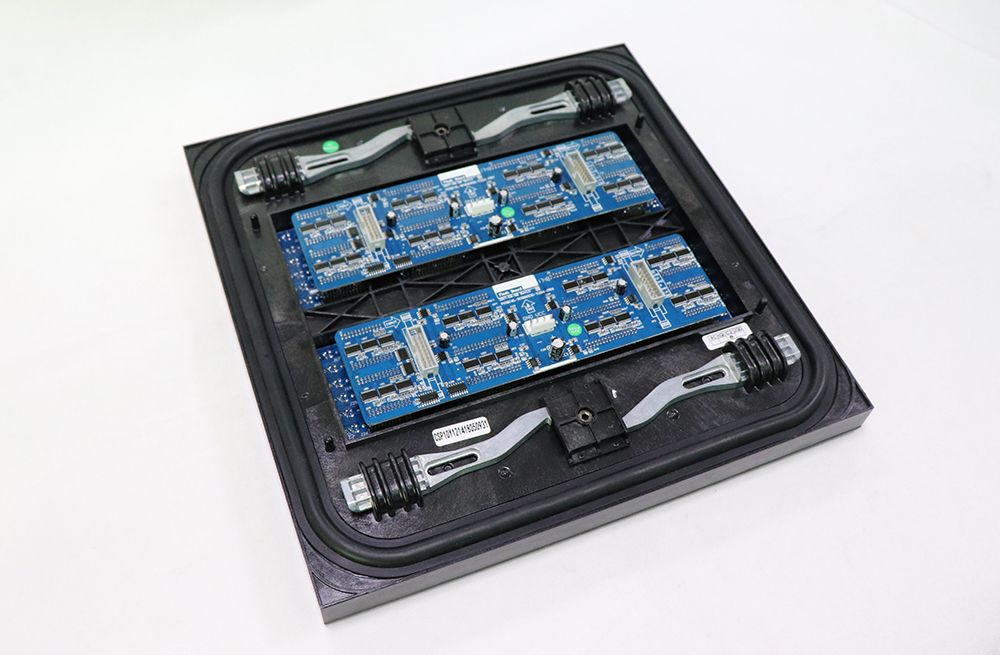

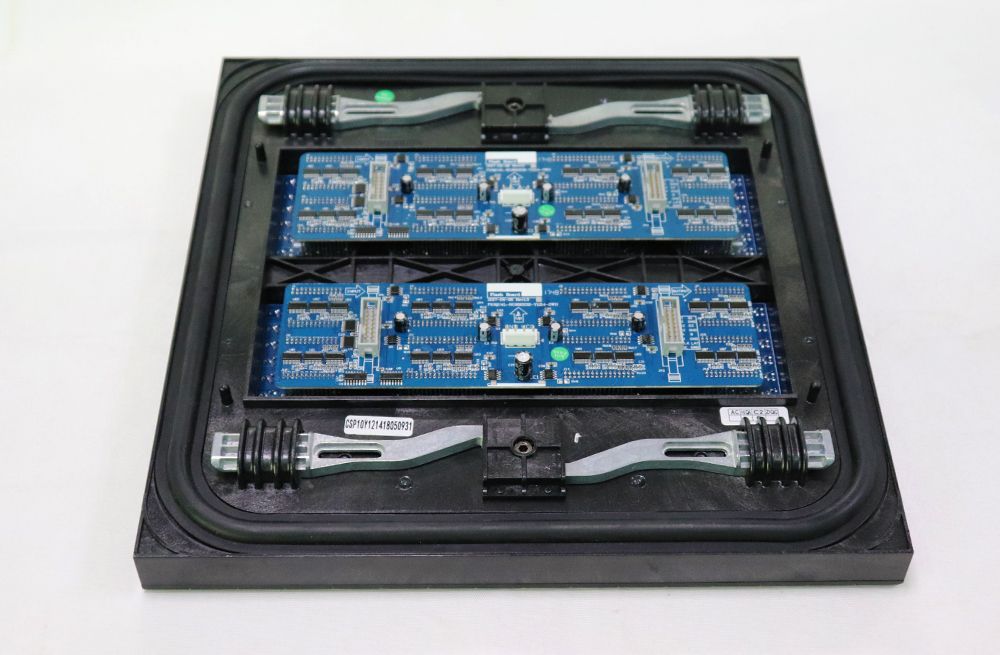

P10 Dual Maintenance LED Module Outdoor DIP 1R1G1B 320x320mm

P10 Dual Maintenance LED Module Outdoor DIP 1R1G1B 320x320mm

Outdoor P2.5 160x160mm High Definition LED Screen Module

Outdoor P2.5 160x160mm High Definition LED Screen Module

P16 Front Access LED Module Outdoor 1R1G1B DIP 320x320mm

Model:P16-OF1L-1R1G1B20x20 Brightness:≥9000CD/㎡ Power consumption:54W Viewing angle:H:110°,V:50° Product description: P16 DIP 1R1G1B, high brightness, low cost front access LED sign solution
$56.00
More Information
Weight(kg) 2.42 kgs
Manufacturer LED-MALL
Availability: In stock
SKU
P16-O1S-DIP-320x320F

 Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness&color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.





Features of P16 Front Access LED Module Outdoor 1R1G1B DIP 320x320mm:
1) Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.
2) Easy maintenance, easy to take the modules with a 4mm hexagonal screwdriver.
3) No screws, easier to take the modules and mount the modules on the cabinet.
4) 16mm pixel pitch with DIP, perfect solution for semi-outdoor advertising LED screen and outdoor rental LED screen.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.
6) Reasonable PCB design, reliable and long life time.


Applicable situations of P16 Front Access LED Module Outdoor 1R1G1B DIP 320x320mm:

Outdoor LED signs requiring front maintenance
Commercial video screens with small sizes
Double face LED signs
Small LED banner signs
Outdoor rental LED screen requiring fast maintenance


PCB Versions of P16 Front Access LED Module Outdoor 1R1G1B DIP 320x320mm:

P16U1L-RGB20X20-Y1304-SWH

P16U1L-RGB20X20-X1304-SWH

P16U1L-RGB20X20-Y1302-SWH

P16U1L-RGB20X20-Y1301-SWH

P16U1L-RGB20X20-X1035-SWH

P16U1L-RGB20X20-X1034-SWH



Parameters of P16 1R1G1B 320x320 Outdoor Front Access LED Module:

Item Specification
LED type DIP346
Pixel pitch 16mm
Pixel configuration 1R1G1B
Module Size 320x320mm
Module resolution 20x20pixels
Density 3,906 pixels/
Driving Mode Static
Brightness ≥9000CD/ ㎡
Viewing angle H:120°, V:120°
Best viewing distance 16m---100m
Working voltage 5V
Power consumption 54W
Module weight 2.5KG
>Protection grade Front: IP43
Working Temperature -20 ~60℃

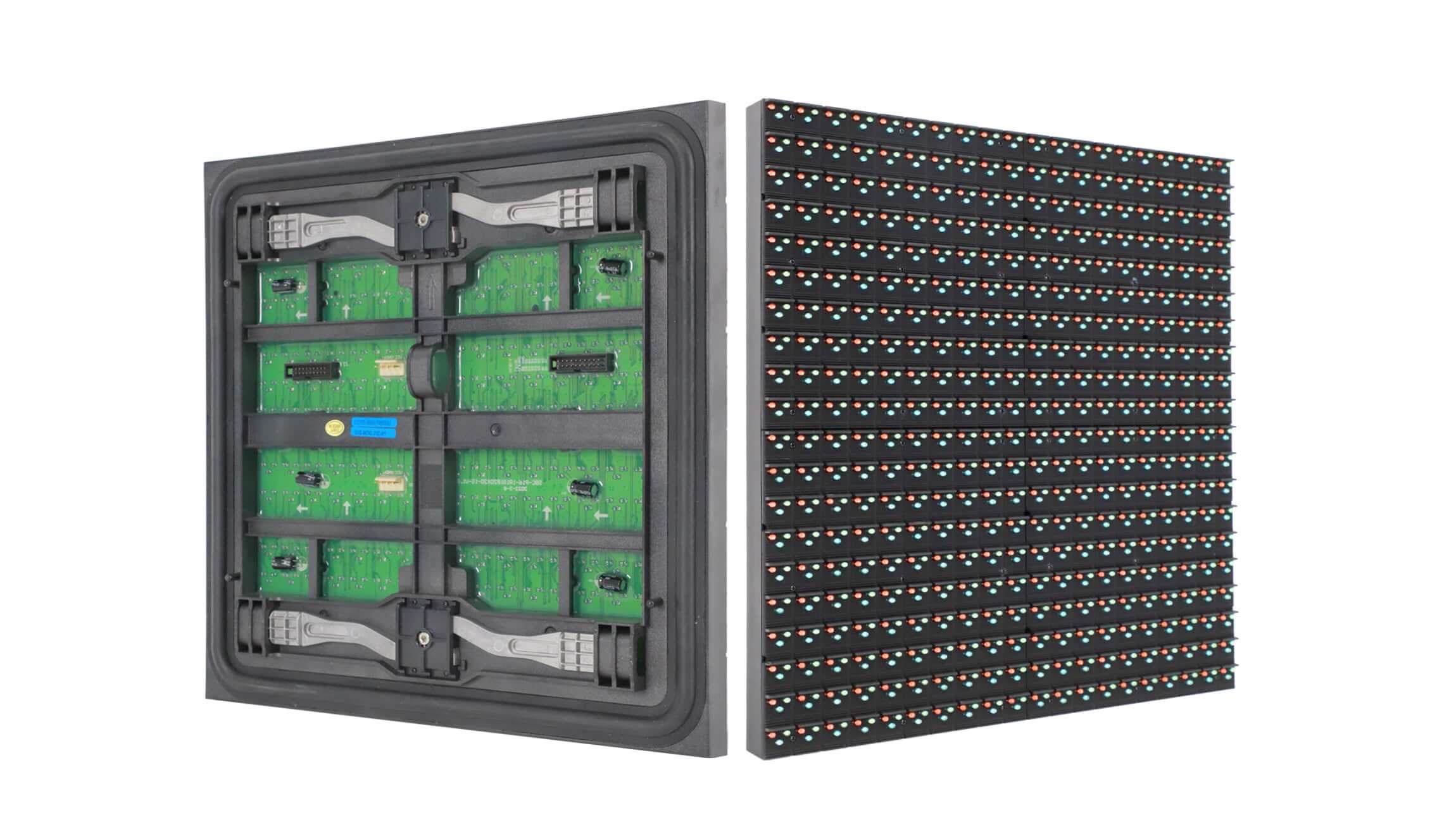

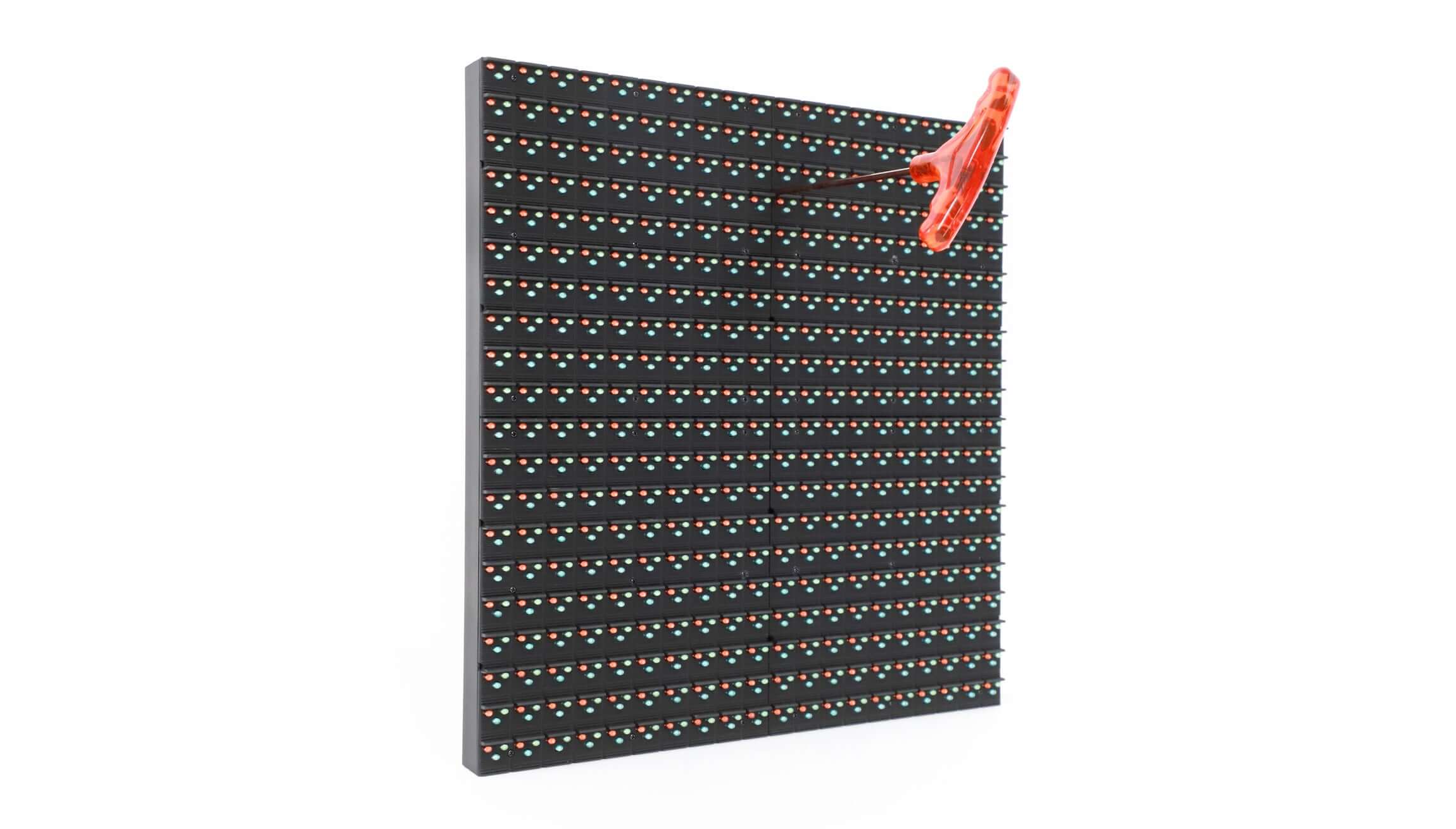

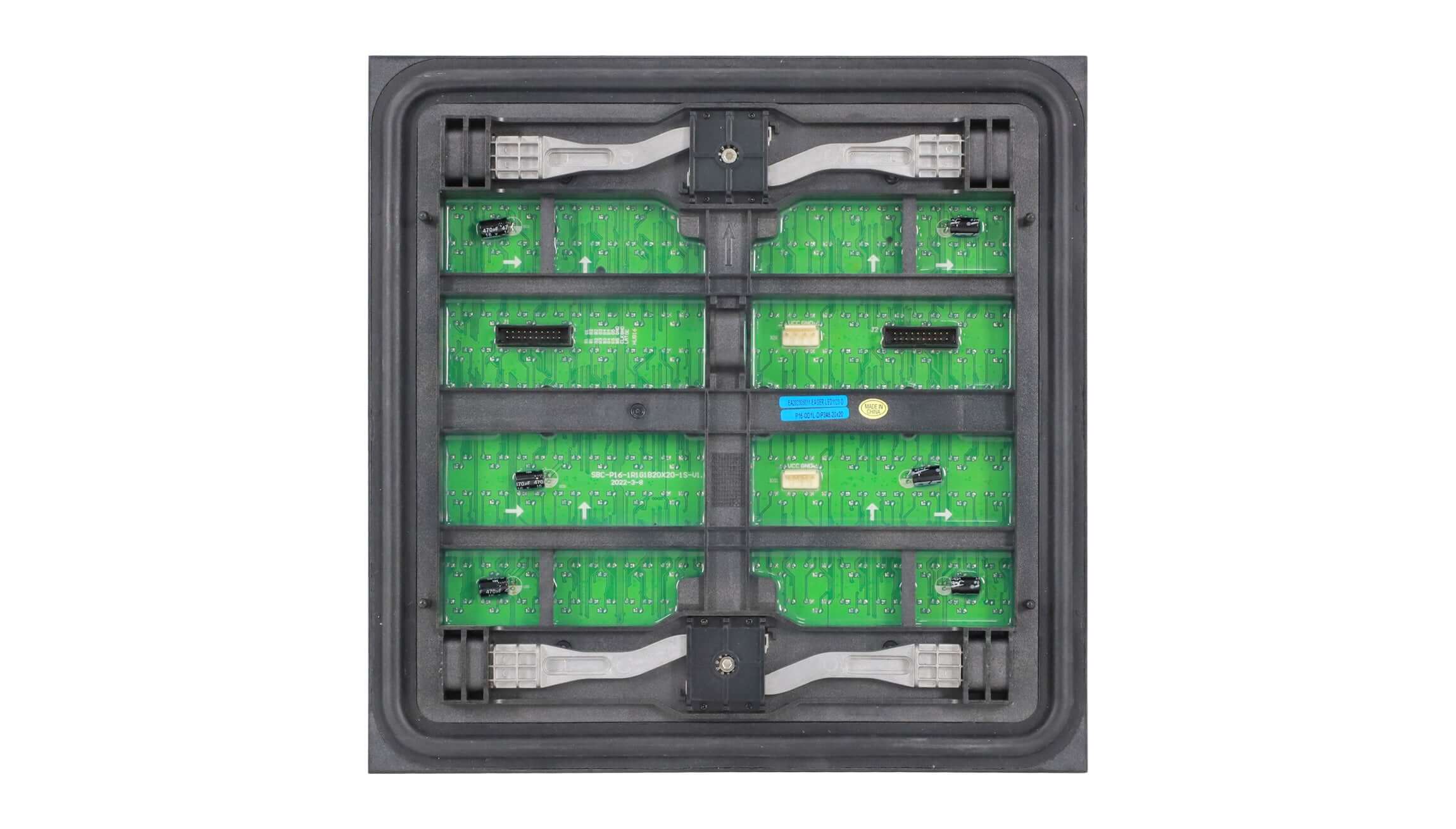

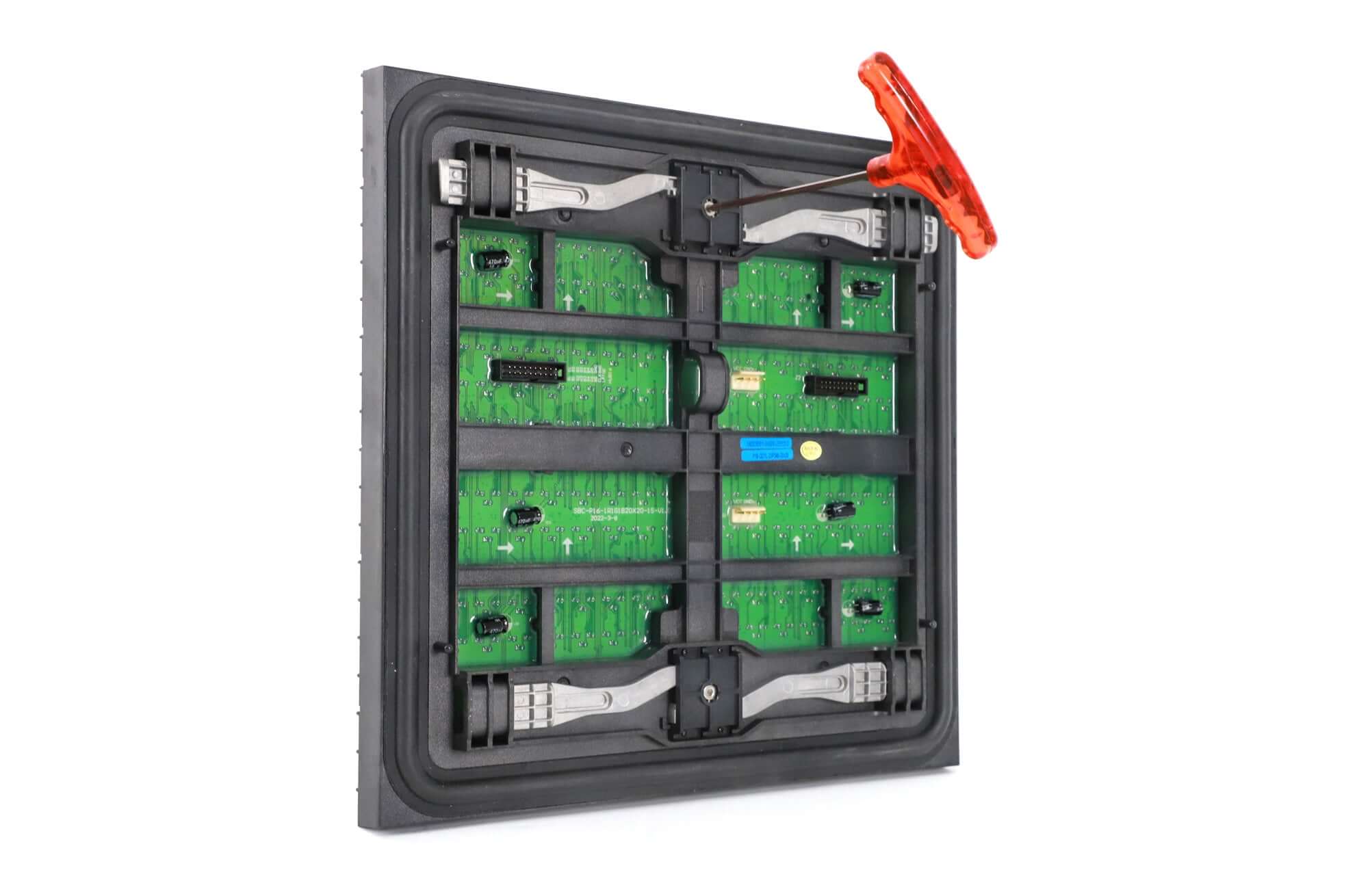

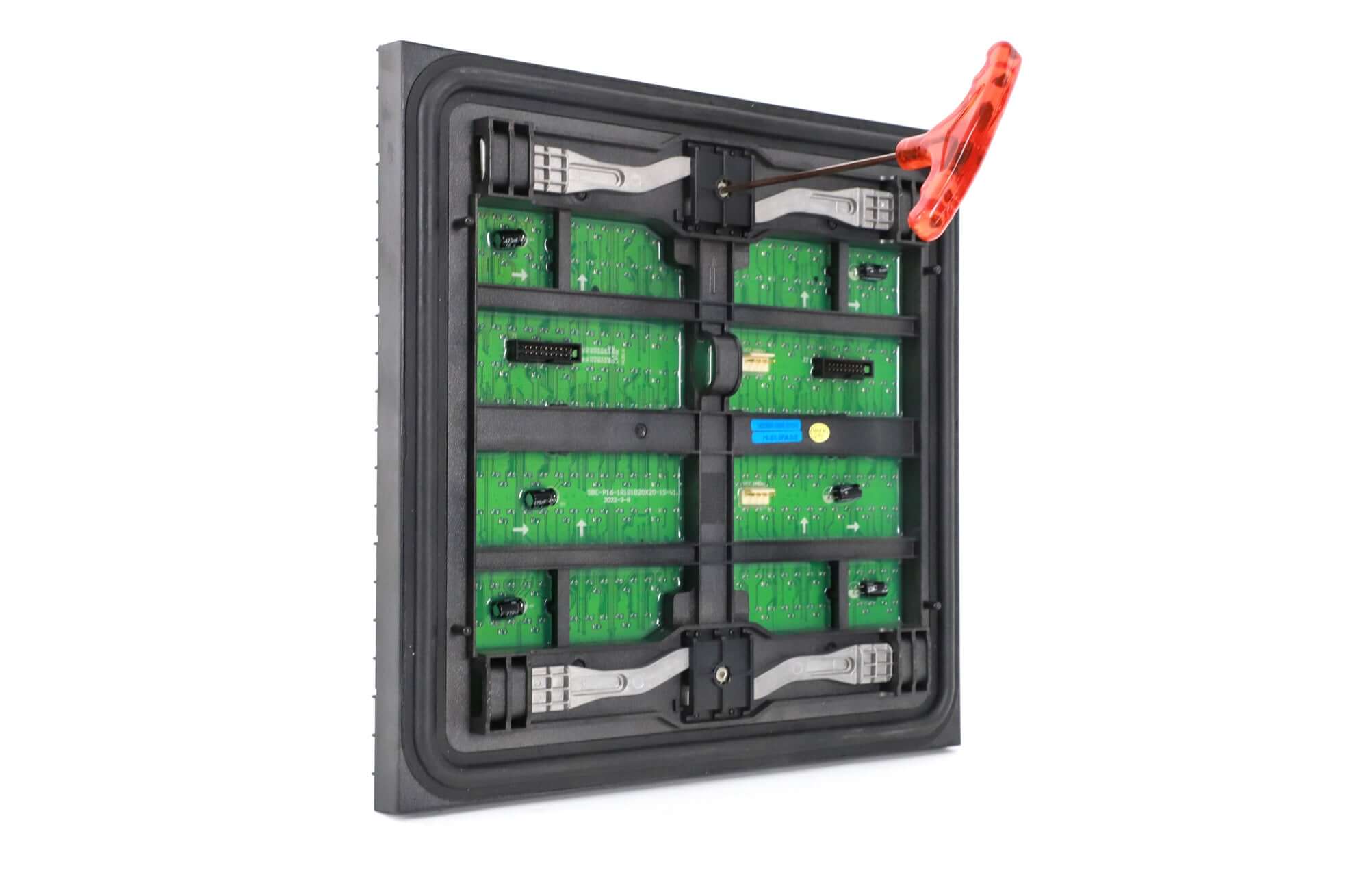

More Pictures of P16 Front Access LED Module Outdoor 1R1G1B DIP 320x320mm

P8 Dual Maintenance LED display Module 320x320mm

P8 Dual Maintenance LED display Module 320x320mm

P8 Dual Maintenance LED display Module 320x320mm

P8 Dual Maintenance LED display Module 320x320mm



Download Specification

P16 Front Access LED Module Outdoor 1R1G1B DIP 320x320mm Specification
