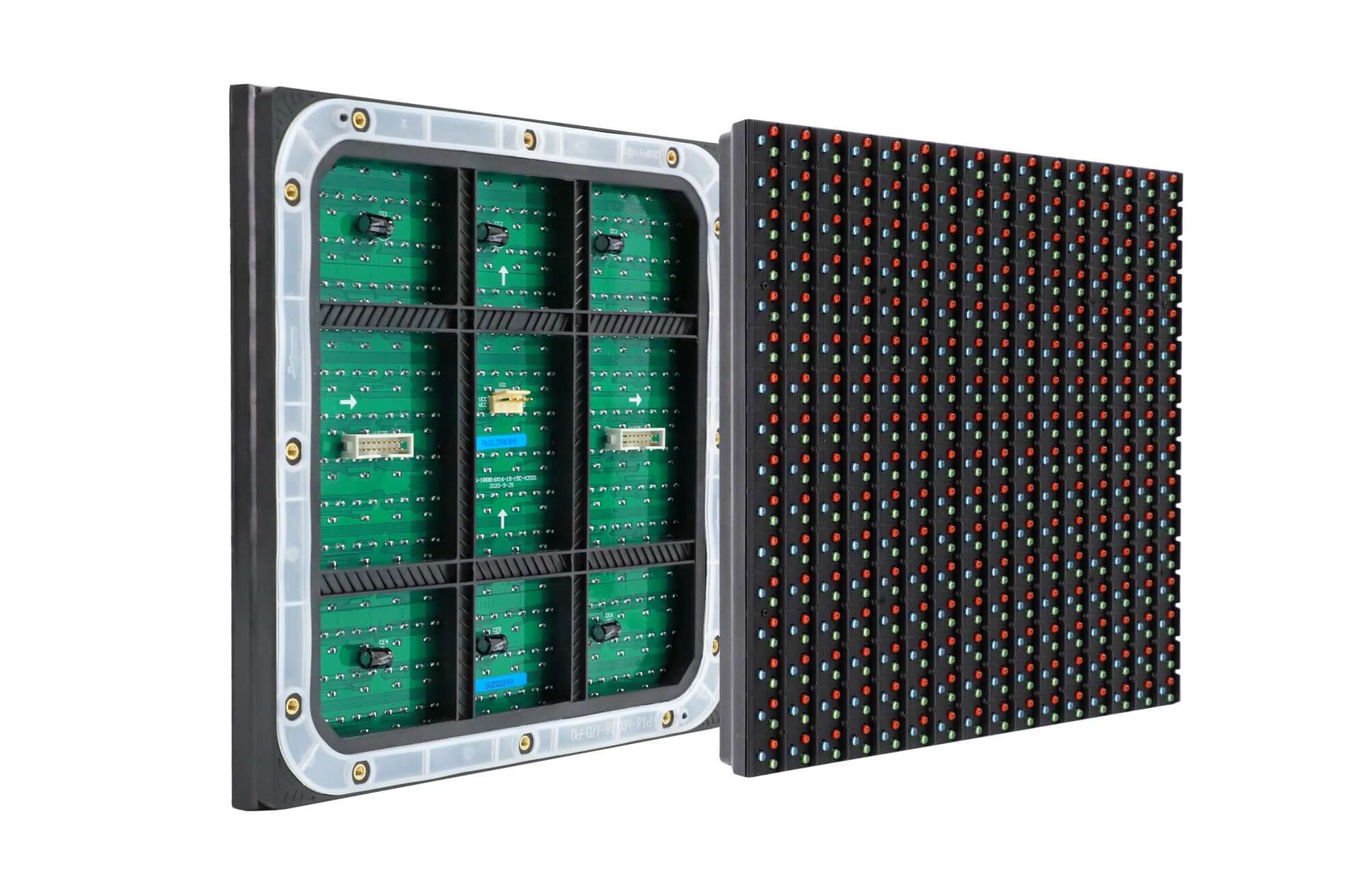

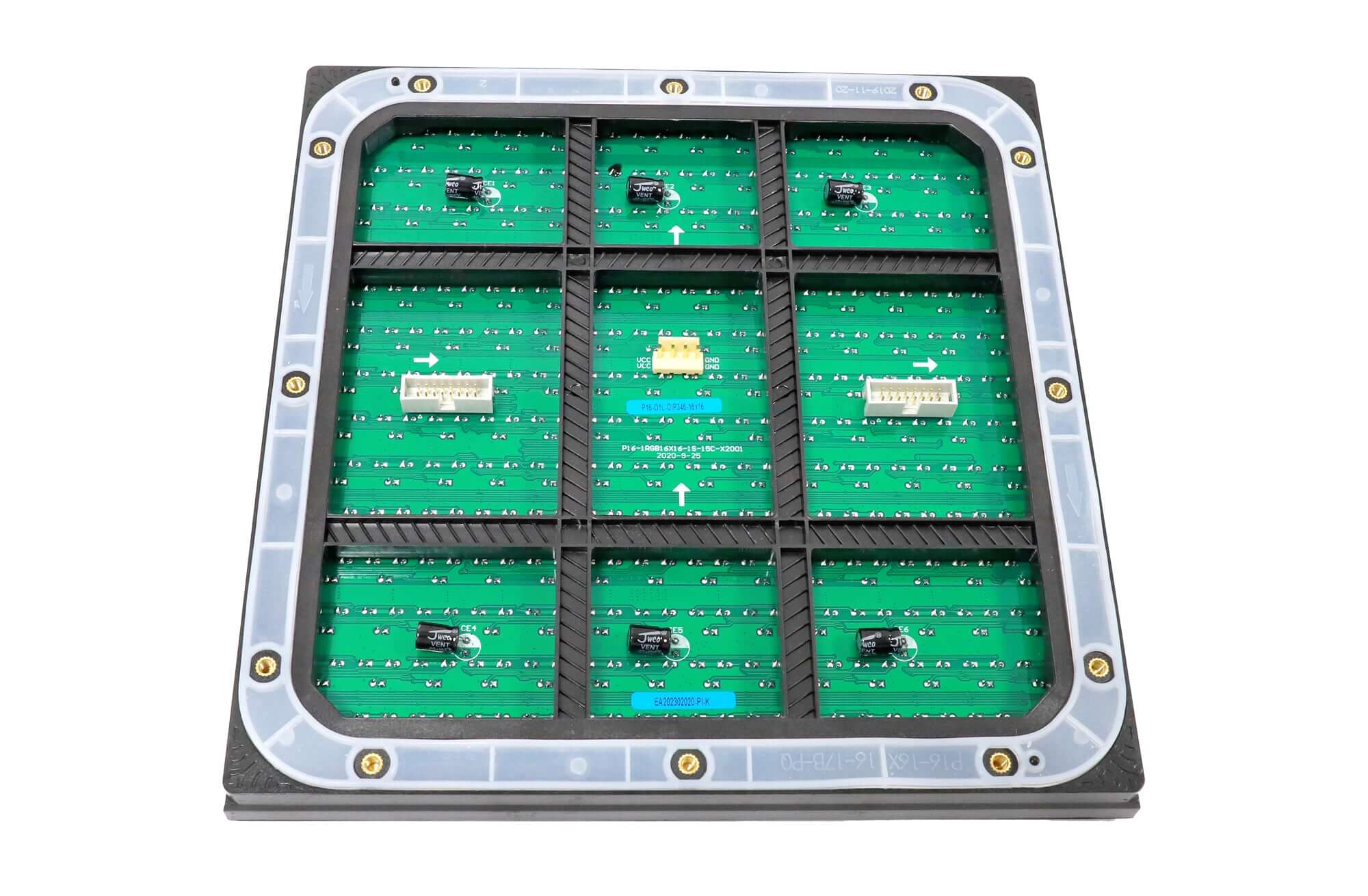

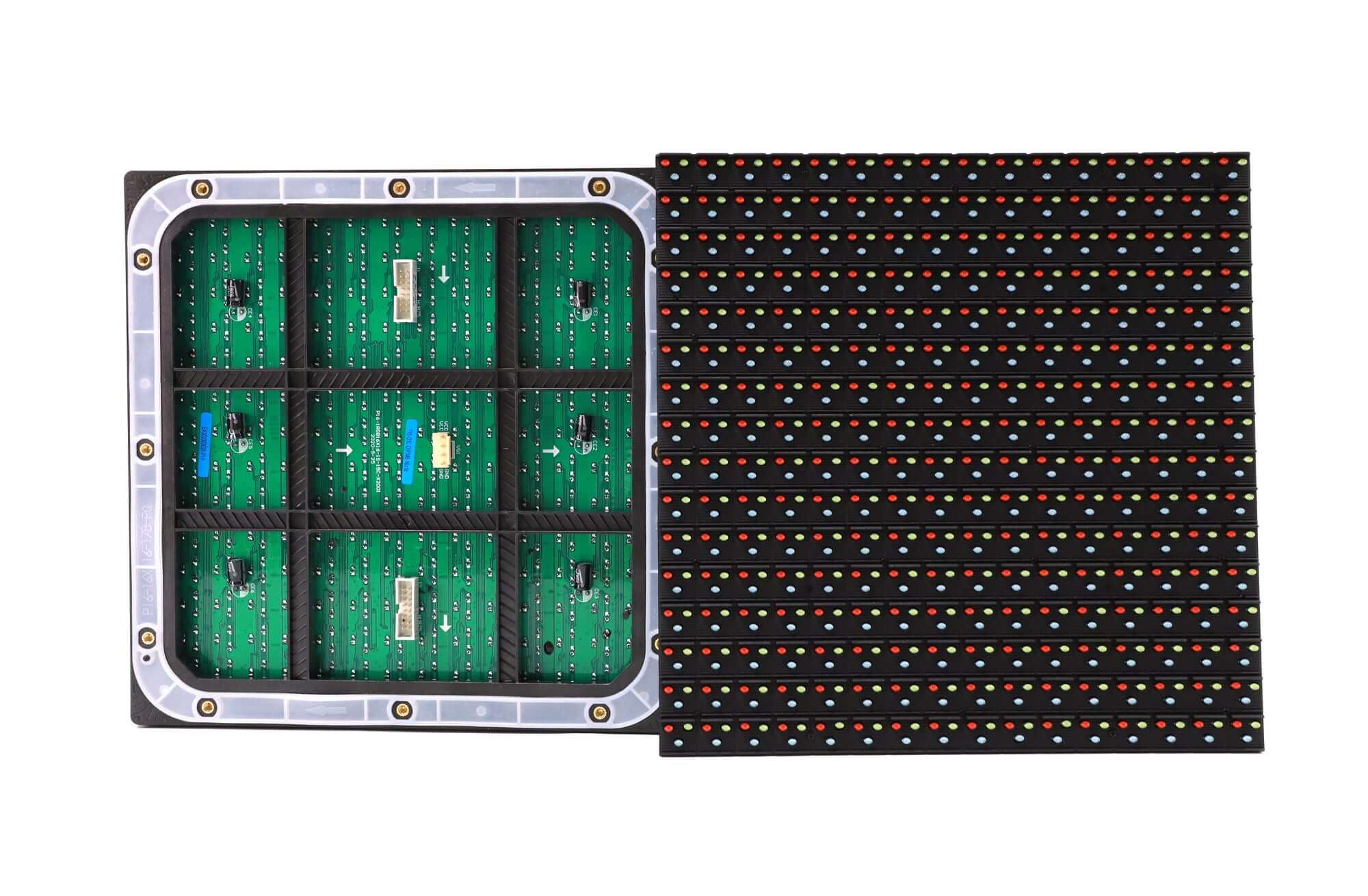

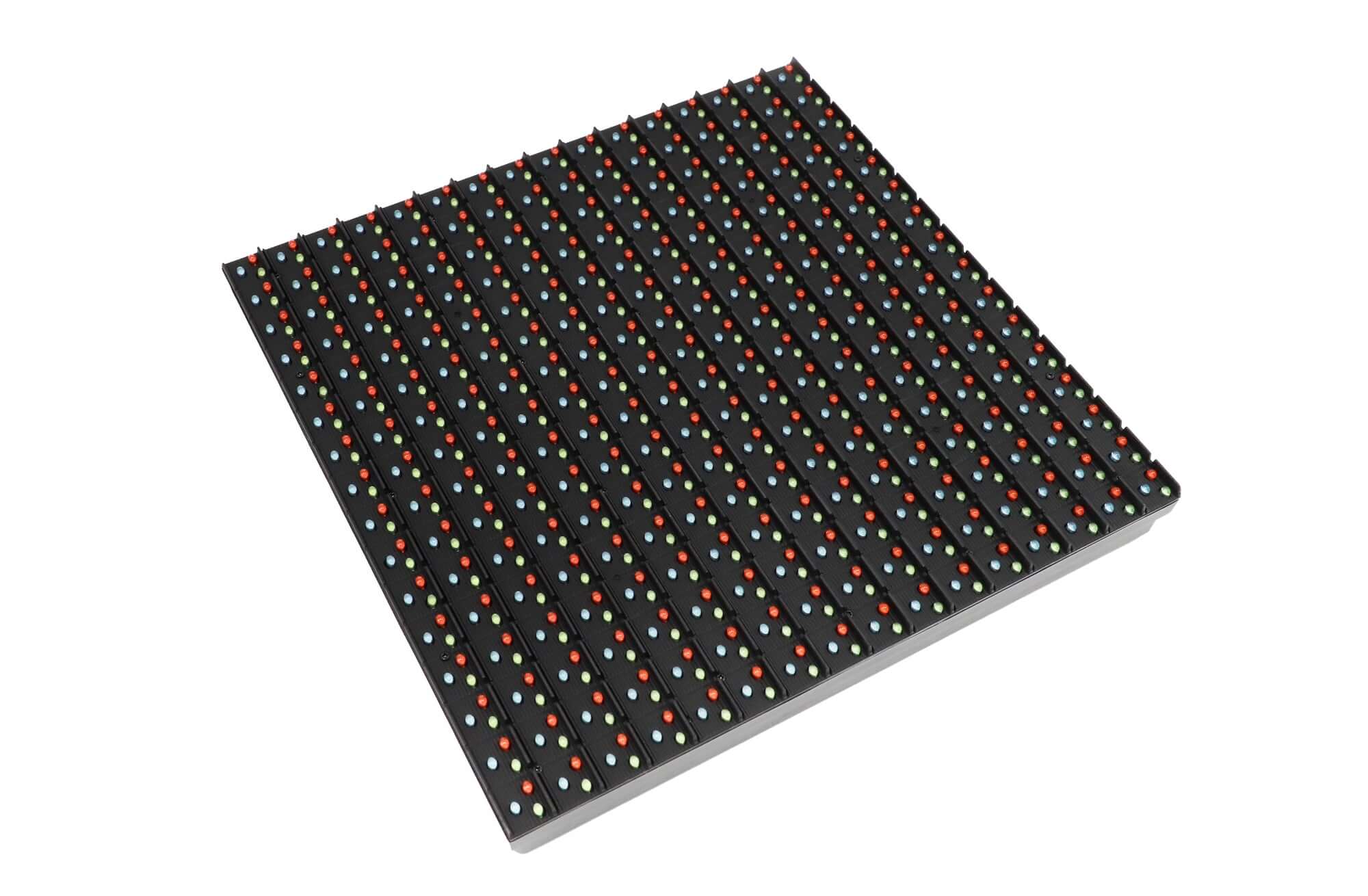

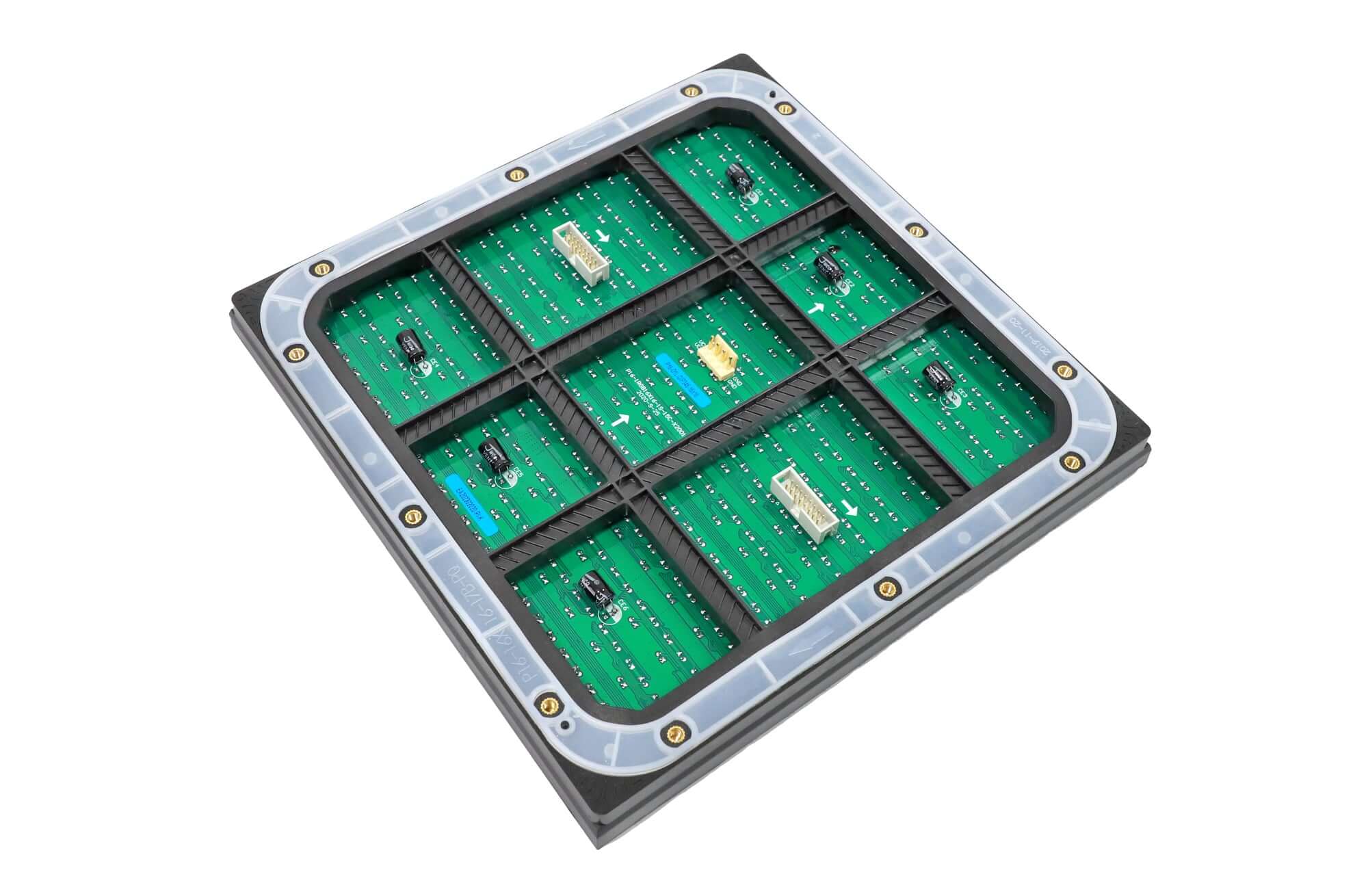

P16 Outdoor LED Module, 256 × 256 mm, DIP346
$ 28.00
Each 256 × 256 mm module has 16 × 16 pixels on a 16 mm pitch. It uses DIP346 LEDs.
9914 in stock
Use the outline dimensions to lay out the cabinet and the pixel matrix to configure its display area. The listed drive mode for this board is Constant current, Static Driving Mode.
Technical specifications
LED Lamp Specification | ||||||
Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | |
Red | DIP346 | 800-1500mcd | 110°(H); 50°(V) | 618-628nm | 25℃,20mA | |
Green | DIP346 | 1800-3000mcd | 110°(H); 50°(V) | 518-528nm | 25℃,20mA | |
Blue | DIP346 | 400-600mcd | 110°(H); 50°(V) | 465-475nm | 25℃,20mA | |
Module Parameter | ||||||
Pixel Pitch | 16mm | |||||
Pixel Configuration | DIP346 | |||||
Density | 3,906 pixels/㎡ | |||||
Module Resolution | 16pixel(L) * 16pixel(H) | |||||
Module Dimension | 256mm(L) * 256mm(H) *30mm(D) | |||||
Driving Mode | Constant current, Static Driving Mode | |||||
Module Mask | Pure black mask—high contrast screen | |||||
Electricity Parameter | ||||||
Optical Ratings | ||||||
Brightness | ≥7,500 cd/㎡ | |||||
Viewing Angle | 110°(Horizontal); 50°(Vertical) | |||||
Best Viewing Distance | ≥16m | |||||
Gray Grade | 14 bits | |||||
Display Color | 4.4 trillion colors | |||||
Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
Max. Power Consumption | 35 W | |||||
Control System | ||||||
Frame Frequency | ≥60Hz | |||||
Refresh Frequency | ≥1,920Hz | |||||
Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
Control Distance | 100m(Ethernet cable); 20KM(optical fiber cable) | |||||
Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
Color Temperature | 5000—9300 adjustable | |||||
Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
Reliability | ||||||
Working Temperature | -20～+60 ºC | |||||
Storage Temperature | -30～+70 ºC | |||||
Working Humidity | 10%～90% RH | |||||
Lifetime | 100,000 hours | |||||
MTBF | 5000 hours | |||||
Continuous Operating Time | ≥72 hours | |||||
Protection Grade | IP65 | |||||
Out-of-Control Pixel Rate | ≤0.01% | |||||
Package and ordering information
Each module comes with an inter-module signal cable and a power cable for connection to the supply. Order all modules for one screen together so they come from the same production batch; different batches can vary in color and brightness. These modules are not supplied or supported as spare parts for existing older displays. Destination duties and customs clearance are the buyer’s responsibility.
Product documentation and photos
Download the module specification (PDF)
Frequently asked questions
Which scan mode does this board use?
The module table lists Constant current, Static Driving Mode. Match that drive setting and the 16 × 16 pixel layout when preparing the receiver configuration.
What brightness is listed for the 256 × 256 mm DIP346 module?
The optical specification gives ≥7,500 cd/m². The listed viewing distance is ≥16m.
How much power does one 256 × 256 mm board use?
The maximum power consumption is listed as 35 W per module. Use the figure for this board when planning the cabinet supply.
What is the pixel resolution of one P16 module in this size?
The 256 × 256 mm board contains 16 × 16 pixels. Use this matrix when calculating the resolution of a multi-module screen.
| Weight | 2 kg |
|---|
