P10 Outdoor SMD3535 LED Module, 320 × 160 mm, 1/4 Scan
$ 11.30
Each 320 × 160 mm module has 32 × 16 pixels on a 10 mm pitch. It uses SMD3535 LEDs.
9988 in stock
Use the outline dimensions to lay out the cabinet and the pixel matrix to configure its display area. The listed drive mode for this board is Constant current, 1/4 duty.
Technical specifications
LED Lamp Specification | ||||||
Color | Package | Intensity | Viewing angle | Wavelength | Testing condition | |
Red | SMD3535 | 800-1100mcd | 120 | 620-625nm | 25℃,20mA | |
Green | 1600-2250mcd | 120 | 515-530nm | 25℃,20mA | ||
Blue | 350-500mcd | 120 | 465-475nm | 25℃,20mA | ||
Module Parameter | ||||||
Pixel Pitch | 10mm | |||||
Pixel configuration | SMD3535 Black | |||||
Density | 10,000 pixels/㎡(real pixel) | |||||
Module Resolution | 32pixel(L) * 16pixel(H) | |||||
Module Dimension | 320mm(L) * 160mm(H) * 25mm(D) | |||||
Driving Mode | Constant current, 1/4 duty | |||||
Module Mask | Pure black mask—high contrast screen | |||||
Electricity Parameter | ||||||
Optical Ratings | ||||||
Brightness | ≥6,000 cd/㎡ | |||||
Viewing Angle | 120°(Horizontal); 120°(Vertical) | |||||
Best Viewing Distance | ≥10m | |||||
Gray Grade | 16,384 levels for each color | |||||
Display Color | 4.39 Trillion Colors | |||||
Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
Max. Power Consumption | 28W | |||||
Control System | ||||||
Correction Scale Level | 12bits | |||||
Frame Frequency | ≥60Hz | |||||
Screen Refresh Frequency | ≥1,920Hz | |||||
Gamma Correction | -5.0～5.0 | |||||
Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
Control Distance | 100m(Ethernet cable); 20KM(optical fiber cable) | |||||
Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
Color Temperature | 5000—9300 adjustable | |||||
Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
Reliability | ||||||
Working Temperature | -20～+60 ºC | |||||
Stored Temperature | -30～+70 ºC | |||||
Working Humidity | 10%～90% RH | |||||
Lifetime | 100,000 hours | |||||
MTBF | 5000 hours | |||||
Continuous Working Time | ≥72 hours | |||||
Protection Grade | IP65 | |||||
Out of Control Pixel Rate | ≤0.01% | |||||
Package and ordering information
Each module comes with an inter-module signal cable and a power cable for connection to the supply. Order all modules for one screen together so they come from the same production batch; different batches can vary in color and brightness. These modules are not supplied or supported as spare parts for existing older displays. Destination duties and customs clearance are the buyer’s responsibility.

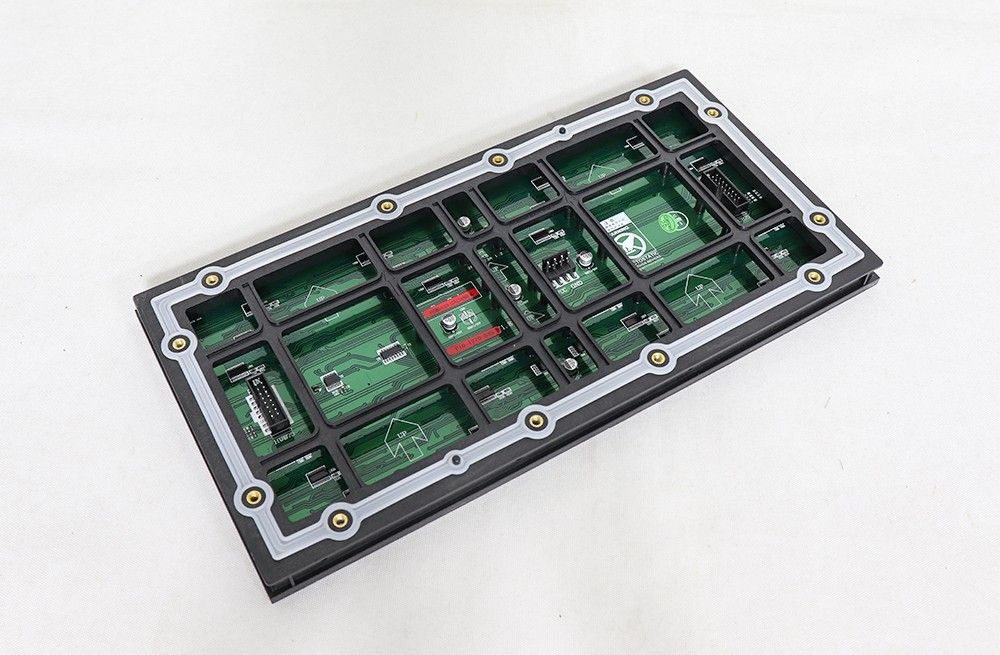

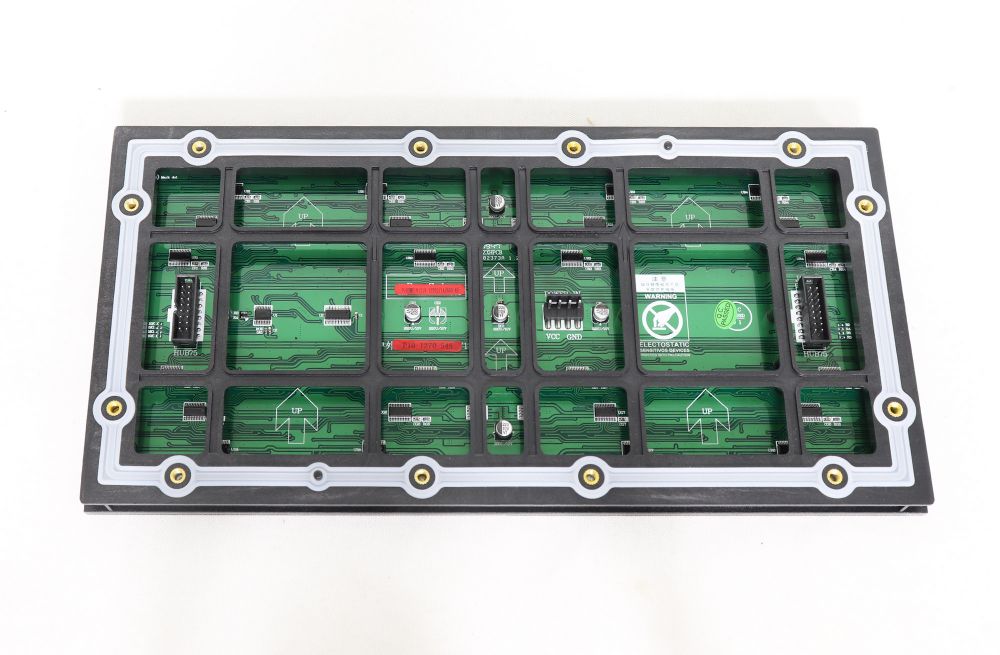

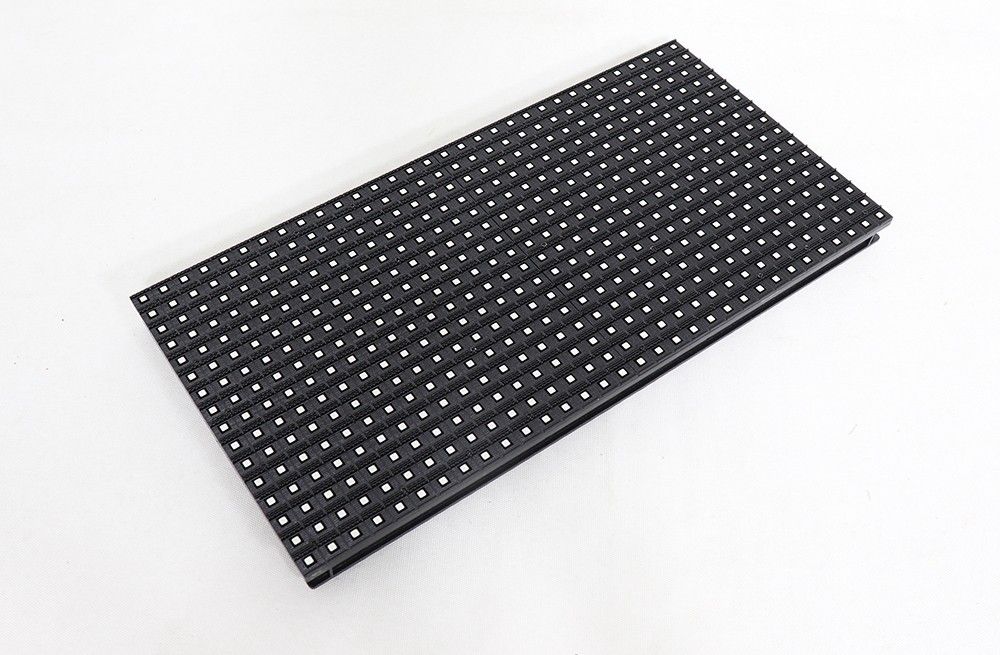

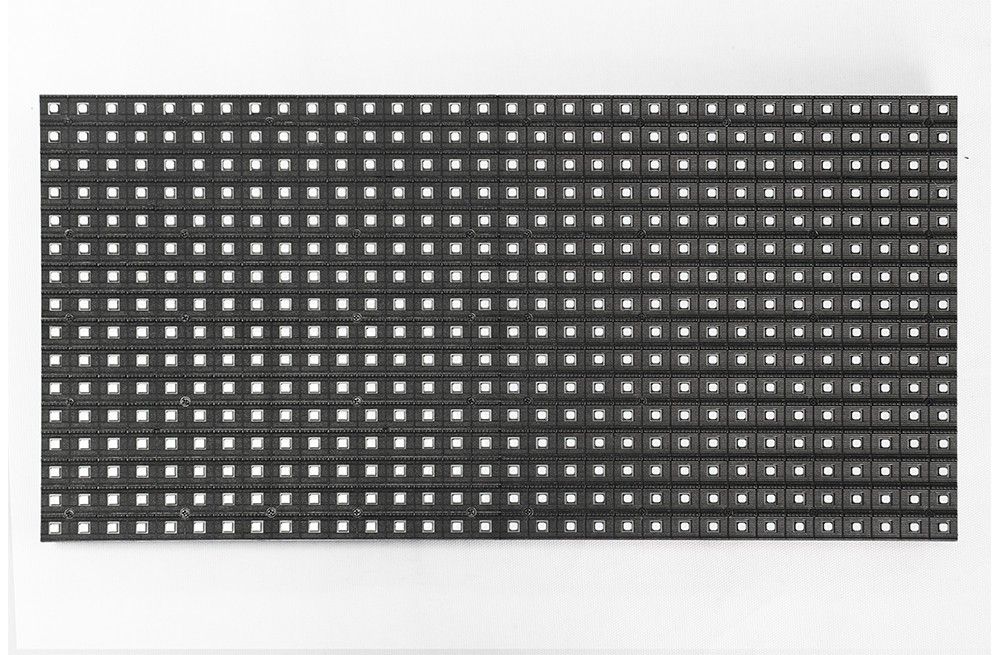

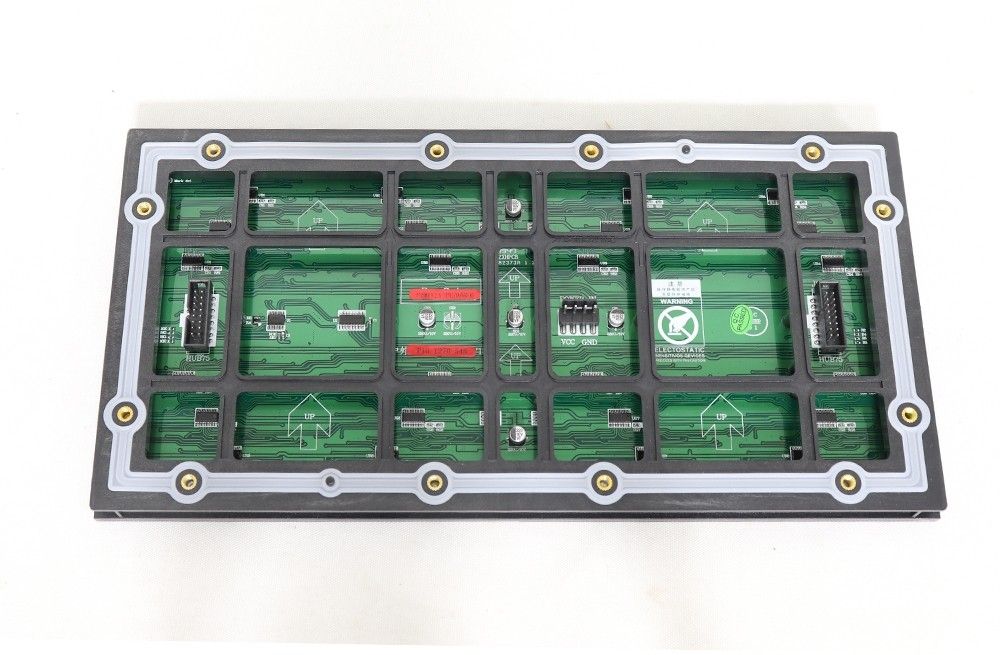

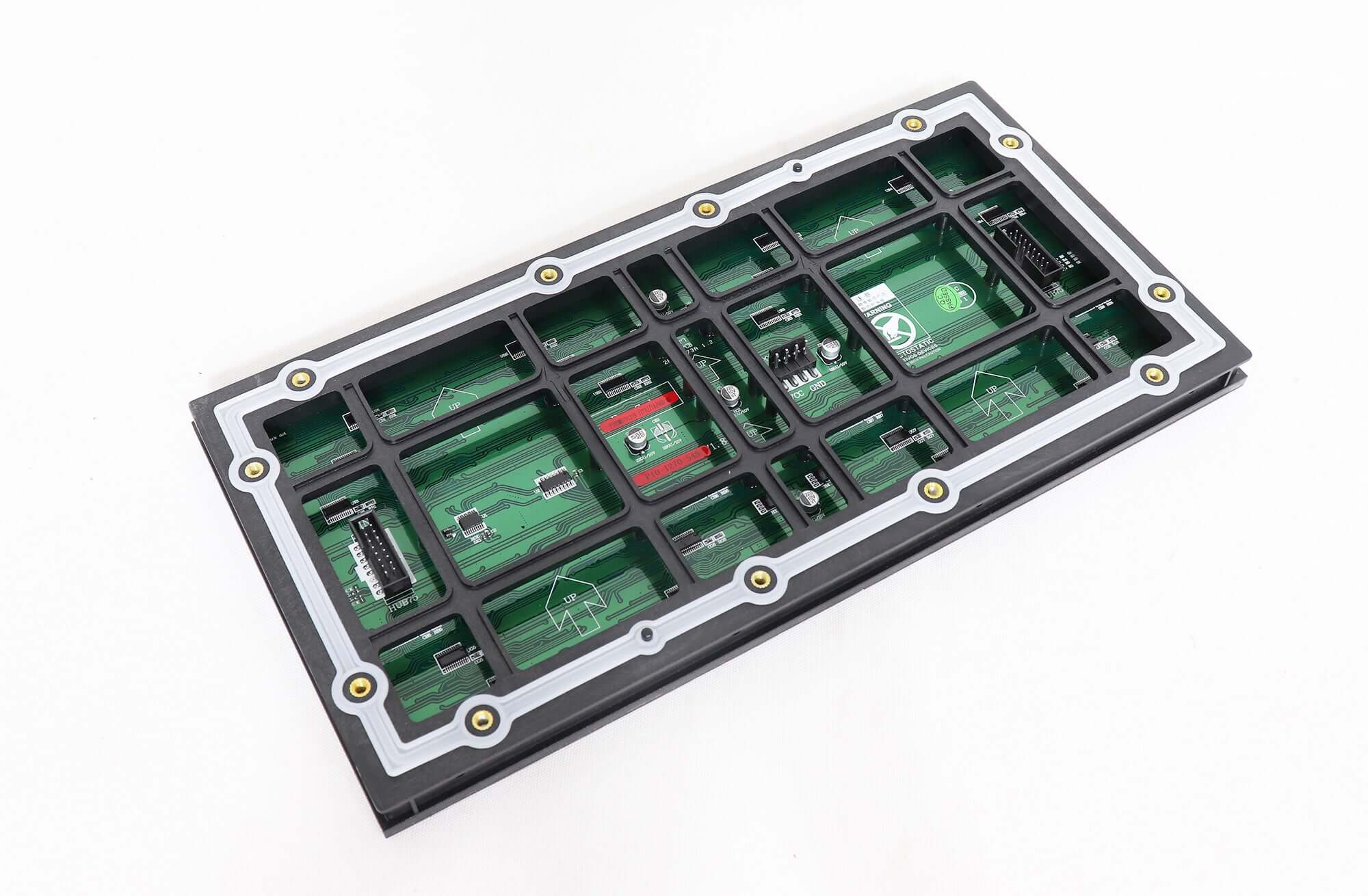

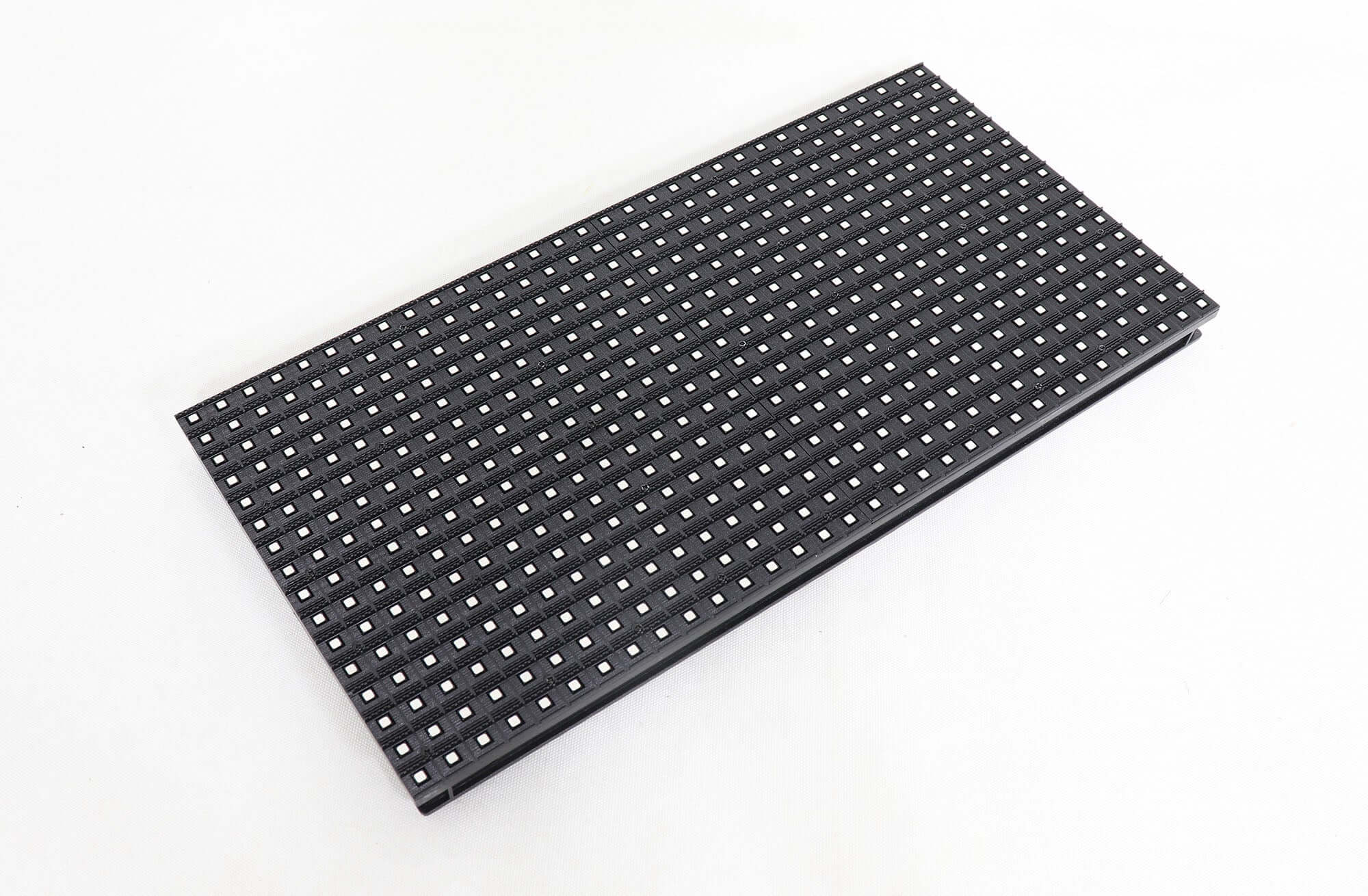

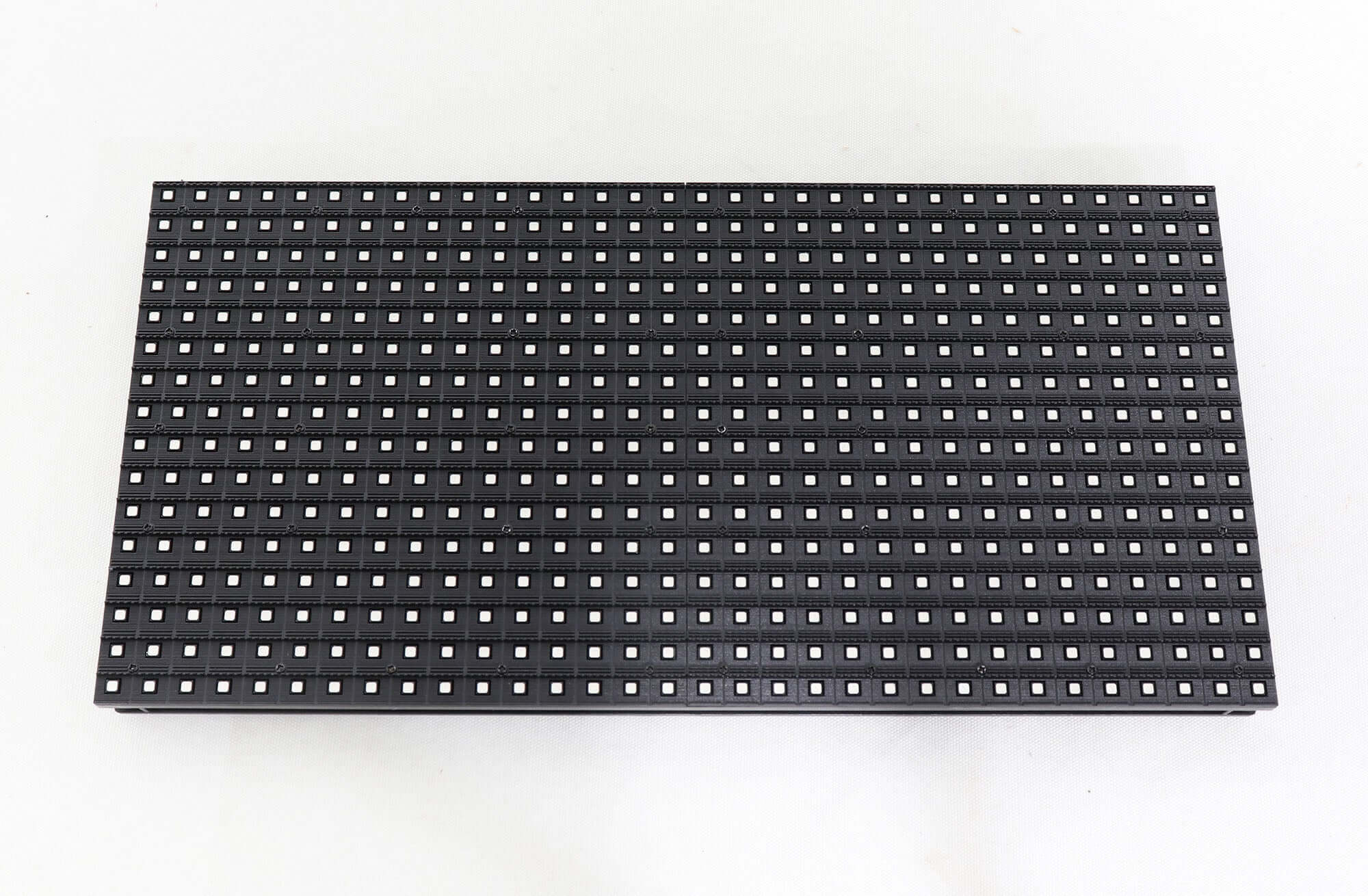

Product documentation and photos
Download the module specification (PDF)
Frequently asked questions
Which scan mode does this board use?
The module table lists Constant current, 1/4 duty. Match that drive setting and the 32 × 16 pixel layout when preparing the receiver configuration.
What brightness is listed for the 320 × 160 mm SMD3535 module?
The optical specification gives ≥6,000 cd/m². The listed viewing distance is ≥10m.
How much power does one 320 × 160 mm board use?
The maximum power consumption is listed as 28 W per module. Use the figure for this board when planning the cabinet supply.
What is the pixel resolution of one P10 module in this size?
The 320 × 160 mm board contains 32 × 16 pixels. Use this matrix when calculating the resolution of a multi-module screen.
| Weight | 2 kg |
|---|
