NovaStar NS060-5A Ambient Brightness Sensor | 5m Cable
Original price was: $ 76.00.$ 65.00Current price is: $ 65.00.
The NovaStar NS060-5A ambient brightness sensor connects to compatible LED control equipment to support automatic brightness adjustment. It includes a 5 m cable and measures light levels from 0 to 65,535 lux.
No separate external power supply is required.
9760 in stock

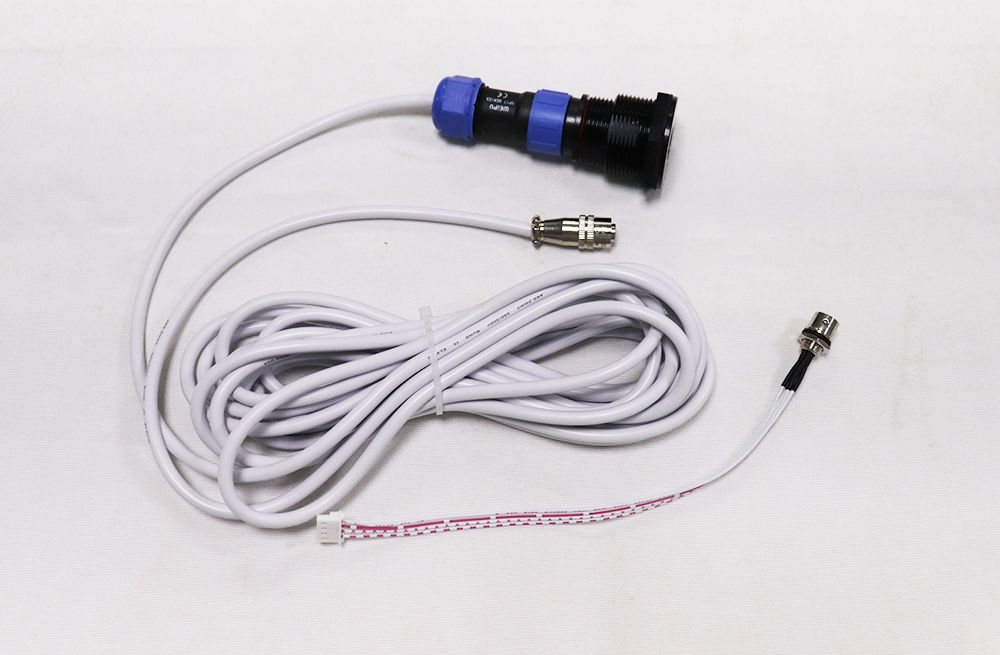

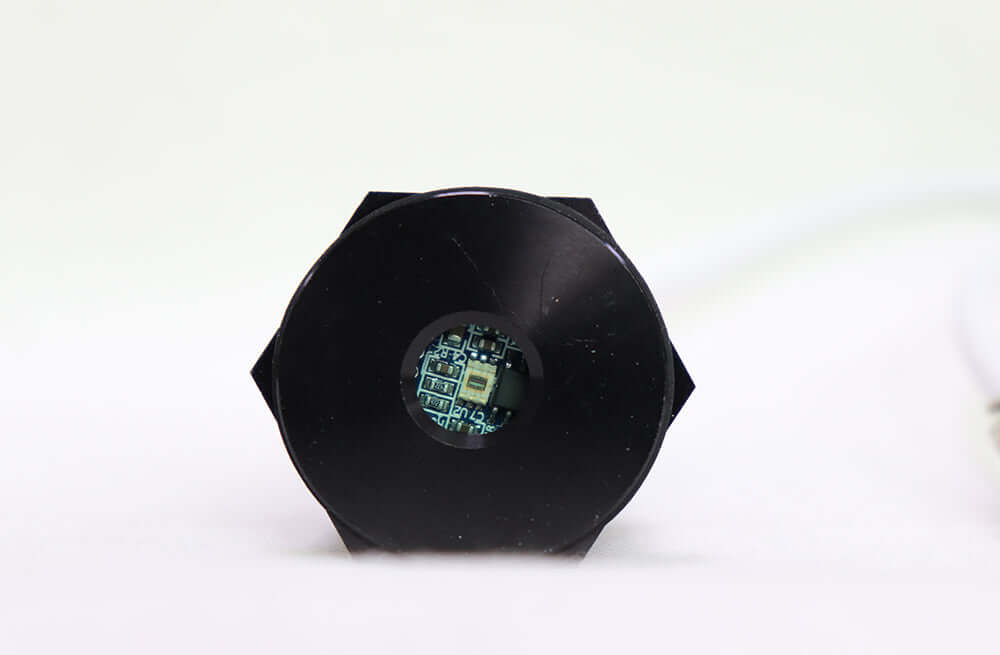

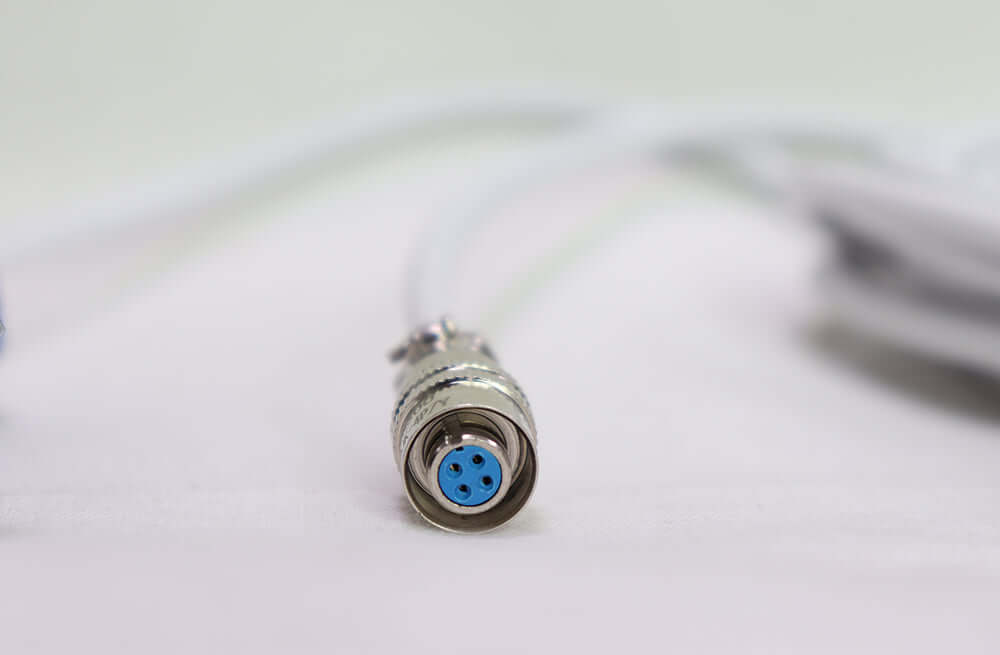

NovaStar NS060-5A Ambient Brightness Sensor
The NS060-5A helps a compatible NovaStar control system adjust LED display brightness according to ambient light. It is the standard 5 m cable version, suited to layouts where the sensor can reach a position exposed to the same lighting conditions as the screen.
The sensor provides the light measurement; the controller applies the brightness settings. This allows an outdoor advertising screen or LED sign to respond to daylight changes without relying only on a fixed brightness level.
| Parameter | Specification |
|---|---|
| Cable length | 5 m |
| Brightness measurement range | 0–65,535 lux |
| Rated voltage | 5 V DC |
| Operating temperature | −20°C to +70°C |
| Operating humidity | 0%–99% RH; non-condensing in NS060 V1.1.4 |
| Housing | Aluminum alloy with micro-arc oxidation surface treatment |
| Protection rating | IP65, stated in the later NS060 V1.1.4 specification |
| Maximum current / power | 0.09 A / 0.45 W in NS060 V1.1.4 |
| Current / power test conditions | One sensor at 5 V input and 25°C ambient temperature |
| External power supply | Not required |
The retained NS060-5A V1.0.3 PDF establishes the cable length, light range, voltage and operating temperature. The later NS060 V1.1.4 document adds the stated IP rating and current/power data.
Connection and Mounting
The manufacturer specifies connection to compatible sending cards, asynchronous cards or multifunction cards with light-sensor connectors, including MSD300, MSD600 and MCTRL300 examples. Its application diagram shows an MFN300 connection. Check the exact control device and sensor port before installation.
Place the sensor in the same environment as the LED display. For outdoor assembly, apply outdoor waterproof adhesive at the sensor-body/substrate joint as recommended by the manufacturer, and check the joint regularly.
Choosing the Cable Length
The 5A version has a 5 m cable. If the required route is longer, compare the NS060-10A with 10 m cable or NS060-30A with 30 m cable. Measure the route to the intended sensing position before choosing a variant.
Specification PDF
Download the NS060-5A V1.0.3 specification
Frequently Asked Questions
What does the NS060-5A ambient brightness sensor do?
It measures ambient light so compatible NovaStar equipment can automatically adjust LED display brightness according to configured settings.
What is the NS060-5A measurement range?
The manufacturer specifies a range of 0 to 65,535 lux. The standard cable length for NS060-5A is 5 m.
Does NS060-5A require an external power supply?
No separate external supply is required. Its rated voltage is 5 V DC, and it connects to a compatible light-sensor port on the control equipment.
Where should the sensor be installed?
Place it in the same lighting environment as the LED display. Follow the manufacturer’s outdoor sealing advice for the mounting joint and inspect the joint regularly.
How do NS060-5A, NS060-10A and NS060-30A differ?
The documented cable lengths are 5 m, 10 m and 30 m respectively. Choose the variant according to the route between the controller and the appropriate sensor location.
| Weight | 0.6 kg |
|---|
