Colorlight i5A-905 LED Receiving Card – 256 × 256 Pixels
Original price was: $ 20.58.$ 16.20Current price is: $ 16.20.
Colorlight i5A-905 receiving card for compact LED cabinets, with 256 × 256-pixel loading, brightness and chromaticity calibration, and DC 3.3–6 V input.
10000 in stock
Colorlight i5A-905 for Compact LED Cabinets

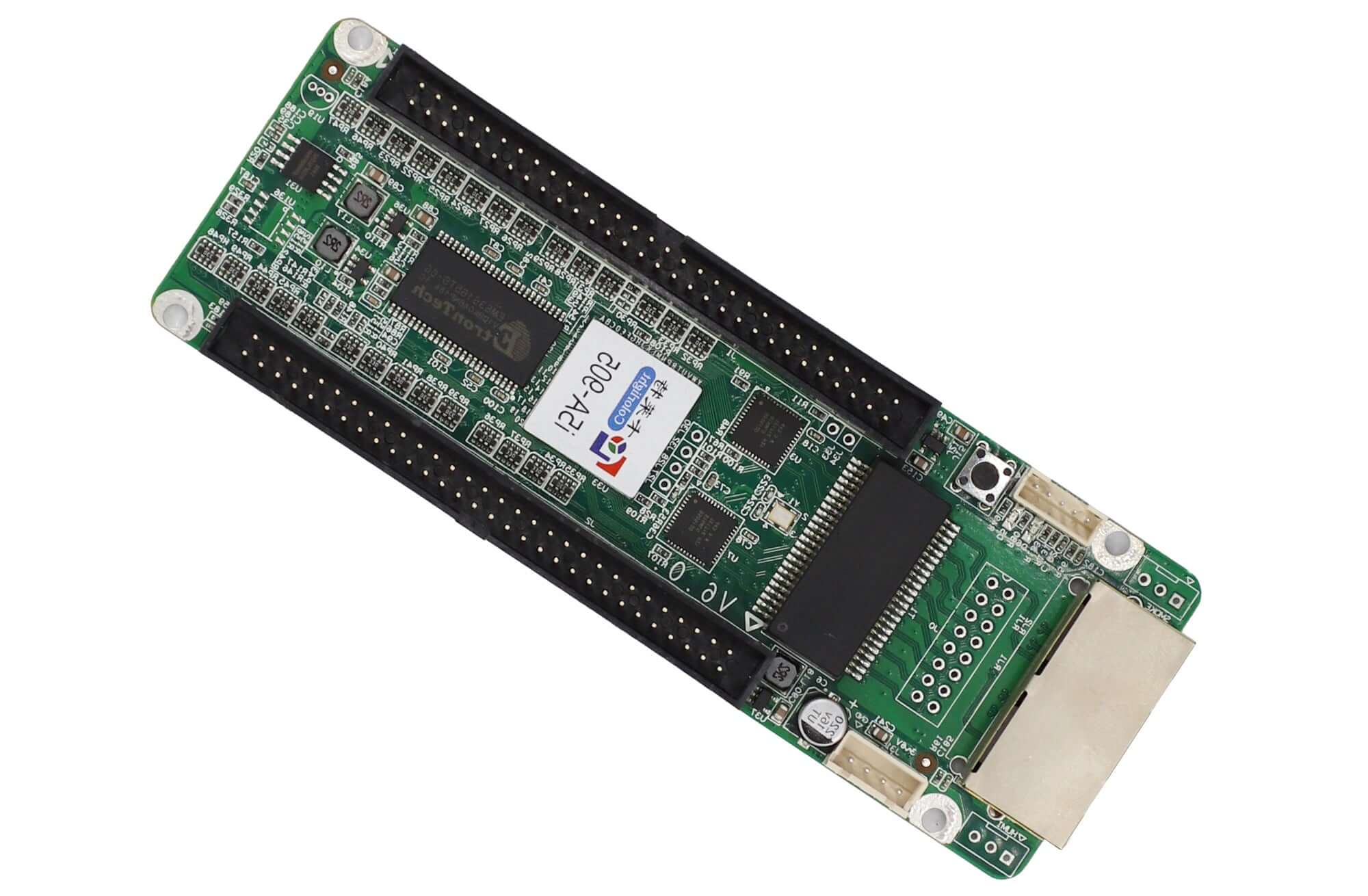

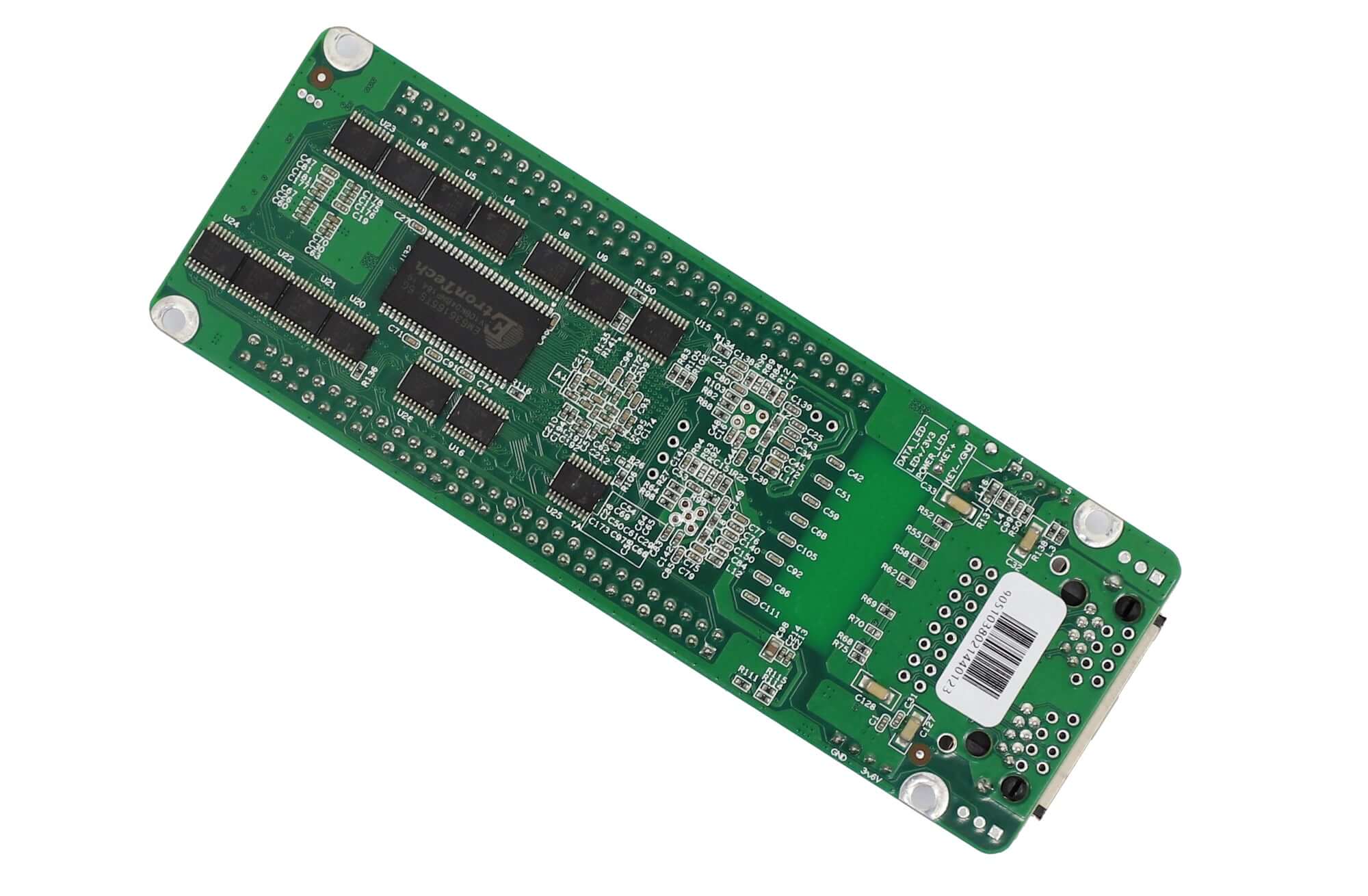

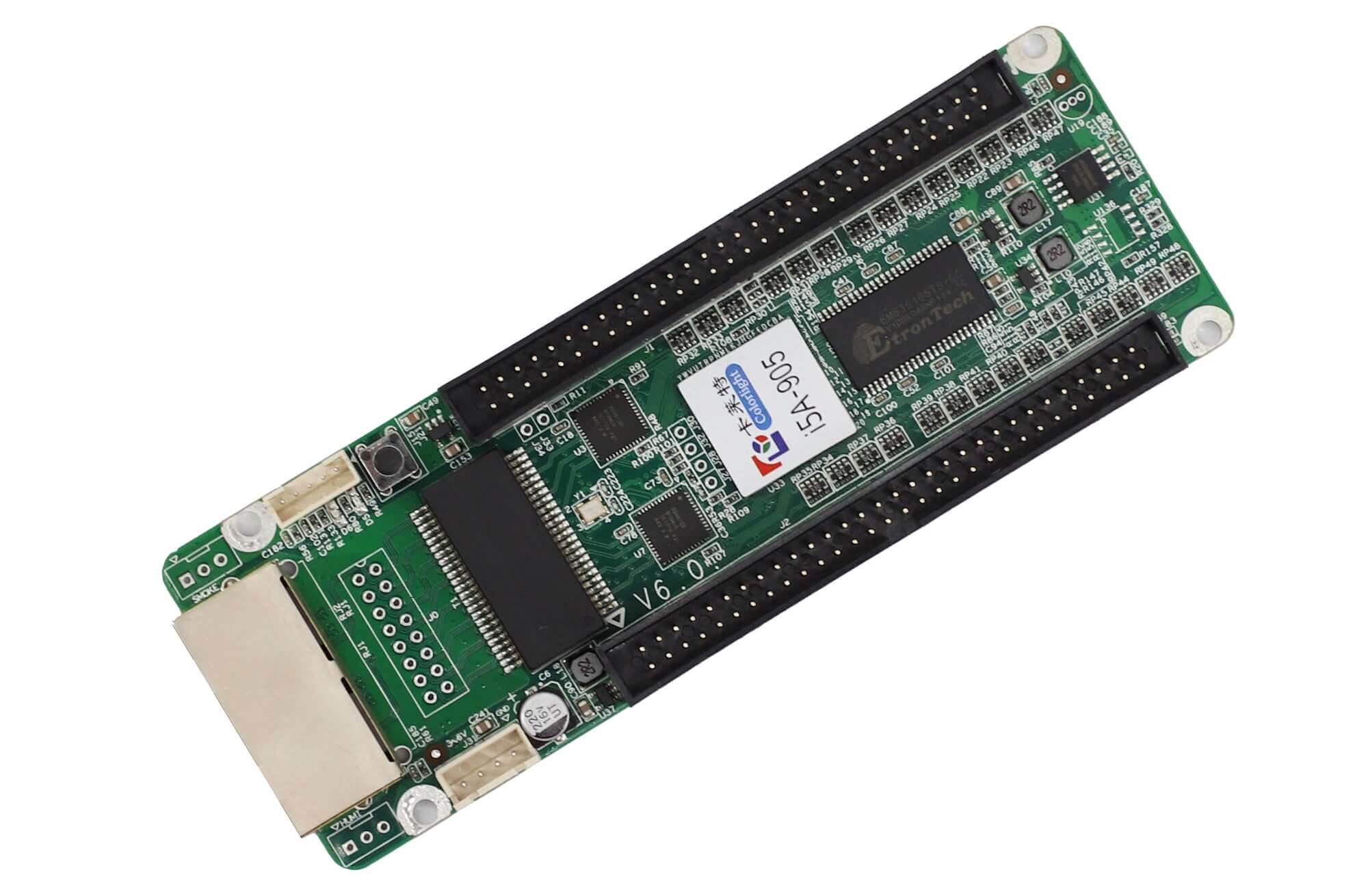

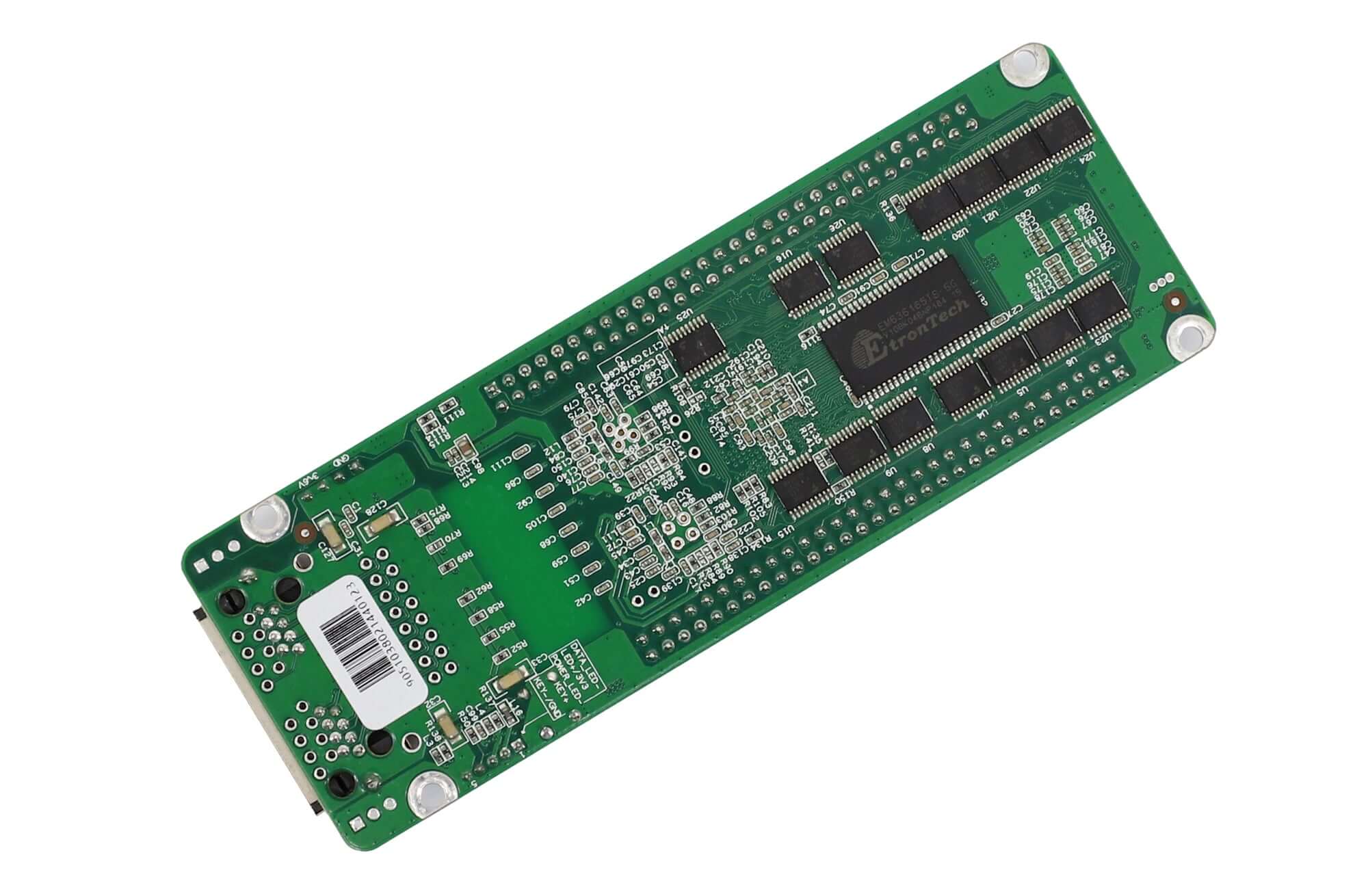

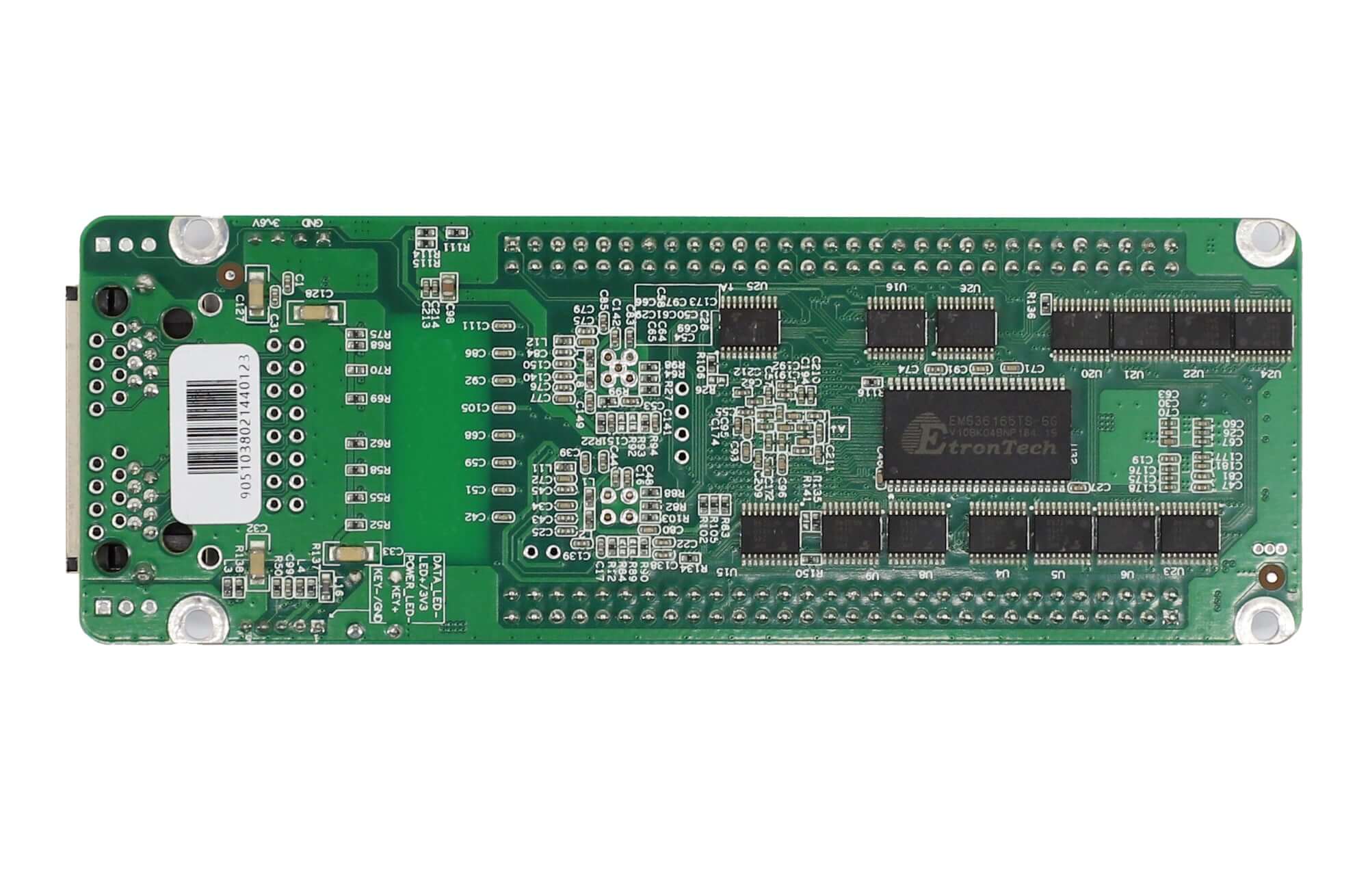

The Colorlight i5A-905 is an LED receiving card designed for compact screens and die-cast aluminum cabinets. Its 137 × 48 mm board supports a full-color loading area of 256 × 256 pixels and point-by-point brightness and chromaticity calibration.
For cabinet integration or replacement, check the HUB board connections, module driver IC and scan mode against the specification below. The card supports conventional, PWM and lighting driver chips, with scanning from static to 1/32.
Technical Specifications
Parameters below follow the i5A-905 V6.1 specification dated September 28, 2018.
| Parameter | Specification |
|---|---|
| Full-color loading area | 256 × 256 pixels |
| Calibration area | 256 × 256 pixels |
| Data outputs | 16 groups of RGBR′; up to 24 groups of RGB |
| Scan modes | Static to 1/32 scan |
| Grayscale | 65,536 levels |
| Supply voltage | DC 3.3–6 V |
| Rated current / power | 0.6 A / 3 W |
| Power connection | Wire terminal or HUB board |
| Dimensions | 137 × 48 mm |
| Weight | 70 g |
| Operating temperature | −25°C to +75°C |
| Storage temperature | −50°C to +125°C |
Calibration and Screen Integration
Point-by-point calibration adjusts brightness and chromaticity across the display. Offset-based mapping supports freeform layouts, including spherical and diamond-shaped screens. The specification also lists dual receiving-card, loop and dual-machine backup; these functions require an appropriately designed system.
Temperature, humidity and smoke monitoring are available in conjunction with a multifunction card. These are system functions and should not be treated as built-in sensors on the receiving card.
Specification Download
Download the Colorlight i5A-905 Receiving Card Specification (PDF) for pin assignments, mechanical drawings and configuration details.
Frequently Asked Questions
What is the loading capacity of the Colorlight i5A-905?
The V6.1 specification lists 256 × 256 pixels for full-color loading and calibration. Its separate special-application column limit does not mean a 1024 × 1024-pixel loading area.
What power supply does the i5A-905 require?
The specified input range is DC 3.3–6 V, with a rated current of 0.6 A and power consumption of 3 W. Power can be supplied through a wire terminal or the HUB board.
Which LED module scan modes are supported?
The card supports static operation through 1/32 scan. Check the module driver IC, scan mode and HUB wiring before selecting it as a replacement.
Does the i5A-905 support brightness and color calibration?
Yes. It supports point-by-point brightness and chromaticity calibration over a 256 × 256-pixel area.
Can the i5A-905 monitor cabinet temperature and humidity?
The specification lists monitoring in conjunction with a multifunction card. Additional system hardware is required; the receiving card alone should not be assumed to contain these sensors.
