Colorlight I5A-F Dual Mode LED Display Controller Card

ColorLight 5A-F is a dual-mode card which makes both synchronous and asynchronous system available and the two modes can be seamlessly switched. It Will greatly improve the display effect, higher refresh rate, color input , it helps to realize more dedicate image and more stable screen.
$42.20
More Information
Weight(kg) 0.40 kgs
Manufacturer Colorlight
Availability: Out of stock
SKU
Colorlight-I5A-F

Features of Colorlight 5A-F Dual Mode LED Display Receiving Card:

5A-F Receiving Card support two working modes, Synchronous and Asynchronous mode, which can be switched to each other freely and conveniently.
5A-F Receiving Card can be used not only as a synchronous system, but also as an asynchronous system. The Special design ensures displays running
more secure and never breaking down. 5A-F contains 2GBit onboard memory in each card to store offline content. If the sending signal is interrupted,
synchronous system will automatically switch to the asynchronous mode, playing the recorded content, and loop playback, that ensures uninterrupted
playback display screen. 5A-F LED receiver, welcomed by customers, is widely used to the stadium, advertising, exhibition, demonstration, bidding and
other occasions.

• Support two working modes, Synchronous and Asynchronous mode, which can be freely switched. Ensure displays never break down.
• Contains 2Gbit onboard memory in each card to store offline content.
• Particularly suitable for stadium, advertising, exhibition, demonstration, bidding and other occasions.
• Superior display quality: high refresh rate, high color depth, and high brightness with the conventional chips.
• Supports all types of display module of the mainstream products (5A means any row, any column, any scan, any chips, and any shape).
• The use of more advanced algorithms, so that the receiving card to maximize the use of resources in order to improve display quality.
• Supports for high-precision pixel-by- pixel calibration in the Brightness and the chromaticity.
• Support for large area display.
• Professional design and strict testing to ensure high quality and reliable.
• Supports all conventional sending card of ColorLight, such as T7 sending card, Q7 HD LED sender card, Gigabit NIC, DMB, etc.



Specifications of Colorlight 5A-F Dual Mode LED Display Receiving Card:



Parameters

RDA5F

Board size

Length 143mm,width 93mm

Power consumption

3W

Current

0.6A

Input voltage

DC  5V±10%

Working temperature

-30℃~85℃

Transportation

temperature

(storage level )

-50℃~125℃



Weight

100g

Antistatic ability

2KV

Module specification

Any row, any column within

 8192 pixels,

can custom more

large module

Scanning mode

Any scan from static to 1/32 scan

Chip support

Conventional chip, PWM,

lighting chip

(please confirm before order)

Module pumping-point

Support any pumping-point

Data serial transmission

Support parallel or serial

HUB board data

exchange

Support exchange,

delay and splicing

Grey-scale

1 -65536

Serial frequency

1KHz~41.3Mhz

Control area

(single card)

Full color, 1/8 scan :

512*128

Correction area

(single card)

256*256 pixels

cascade card numbers

(single cable)

65536PCS

The communication

distance

 between the key

controller and

the card, the card

and the card

CAT5 cable≤140M

CAT6 cable≤170M

Optical cable≧20M

Cascade control area

65536*65536 pixels

Refresh rate

Related to scanning mode,

static : 64×64module,

4096 grayscale:

4000Hz in maximum

Sending equipment

Sending card or NIC

Temperature sensor

With

Relay

With

Network upgrade

Support

Network port exchange

Support

Double backup

Support

Virtual pixel

Synchronous/asynchronous

systems both support

Compatible transmission

equipment

Gigabit switch, gigabit

optical fiber converter

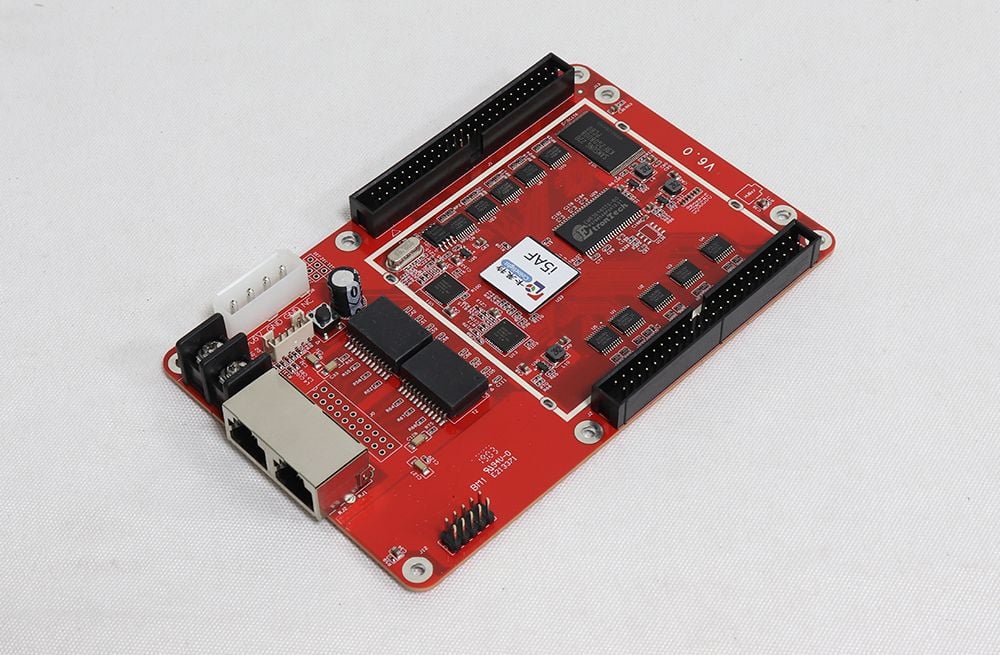

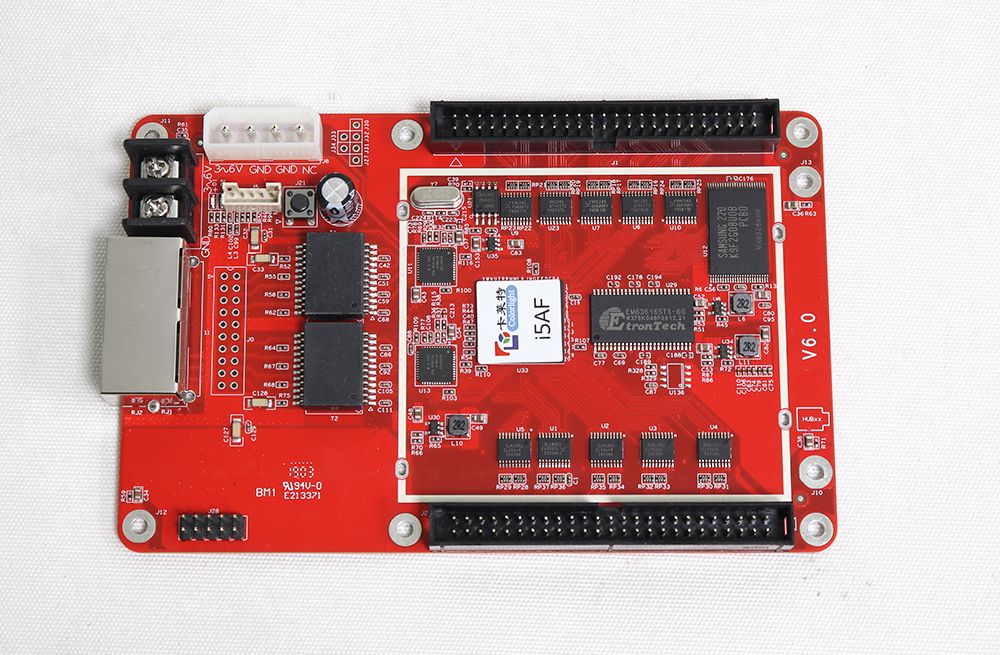

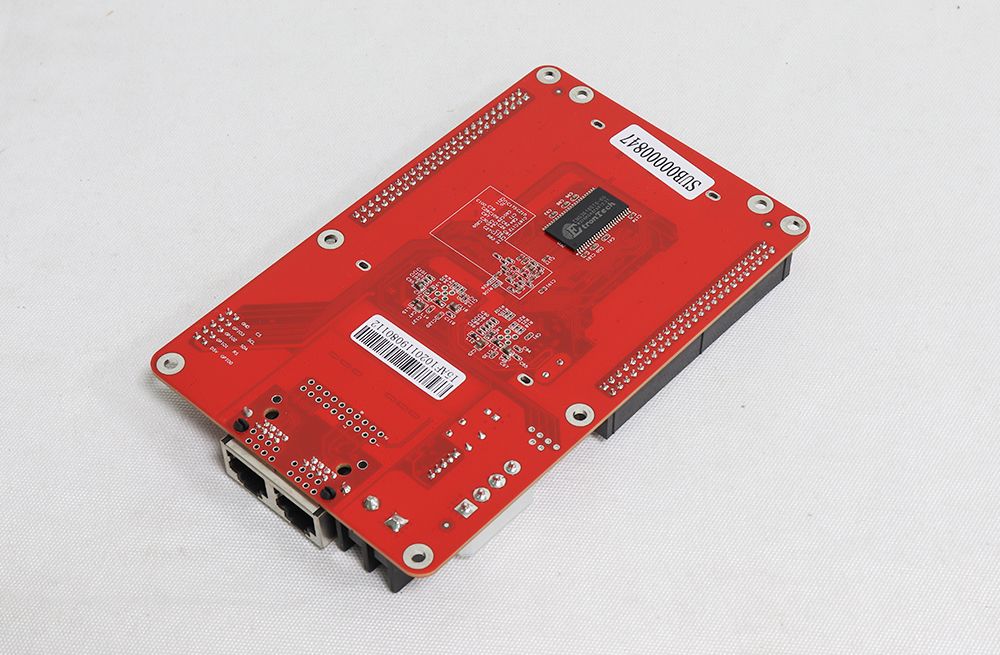

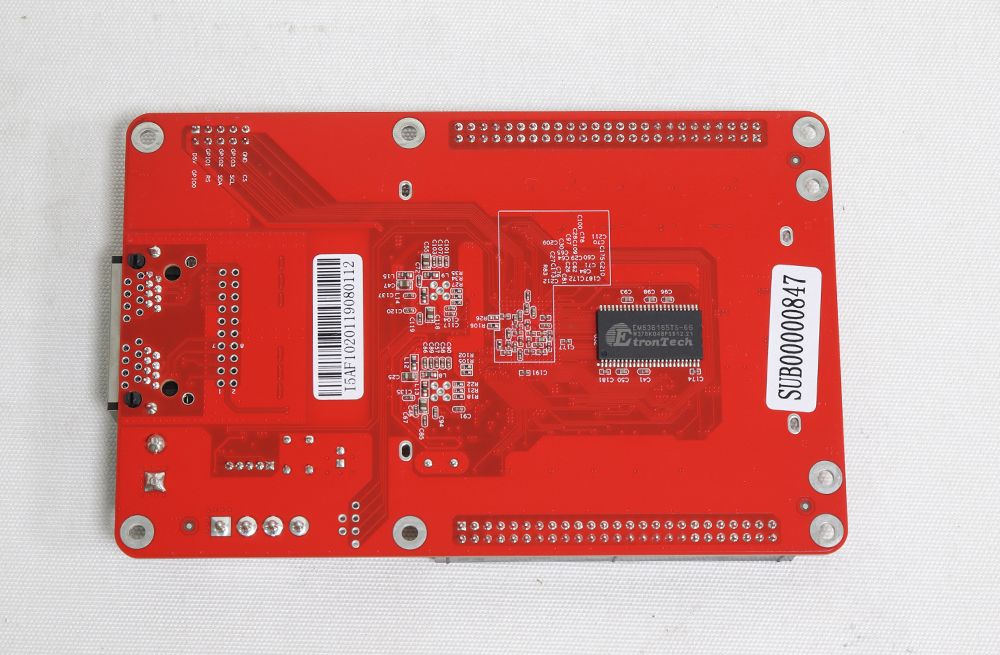

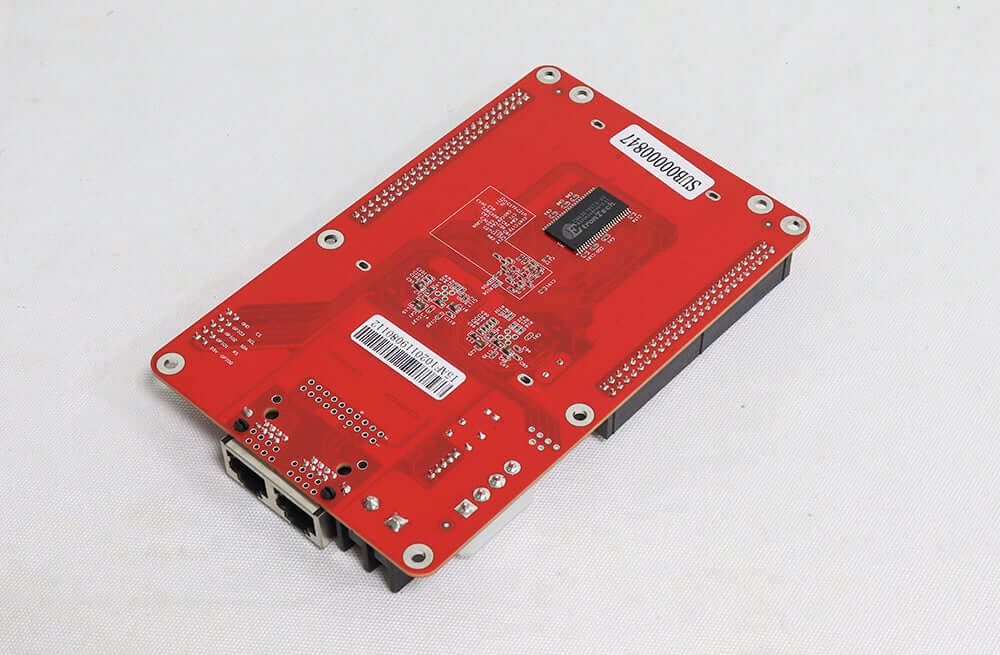

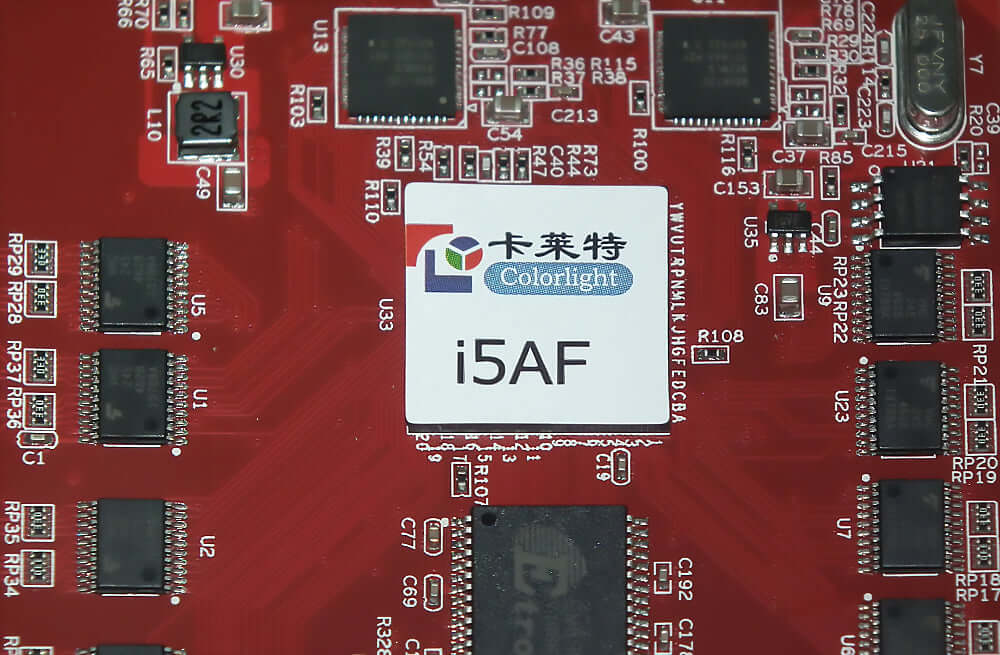

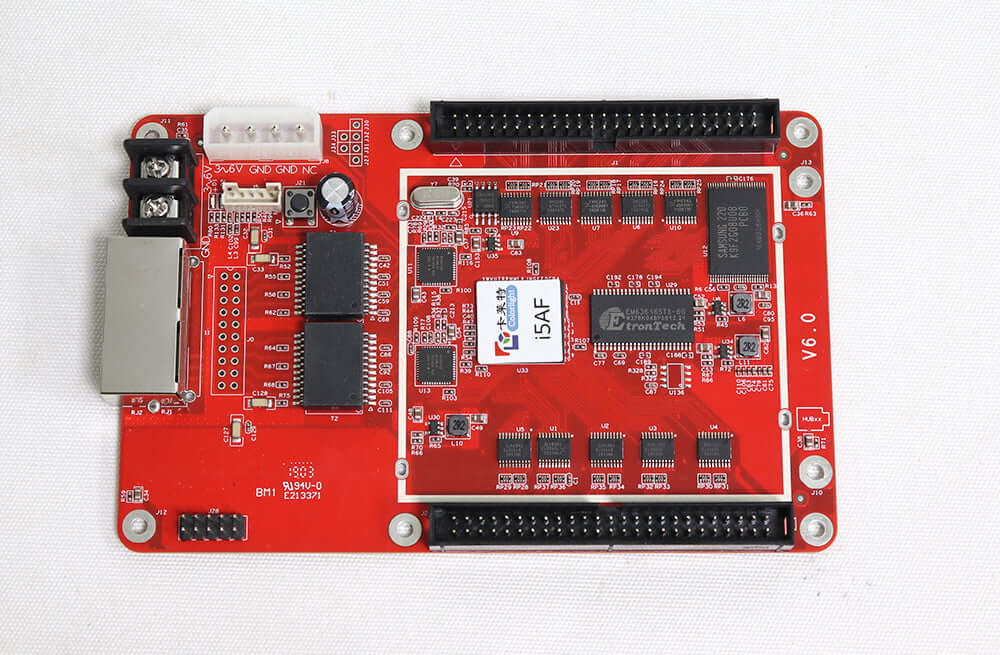

More Pictures of Colorlight I5A-F Dual Mode LED Display Controller Card

Colorlight I5A-F Dual Mode LED Display Controller Card

Colorlight I5A-F Dual Mode LED Display Controller Card

Colorlight I5A-F Dual Mode LED Display Controller Card

Colorlight I5A-F Dual Mode LED Display Controller Card
