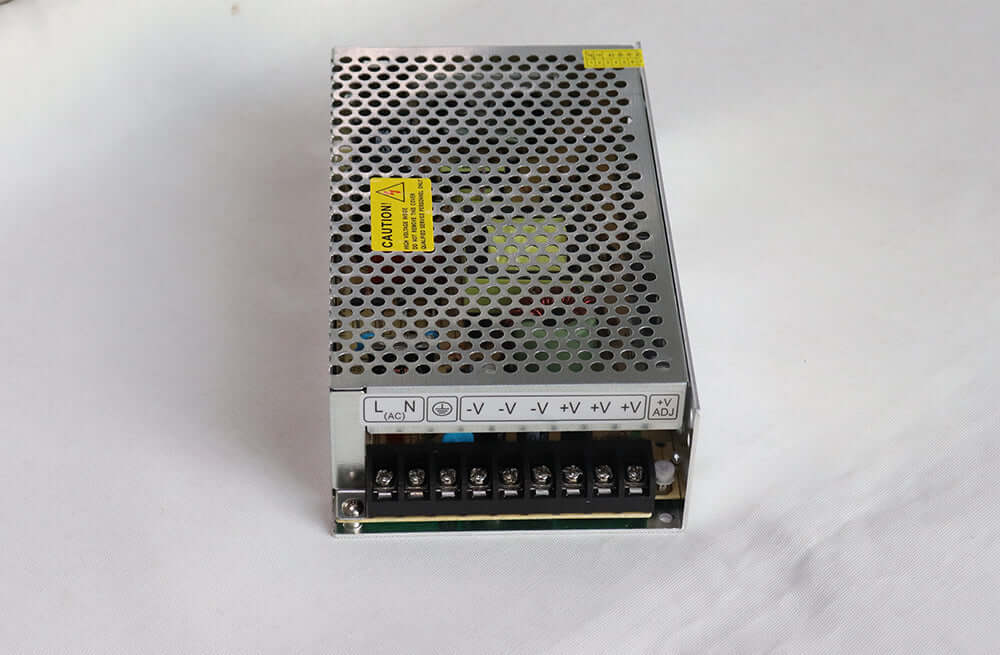

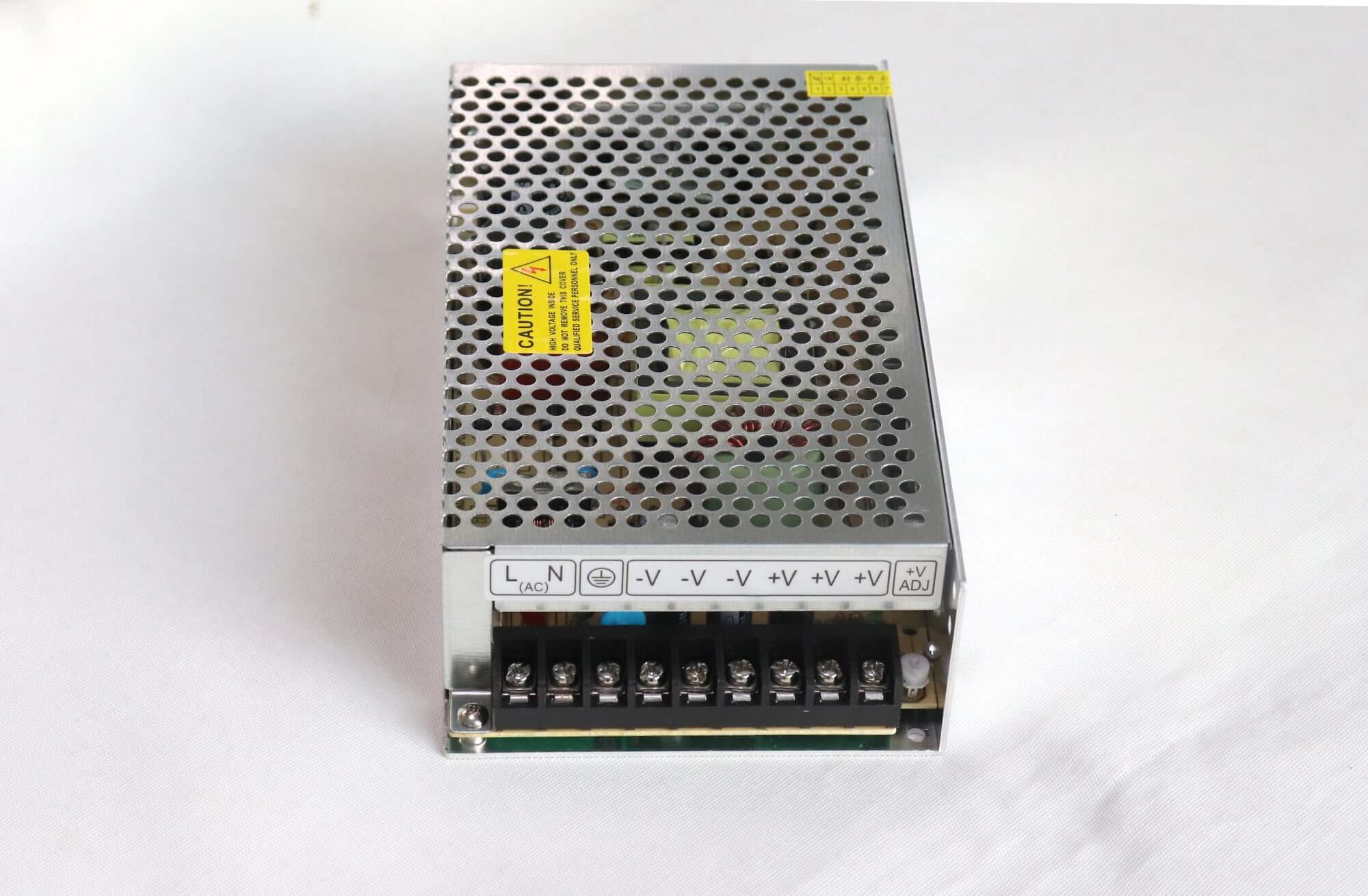

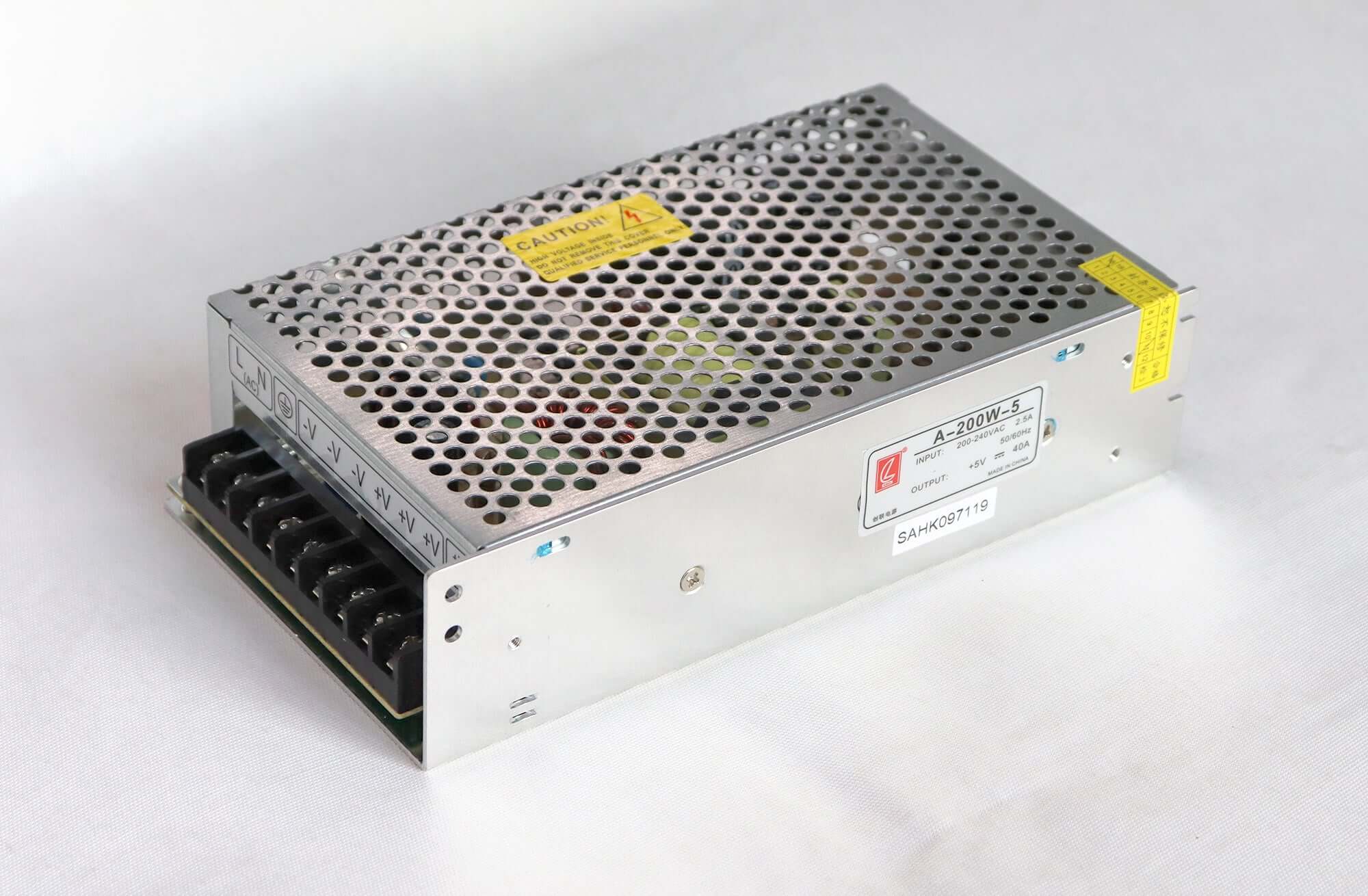

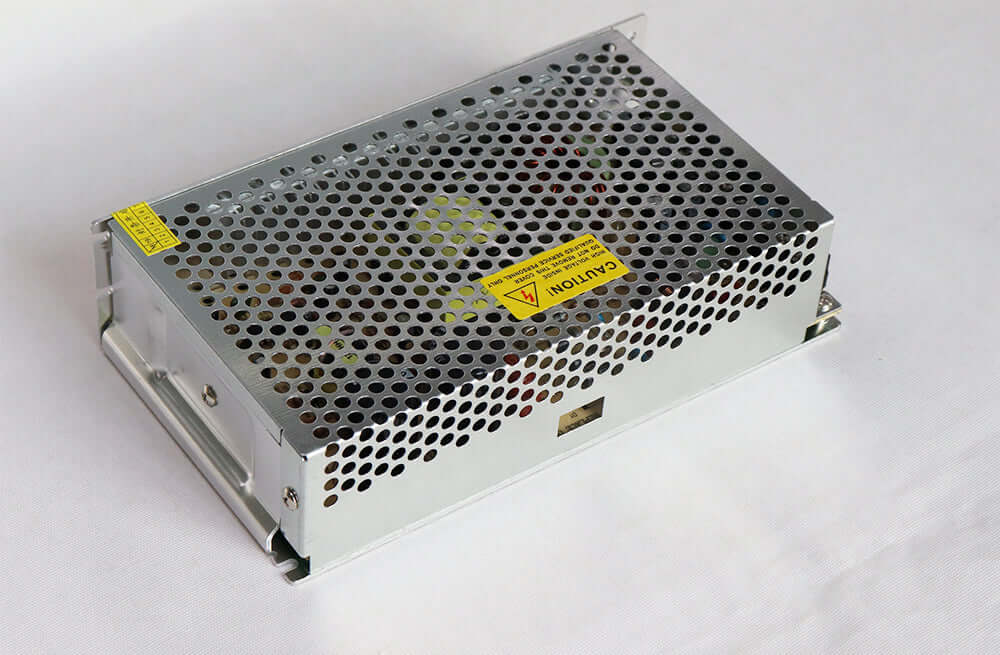

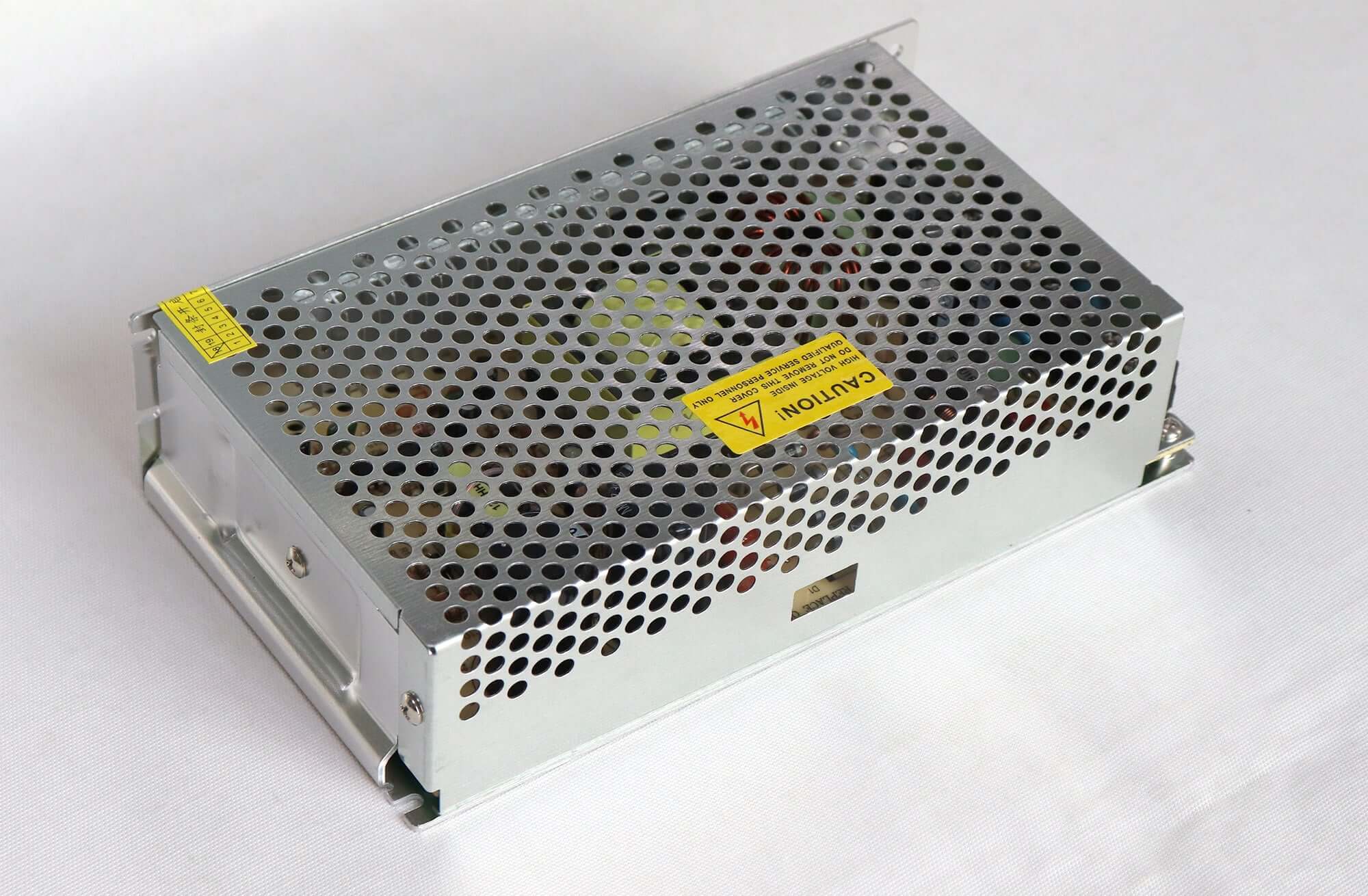

A-200W-5 5 V 40 A LED Power Supply, Case 808 with Convection Cooling
$ 12.00
This A-200W-5 listing specifies case 808, a 5 V 40 A output and free-air convection cooling. The enclosure measures 199 × 110 × 50 mm.
10000 in stock
Check the case number when replacing a 200 W cabinet supply. The input range on this listing is 176–264 V AC, and the housing depends on free airflow for cooling.
Product specifications
| Parameter | Specification |
|---|---|
| Listed model / case | A-200W-5 / 808 |
| DC output | 5 V, 40 A, 200 W |
| Input | 176–264 V AC, 47–63 Hz |
| Cold-start inrush | 30 A at 230 V AC |
| Output adjustment | ±10% of rated output voltage |
| Full-load line regulation | ≤0.5% |
| Overload protection | 110–150%, shutdown with AC power cycle to restart |
| Typical rise / hold-up time | 50 ms / 20 ms at full load |
| Load at +60 °C | 60% |
| Storage | −20 to +85 °C, 20–95% RH non-condensing |
| Cooling | Free-air convection |
| Size | 199 × 110 × 50 mm |
Frequently asked questions
Does case 808 have a built-in fan?
The cooling method specified here is free-air convection. Leave space around the supply for air movement.
Is this case 808 version suitable for 115 V AC input?
The listed AC input is 176–264 V, which excludes 115 V. Match the input on the unit label to your cabinet supply.
How can I distinguish this unit from another A-200W-5 listing?
Compare the case number, dimensions, cooling method and input rating. This entry specifies case 808, 199 × 110 × 50 mm and convection cooling.
| Weight | 0.95 kg |
|---|
