NovaStar NovaPro HD LED Video Controller | PIP & Genlock
$ 2,200.00
NovaStar NovaPro HD combines video scaling and LED display control with main-picture/PIP operation, Genlock and DMX512. Inputs include HDMI, DVI, DisplayPort, 3G-SDI, VGA and CVBS.
Four Gigabit Ethernet outputs and four optical connectors provide LED output, with DVI and HDMI connections for monitoring.
10000 in stock
NovaPro HD LED Video Processing and Display Control

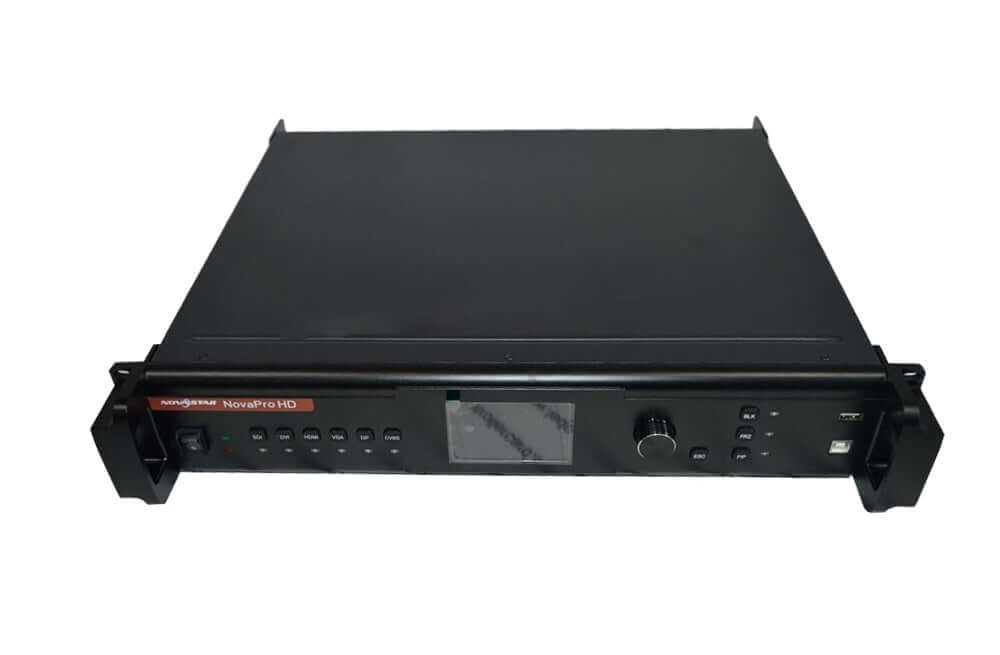

The NovaStar NovaPro HD combines front-end video processing and LED display control in one unit. Its scaling and motion-adaptive deinterlacing help adapt incoming video to the display, while picture-in-picture supports a main image and a second source.
Operators can adjust input contrast, brightness, hue, saturation and RGB gain. The front-panel controls and browser-based configuration provide ways to set up the system, with real-time preview for checking source status.
| Parameter | Specification |
|---|---|
| Video inputs | 1 each: HDMI, DVI, DP, 3G-SDI, VGA and CVBS |
| Input processing | Inputs up to 1080p at 60 Hz; maximum pixel clock 165 MHz |
| HDMI input | HDMI 1.3; HDCP supported; up to 12-bit grayscale depth |
| DVI input | VESA standard; 1080i input and HDCP supported |
| 3G-SDI input formats | 480i, 576i, 720p and 1080i/p |
| CVBS input | PAL / NTSC |
| LED outputs | 4 Gigabit Ethernet ports |
| Optical outputs | 4 optical-fiber connectors for long-distance transmission |
| Maximum output dimensions | 3840 pixels horizontally; 1920 pixels vertically |
| Monitor outputs | DVI and HDMI; both output the same image |
| Loop outputs | 1 DVI LOOP and 1 SDI LOOP, consistent with their respective inputs |
| Picture-in-picture | Main picture plus PIP source |
| Control / synchronization | DMX512, Genlock input and loop, Ethernet and USB control |
| Input power | 100–250 V AC, 50/60 Hz, 0.65 A |
| Overall power consumption | 30 W |
| Operating temperature | −20°C to +60°C |
| Weight | 6 kg |
LED Outputs, Monitoring and Audio

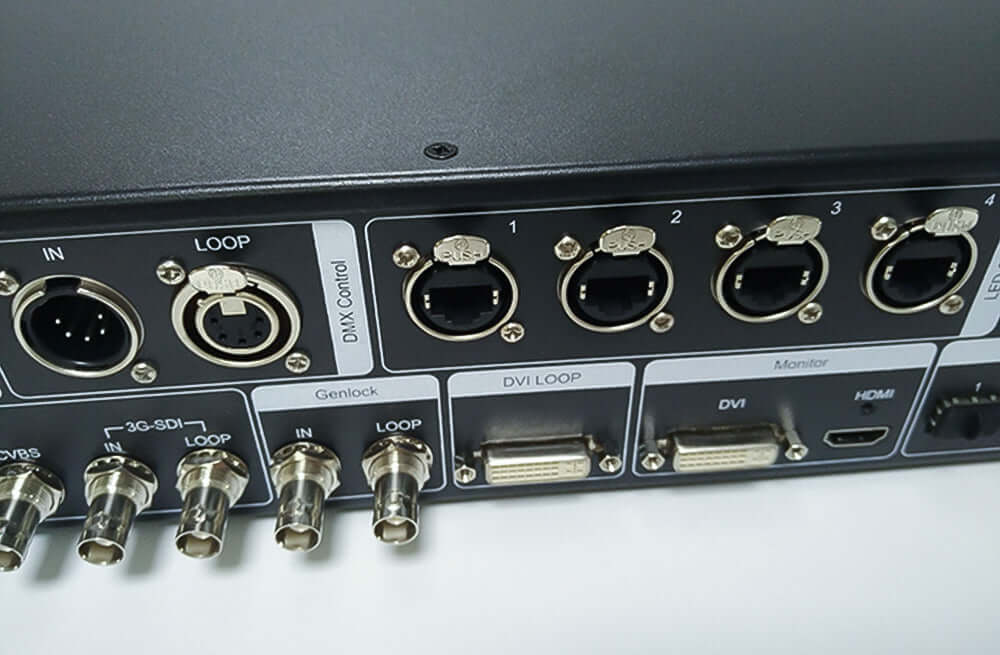

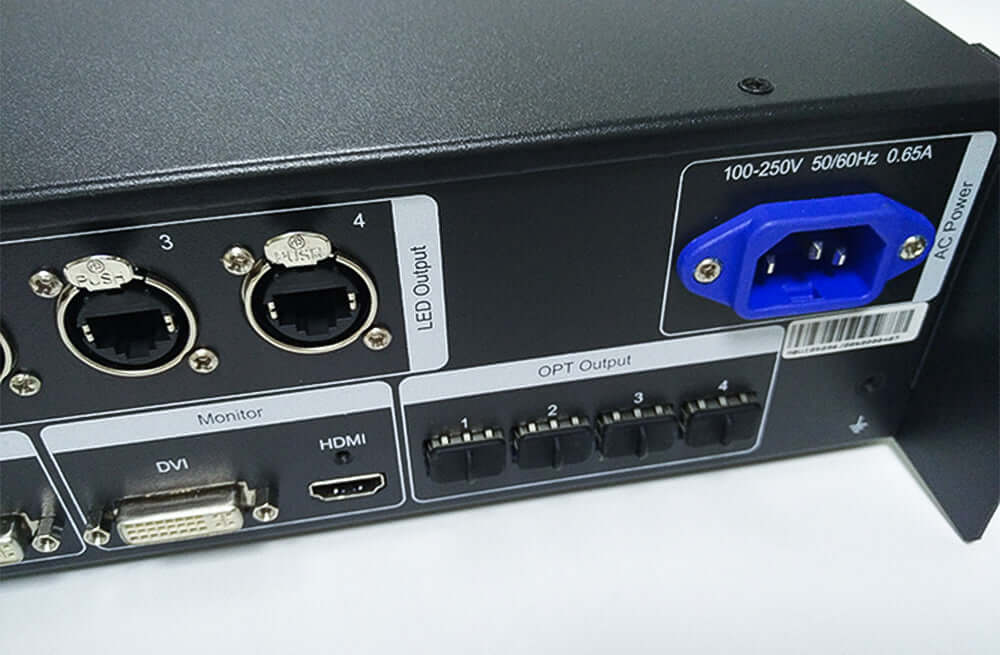

The four LED Ethernet outputs are separate from the network-control port used for computer communication. Only LED Ethernet port 1 supports audio output. When a multifunction card is used for audio decoding, the manufacturer requires it to be connected to that port.
DVI and HDMI monitoring connectors show the same output image. The DVI LOOP and SDI LOOP connectors pass through their corresponding input signals; they have a different purpose from the monitor outputs.
The published horizontal and vertical maxima are individual limits. They should not be read as a promise of a 3840 × 1920 full-frame load. Use the supported timing and cabinet configuration for the intended screen.
PIP and Synchronized Operation

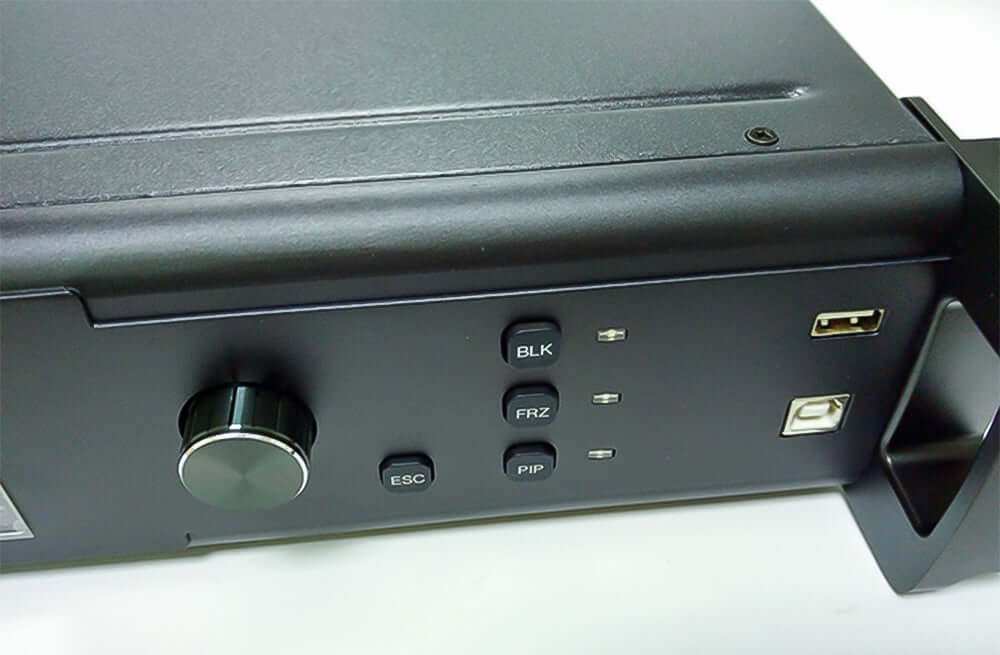

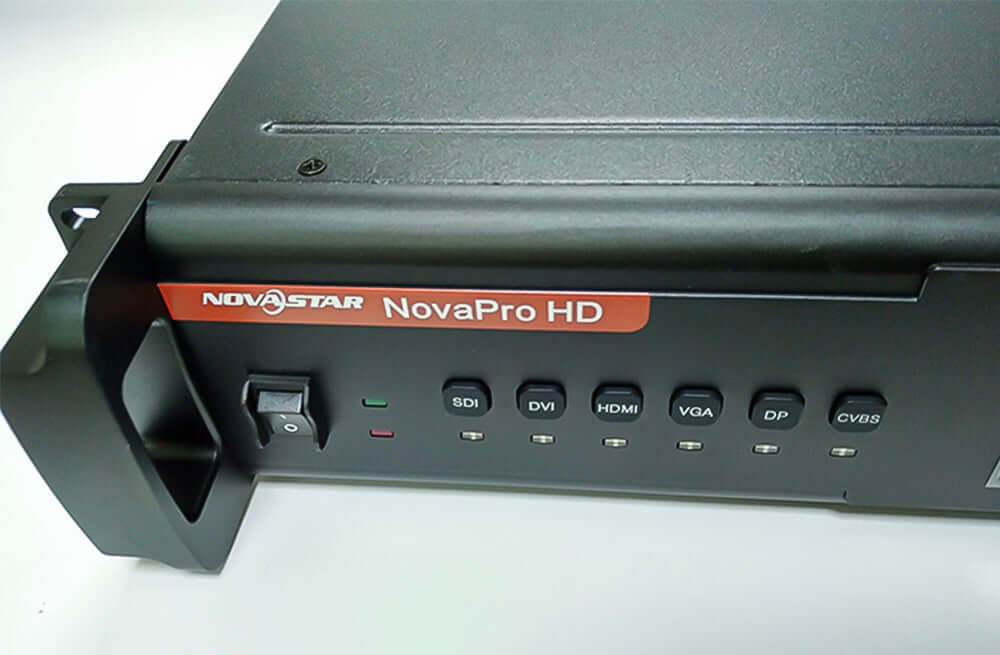

Select the main-picture source with a front-panel source button, or hold the source button to select the PIP source, as described in the specification. Genlock synchronizes the display with an external synchronization source, and its loop connection passes that reference onward. DMX512 provides a connection for compatible consoles.

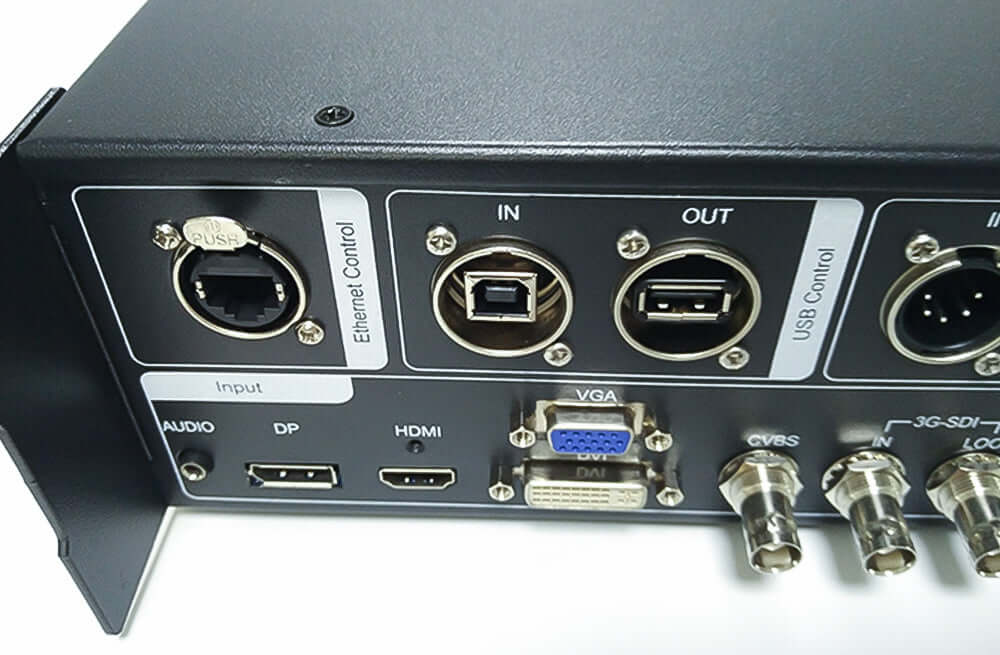

The USB control input connects to a computer, while USB control output can cascade another NovaPro HD. The documented browser-based configuration supports remote setup from a computer or mobile device.
Interface Introduction Video
Product Images
Specification PDF
Download NovaPro HD V1.4.3 specifications
Frequently Asked Questions
Which video sources can I connect to NovaPro HD?
It provides HDMI, DVI, DisplayPort, 3G-SDI, VGA and CVBS inputs, one of each. The specification describes input processing up to 1080p at 60 Hz, with port-specific standards and formats listed in the table.
Can NovaPro HD show two sources at once?
Yes. It supports a main picture and a picture-in-picture source. The front-panel source buttons are used to select the main or PIP input.
Do the DVI and HDMI monitor outputs show different images?
No. The manufacturer states that the DVI and HDMI monitor connectors output the same image. DVI LOOP and SDI LOOP separately pass through their input signals.
Which LED output should carry audio to a multifunction card?
Only LED Ethernet port 1 supports audio output. A multifunction card used for audio decoding must connect to that port according to the specification.
Does NovaPro HD support Genlock and DMX512?
Yes. Genlock input and loop connections provide external synchronization, and the DMX512 interface supports connection to compatible consoles.
| Weight | 12.5 kg |
|---|
