NovaStar NS060-10A Light Sensor | 10m LED Brightness Control
$ 84.00
Use the NovaStar NS060-10A to measure ambient brightness for automatic LED sign dimming. The 10 m cable connects the sensor to compatible NovaStar control equipment with a light-sensor input.
Manufacturer NS060 V1.1.4 specifies IP65 protection and a 0–65,535 lux measurement range.
NS060-10A for Automatic LED Sign Brightness
The NovaStar NS060-10A is the 10 m cable version of the NS060 ambient light sensor. It supplies ambient-brightness measurements to a compatible control system so an LED sign can respond to daylight changes using configured brightness rules.
Choose this version when a 10 m cable suits the route between the sensor position and the controller. The sensor should share the display’s lighting environment, rather than remain inside an equipment enclosure.
| Parameter | Specification |
|---|---|
| Cable length | 10 m for NS060-10A |
| Measurement range | 0–65,535 lux |
| Rated voltage | 5 V DC |
| Maximum current / power | 0.09 A / 0.45 W |
| Test conditions for current and power | Single sensor, 5 V input, 25°C ambient temperature |
| Ingress protection | IP65 |
| Operating temperature | −20°C to +70°C |
| Operating humidity | 0%–99% RH, non-condensing |
| Housing | Aluminum alloy; micro-arc oxidation surface treatment |
| External power supply | Not required |
Controller Connection and Sensor Placement
Connect the sensor only to equipment with a compatible light-sensor connector. The manufacturer documents use with NovaStar sending cards, asynchronous cards and multifunction cards. MSD300, MSD600 and MCTRL300 are named examples.
The original listing identifies MFN300 and MFN300-B as associated multifunction hardware. Check the exact device, connector and brightness-control setup for your installation.
For outdoor mounting, follow the manufacturer’s advice to apply outdoor waterproof adhesive at the sensor-body/substrate joint and inspect it regularly. Set up the controller’s brightness rules and check the response under the lighting conditions at the display.

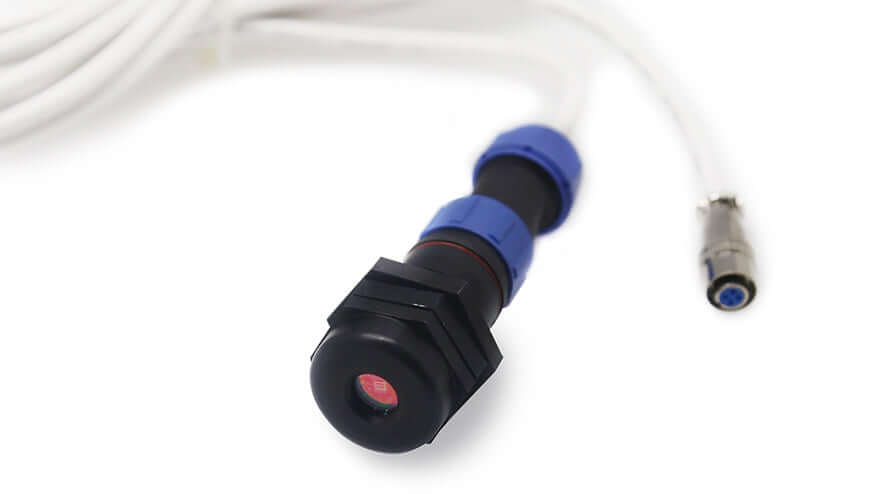

Product Images
Original Specification Download
The original link is retained below. Its filename names NS060-30A, and the file was unavailable when checked. The technical table on this page uses the NS060 V1.1.4 manufacturer document, which explicitly lists NS060-10A with a 10 m cable.
Original NS060 specification PDF link
Frequently Asked Questions
What is the difference between NS060-10A and NS060-30A?
The NS060 V1.1.4 model table identifies 10 m for NS060-10A and 30 m for NS060-30A. Select the cable length that reaches an appropriate sensor position.
Will the sensor dim an LED sign automatically?
It measures ambient brightness for automatic control by compatible NovaStar equipment. The connected control system must be configured with the required brightness behavior.
Can I connect NS060-10A to any controller?
No. It needs a compatible light-sensor connector. Check the exact sending card, asynchronous controller or multifunction device before connecting it.
Does the sensor need its own external power adapter?
The specification states that no external power supply is required. Its rated voltage is 5 V DC through the compatible sensor connection.
Where should I mount the light sensor?
Place it in the same lighting environment as the LED display. For outdoor installation, seal the sensor-body/substrate joint as instructed and inspect that joint regularly.
