NovaStar NovaPro UHD 4K LED Video Processor | 8.8M Pixels
$ 7,500.00
This product is no longer in production. The original listing recommends the NovaPro UHD Jr as an alternative; compare its interfaces and functions for your system.
NovaPro UHD combines 4K video processing, LED sending and screen configuration, with up to 8.8 million pixels, 16 Gigabit Ethernet outputs and 4 optical ports.
Out of stock
NovaPro UHD All-in-One LED Video Processor
The NovaPro UHD is marked as no longer in production in this listing. This page provides reference specifications for existing systems and replacement planning. The original recommended alternative is the NovaPro UHD Jr; check its configuration against the requirements of your installation.
NovaPro UHD combines video processing, LED sending and screen configuration. It supports 4K × 2K at 60 Hz and 8K × 1K at 60 Hz formats, with a maximum LED load of 8.8 million pixels. The built-in Master VI platform allows layer and screen configuration using a connected mouse, keyboard and monitor.
| Parameter | Specification |
|---|---|
| LED loading capacity | Up to 8.8 million pixels |
| Maximum output dimensions | 8192 pixels wide or 8192 pixels high, within total loading capacity |
| LED Ethernet outputs | 16 Gigabit Neutrik Ethernet ports |
| Optical outputs | 4 × 10G OPT; copy and hot-backup modes |
| Video layers | 6 total: 2 up to 4K × 2K and 4 up to 2K × 1K; scaling supported |
| Additional graphics | 1 OSD, 1 LOGO and 1 BKG |
| Local configuration | Built-in Master VI; mouse, keyboard and monitor operation |
| Power connection | 100–240 V AC, 50/60 Hz, 7.2–3.5 A; dual power connectors |
| Power consumption | 180 W |
| Chassis / dimensions | 4U; 482.6 × 177 × 497.5 mm |
| Net weight | 21 kg |
| Operating conditions | −10°C to +60°C; 0%–80% RH |
| Parameter | Specification |
|---|---|
| 12G-SDI inputs | 4 with loop-through; maximum 4096 × 2160 at 60 Hz |
| HDMI 2.0 input | 1 with loop-through; up to 4K × 2K at 60 Hz or 8K × 1K at 60 Hz |
| DisplayPort input | 1 × DP 1.2; up to 4K × 2K at 60 Hz or 8K × 1K at 60 Hz |
| Replaceable input card | Default D_4×HDMI 1.3: 4 inputs up to 1920 × 1080 at 60 Hz; replaceable with D_4×DVI |
| Multiviewer output | 1 HDMI 1.3 MVR for inputs, preview, program or mixed monitoring |
| Auxiliary output | 1 HDMI 1.3 AUX for an auxiliary device such as a teleprompter |
| Network control | 1 Ethernet control port |
| USB control | Rear: 1 Type B for debugging and 2 Type A; front: 2 USB ports for updates or mouse/keyboard |
| Synchronization / user interface | GENLOCK IN-LOOP and CONTROL UI monitor connection |
Layers, Fiber Output and Signal Conditions
Layers support scaling, opacity, masks, copying, mirroring, flipping and priority changes. The multiviewer helps an operator inspect sources and preview/program images before switching them to the display.
OPT 1 carries Ethernet outputs 1–8; OPT 2 carries outputs 9–16. OPT 3 is the copy or hot-backup channel for OPT 1, and OPT 4 serves the same role for OPT 2. These backup channels do not increase the independent 8.8-million-pixel load.
For HDMI 2.0 and DP 1.2, the detailed V1.0.0 format table supports 3840 × 2160 at 60 Hz for 8-bit RGB/YCbCr 4:4:4 and YCbCr 4:2:2. At 10/12-bit, RGB and YCbCr 4:4:4 are limited to 1920 × 1080 at 60 Hz, while YCbCr 4:2:2 supports 3840 × 2160 at 60 Hz. YCbCr 4:2:0 is not supported.
HDMI 2.0 and DP 1.2 do not accept interlaced input. The default HDMI 1.3 card does. Among the SDI connectors, deinterlacing is supported on connector 4, not connectors 1–3. For 12G-SDI, the specification calls for CANARE L-4.5CHD+ UHDTV-SDI cable shorter than 50 m.
HDR requires NovaStar A8s or A10s Plus receiving cards. The stated latency can be as low as one frame only with low-latency and synchronization functions enabled and vertical screen data routing.

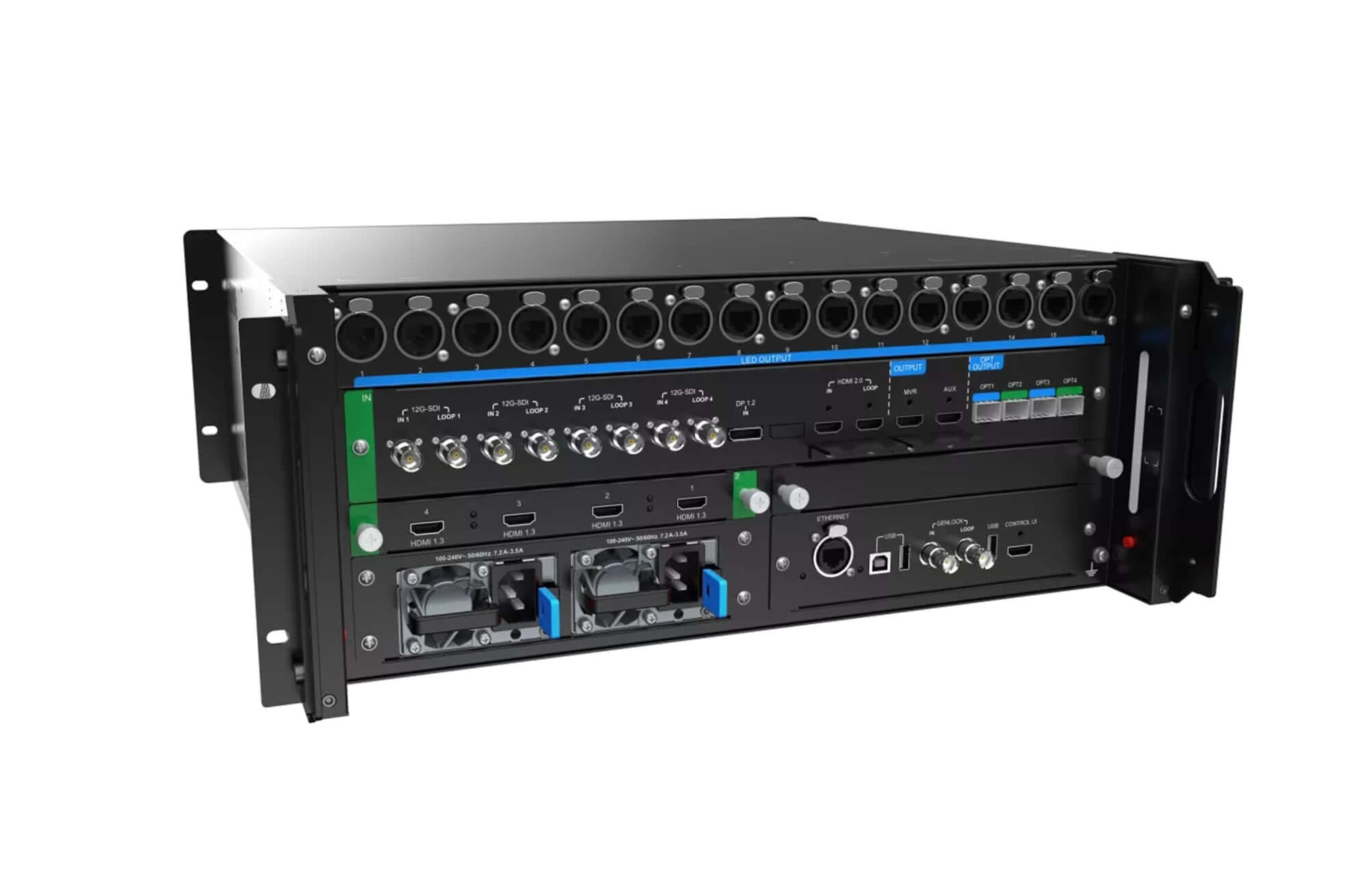

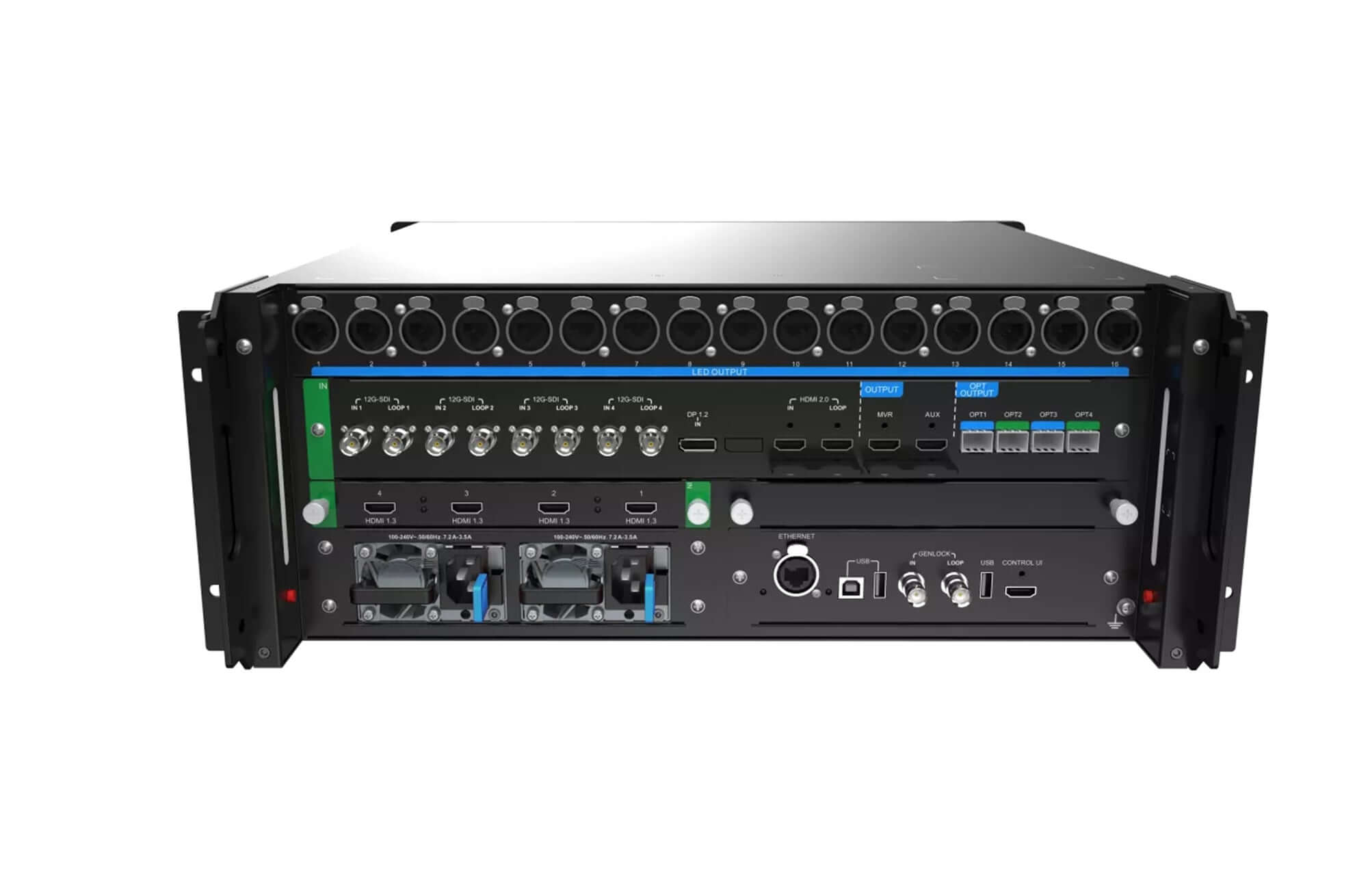

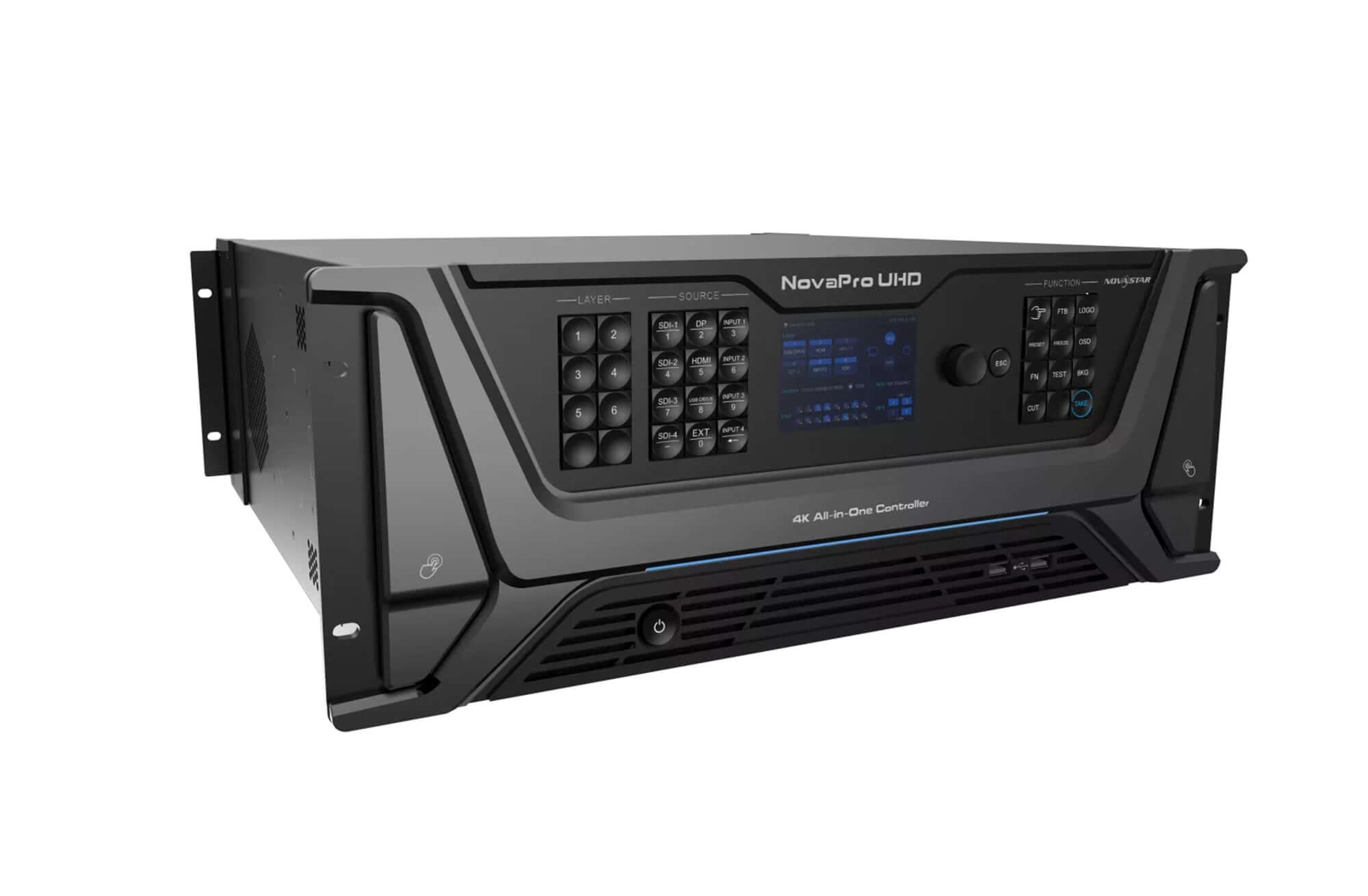

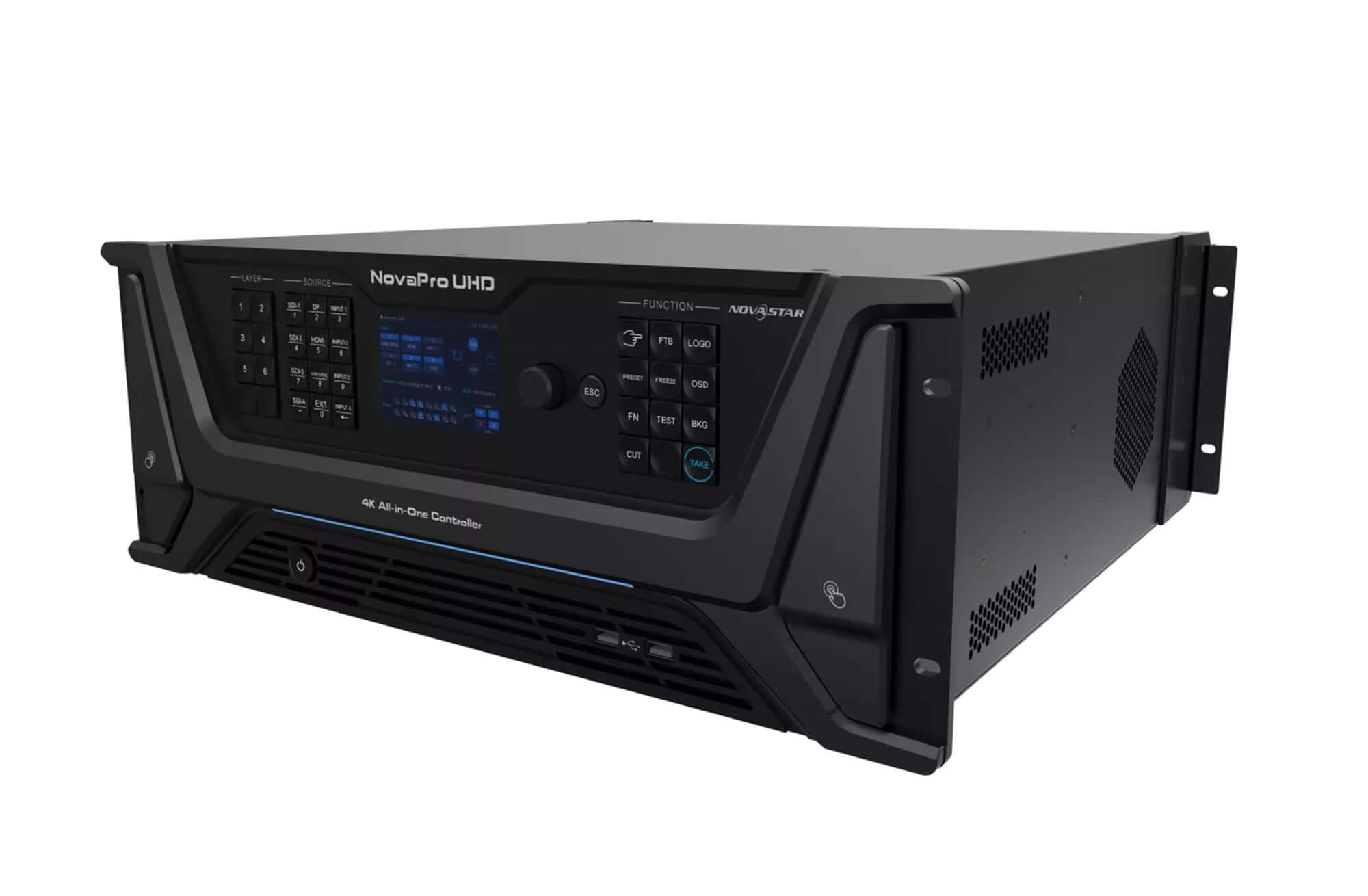

Product Images
Specification PDF
Download NovaPro UHD V1.0.0 specifications
Frequently Asked Questions
How many pixels can NovaPro UHD control?
The maximum is 8.8 million pixels. Width or height can reach 8192 pixels, but the total screen must remain within the stated loading capacity.
How many video layers are available?
There are six video layers: two up to 4K × 2K and four up to 2K × 1K. The controller also provides one OSD, one LOGO and one background.
Do four optical ports provide four independent output loads?
No. OPT 1 and OPT 2 carry Ethernet groups 1–8 and 9–16. OPT 3 and OPT 4 provide copy or hot backup for those two groups.
What is needed for HDR and one-frame latency?
The specification names A8s or A10s Plus receiving cards for HDR. One-frame minimum latency requires low-latency and synchronization functions to be enabled, with data routed vertically on the screen.
Is NovaPro UHD still in production?
This listing marks it as no longer in production and recommends NovaPro UHD Jr as an alternative. Compare the required inputs, layers, output capacity and receiving-card functions before selecting a replacement.
| Weight | 42 kg |
|---|
