NovaStar N9 LED Wall Video Switcher | 9 Inputs, 7 Layers
Original price was: $ 5,300.00.$ 5,035.00Current price is: $ 5,035.00.
The NovaStar N9 is a multi-screen video switcher for LED wall production, with nine inputs, up to seven layers and DVI mosaic outputs. It supports DP 1.2 input at 3840 × 2160 @ 60 Hz, Genlock synchronization and 32 presets, with control through V-Can or the C1 console.
10000 in stock
NovaStar N9 multi-screen video switcher
The NovaStar N9 combines HDMI, DVI, DisplayPort and 3G-SDI sources into layered screen layouts for live events, conferences and exhibition displays. For an LED wall switcher setup, it provides DVI mosaic outputs, preview monitoring and a TAKE button to switch the preview composition to the program output.
V-Can software and the NovaStar C1 desktop console provide control options for stage operation. Check the installed input configuration before selecting source cables: the specification lists alternative connector options for input 1 and inputs 2–3.
Layer composition and show control
- Arrange up to seven simultaneous layers, with adjustable size, position, stacking order and borders.
- Crop sources, clone layers, apply masks or color keying, and use shaped layers.
- Set a background from a computer image file or capture an input image.
- Save up to 32 presets for repeatable layouts and use Genlock or an input source for output synchronization.
- Monitor inputs, preview and program through the HDMI monitoring output; two additional HDMI connectors provide Aux outputs.
N9 technical specifications
The following values are from the linked NovaStar N9 V1.0.0 specification and user manual. Input signal limits and mosaic output dimensions describe different parts of the signal path.
| Parameter | Specification |
|---|---|
| Video inputs | 9 total: 1 × dual-link DP 1.1, 2 × HDMI 1.3, 4 × DVI, 1 × DP 1.2 and 1 × 3G-SDI |
| Input 1 | Dual-link DP 1.1: 3840 × 1080 @ 60 Hz; replaceable with HDMI 1.4, DP 1.1 or dual-link DVI according to configuration |
| Inputs 2–3 | HDMI 1.3: 1920 × 1080 @ 60 Hz; DVI, VGA or CVBS connector alternatives are listed |
| Inputs 4–7 | DVI: 1920 × 1080 @ 60 Hz, VESA standard compliant |
| Input 8 | DP 1.2: 3840 × 2160 @ 60 Hz; DP 1.2 loop connector |
| Input 9 | 3G-SDI: 1920 × 1080 @ 60 Hz; SDI loop connector |
| Layers | Up to 7; listed maximum formats per layer: 3840 × 2160, 7680 × 1080 or 1920 × 4320 |
| Mosaic outputs | 4 × single-link DVI or 2 × dual-link DVI; specification also lists 4 × DVI backup outputs |
| Wide mosaic format | Up to 15360 × 600 across four outputs |
| Dual-link output mapping | DVI1-DL and DVI3-DL become DualLinkOut1 and DualLinkOut2; DVI2 and DVI4 are inactive in this mode |
| Monitoring and auxiliary outputs | 1 × HDMI monitoring output and 2 × HDMI Aux outputs |
| Presets | 32 |
| Synchronization | Genlock input/loop; synchronization to an input source also supported |
| Control connections | Ethernet RJ45 for control; USB Type-B for a control computer; USB Type-A for cascading N9 units |
| AC input | 100–240 V, 50/60 Hz |
| Operating temperature | 0–60 °C |
| Chassis and dimensions | 3U; 482.6 × 139.5 × 411.5 mm |
Planning the input and output layout
Use DP 1.2 when the source requires 3840 × 2160 at 60 Hz. The standard HDMI 1.3 inputs are listed at 1920 × 1080 at 60 Hz. The 15360 × 600 mosaic format is an output layout across four outputs; it does not describe an HDMI input resolution.
Choose single-link or dual-link output mode before assigning downstream connections. The Ethernet RJ45 connector is for control. Standard EDID settings are available from the front panel; the manual directs custom EDID configuration to the control computer or C1 console, and SDI does not support EDID settings.
Frequently Asked Questions
Does the NovaStar N9 support 4K input?
Yes. Its DP 1.2 input supports 3840 × 2160 at 60 Hz. The standard HDMI 1.3 inputs are specified at 1920 × 1080 at 60 Hz, so the input connector matters.
How many sources and layers can the N9 handle?
The N9 has nine inputs and supports up to seven layers at the same time. Layers can be positioned, resized, cropped and reordered for a multi-screen composition.
Can the N9 output to more than one screen?
Yes. It supports four single-link DVI mosaic outputs or two dual-link DVI mosaic outputs. In dual-link mode, DVI1-DL and DVI3-DL carry the two outputs while DVI2 and DVI4 are inactive.
Can I save layouts and switch preview to program?
Yes. The N9 stores up to 32 presets, and the front-panel TAKE button switches PVW to PGM. Its HDMI monitoring connector can display the nine input sources, preview and program.
Does the N9 work with the NovaStar C1 console and Genlock?
Yes. The N9 supports the C1 desktop console and V-Can software. Genlock input and loop connections allow synchronization of cascaded devices; synchronization to an input source is also supported.

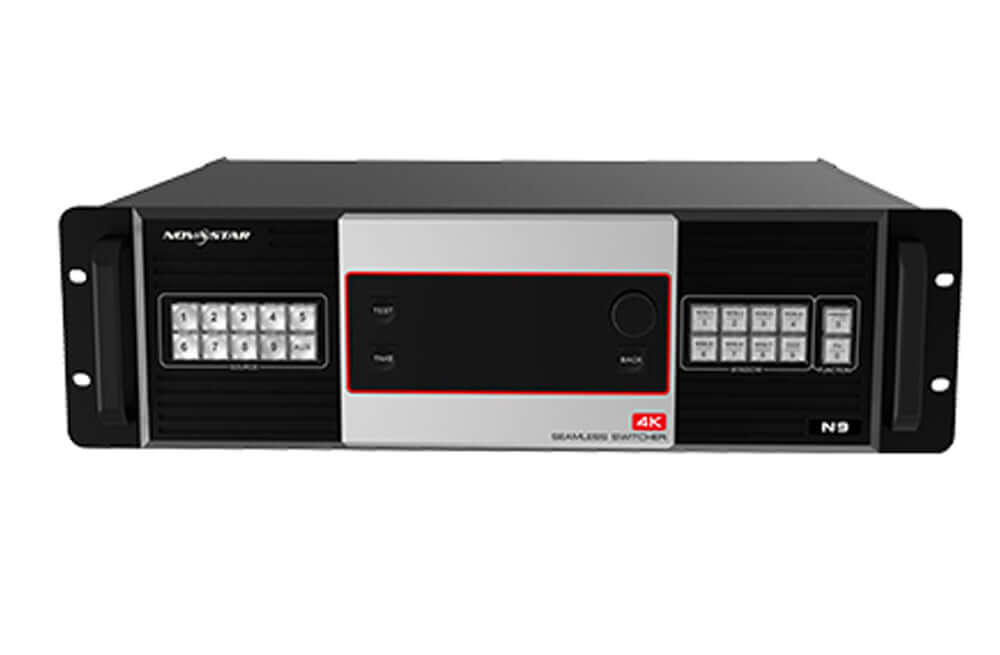

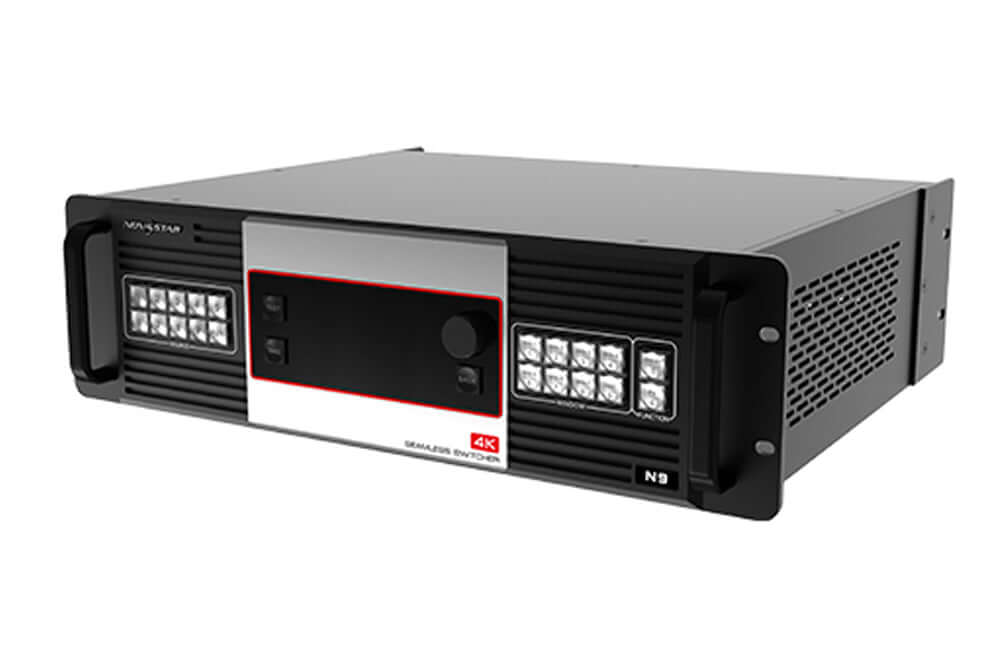

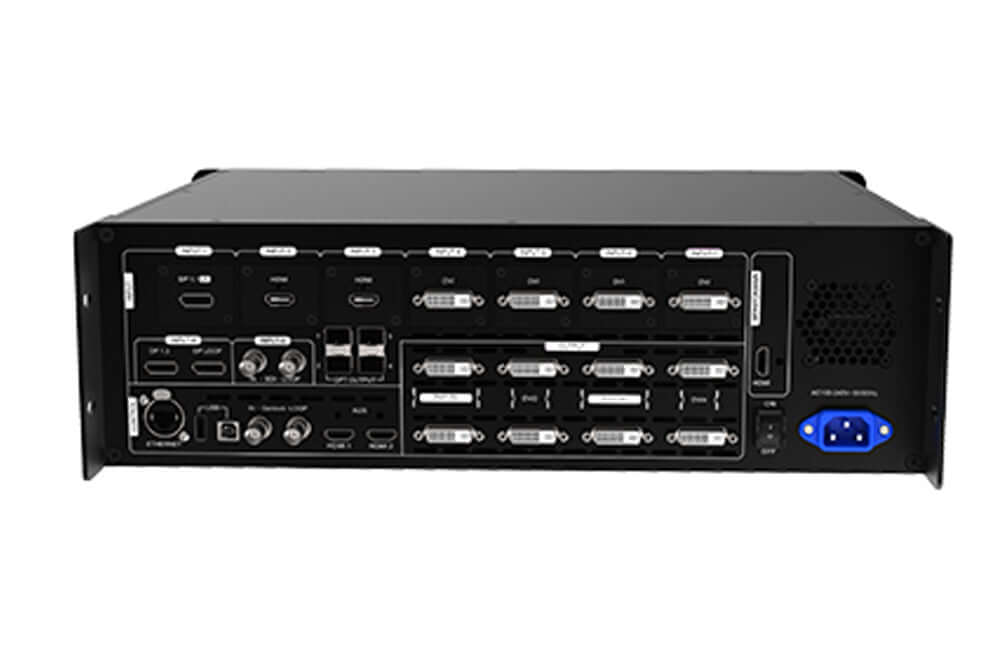

Product images
Specification and user manual downloads
| Weight | 11 kg |
|---|
