Colorlight H16F-N Fiber Optic Transceiver – 16 Neutrik Ports
$ 2,300.00
H16F-N single-mode fiber transceiver with 16 Neutrik Gigabit Ethernet ports and two 10G optical ports. Standard 1 km fiber module; 20 km module optional.
10000 in stock
Colorlight H16F-N Fiber Optic Transceiver
The Colorlight H16F-N provides fiber transport for LED screen control systems, connecting 16 Neutrik Gigabit Ethernet ports through two 10G optical ports. It uses single-mode fiber with full-duplex LC connections and an AC 100–240 V supply.
The standard fiber module is specified for 1 km. A 20 km module is optional, so the installed optical module must be checked when planning a longer link.
Technical Specifications
Parameters follow the H16F-N V1.0 specification dated September 29, 2018.
| Parameter | Specification |
|---|---|
| Ethernet ports | 16 Neutrik Gigabit Ethernet ports |
| Fiber interfaces | 2 ports × 10G bandwidth |
| Data rate | 20 Gb/s |
| Fiber mode | Single-mode |
| Optical connection | Full-duplex LC |
| Transmission distance | 1 km module; 20 km module optional |
| Power input | AC 100–240 V |
| Laser | DFB |
| Operating temperature | 0°C to +70°C |
| Storage temperature | −40°C to +85°C |
Connection Planning
Match the fiber module and connector type at both ends of the link. The two 10G optical interfaces and 16 Gigabit Ethernet ports serve different roles; each copper port remains a Gigabit Ethernet interface. Front-panel indicators show the working status of the fiber and Ethernet ports.

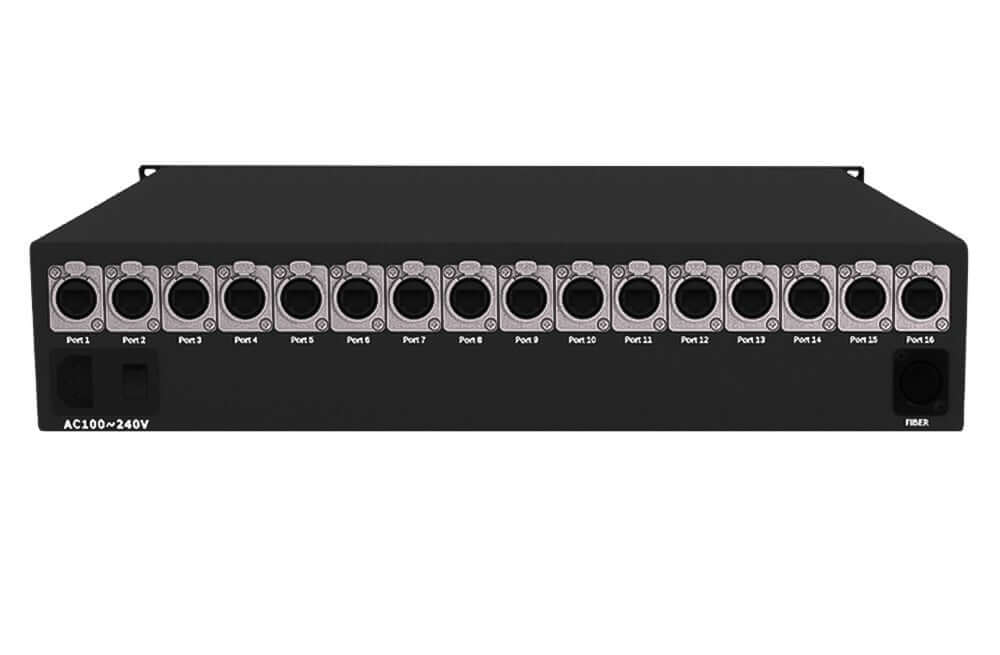

Product Images
Specification Download
Download the Colorlight H16F-N specification (PDF) for connection diagrams and mechanical dimensions.
Frequently Asked Questions
How many Ethernet ports does the H16F-N have?
It has 16 Neutrik Gigabit Ethernet ports and two optical ports, each with 10G bandwidth.
Is the H16F-N a single-mode fiber transceiver?
Yes. The listed version uses single-mode fiber and full-duplex LC optical connections.
Does every H16F-N support a 20 km link?
The specification lists a 1 km fiber module and an optional 20 km module. Confirm the installed module for the required distance.
What power input does the H16F-N require?
It accepts AC 100–240 V.
What do the front-panel indicators show?
The fiber indicator shows optical-port working status. The Ethernet indicators show the working status of the Ethernet ports.
| Weight | 5 kg |
|---|
