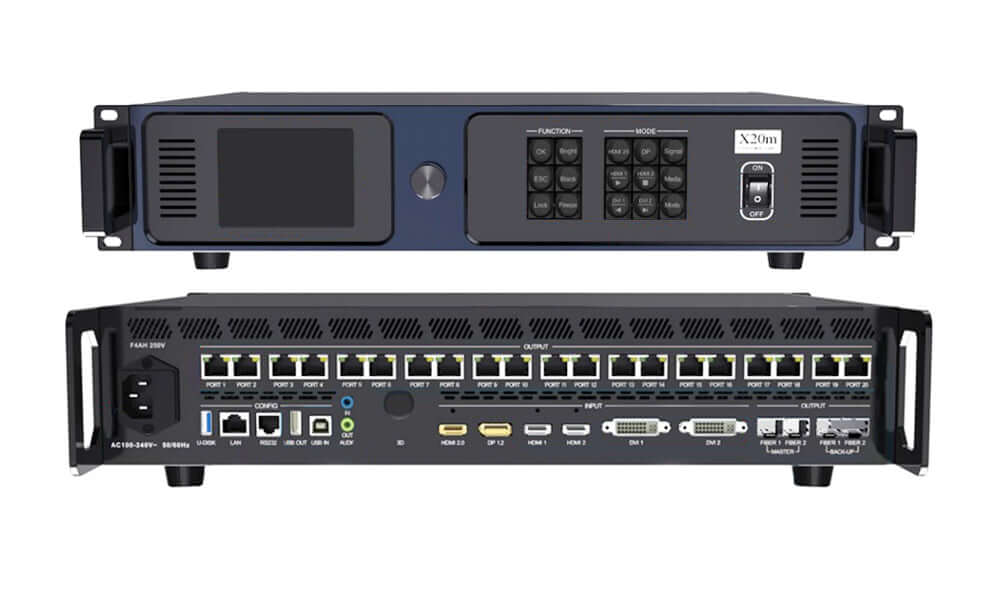

Colorlight X20m 4K LED Video Controller with 20 Ethernet Outputs
$ 1,751.00
Colorlight X20m 4K LED controller with 13.10-million-pixel capacity, 20 Ethernet outputs or 2 active plus 2 standby optical ports, USB playback and 128 scene presets.
2500 in stock
The Colorlight X20m is a 4K LED video controller with a 13.10-million-pixel loading capacity. It provides 20 Gigabit Ethernet outputs and four 10G optical ports arranged as two active and two standby connections. HDMI 2.0 and DP 1.2 accept input up to 4096 × 2160 at 60 Hz.
Ethernet output or optical transmission
Select either Ethernet or optical output: the two modes cannot operate simultaneously. The primary FIBER 1 and FIBER 2 outputs correspond to Ethernet ports 1–10 and 11–20, with a matching pair of backup optical ports. Compatible 10G single-mode optical modules are listed as a separate purchase in the specification.
Window layouts, playback and presets
The X20m supports up to six windows with one layer per window, depending on the input combination. With two 4K input signals, only two windows can be opened. Move, scale and crop windows to fit the layout, with a minimum window or crop size of 64 × 64 pixels.
USB playback handles photos and videos, and 128 scene presets can be saved and recalled. Brightness and color temperature adjustments are supported. Precision color management requires a suitable receiving card; 3D is purchased separately, and OSD is optional.
Colorlight X20m specifications
| Parameter | Specification |
|---|---|
| Maximum loading capacity | 13.10 million pixels |
| Ethernet outputs | 20 × Gigabit Ethernet |
| Optical outputs | 4 × 10G: 2 active and 2 standby; alternative to Ethernet output |
| Maximum screen width / height | 16384 / 8192 pixels, within total loading capacity |
| 4K inputs | 1 × HDMI 2.0; 1 × DP 1.2; up to 4096 × 2160 at 60 Hz |
| HD inputs | 2 × HDMI 1.4; 2 × DVI; up to 1920 × 1200 at 60 Hz |
| Windows | Up to 6, input-dependent; two 4K inputs allow 2 windows |
| Minimum window/crop size | 64 × 64 pixels |
| Scene presets | 128 |
| USB media | USB 3.0 U-disk interface; photo/video playback and upgrades |
| Audio | 1 × 3.5 mm input and 1 × 3.5 mm output; HDMI and DP audio decoding |
| Synchronization | Internal sync, input-source frame lock or automatic phase locking according to layer |
| Control | USB configuration/cascading, RS232, LAN TCP/IP and Android app |
| Optional items | 3D purchased separately; OSD optional; optical modules purchased separately |
Frequently Asked Questions
What is the Colorlight X20m loading capacity?
The X20m supports up to 13.10 million pixels. The maximum width of 16384 pixels and maximum height of 8192 pixels are separate limits, subject to the total capacity.
Are all four X20m optical ports active outputs?
No. There are two active 10G optical ports and two standby ports. The active pair corresponds to Ethernet port groups 1–10 and 11–20.
Can I use Ethernet and optical output at the same time?
No. The supplied V1.0 specification states that Ethernet and optical output cannot be used simultaneously. Choose the output mode for the installation.
How many windows are available with two 4K inputs?
Two 4K input signals allow only two windows. The controller supports up to six windows under other supported input configurations.
Does the X20m support USB video playback and scene presets?
Yes. It plays photos and videos from a USB drive and can save and recall 128 scenes. Refer to the specification for supported media formats.
Download the X20m specification
| Weight | 13 kg |
|---|
