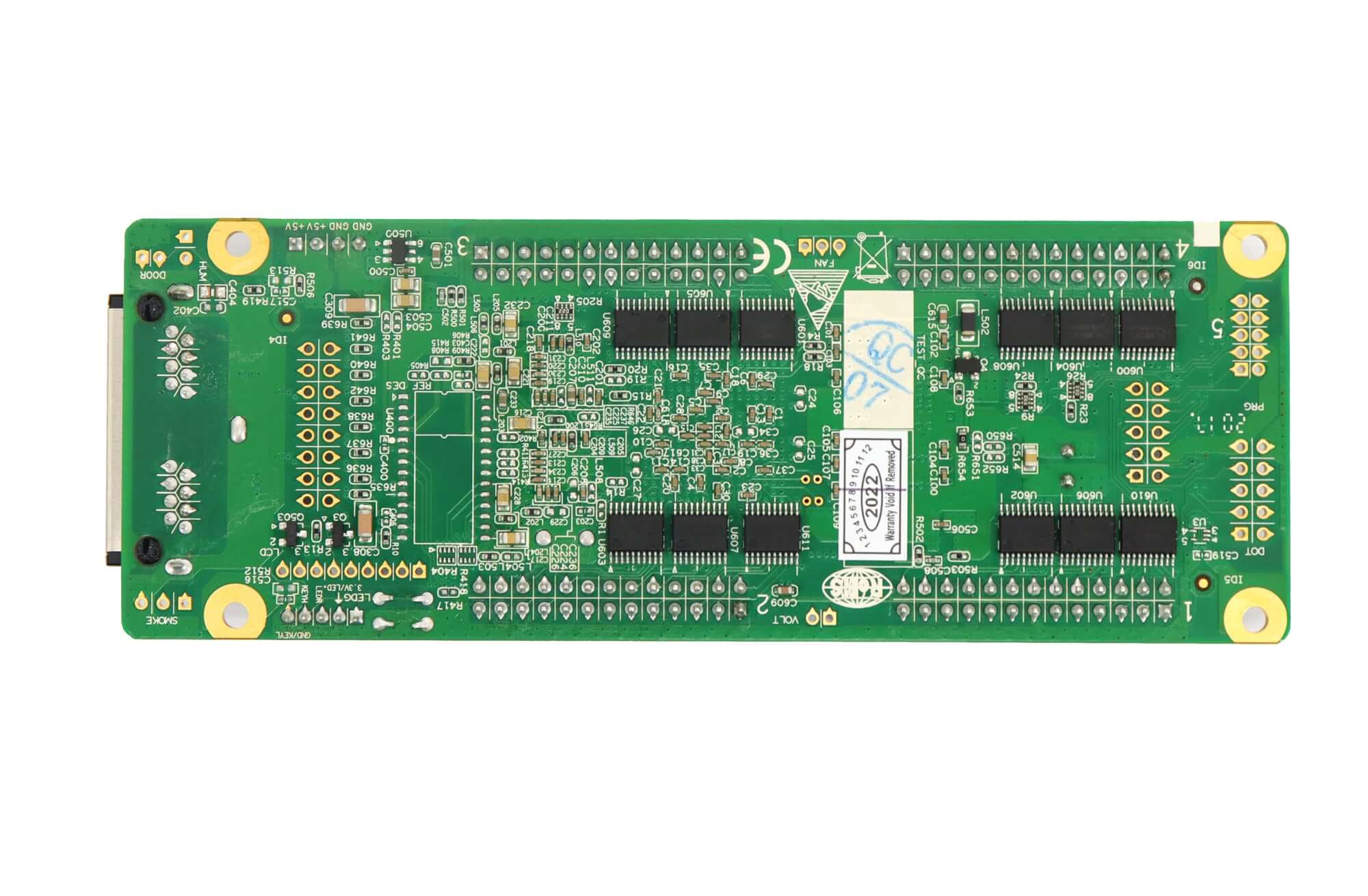

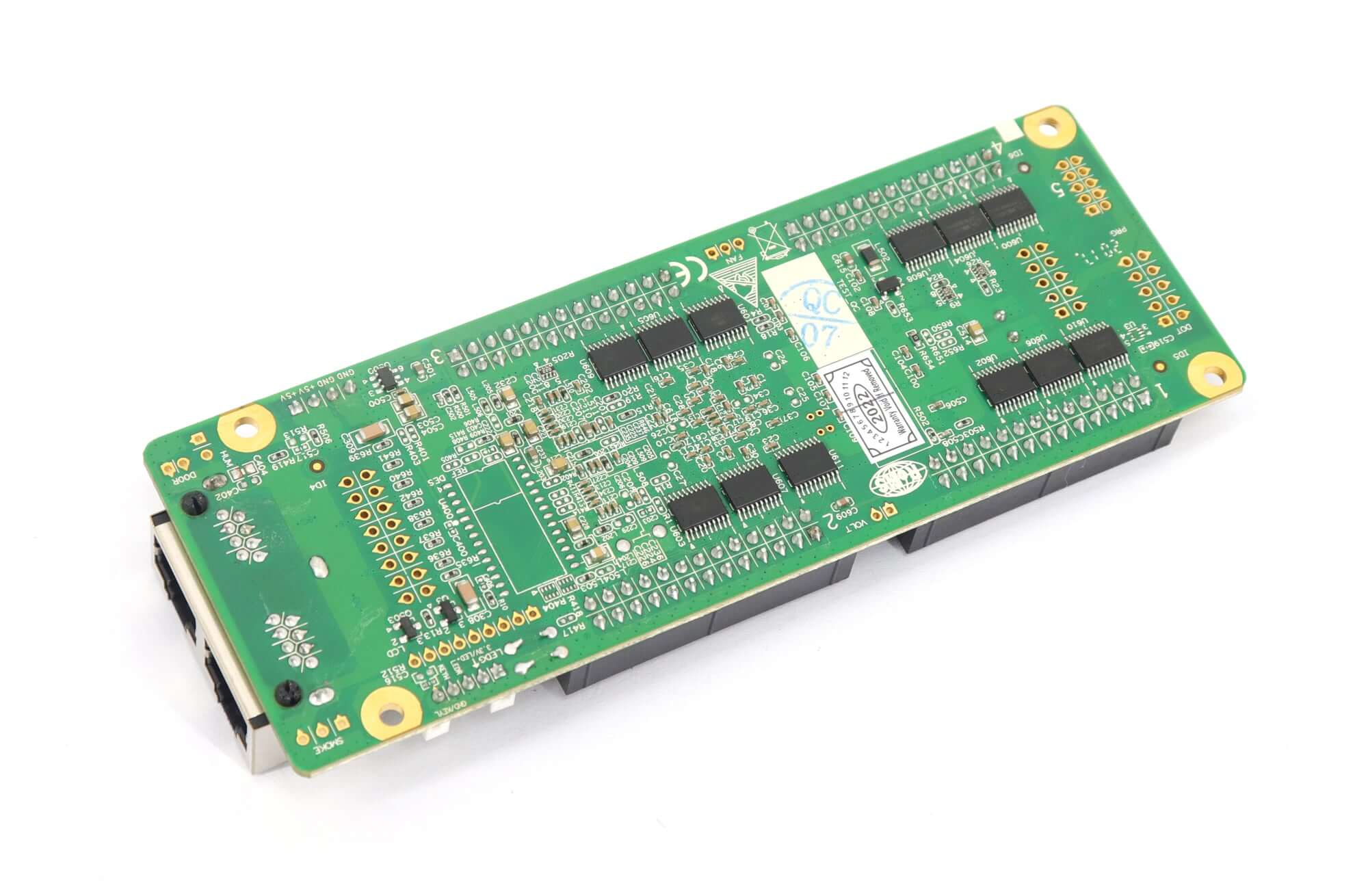

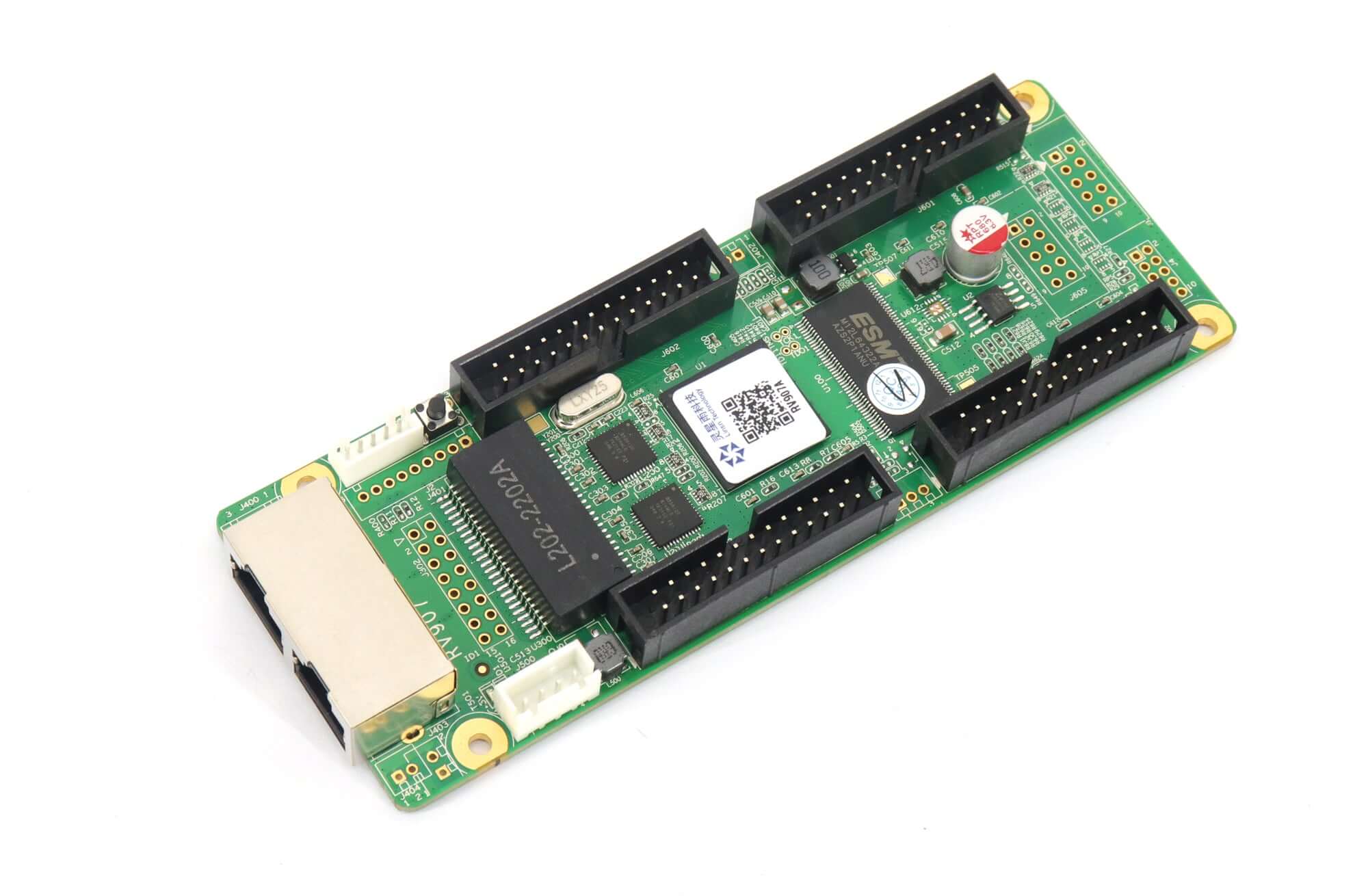

Linsn RV907A Receiving Card for Rental LED Screens
$ 16.20
Linsn RV907A rental LED receiving card with cabinet monitoring, dual-receiver backup and pixel brightness calibration. Check the module configuration.
9988 in stock
The Linsn RV907A receiving card combines LED module data output with cabinet monitoring and dual-receiver backup for rental displays. The original listing gives a 512 × 512 pixel load, while the manufacturer’s RV907A page lists 1024 × 256; confirm the supported layout for the hardware and module design. The retained download below points to an LS-Q5 player document, so it must not be used as an RV907A wiring guide.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | RV907A |
| Data output | 16 RGBR′ groups; 24 RGB groups; 32 serial groups |
| Pixel layout | Original listing: 512 × 512; manufacturer page: 1024 × 256. Confirm the applicable layout. |
| Monitoring | Temperature; cabinet door; two fan-speed channels; three voltage channels |
| Optional monitoring | Humidity and smoke require separate sensor modules |
| Calibration | Pixel brightness calibration; single-card color-space conversion |
| Backup and diagnostics | Dual-receiver backup; network cable BER test |
Linsn Technology RV907A Rental LED Screen Receiving Card Specification
Frequently asked questions
Does the RV907A include humidity and smoke sensors?
These functions require separate humidity and smoke modules. Sensor support does not mean the sensors are included.
Does the RV907A support backup receiving cards?
Yes. Dual-receiver backup is listed among its functions; configure the backup arrangement for the actual display.
Is the linked PDF an RV907A specification?
The existing download points to an LS-Q5 multimedia-player PDF. It is retained for reference, but it does not verify RV907A pinouts, wiring or loading settings.
| Weight | 0.3 kg |
|---|
