Colorlight i5A LED Receiving Card – 256 × 256 Pixels
$ 13.30
Colorlight i5A receiving card with 256 × 256-pixel loading, static to 1/32 scan, and brightness and chromaticity calibration. Check specifications and cabinet compatibility below.
9996 in stock
Colorlight i5A LED Receiving Card
The Colorlight i5A controls full-color LED panels with a 256 × 256-pixel loading area. It supports brightness and chromaticity calibration, conventional and PWM driver chips, and freeform screen layouts.
Technical Specifications
Based on the i5A V1.1 specification.
| Parameter | Specification |
|---|---|
| Loading area | 256 × 256 pixels |
| Scan type | Static to 1/32 |
| Grayscale | 65,536 levels |
| Supply | DC 3.3–6 V |
| Rated current / power | 0.6 A / 3 W |
| Dimensions | 143 × 93 mm |
| Weight | 100 g |
| Operating temperature | −25°C to +85°C |
| Connections | Two RJ45 ports; dual 50-pin HUB connectors |
Installation and Replacement
Check your module driver IC, scan mode, HUB pinout and cabinet space before ordering a replacement. Output wiring must match the selected operating mode.

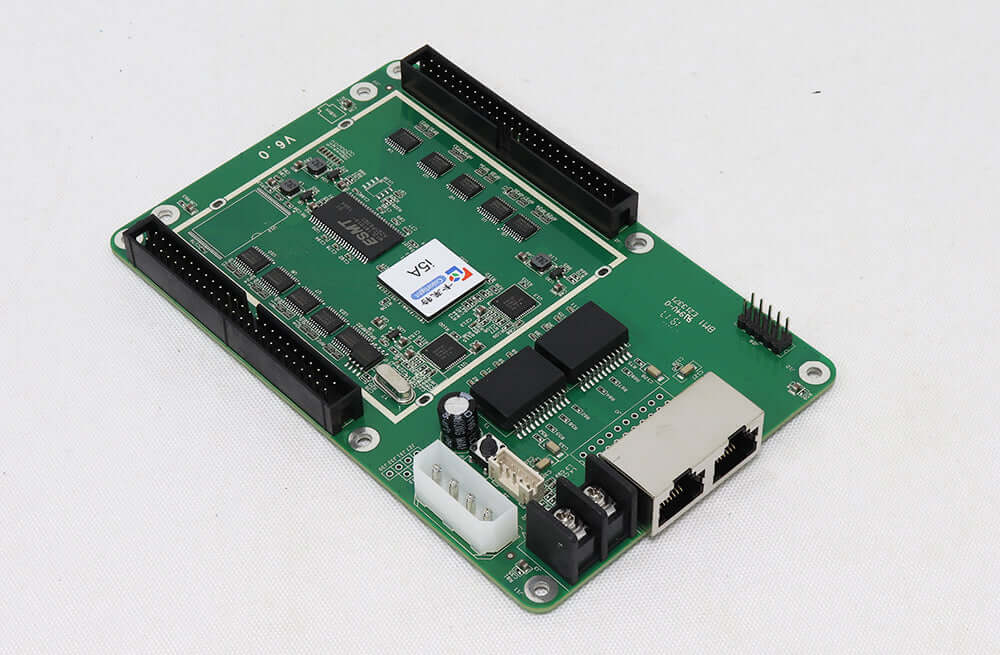

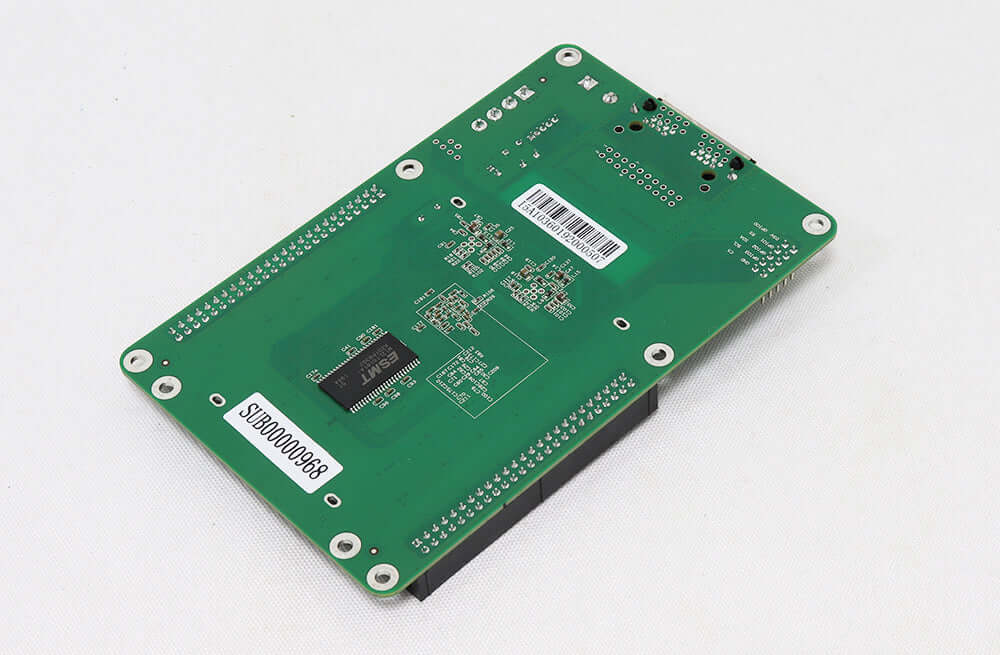

Product Images
Frequently Asked Questions
How many pixels can the i5A control?
The specified full-color loading area is 256 × 256 pixels.
What supply voltage does it use?
DC 3.3–6 V. The rated power is 3 W.
Does it support color calibration?
Yes, both brightness and chromaticity calibration are supported.
Can it monitor cabinet conditions?
Temperature, humidity and smoke monitoring require the corresponding monitoring module or multifunction card.
Will it replace any LED receiving card?
Check the exact model, module configuration and HUB wiring first. Similar appearance alone does not establish compatibility.
