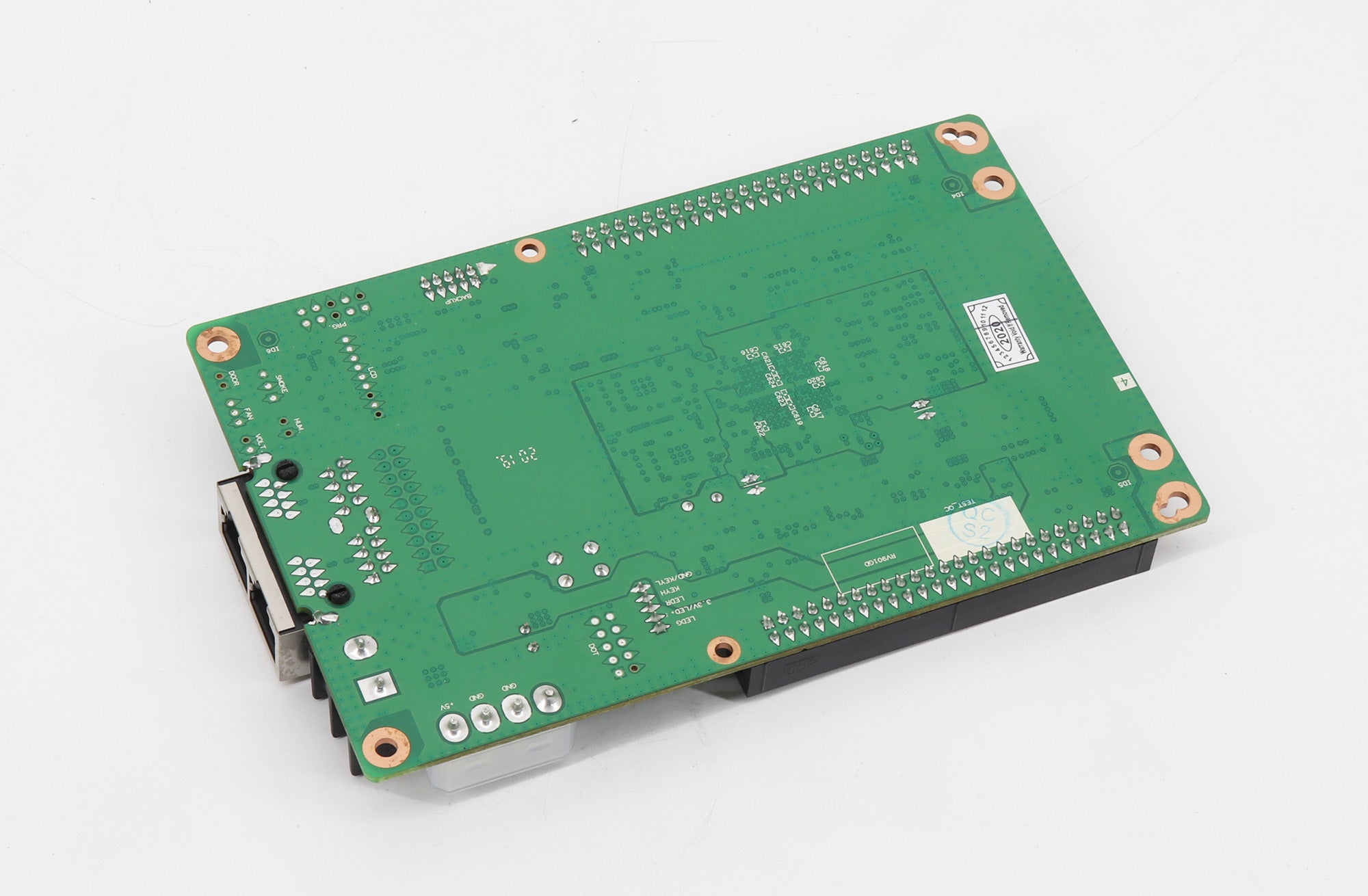

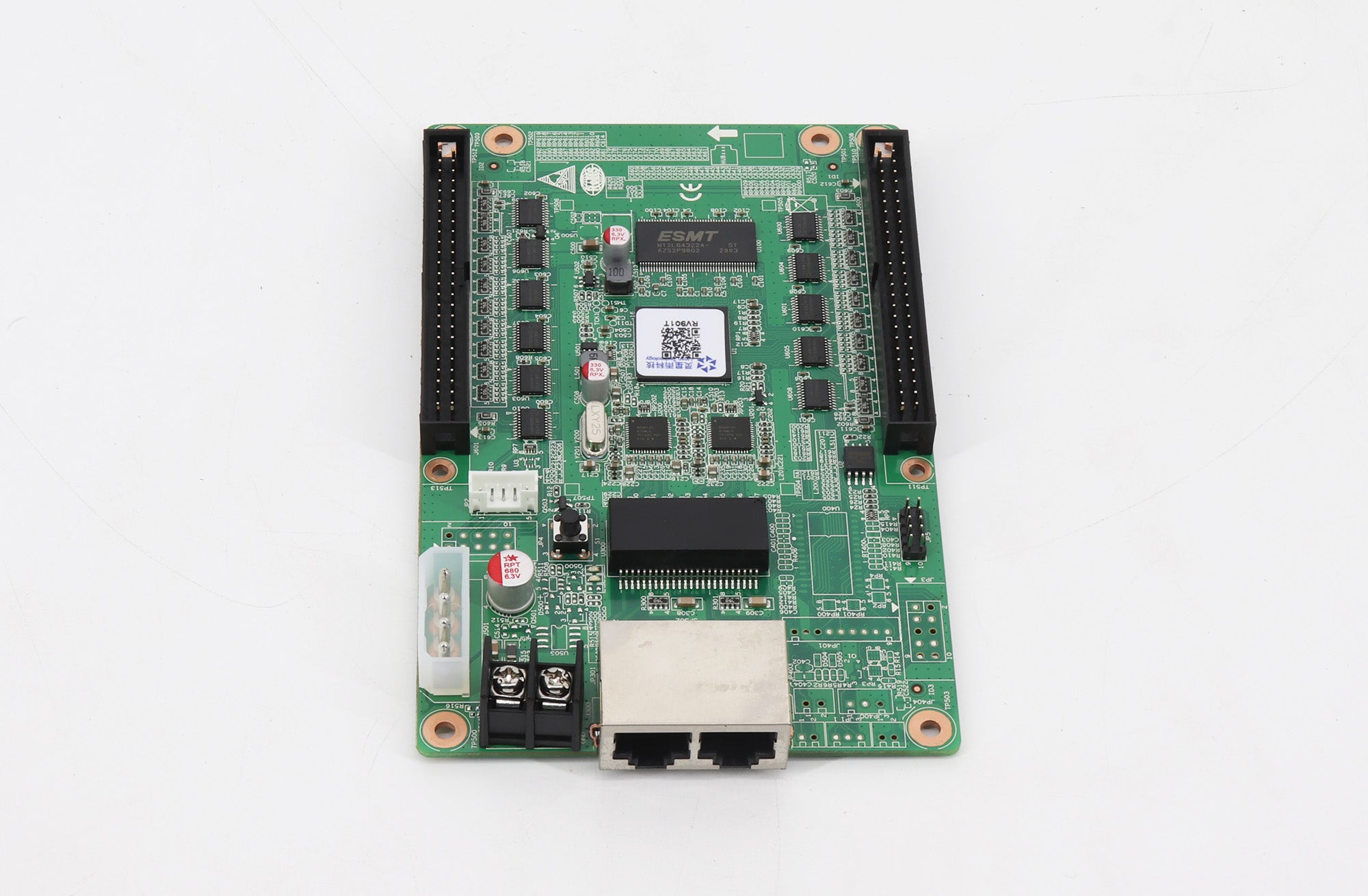

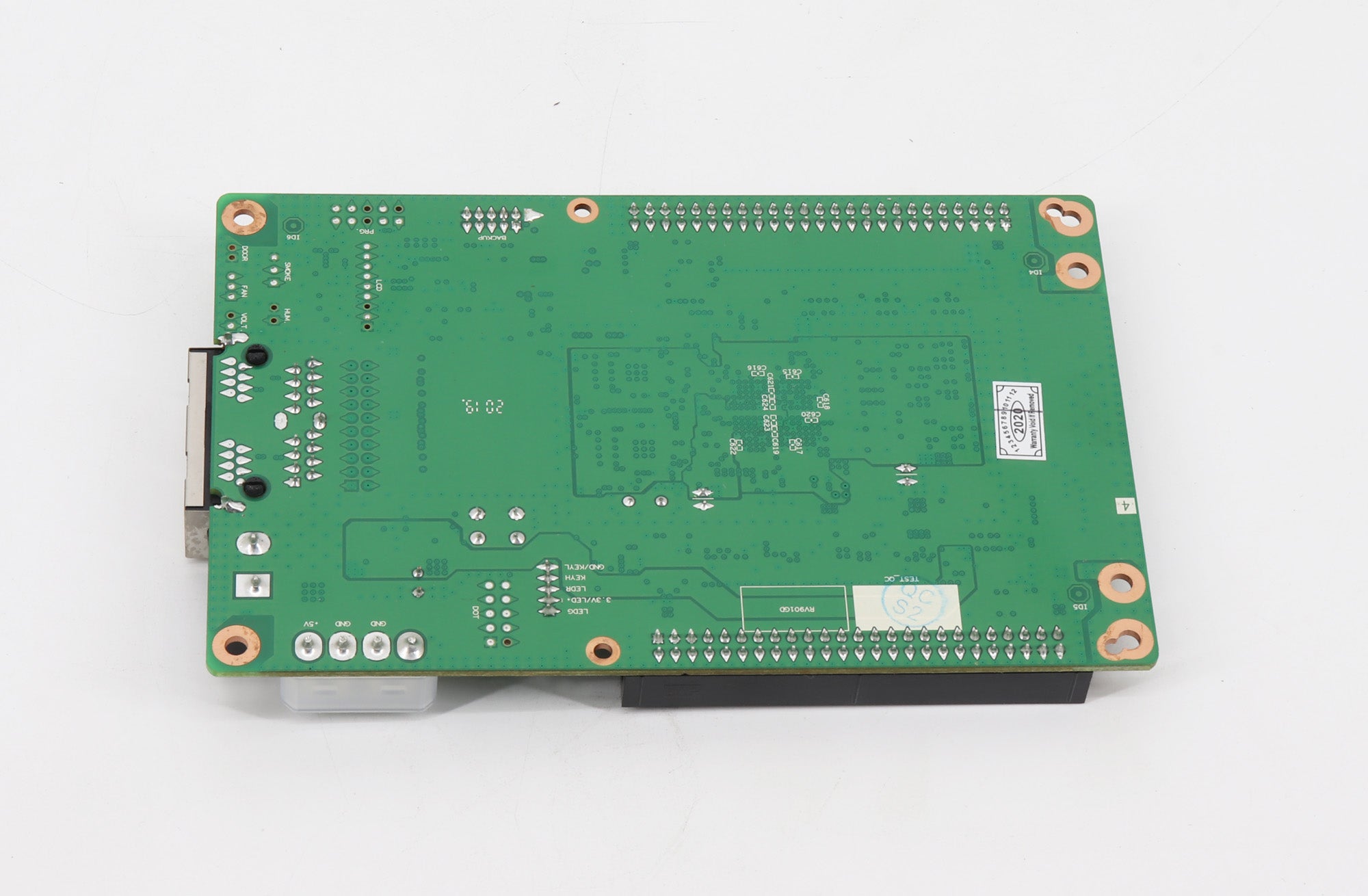

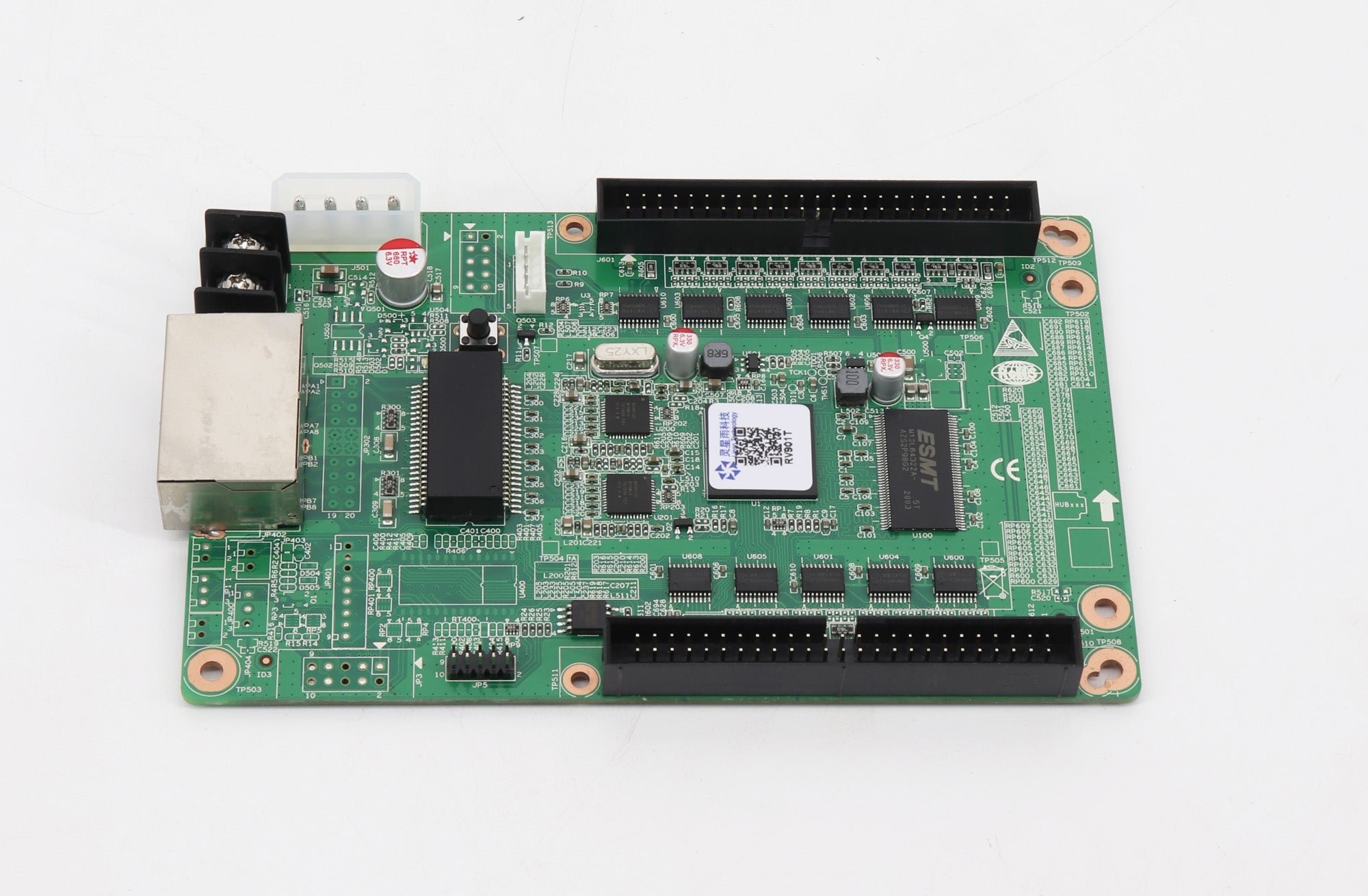

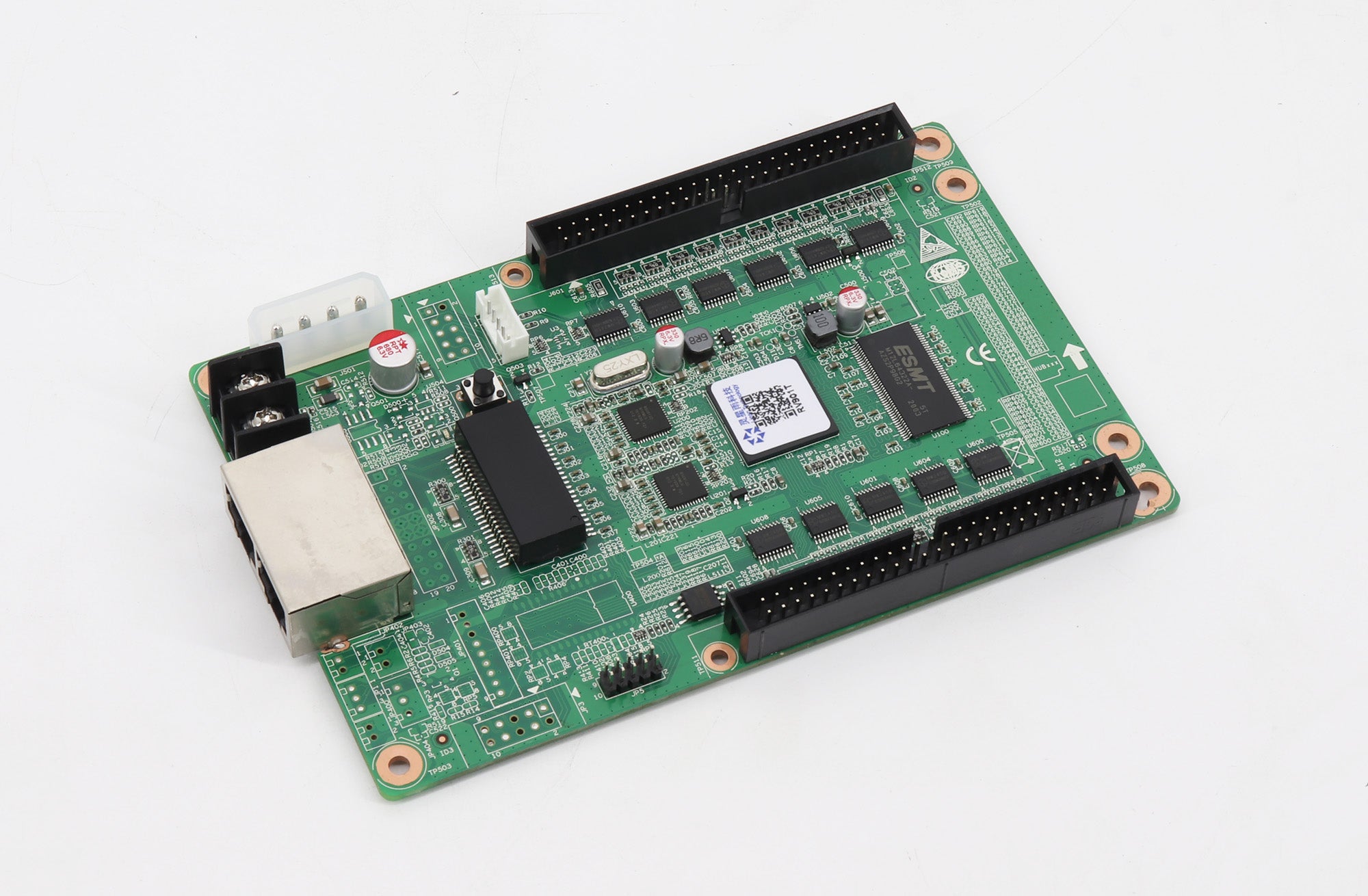

Linsn RV901T LED Receiving Card – Discontinued
$ 20.00
Linsn RV901T LED receiving card is listed as discontinued. Review legacy specifications and compare the RV201 alternative for your cabinet configuration.
6 in stock
The Linsn RV901T is listed as no longer in production. The original listing recommends RV201 as an alternative; compare the board connectors, firmware and cabinet configuration before replacement. See the Linsn RV201 receiving card for the site’s alternative listing. The specifications below describe the legacy RV901T listing.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | RV901T |
| Production status | Discontinued, according to the existing product listing |
| Listed alternative | RV201; compatibility must be checked for the installation |
| Maximum listed load | 1024 × 256 pixels |
| Signal processing | Up to 18-bit grayscale per RGB channel |
| Source-color support | 12-bit with a compatible ninth-generation sender |
| Configuration / backup | Readback, program replication and dual-receiver hot backup |
| Monitoring | Temperature, cabinet door, two fan-speed channels and three voltage channels |
| Conditional functions | Separate humidity/smoke sensors; pixel fault detection requires compatible chips |
| Diagnostics | Network cable BER and ribbon cable fault detection |
LINSN RV901T LED Screen Receiver Card Specification
Frequently asked questions
Is the RV901T still in production?
The existing product information states that RV901T is no longer in production. Confirm actual available stock before planning a replacement.
What is the listed alternative to RV901T?
RV201 is the alternative named in the original listing. Check the exact board, connectors, firmware and module settings before using it in an existing cabinet.
Does RV901T pixel fault detection work with any LED driver?
No. The original specification requires dedicated chip support. Humidity and smoke functions also need separately supplied sensor modules.
| Weight | 0.35 kg |
|---|
