Colorlight i6 Mini LED Receiving Card | 256×256 Pixels
$ 32.40
Colorlight i6 compact receiving card with 256×256-pixel capacity, 32 RGB data groups and a DDR2 SODIMM interface. Supports pixel-level calibration, seam compensation and backup functions.
9996 in stock
The Colorlight i6 is a compact LED receiving card with a DDR2 SODIMM interface, 32 groups of RGB signal output and a full-color loading capacity of 256 × 256 pixels. It supports pixel-level brightness and chromaticity calibration, seam compensation and creative display layouts.
Display Calibration and Maintenance
Auto-calibration and improved grayscale performance at low brightness help with screen adjustment. Smart modules can store calibration coefficients and other module information. Smart panel marking, automatic recognition of receiver-card sequence and cable detection assist maintenance.
The card supports low-latency operation, 3D display and freeform layouts such as spherical screens. Loop backup, dual-sender backup and redundant firmware backup are also listed in the specification.
i6 Technical Specifications
| Parameter | Specification |
|---|---|
| Full-color loading capacity | 256 × 256 pixels |
| RGB output | 32 data groups |
| Interface | DDR2 SODIMM |
| Grayscale | Up to 65,536 levels |
| Scan type | Static to 1/32 scan |
| Driver chip support | Conventional, PWM, lighting and other mainstream chips |
| Dimensions | 67.6 × 35.5 mm (detailed specification table) |
| Input voltage | DC 3.3–6V |
| Rated current | 0.5A |
| Rated power | 2.5W |
| Weight | 9.5 g |
| Operating temperature | −25°C to +75°C |
| Storage and transport temperature | −50°C to +125°C |
| Cable distance | UTP ≤140 m; CAT6 ≤170 m |
| Sending-device compatibility | All Colorlight sending devices, as listed in V1.2 |
| Transmission equipment | Gigabit switch, fiber transceiver and optical switch |
Monitoring and System Integration
In conjunction with a multifunction card, the specification lists cabinet temperature monitoring, humidity monitoring, network packet/error monitoring and five supply-voltage monitoring ports. Check the cabinet wiring and required accessories when planning these functions.
Match the DDR2 SODIMM connection and module configuration before replacing an existing receiving card. Refer to the PDF for pin assignments and installation dimensions.
Frequently Asked Questions
What is the Colorlight i6 pixel capacity?
The specification lists a full-color loading capacity of 256 × 256 pixels per receiving card.
How many RGB data groups does i6 output?
It supports 32 RGB data groups through its DDR2 SODIMM interface.
What power supply does the i6 require?
V1.2 specifies DC 3.3–6V input, 0.5A rated current and 2.5W rated power.
Does i6 support pixel-level calibration?
Yes. It supports brightness and chromaticity calibration, auto-calibration and seam compensation. Smart modules can store calibration coefficients.
Can i6 monitor cabinet temperature and voltage?
The specification lists temperature, humidity, network error and supply-voltage monitoring in conjunction with a multifunction card. The required accessories and cabinet wiring must be included in the system design.

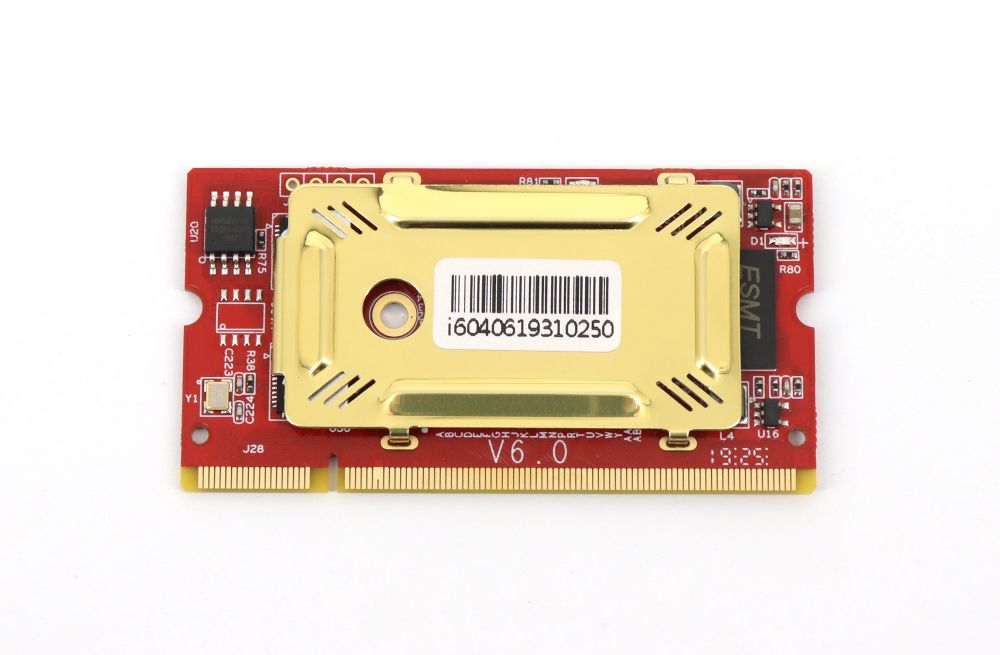

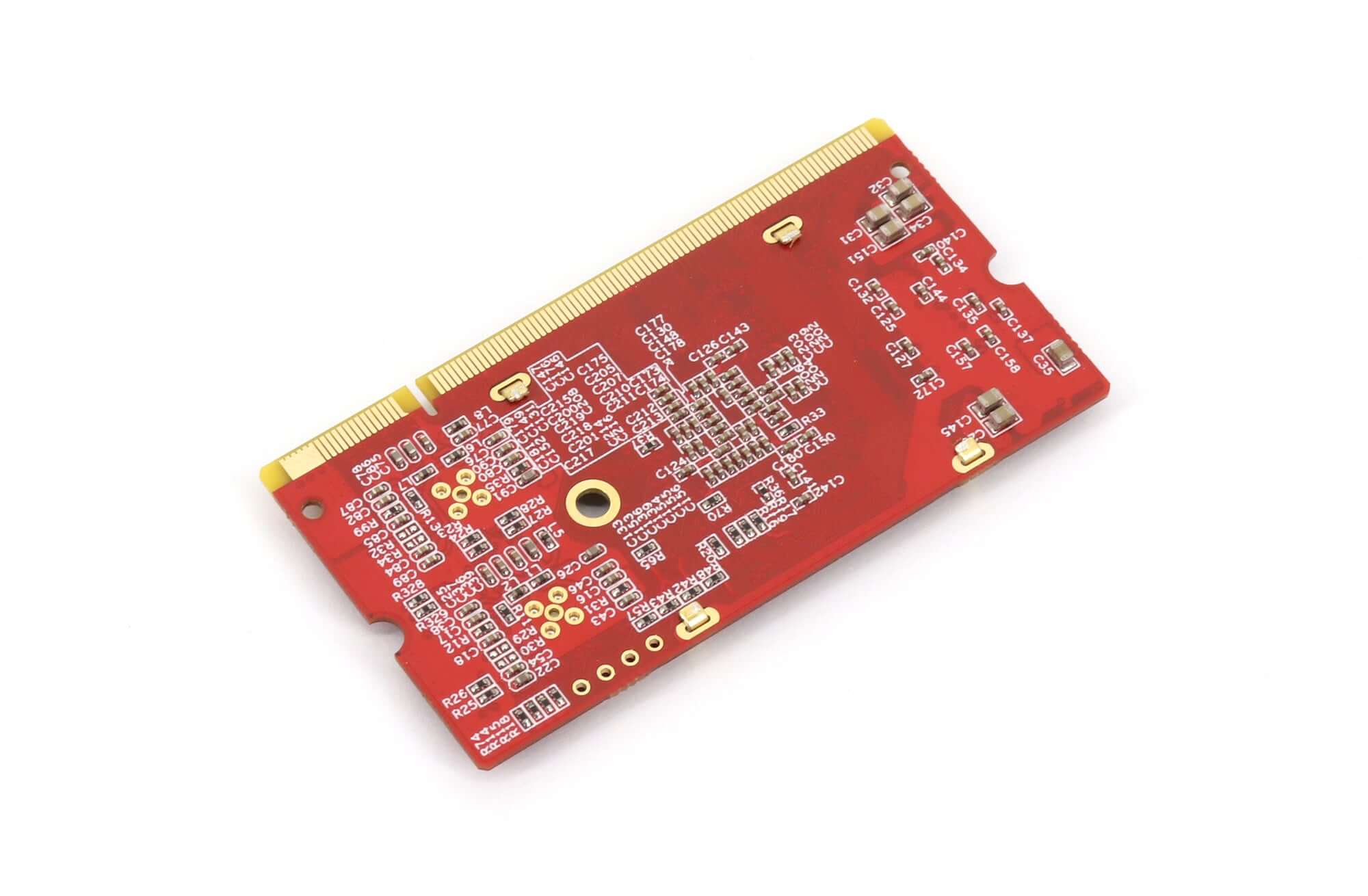

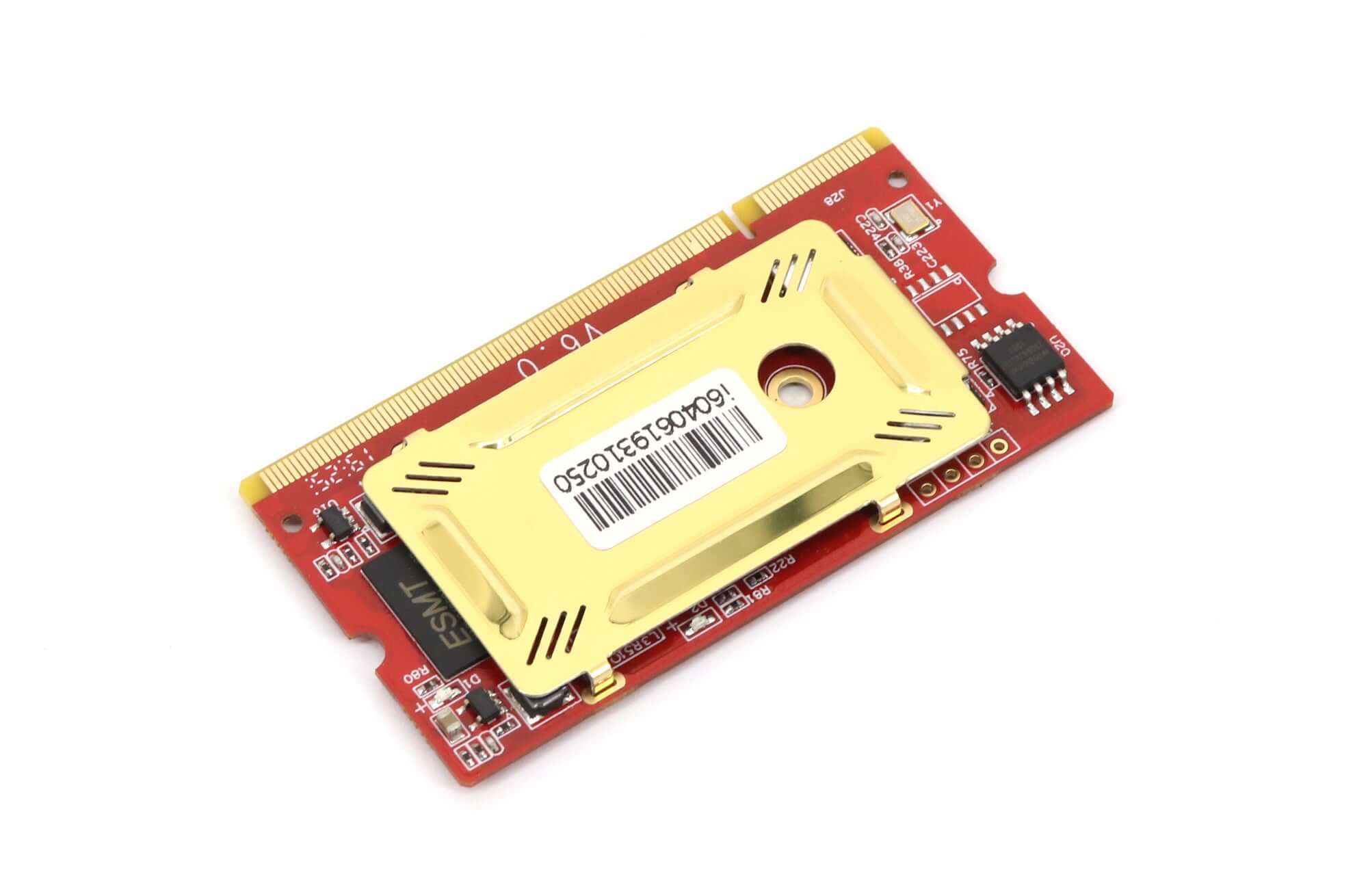

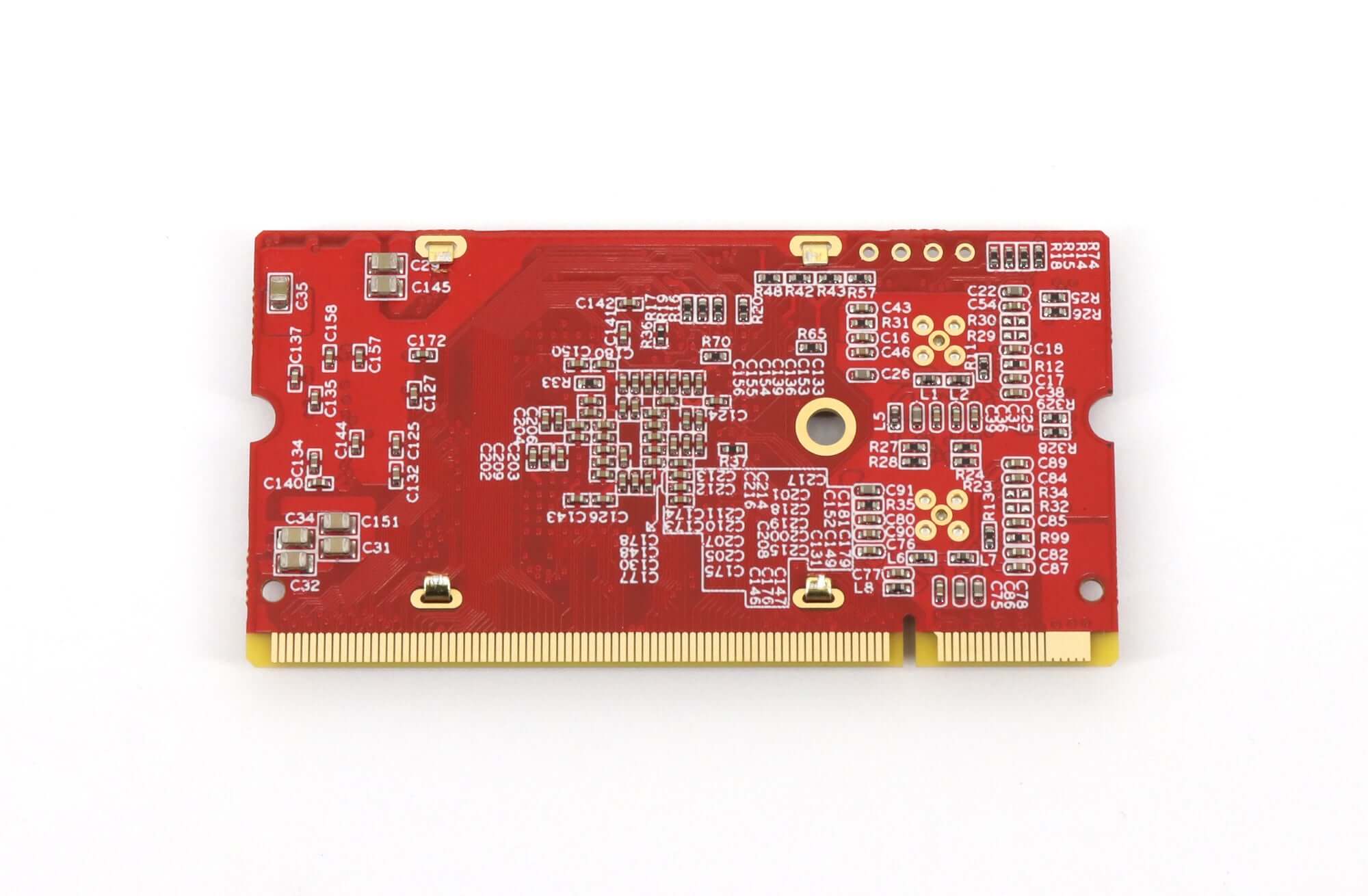

Product Images
Specification Download
Download the Colorlight i6 V1.2 specification (PDF)| Weight | 0.3 kg |
|---|
