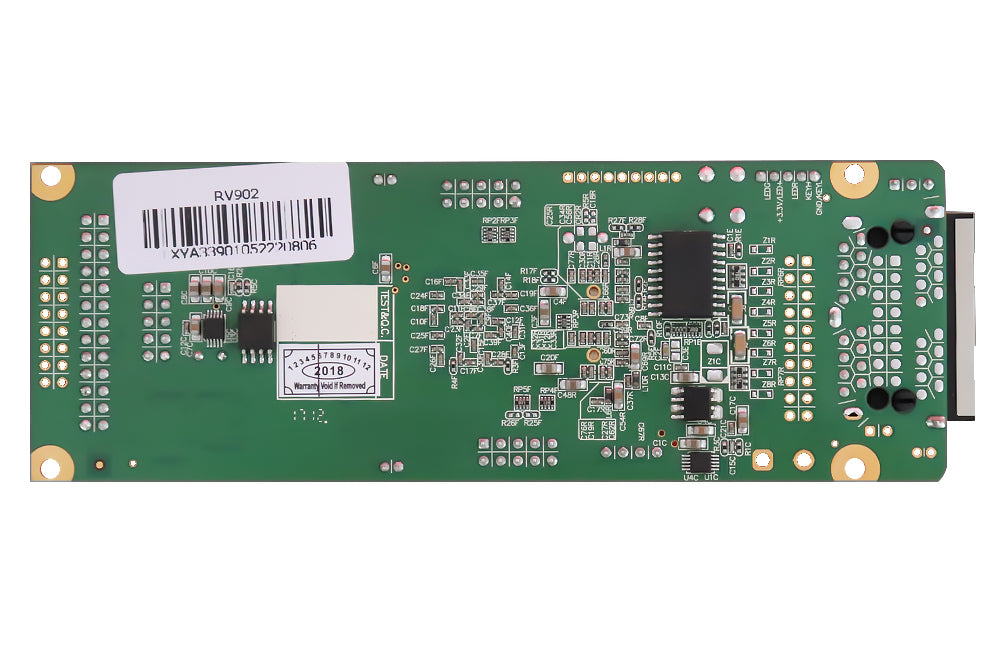

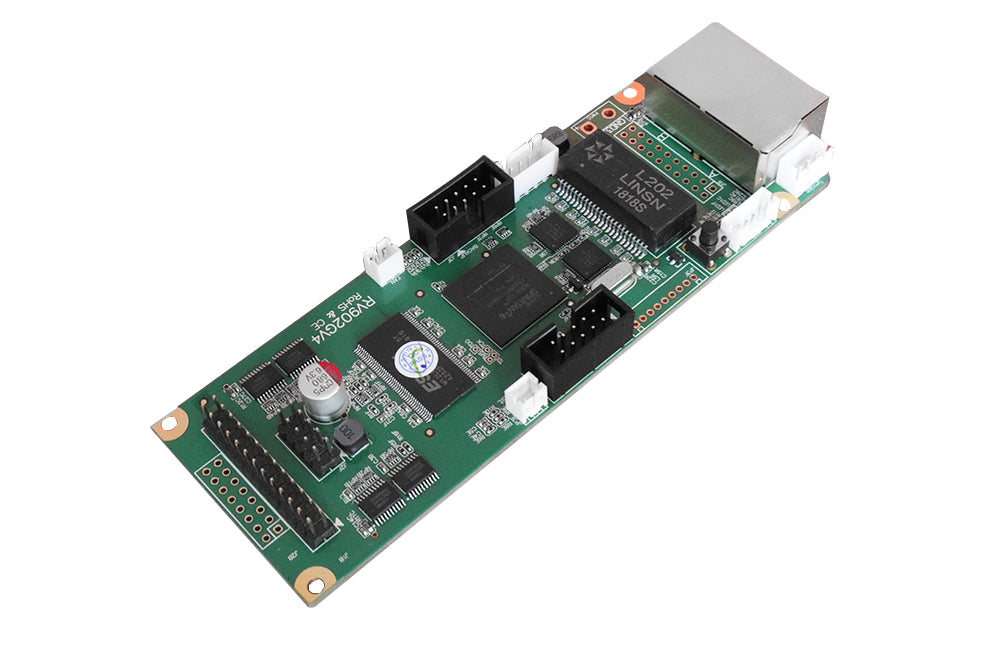

Linsn RV902 LED Receiving Card for Compact Cabinets
$ 20.90
Linsn RV902 LED receiving card for compact display installations, with serial and RGB output modes, configuration readback and cabinet monitoring.
9970 in stock
The Linsn RV902 receiving card is intended for compact LED lighting and display-wall installations. Its output arrangement differs from RV901, so match the card to the cabinet interface before replacement. The RV902 V1.1 specification lists serial and RGB data modes, with recommended pixel loading dependent on the display design.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | RV902 |
| Data modes | 16 serial groups; 4 RGBR′ groups; 5 RGB groups |
| Maximum listed load | 1024 × 256 pixels; recommended load depends on screen design |
| Signal processing | Up to 18-bit grayscale per RGB channel |
| Source-color support | 12-bit with a compatible ninth-generation sending card |
| Configuration | Readback and program replication |
| Backup | Dual-receiver hot backup |
| Cabinet monitoring | Door, temperature, two fan-speed channels and three voltage channels |
| Optional detection | Separate humidity/smoke modules; pixel fault detection requires supported chips |
| Diagnostics | Cable BER and ribbon cable fault detection |
LINSN RV902 LED Display Panel Receiving Card Specification
Frequently asked questions
Is the RV902 the same size and interface as RV901?
The product description specifically distinguishes its smaller form factor and output interfaces. Check the actual connector and mounting layout before replacement.
Which output modes does the RV902 support?
The V1.1 document lists 16 serial data groups, four RGBR′ groups and five RGB groups. Use the pinout for the selected mode.
Can the RV902 monitor humidity and smoke?
These functions require separately supplied humidity and smoke modules. They are not automatically included with the receiving card.
| Weight | 0.3 kg |
|---|
