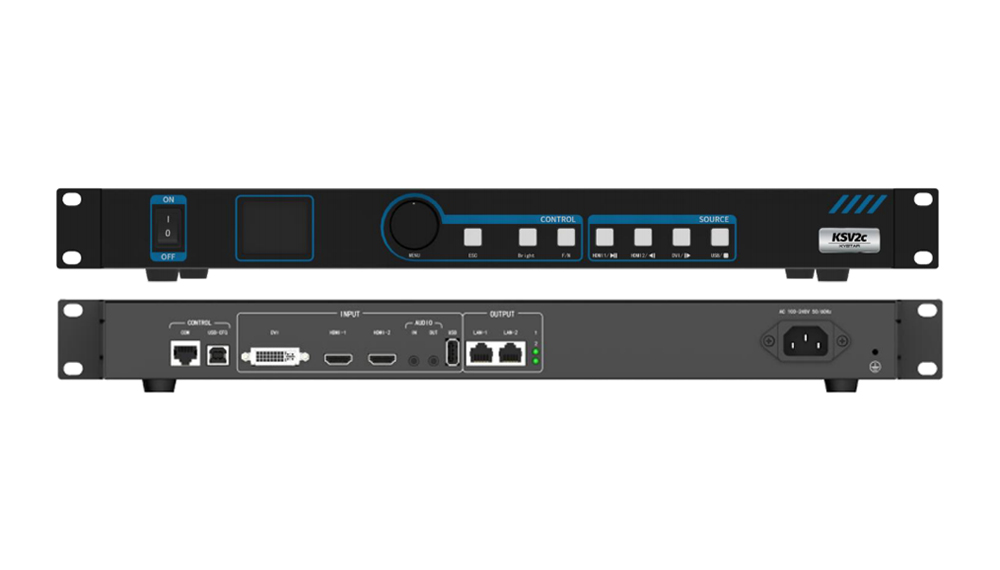

Kystar KSV2C 3-in-1 LED Controller with USB Playback
$ 95.00
Kystar KSV2C 3-in-1 LED controller with video processing, LED sending and USB offline playback. Two network outputs support 1.3 million pixels; source connections include two HDMI 1.3 inputs and one DVI-D input.
10000 in stock
KSV2C LED controller for live sources and USB playback
The Kystar KSV2C combines video processing, LED sending and offline playback. Its two network outputs support an LED load of up to 1.3 million pixels. Use HDMI or DVI for connected sources, or play supported videos and images from a USB drive.
Technical specifications
| Parameter | Specification |
|---|---|
| Controller type | 3-in-1: video processor, LED sending card and offline player |
| LED network outputs | 2 ports |
| Maximum LED load | 1.3 million pixels |
| Maximum width | 4096 pixels, within the total pixel limit |
| Maximum height | 2048 pixels, within the total pixel limit |
| Video inputs | 2 × HDMI 1.3; 1 × DVI-D |
| USB | 1 port; supported video and image playback |
| Image controls | Cropping, freeze, brightness and contrast adjustment |
Screen configuration and commissioning
EDID reading, modification and customization help configure supported sources. Flexible cable routing supports non-rectangular layouts and improves port utilization. Cropping can remove black borders from incoming signals.
Solid-color, gradient and scan-line test patterns make it easier to check the display. Key locking helps prevent unintended operation once the screen is configured.
Frequently asked questions
Does the KSV2C include an offline player?
Yes. Its three integrated functions are video processing, LED sending and offline playback. The USB port supports compatible video and image files.
What LED screen size can it control?
Its maximum load is 1.3 million pixels. Check the screen’s pixel count and port mapping, as well as the separate limits of 4096 pixels in width and 2048 pixels in height.
Can I connect both HDMI and DVI equipment?
The KSV2C provides two HDMI 1.3 inputs and one DVI-D input. Check the supported timing for each source connection.
What can I do if the source has black borders?
Use the controller’s input cropping function to remove unwanted borders. EDID settings can also help establish a supported source timing.
Product image and specification download
| Weight | 4 kg |
|---|
