Colorlight X3 LED Display Controller with HDMI and DVI Inputs
Original price was: $ 260.00.$ 224.00Current price is: $ 224.00.
Colorlight X3 LED controller with 1 HDMI and 2 DVI inputs, 4 Gigabit Ethernet outputs and 2.60-million-pixel capacity. Supports 1920 × 1200 at 60 Hz input, scaling, cropping and USB configuration.
10000 in stock
The Colorlight X3 LED display controller accepts HDMI and DVI video and sends processed content through four Gigabit Ethernet outputs. It supports input up to 1920 × 1200 at 60 Hz and a total LED-screen loading capacity of 2.60 million pixels.
Scale and crop video for your screen
Use the X3 to switch between digital sources, scale or crop the image, and adjust screen offset. Brightness and chromaticity controls help configure the display, while improved grayscale performance at low brightness supports dimmer operating settings.

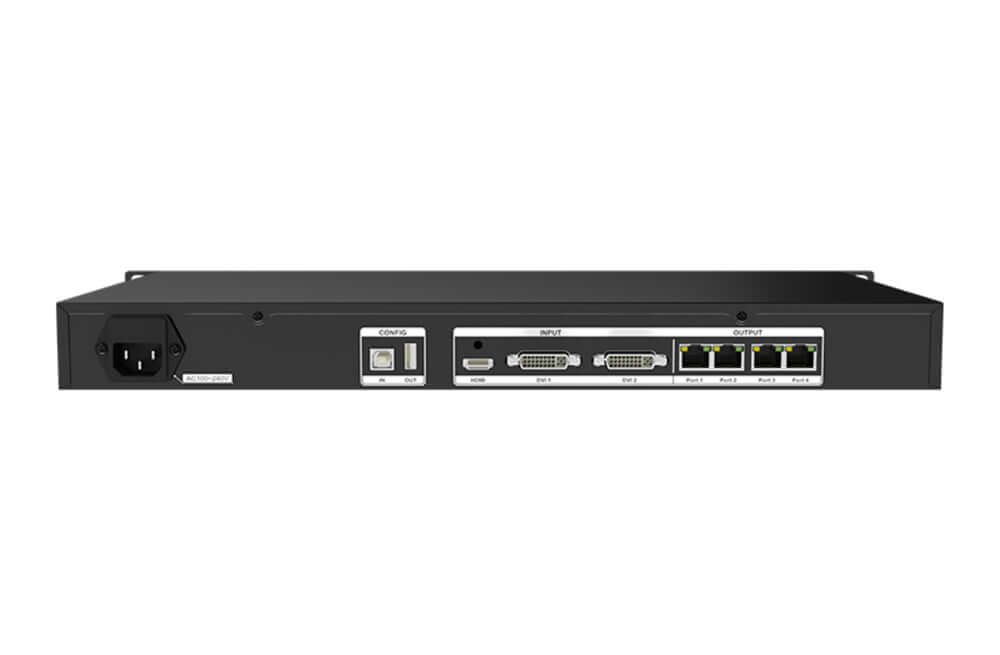

USB IN connects to a PC for configuration, and USB OUT connects to the next controller for cascading. The specification lists compatibility with Colorlight receiving cards, multifunction cards and optical fiber transceivers; choose the appropriate accessories for the installation.
Colorlight X3 technical specifications
| Parameter | Specification |
|---|---|
| Video inputs | 1 × HDMI; 2 × DVI |
| Maximum input resolution | 1920 × 1200 at 60 Hz |
| LED outputs | 4 × RJ45 Gigabit Ethernet |
| Total loading capacity | 2.60 million pixels |
| Maximum screen width | 4096 pixels, within total loading capacity |
| Maximum screen height | 2560 pixels, within total loading capacity |
| Video processing | Source switching, scaling, cropping and screen offset |
| Content protection | HDCP 1.4 |
| Control interfaces | USB 2.0 IN for PC configuration; USB OUT for cascading |
| Enclosure | 1U standard box |
| Input voltage | AC 100–240 V |
| Rated power consumption | 8 W |
| Working temperature | −20°C to 60°C (V1.3 specification) |
| Weight | 2 kg |
Input resolution describes the source signal. Screen width, screen height and total loading capacity describe the LED display that the controller can drive; all relevant limits must be met together.
Frequently Asked Questions
What is the maximum LED-screen capacity of the Colorlight X3?
The X3 loads up to 2.60 million pixels. Its maximum screen width is 4096 pixels and maximum height is 2560 pixels, subject to the total pixel limit.
Which video inputs does the X3 have?
It has one HDMI input and two DVI inputs, supporting resolution up to 1920 × 1200 at 60 Hz.
Can the X3 scale and crop a video source?
Yes. It supports source switching, image scaling, cropping and screen offset adjustments.
What are the X3 USB ports used for?
USB IN connects to a PC to configure parameters. USB OUT is used to cascade the next controller.
How much power does the X3 use?
The V1.3 specification lists rated power consumption of 8 W and an AC 100–240 V supply. This rating is for the controller, not the connected LED screen.
Specification and setup manual
| Weight | 7 kg |
|---|
