Colorlight X16E 4K LED Video Controller with 16 Ethernet Outputs
$ 1,394.00
Colorlight X16E 4K LED controller with 16 Gigabit Ethernet outputs and 10.48-million-pixel capacity. HDMI 2.0, DP 1.2, HDMI 1.4 and DVI inputs support multi-window screen layouts.
2500 in stock
The Colorlight X16E is a 4K LED video controller with 16 Gigabit Ethernet outputs and a maximum loading capacity of 10.48 million pixels. It accepts HDMI 2.0 and DisplayPort 1.2 sources up to 4096 × 2160 at 60 Hz, alongside HDMI 1.4 and DVI inputs for HD sources.
Multi-window video processing
Display up to six windows and adjust their position and size to suit the screen layout. The X16E supports source switching, cropping, splicing, scaling and video synchronization, plus precise color management, display-gamut adjustment, brightness and color-temperature controls.
Audio, control and compatibility
Separate audio input and output connections are provided. Audio from HDMI and DP sources can be extracted and output to the sound system. Control options include LAN, a handheld-terminal app and RS232.
The supplied V1.1 specification marks 3D as optional. It lists HDCP support for the HD interfaces, with HDCP 1.4 specified for HDMI 1.4 and DVI; it does not state HDCP support for the 4K interfaces.
Colorlight X16E technical specifications
| Parameter | Specification |
|---|---|
| Maximum loading capacity | 10.48 million pixels |
| LED outputs | 16 × Gigabit Ethernet |
| Maximum screen width / height | 16384 / 8192 pixels, within total loading capacity |
| 4K inputs | 1 × HDMI 2.0 and 1 × DP 1.2; up to 4096 × 2160 at 60 Hz |
| HD inputs | 2 × HDMI 1.4 and 2 × DVI; up to 1920 × 1200 at 60 Hz |
| Input bit depth | 8-bit |
| Input color formats | RGB 4:4:4, YCbCr 4:4:4 and YCbCr 4:2:2 |
| Windows | Up to 6, with adjustable position and size |
| Processing | Switching, cropping, splicing and scaling |
| Synchronization | Video sync |
| Audio | Separate input/output; HDMI and DP audio extraction |
| Control | LAN, handheld-terminal app and RS232 |
| HDCP | HD interfaces only in this specification; HDMI 1.4 and DVI list HDCP 1.4 |
| 3D | Optional |
Maximum screen width and height are independent limits. The selected screen layout must also fit within the 10.48-million-pixel loading capacity.

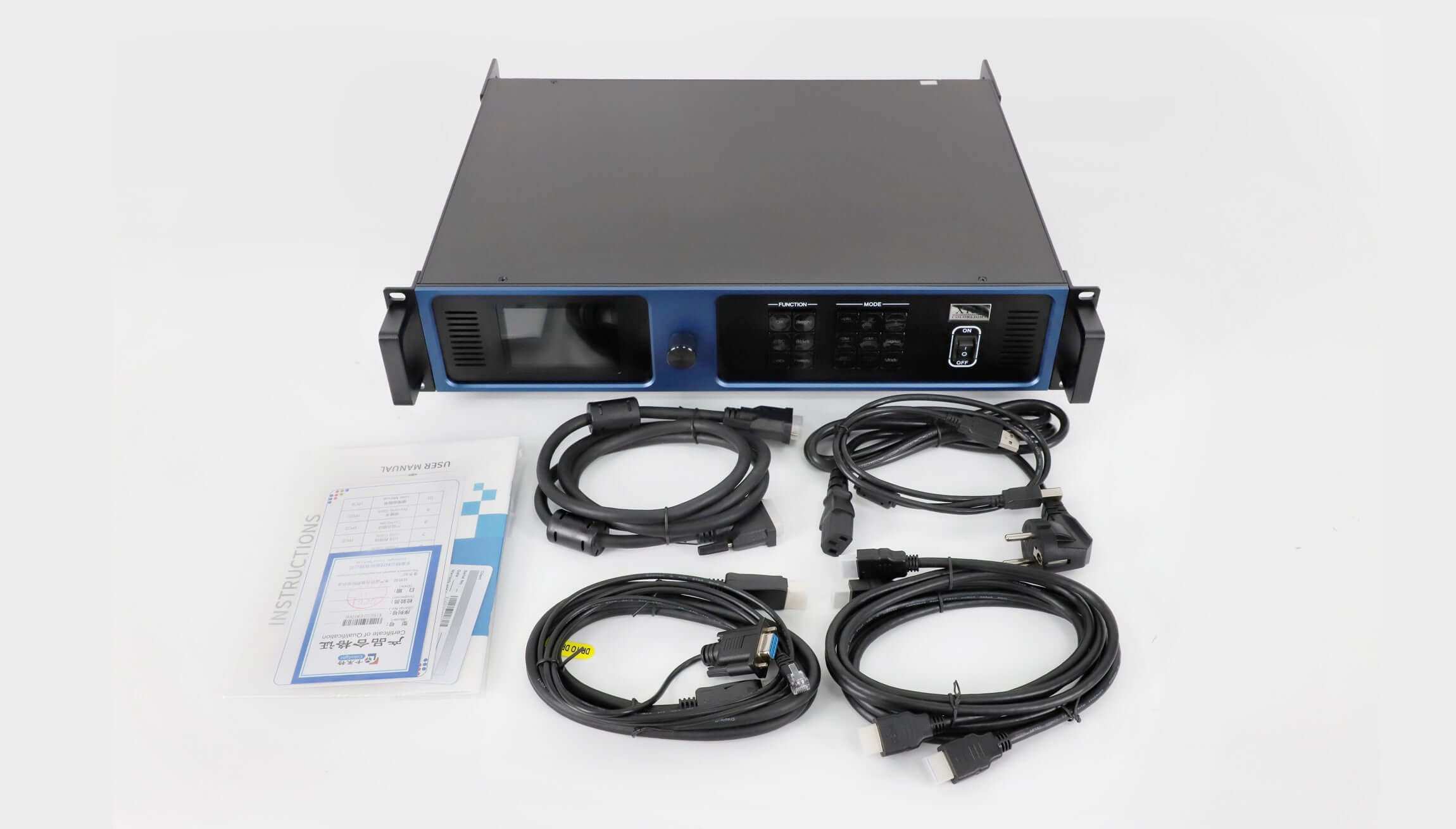

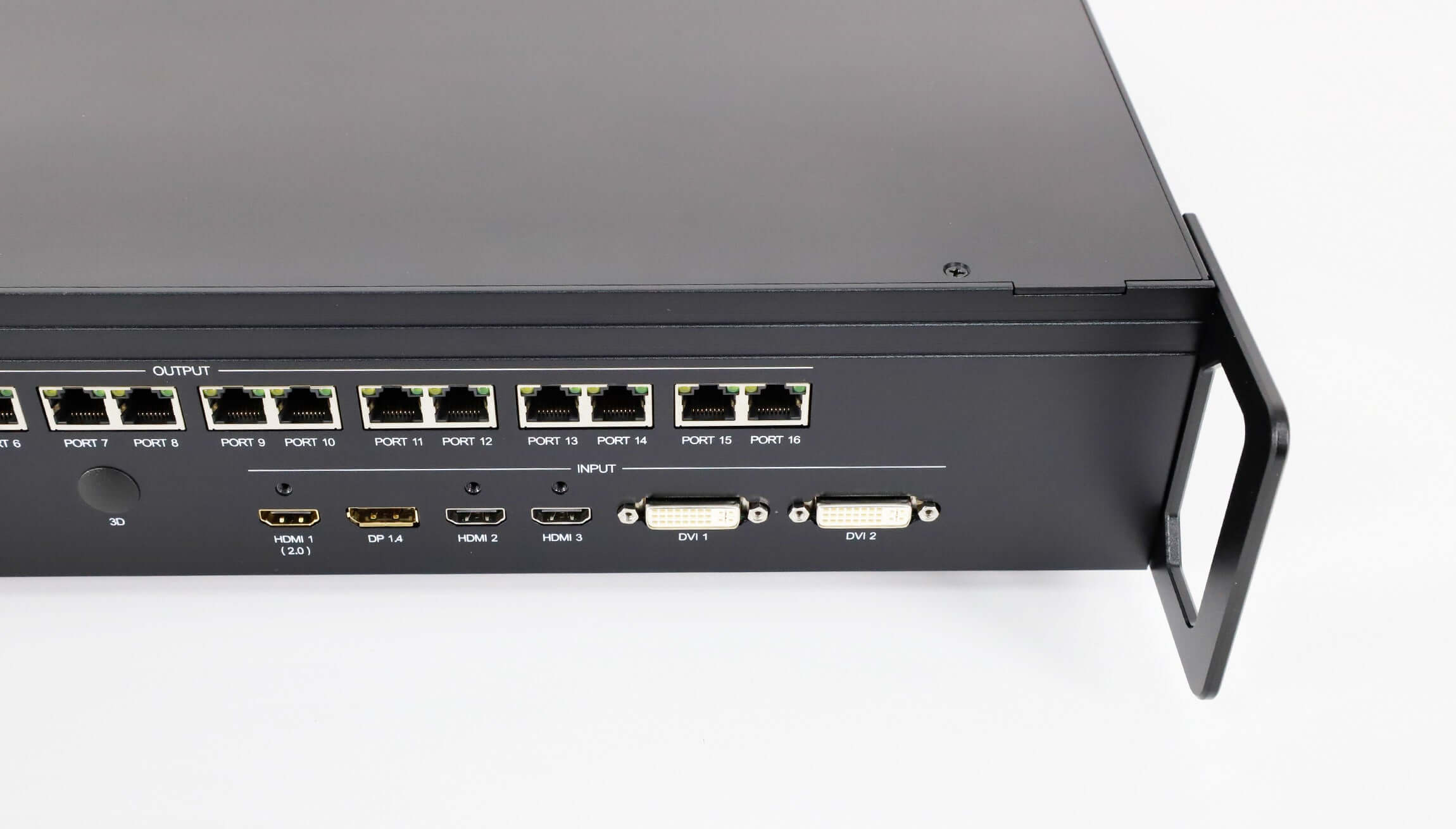

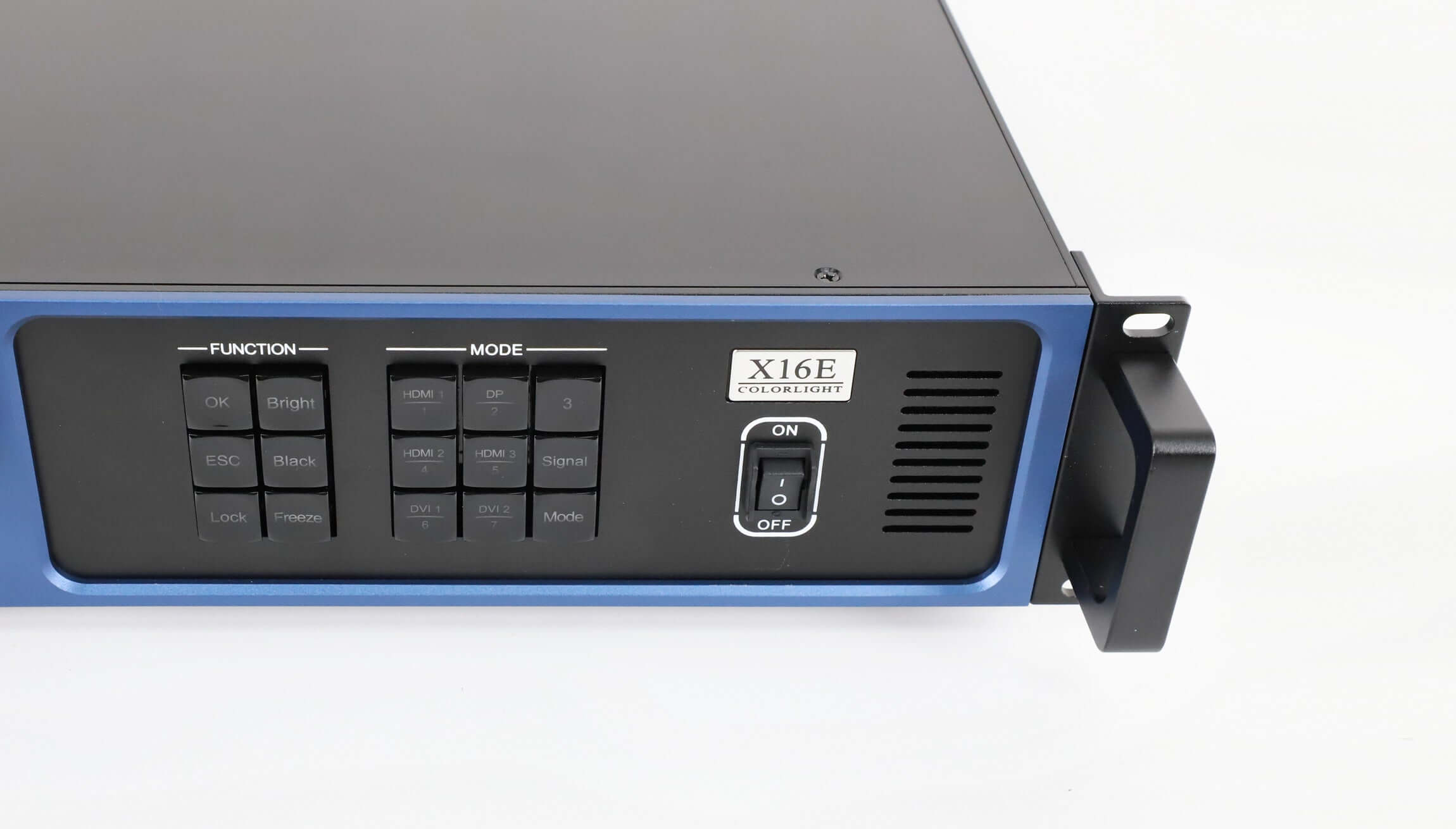

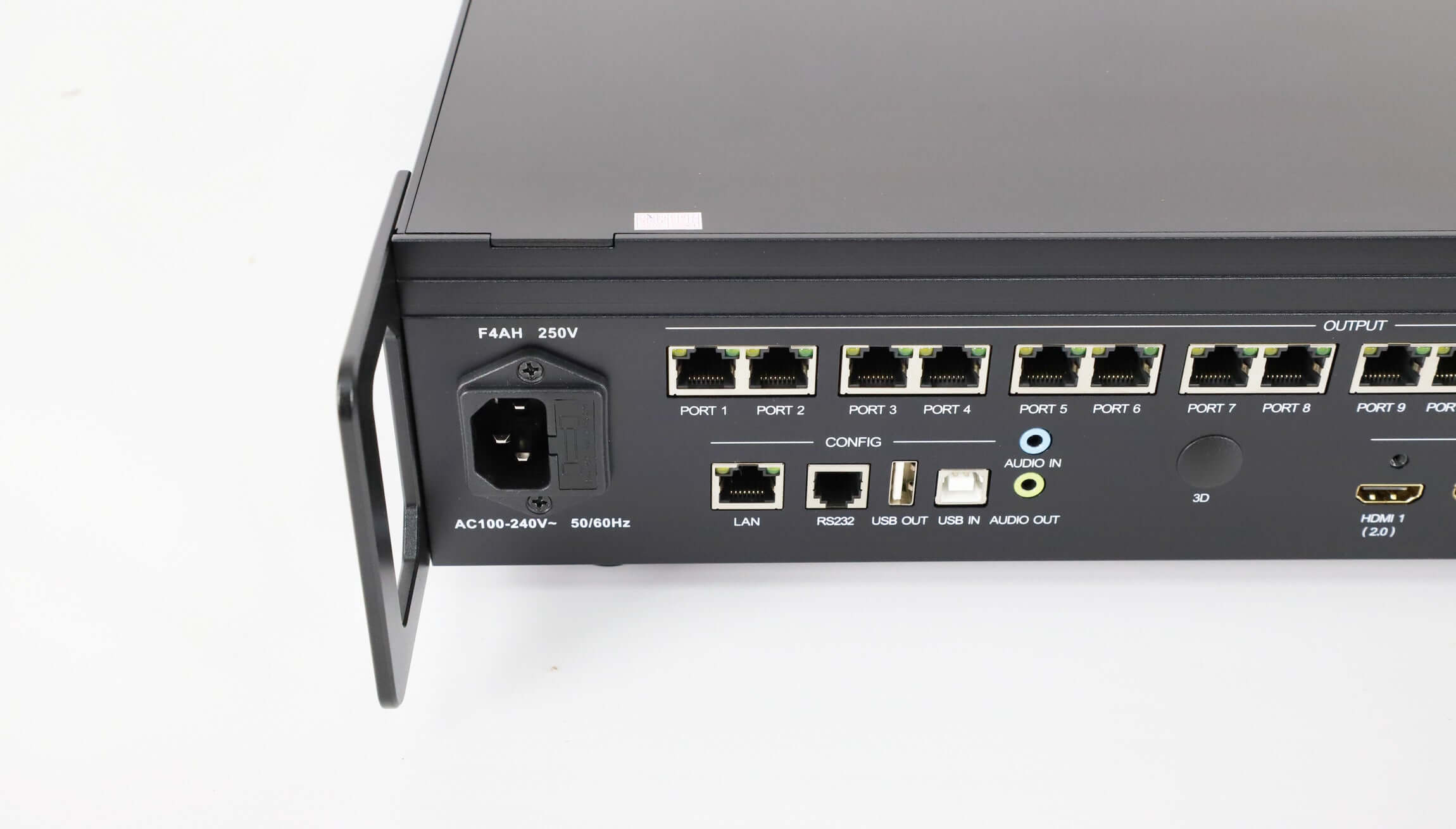

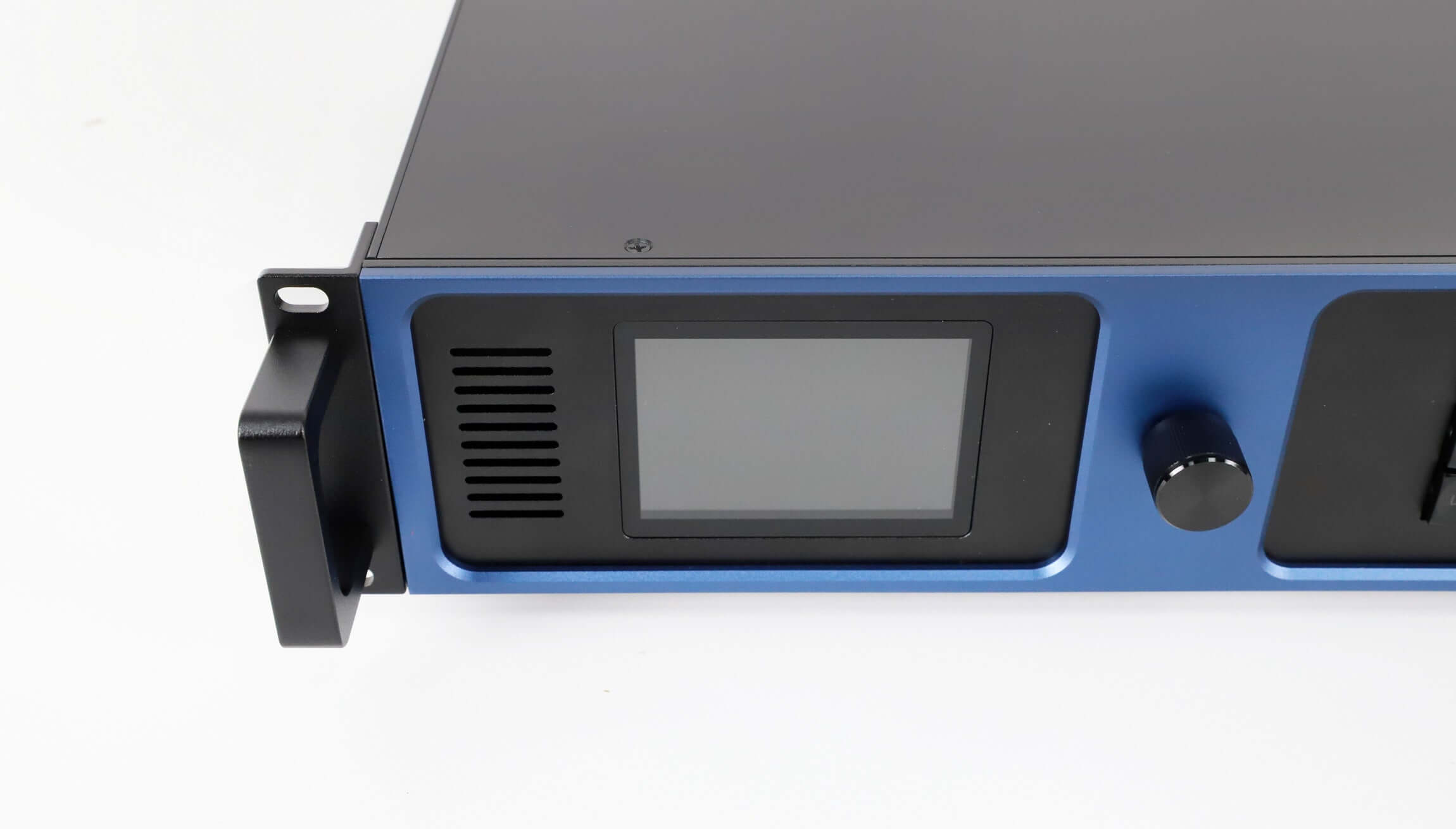

Product photos
Frequently Asked Questions
How many pixels can the Colorlight X16E control?
It supports up to 10.48 million pixels across 16 Gigabit Ethernet outputs. Maximum width is 16384 pixels or maximum height is 8192 pixels, subject to the total capacity.
Which X16E inputs support 4K at 60 Hz?
The HDMI 2.0 and DP 1.2 inputs support up to 4096 × 2160 at 60 Hz. The HDMI 1.4 and DVI inputs are listed at up to 1920 × 1200 at 60 Hz.
How many windows can the X16E display?
The V1.1 specification lists up to six windows with adjustable position and size.
Does every X16E input support HDCP?
The supplied specification limits its HDCP claim to HD interfaces and lists HDCP 1.4 for HDMI 1.4 and DVI. It does not confirm HDCP on the 4K interfaces.
Can the X16E output audio carried by HDMI or DP?
Yes. It supports extracting and outputting HDMI and DP audio, with separate audio input and output connections.
Specification and manual downloads
| Weight | 11 kg |
|---|
