Kystar KS604 LED Sending Box with Dual DVI Splitters
$ 145.00
Kystar KS604 1.5U sending-box chassis for four small LED sending cards, with two independent 1-to-2 DVI splitters. Provides two DVI inputs and four DVI-D outputs; confirm the installed sending-card configuration.
10000 in stock
KS604 sending-card chassis with DVI splitters

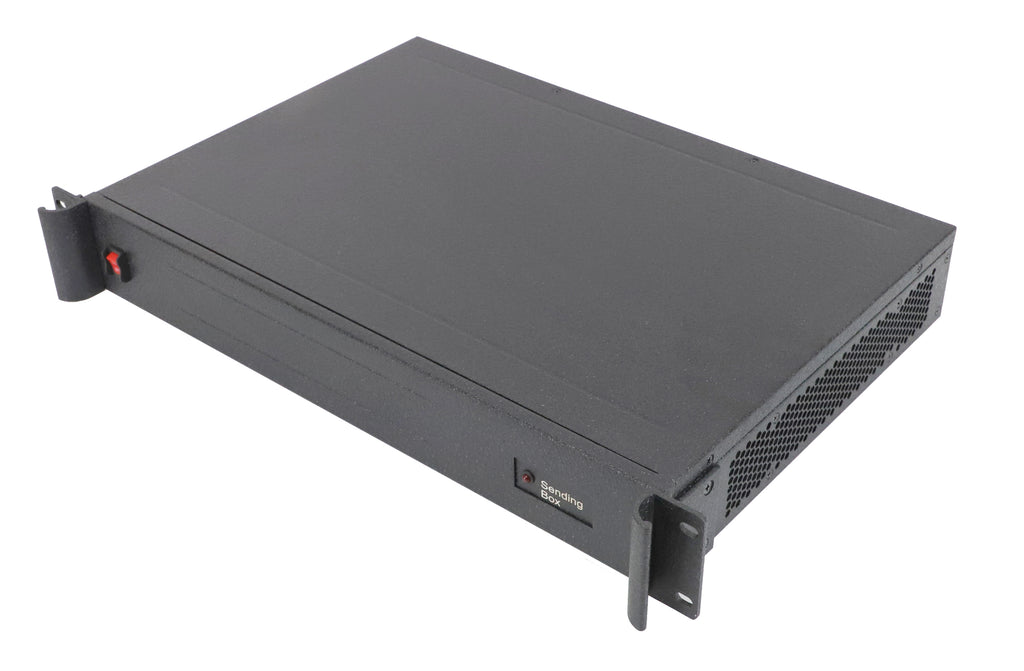

The Kystar KS604 is an independently powered 1.5U chassis for up to four small LED sending cards. It includes two independent 1-to-2 DVI splitters, allowing each DVI source to be duplicated across its paired outputs.
Technical specifications
| Parameter | Specification |
|---|---|
| Sending-card capacity | 4 small sending cards; supplied cards must be confirmed |
| DVI distribution | 2 independent 1-to-2 splitters |
| Video inputs | 2 × DVI |
| Video outputs | 4 × DVI-D |
| DVI connector and interface | 18+1-pin DVI-D; DVI 1.1; listed bandwidth 165 MHz |
| Listed signal timing examples | 2560 × 1024, 1536 × 1536, 2048 × 1152, 1920 × 1200 and 1920 × 1080 at 60 Hz |
| Custom timing | Within the listed 2560 × 1024 at 60 Hz range |
| Chassis | 1.5U; 483 × 340 × 67 mm (L × W × H) |
| Power input | 100–240 V AC, 50/60 Hz, 1.0 A |
| Listed power consumption | 50 W |
| Weight | 5 kg |
| Operating temperature listed in the original source | −20 °C to 85 °C; confirm applicability before installation |
DVI signal distribution and sending-card configuration
The two DVI splitters duplicate source signals; the installed sending cards determine the LED data outputs and final screen load. Confirm the sending-card models, receiver compatibility and required source timing before ordering.
Environmental specification note: Both the original listing and supplied PDF label a 0–40 °C range as working humidity. Celsius is not a humidity unit, so that entry cannot be used as a humidity specification. Confirm the applicable environmental limits before installation.
Frequently asked questions
How many sending cards can the KS604 hold?
It accommodates four small LED sending cards. Confirm compatibility and whether any cards are included in the supplied unit.
How do the DVI splitters work?
There are two independent 1-to-2 DVI splitters, with two DVI inputs and four DVI-D outputs in total.
Does the DVI timing specify the LED pixel load?
No. The DVI timing describes the video signal. The LED screen load depends on the installed sending cards and display configuration.
What rack size and power supply does it use?
The KS604 has a 1.5U chassis measuring 483 × 340 × 67 mm and a listed power input of 100–240 V AC, 50/60 Hz, 1.0 A.

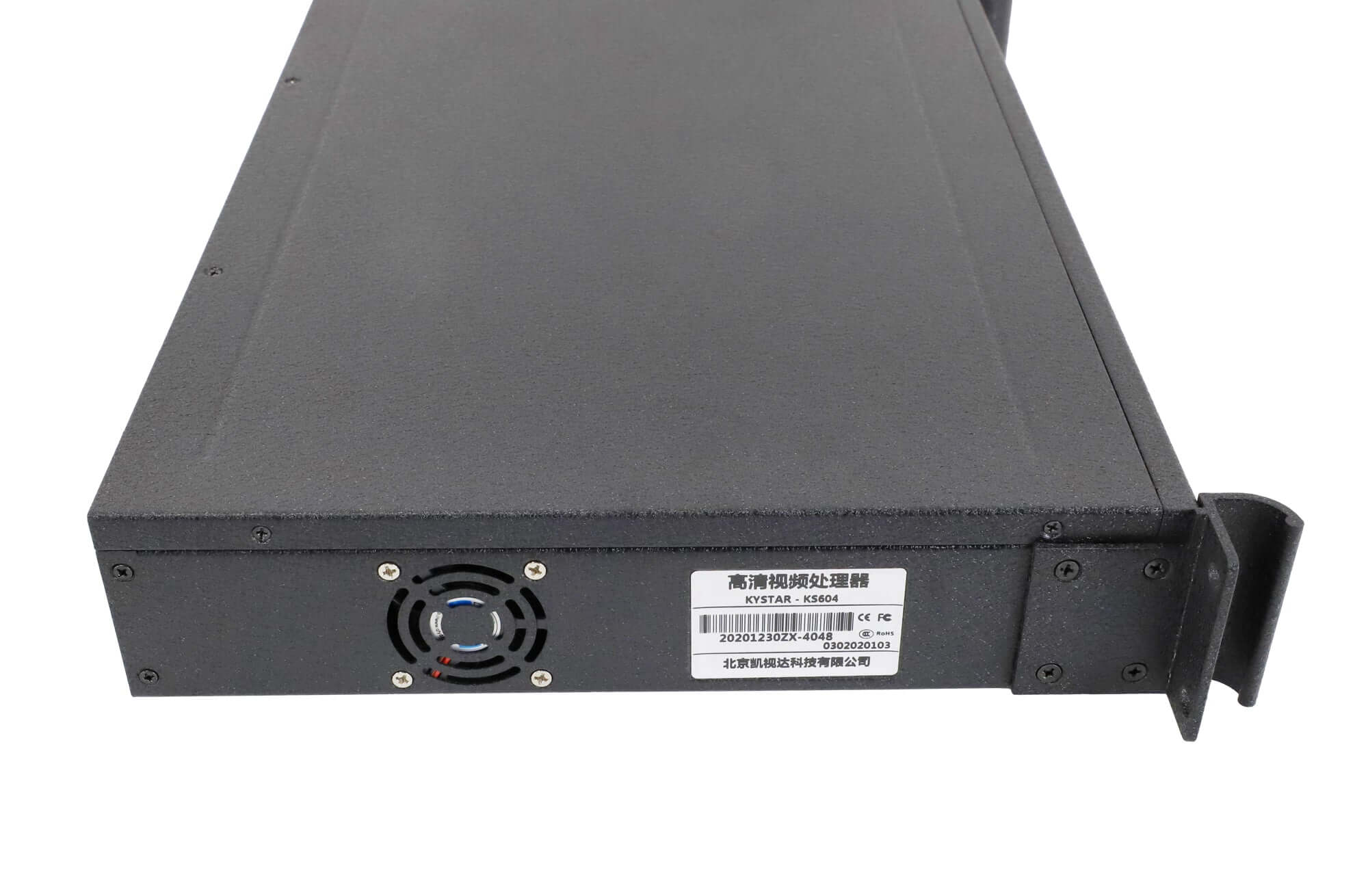

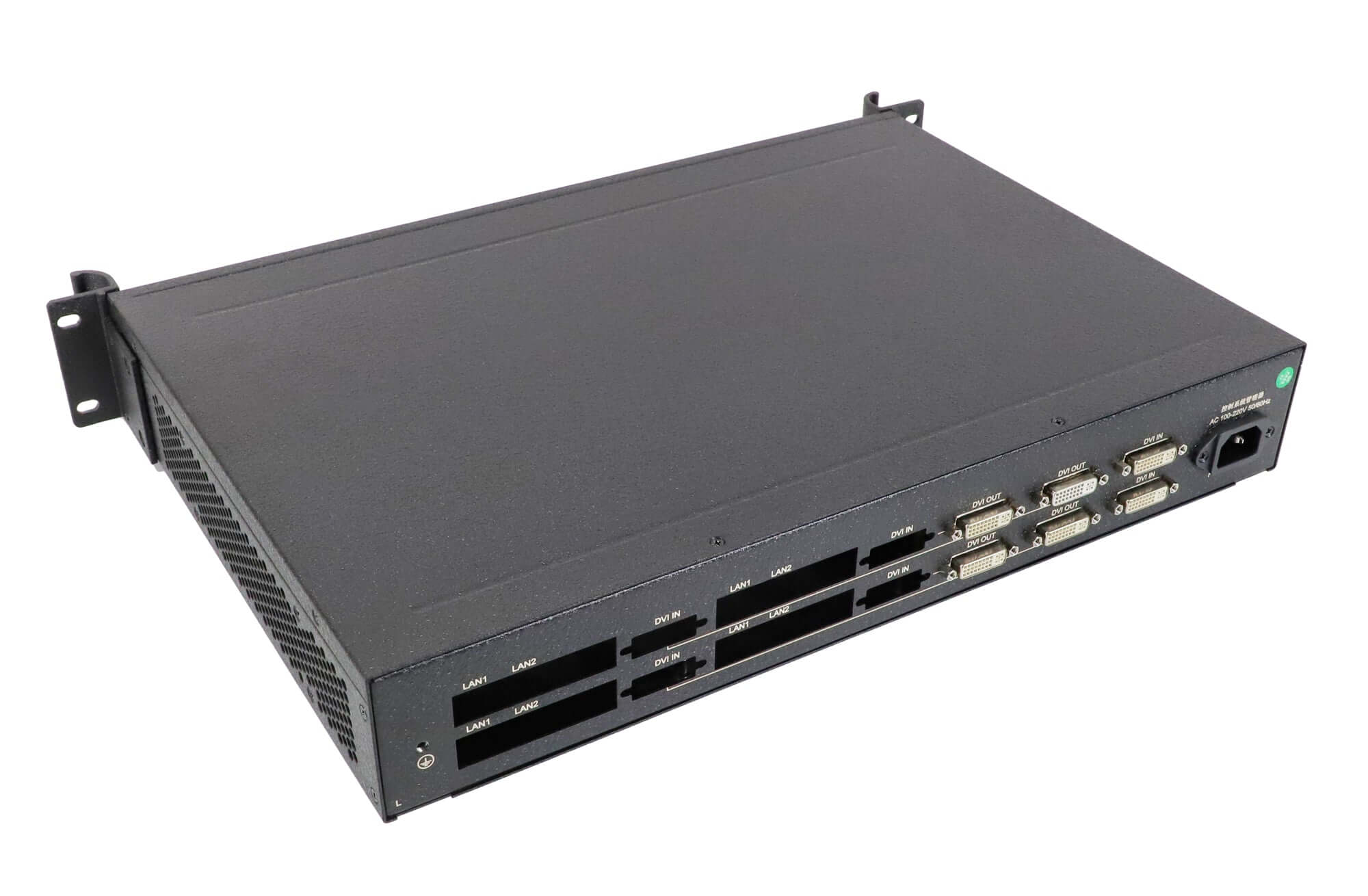

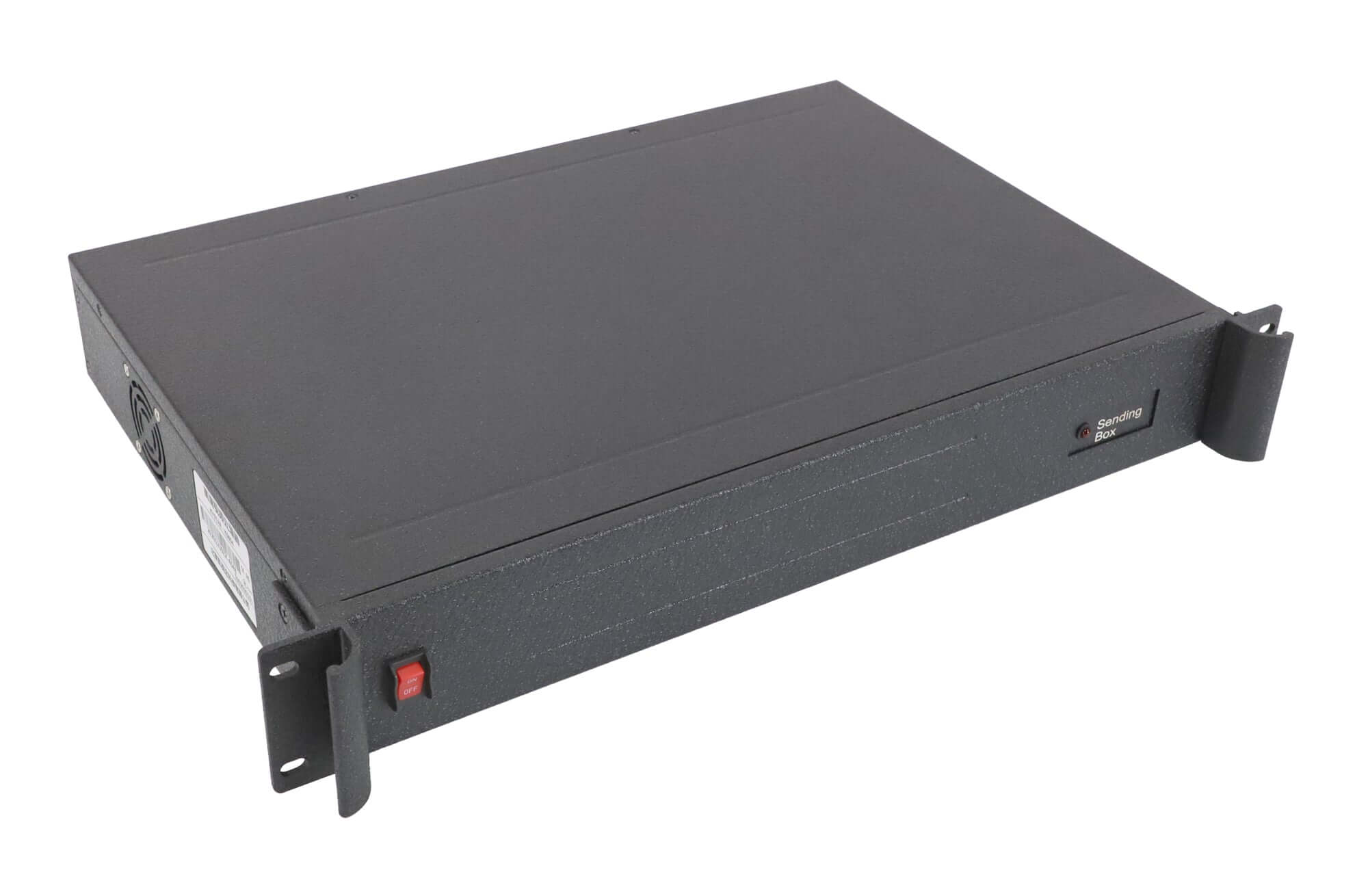

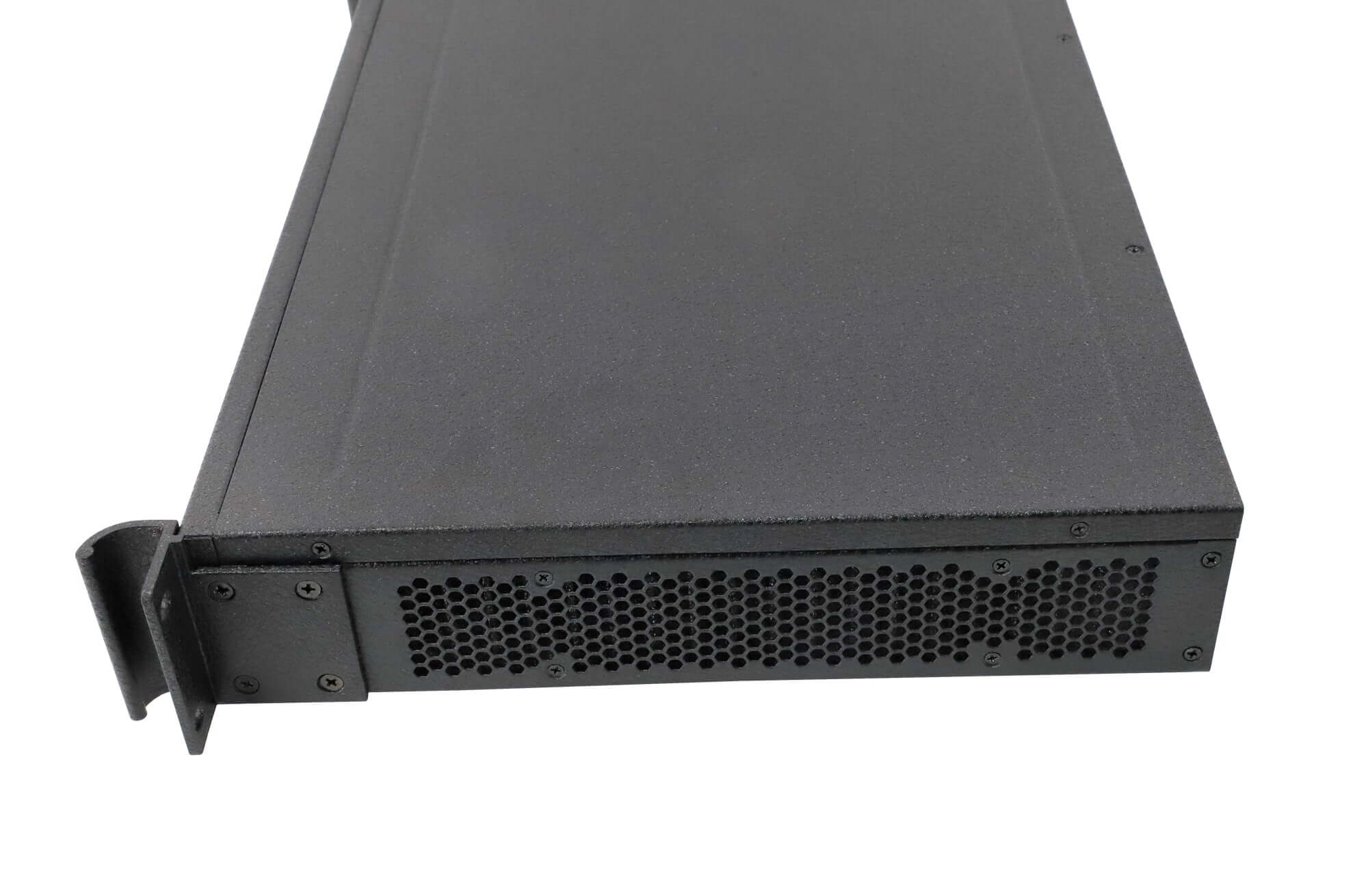

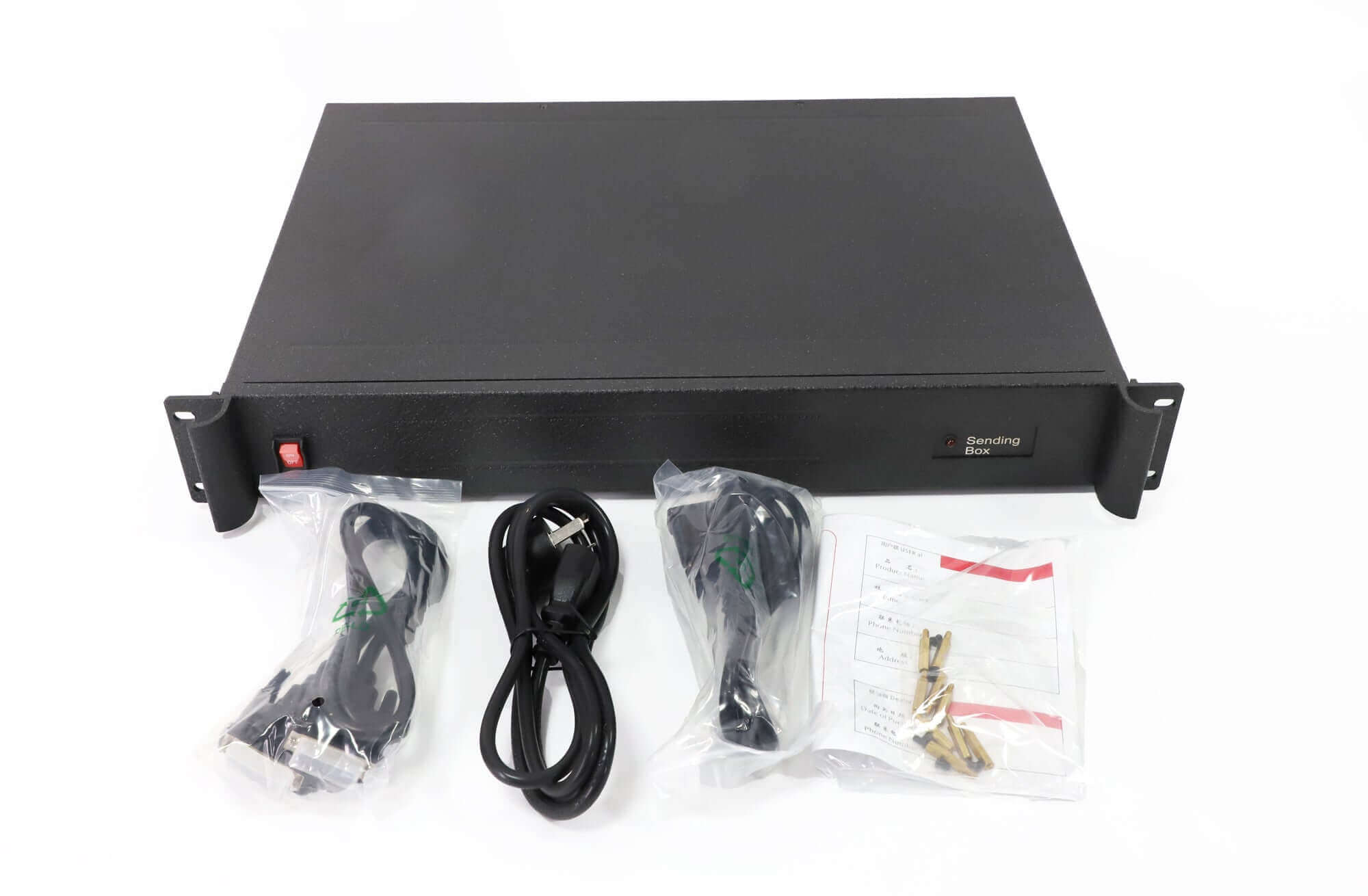

Original product images and specification
Download Specification

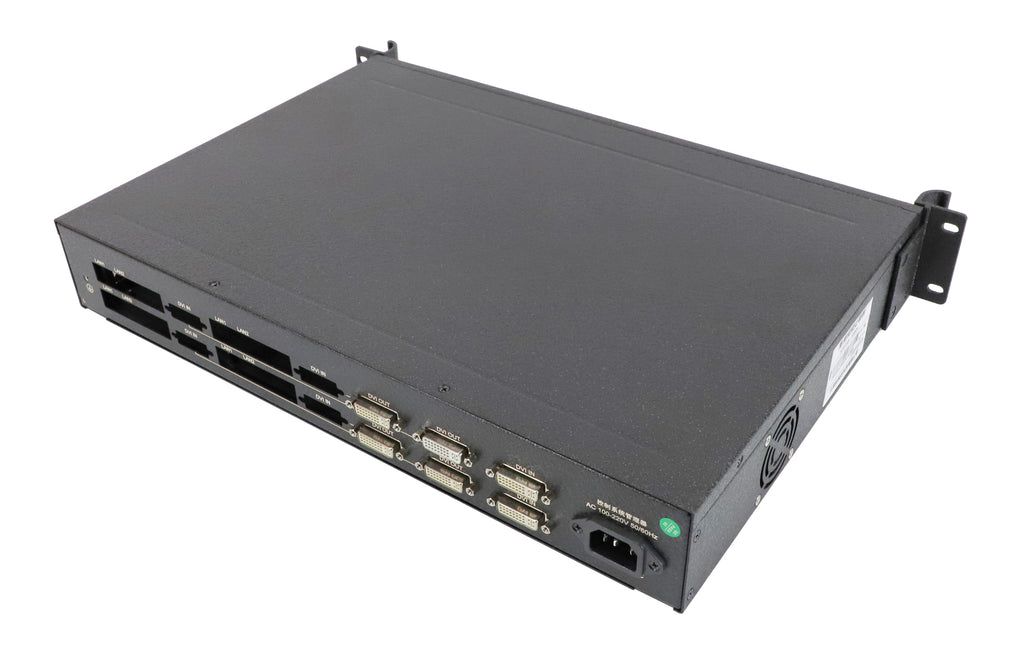

KYstar KS604 Large Screen Sending Box For LED Screen Wall Specification
| Weight | 4 kg |
|---|
