Kystar KS606 LED Sending Box, 6-Card 1.5U Chassis
$ 106.39
Kystar KS606 independently powered 1.5U sending-box chassis for up to six small LED sending cards. Measures 483 × 340 × 67 mm. Confirm card compatibility and the supplied configuration.
10000 in stock
KS606 sending-card chassis for LED display systems
The Kystar KS606 is an independently powered sending-box chassis for installing and managing up to six small LED sending cards. Its 1.5U enclosure helps organize power and signal connections in multi-card display installations.
Technical specifications
| Parameter | Specification |
|---|---|
| Sending-card installation capacity | 6 small sending cards; supplied cards must be confirmed |
| Chassis height | 1.5U |
| Power input | 100–240 V AC, 50/60 Hz, 1.0 A |
| Listed power consumption | 50 W |
| Dimensions (L × W × H) | 483 × 340 × 67 mm |
| Operating temperature listed in the supplied PDF | −20 °C to 85 °C; confirm applicability before installation |
| Weight | 5 kg |
Check the installed sending cards
The chassis organizes the power and connections for the sending cards. LED pixel capacity, video inputs and network output capabilities depend on the cards installed; the six-card capacity alone does not specify these values.
Environmental specification note: Both the original listing and supplied PDF assign a Celsius range to “working humidity”. That entry is not a valid humidity specification. Confirm the operating-temperature and humidity limits from the applicable manufacturer document before installation.
Frequently asked questions
How many sending cards fit in the KS606?
The KS606 is designed to install six small sending cards. Confirm card dimensions, compatibility and the supplied configuration before ordering.
Are six sending cards included?
The listing describes installation capacity. Confirm whether sending cards are included and which models are fitted.
What are the KS606 dimensions and power input?
The listed dimensions are 483 × 340 × 67 mm, and the power input is 100–240 V AC, 50/60 Hz, 1.0 A.
What is the maximum LED screen load?
The load depends on the sending cards installed. A total pixel capacity cannot be determined from the chassis capacity alone.

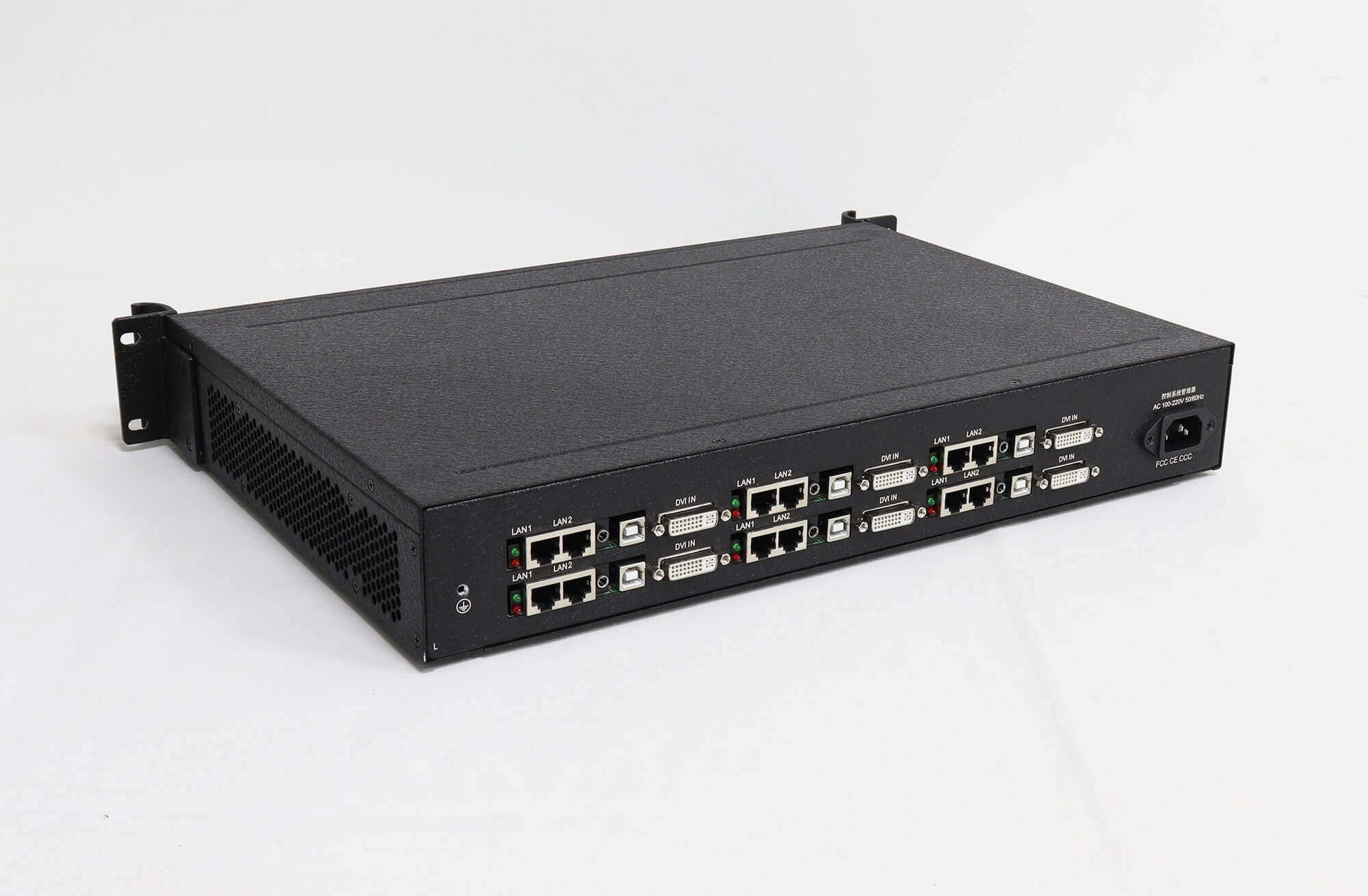

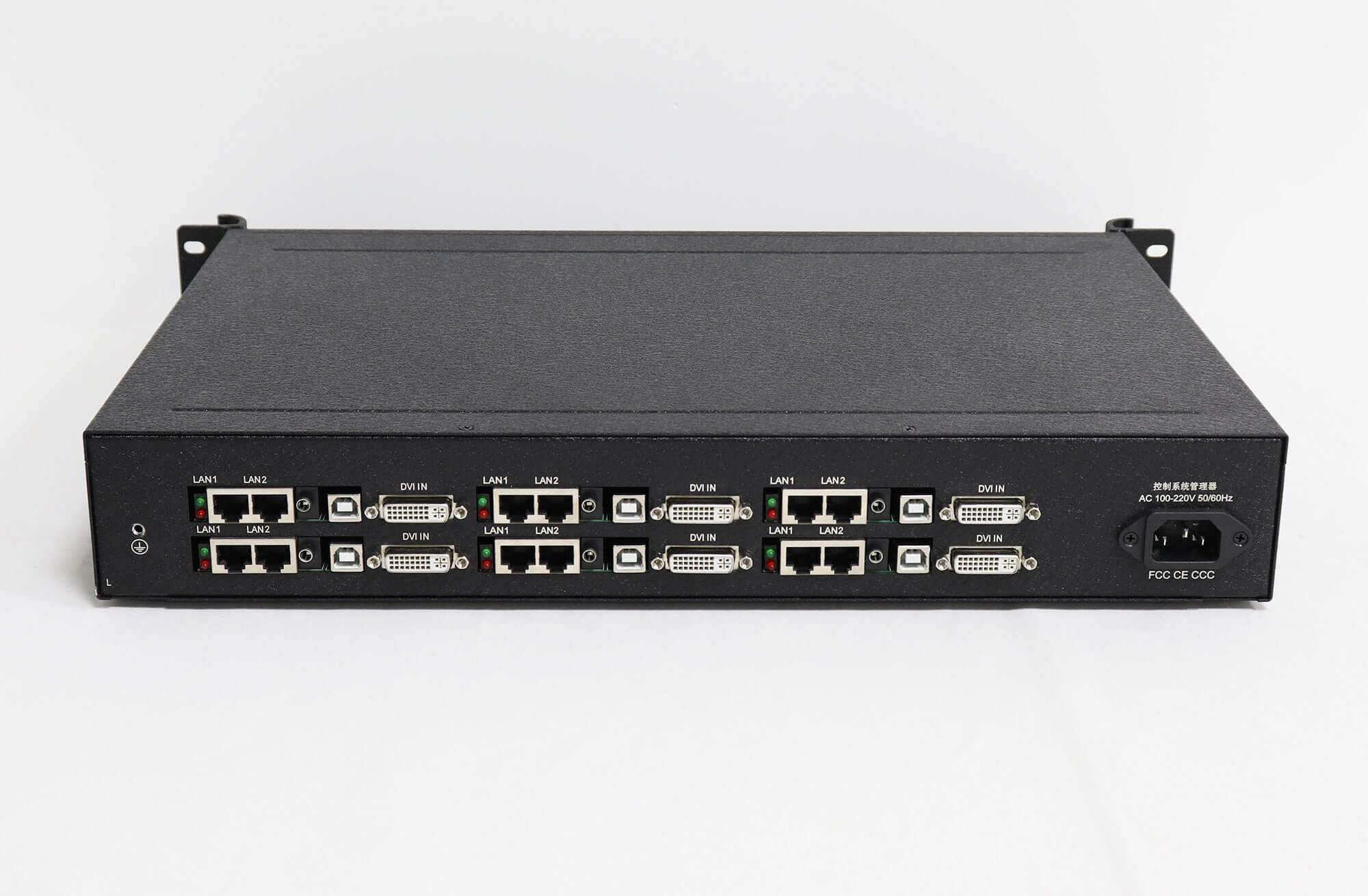

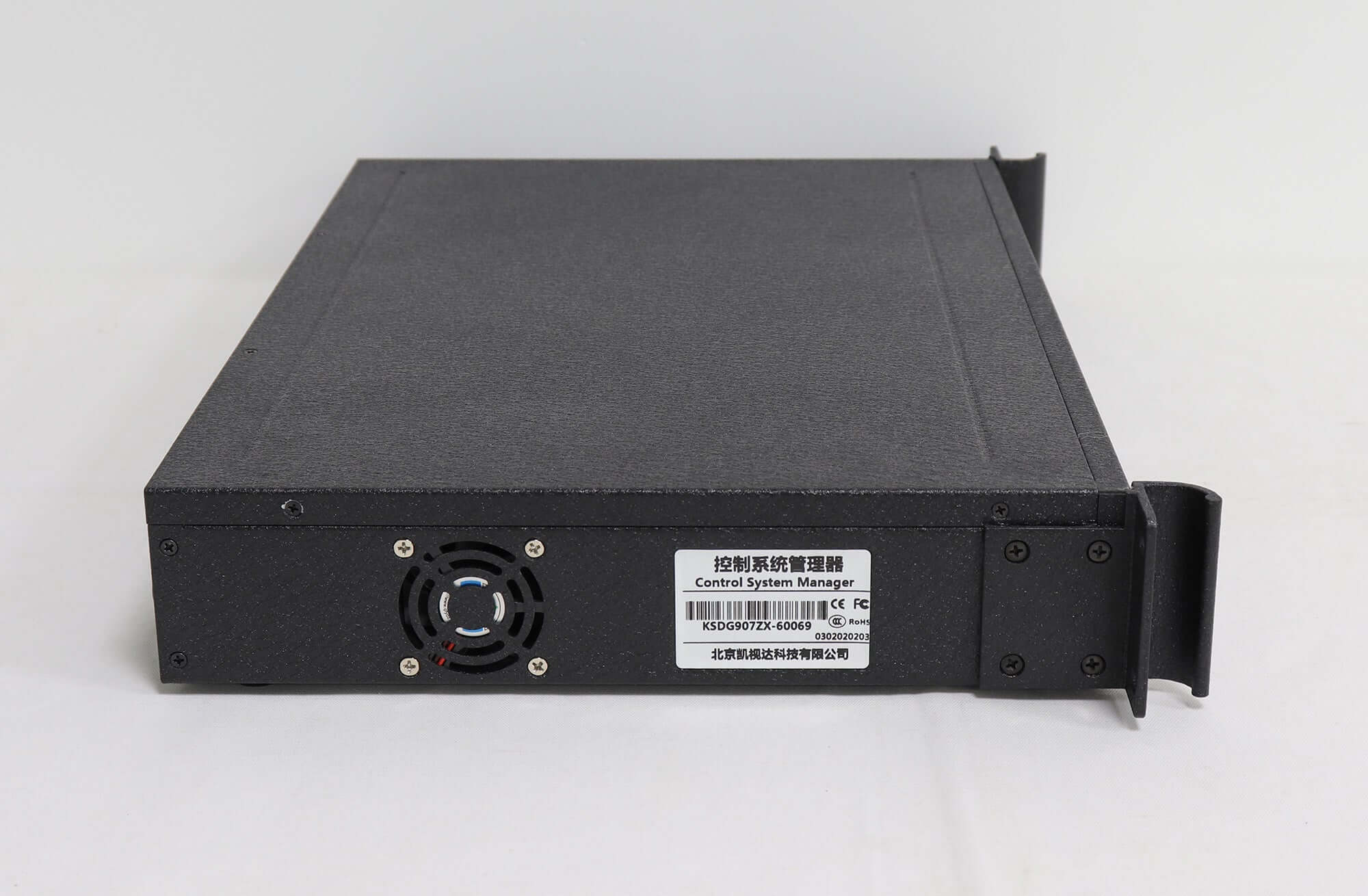

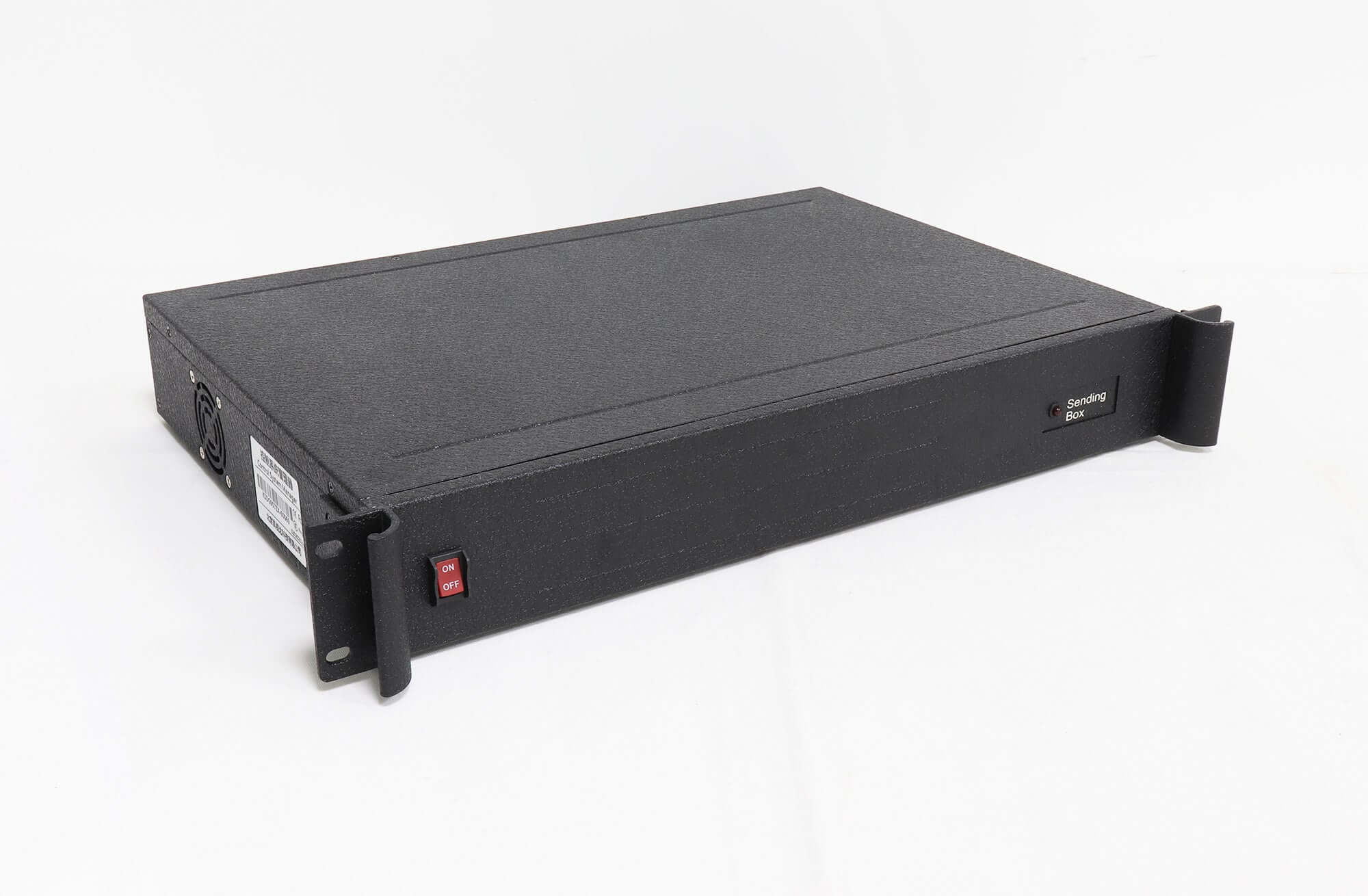

Original product images and specification
Download Specification
| Weight | 5.5 kg |
|---|
