Huidu HD-T901 DVI LED Sending Card – Dual Gigabit Outputs
$ 67.00
HD-T901 synchronous LED sending card with one DVI input and two Gigabit Ethernet outputs. The specification lists a 1.3-million-pixel control range, static to 1/64 scan support and HDSet parameter configuration.
9996 in stock
Huidu HD-T901 Synchronous LED Sending Card

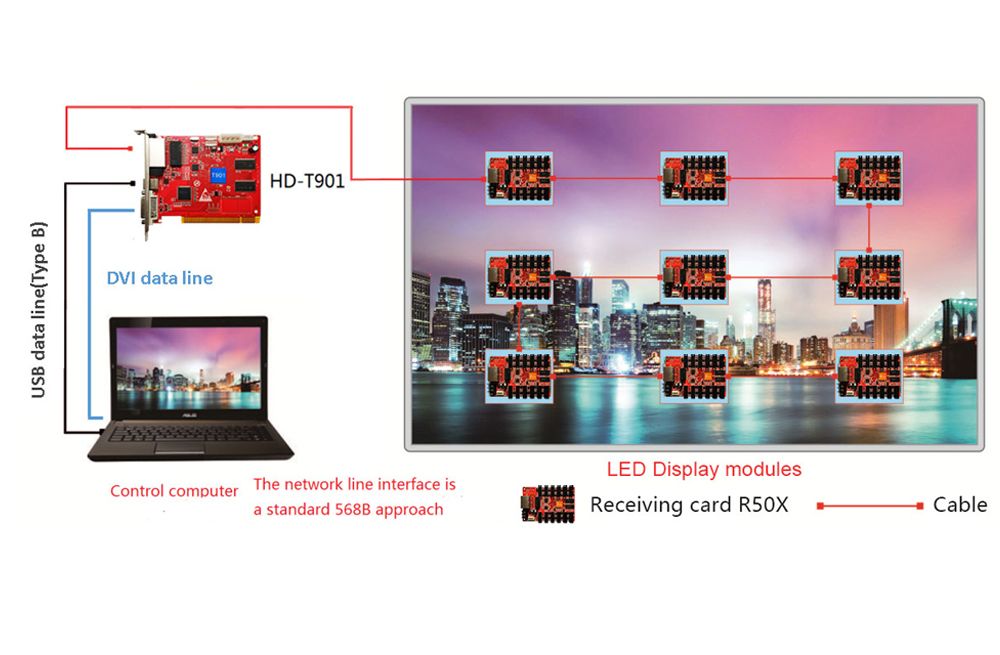

The HD-T901 sends a live DVI video source to an LED display through two Gigabit Ethernet outputs. It works with Huidu receiving cards; the specification identifies the R50X series in its system overview. USB provides the control connection, and multiple sending cards can be cascaded for coordinated configuration.
Screen Loading and Source Requirements
The specification lists a 1.3-million-pixel control range, with maximum width of 3840 pixels and maximum height of 2048 pixels. These dimensions are separate limits. Supported screen layouts depend on the refresh rate: the document lists both 60Hz and 30Hz modes. For a screen wider than 1920 pixels, it requires a video processor.

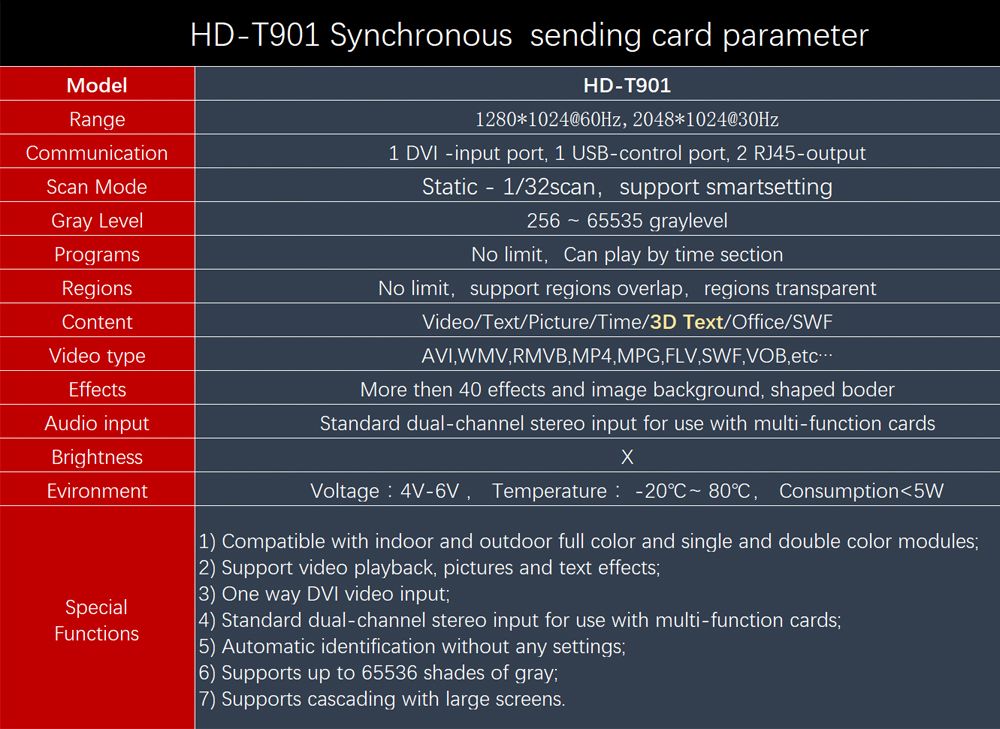

| Parameter | Specification |
|---|---|
| Controller type | Synchronous LED sending card |
| Video input | 1 × DVI |
| LED outputs | 2 × 1000M RJ45 Gigabit Ethernet |
| Listed control range | 1.3 million pixels |
| Dimension limits | Maximum width 3840 pixels; maximum height 2048 pixels |
| 60Hz layout examples | 1280 × 1024, 1920 × 640, 3840 × 340 and 512 × 2048 |
| 30Hz layout examples | 2048 × 1024, 1920 × 1024, 3840 × 546 and 1024 × 2048 |
| Wide-screen requirement | Video processor required when width exceeds 1920 pixels |
| Module support | Indoor/outdoor full-color and single-color modules; conventional and PWM chips |
| Scan modes | Static to 1/64 scan |
| Grayscale | Up to 65,536 levels |
| Configuration | USB 2.0 control; HDSet parameter configuration; serial cascading |
| Power input | 5 V supply terminal |
| Power | 5 W |
| Working temperature | −20°C to 80°C |
System Configuration
Select the number of sending and receiving cards to match the screen layout. Use HDSet for screen debugging and technical parameter settings. Check the chosen resolution and refresh rate against the specification before installation, especially for wide screens or multi-card systems.

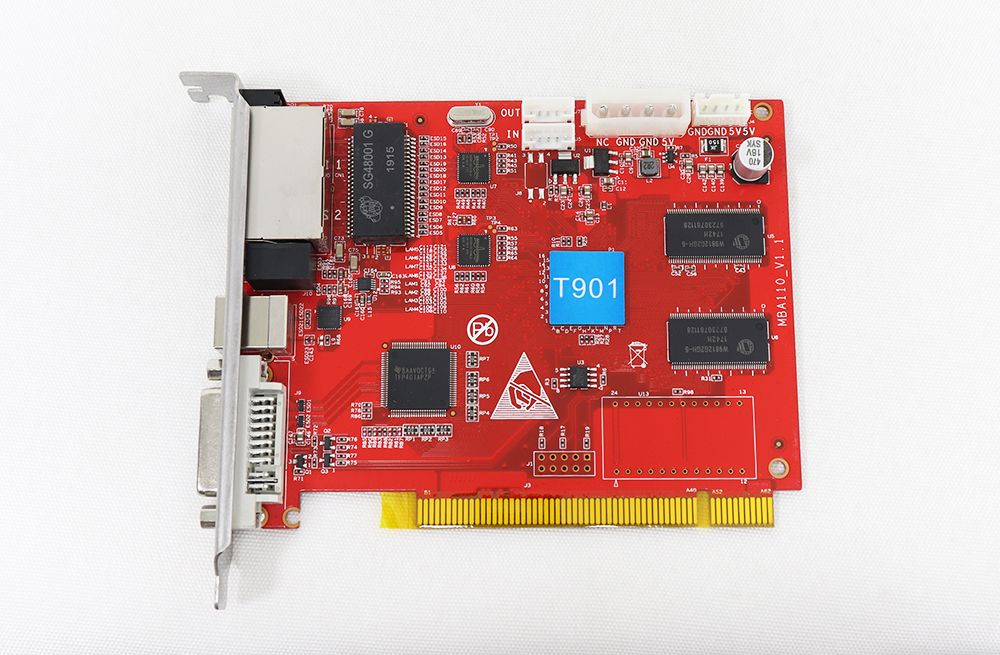

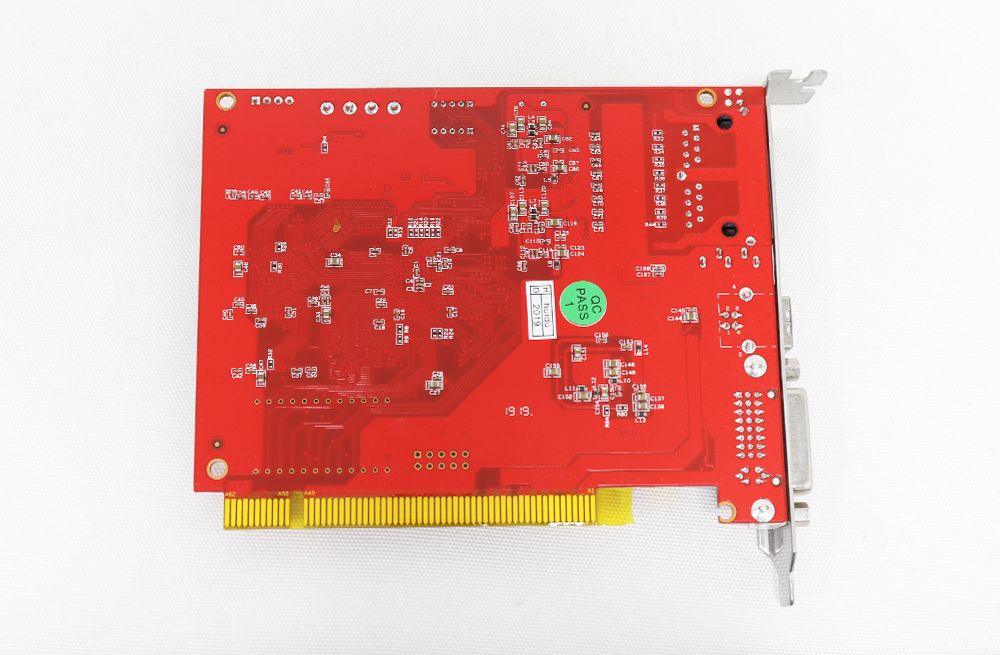

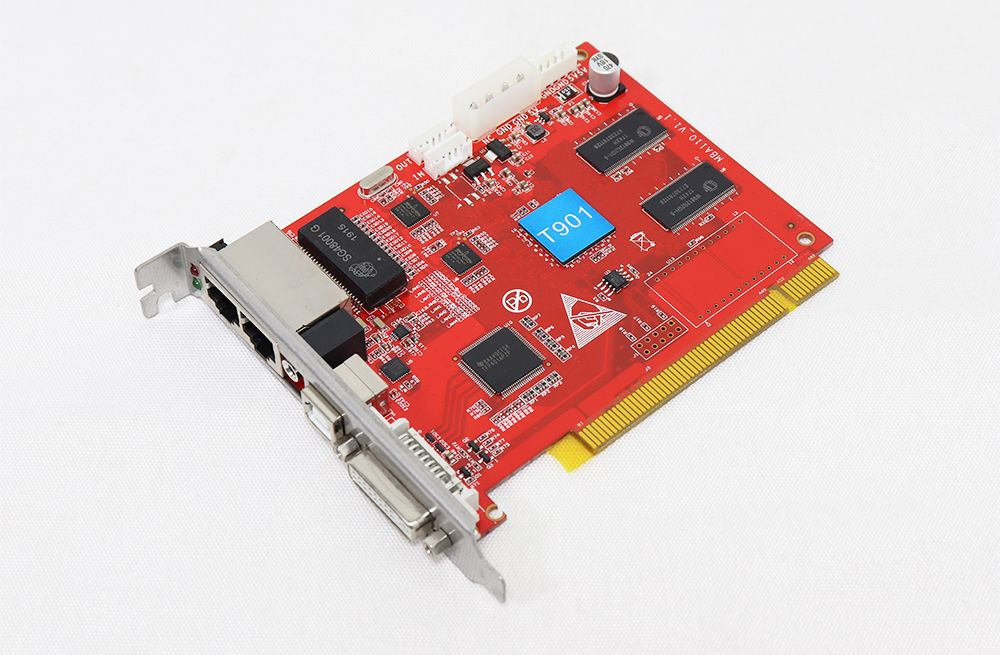

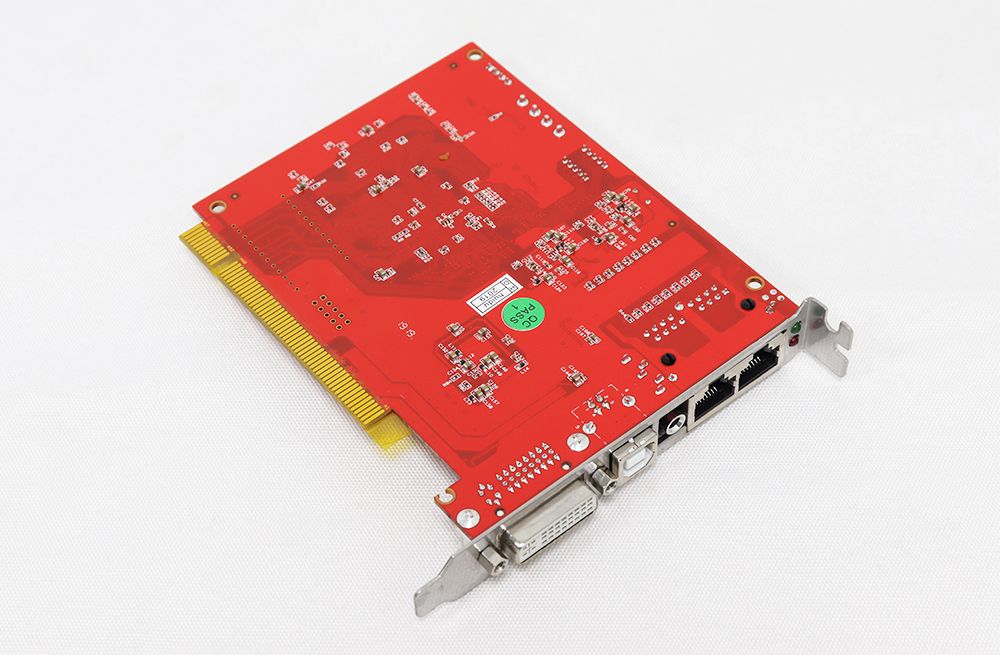

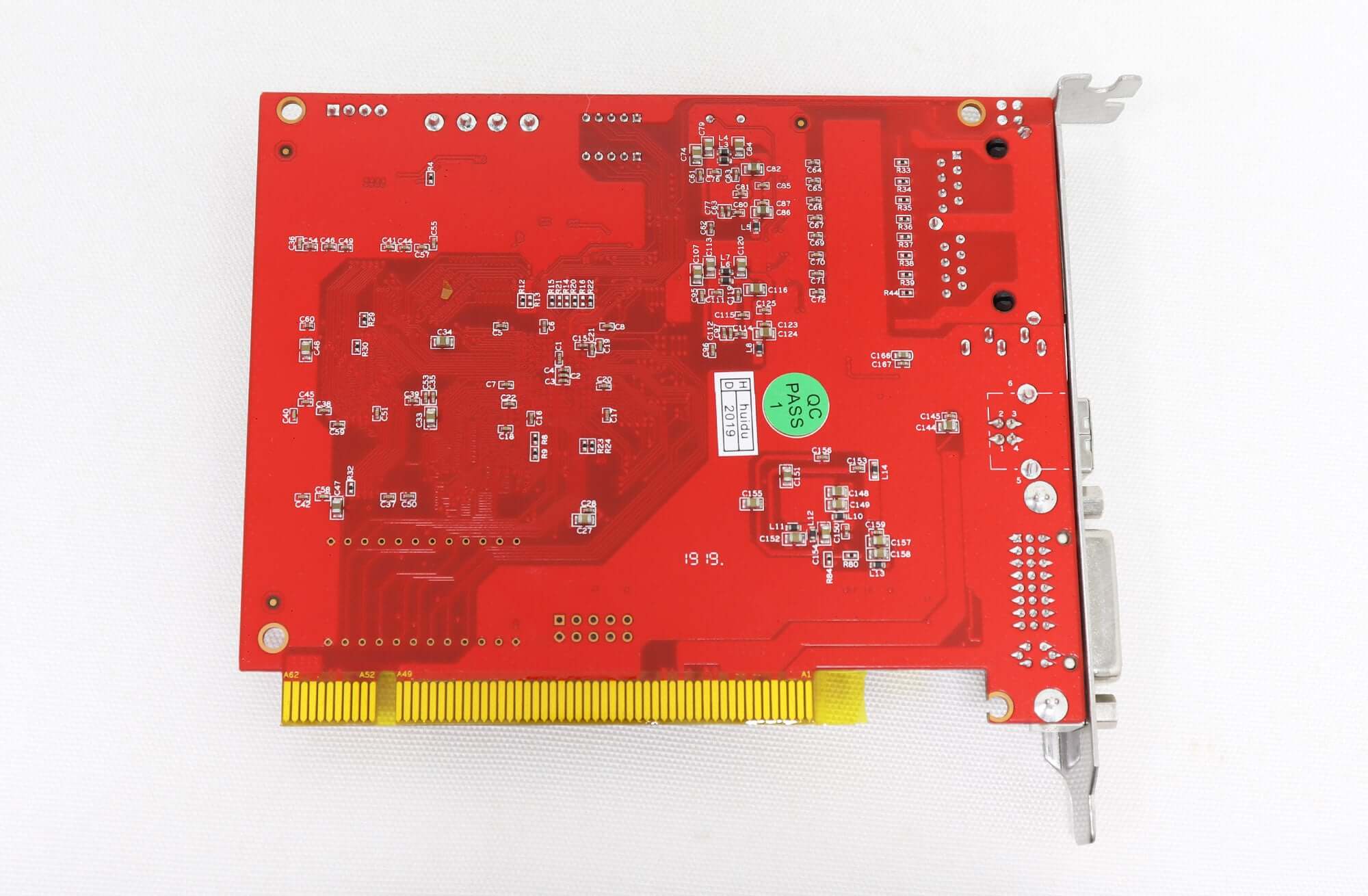

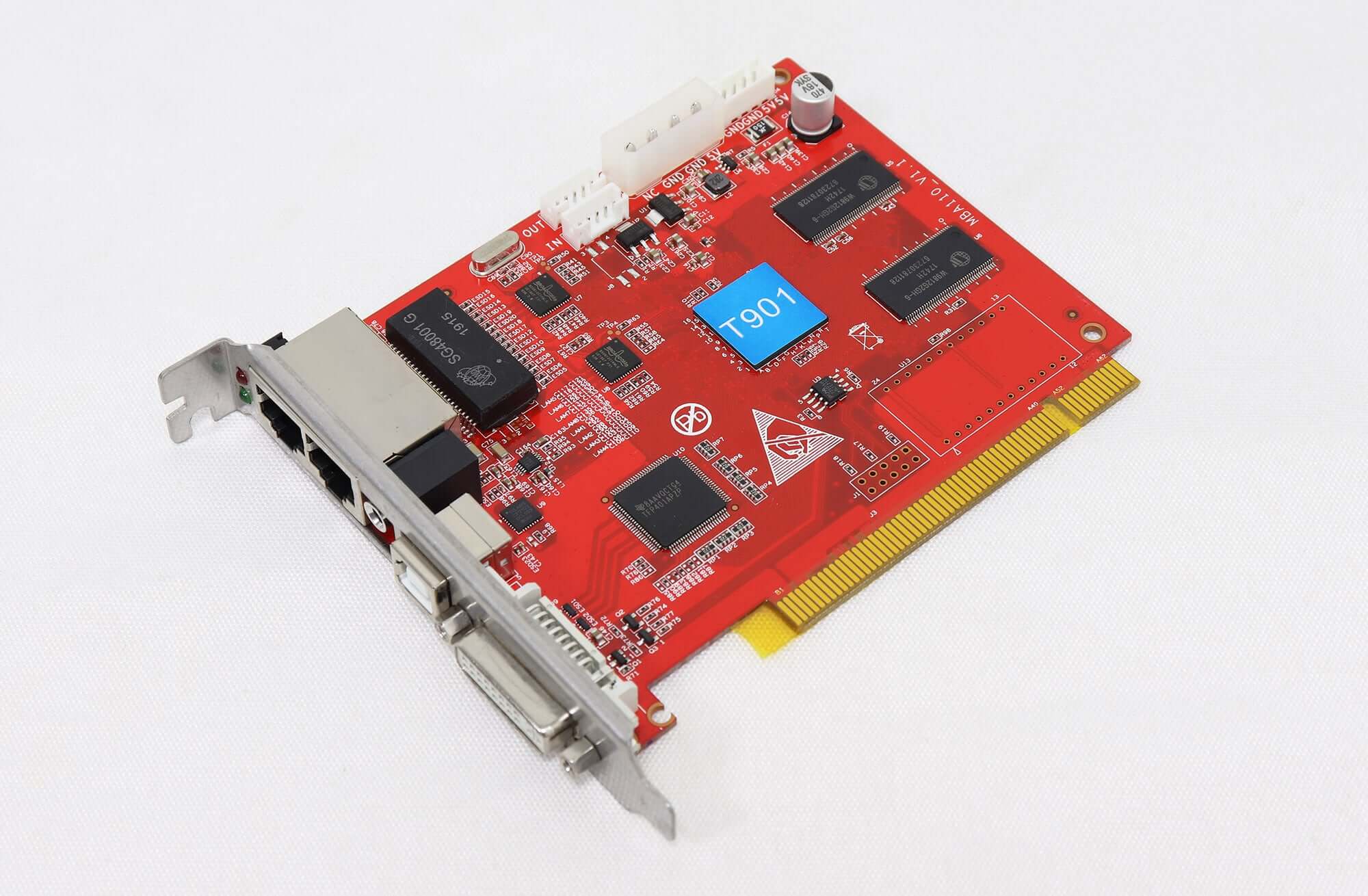

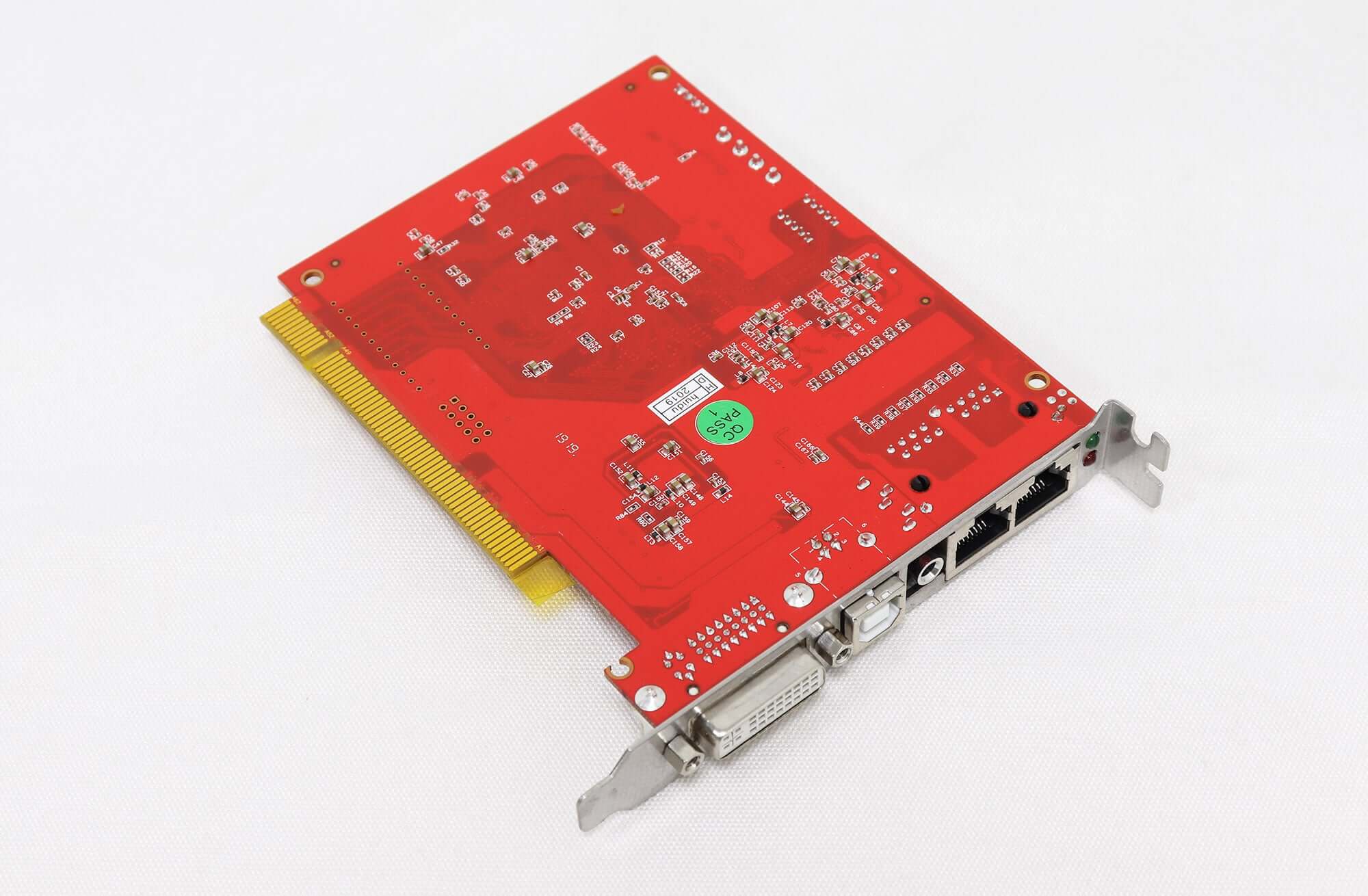

Product Images
Specification Download
Download the Huidu HD-T901 specification (PDF)
Frequently Asked Questions
Is the Huidu HD-T901 a synchronous sending card?
Yes. It sends a live DVI video signal to an LED screen through connected receiving cards.
What video input and outputs does the T901 have?
The T901 has one DVI video input and two Gigabit Ethernet outputs for the LED display system. USB is used for control and configuration.
How many pixels can the HD-T901 control?
The specification lists a 1.3-million-pixel control range and separate 60Hz and 30Hz screen modes. Match the intended resolution and refresh rate to those listed modes rather than multiplying the maximum width by the maximum height.
Does a wide LED screen require a video processor with the T901?
Yes. The specification states that a video processor is required when the screen width exceeds 1920 pixels.
Which software configures the HD-T901?
HDSet is listed for screen debugging and technical parameter settings. Multiple sending cards support cascading for coordinated configuration.
