Colorlight E80 HUB75 LED Receiving Card
$ 11.30
E80 HUB75 LED receiving card with 8-bit video, brightness and chromaticity calibration, and up to 1/128 scan. See chip-specific loading limits and V4.2.1 specifications below.
2496 in stock

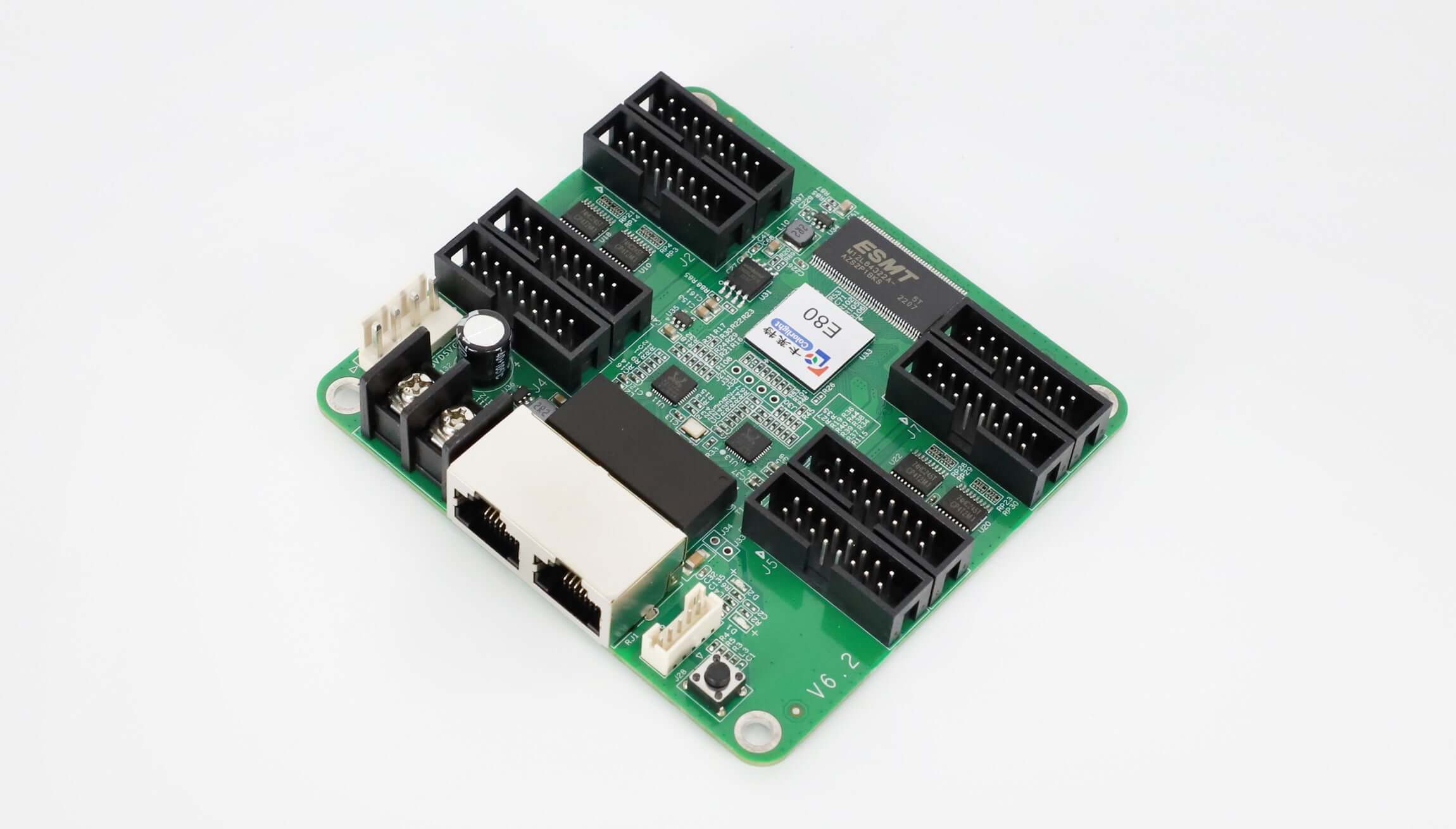

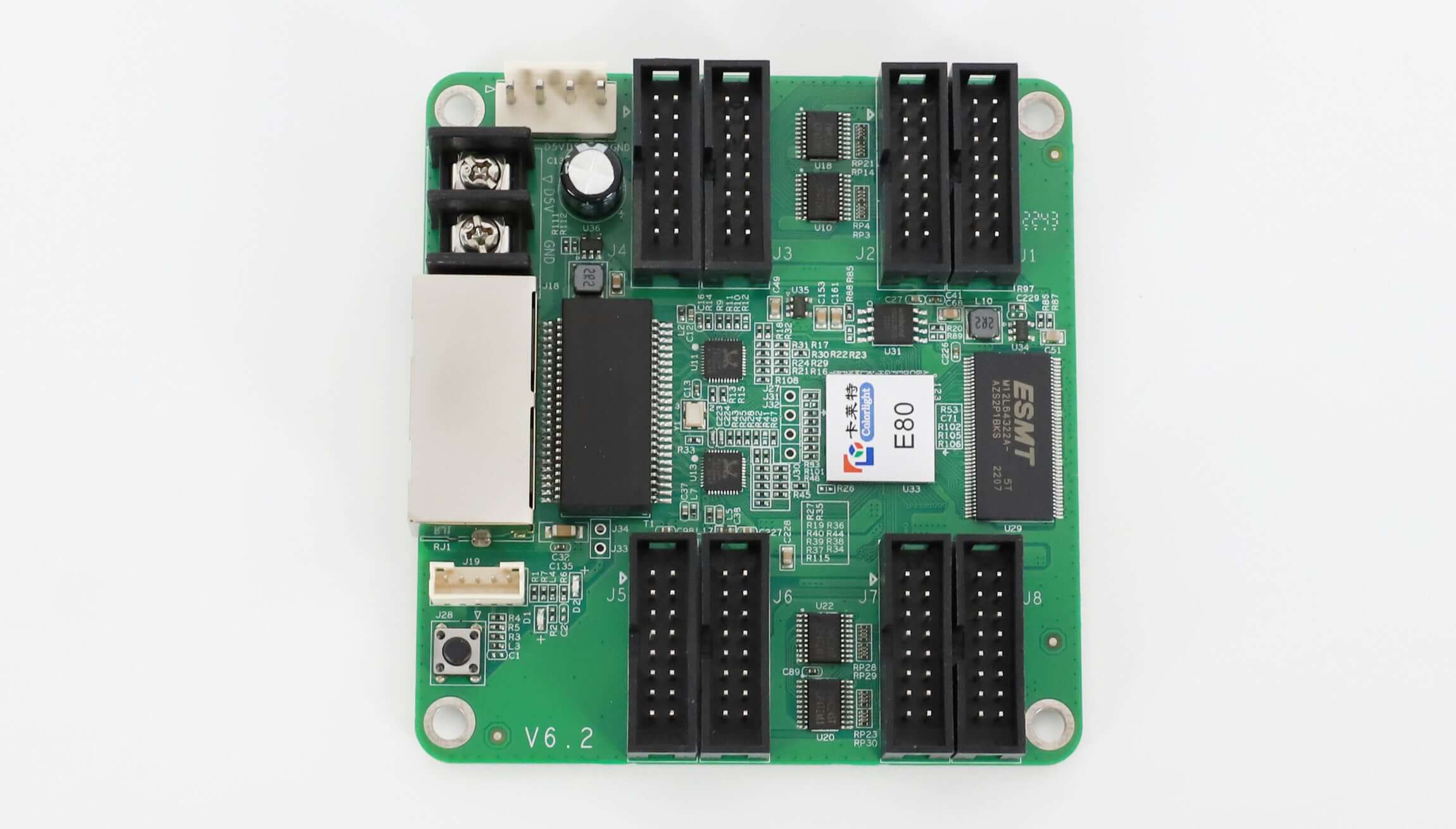

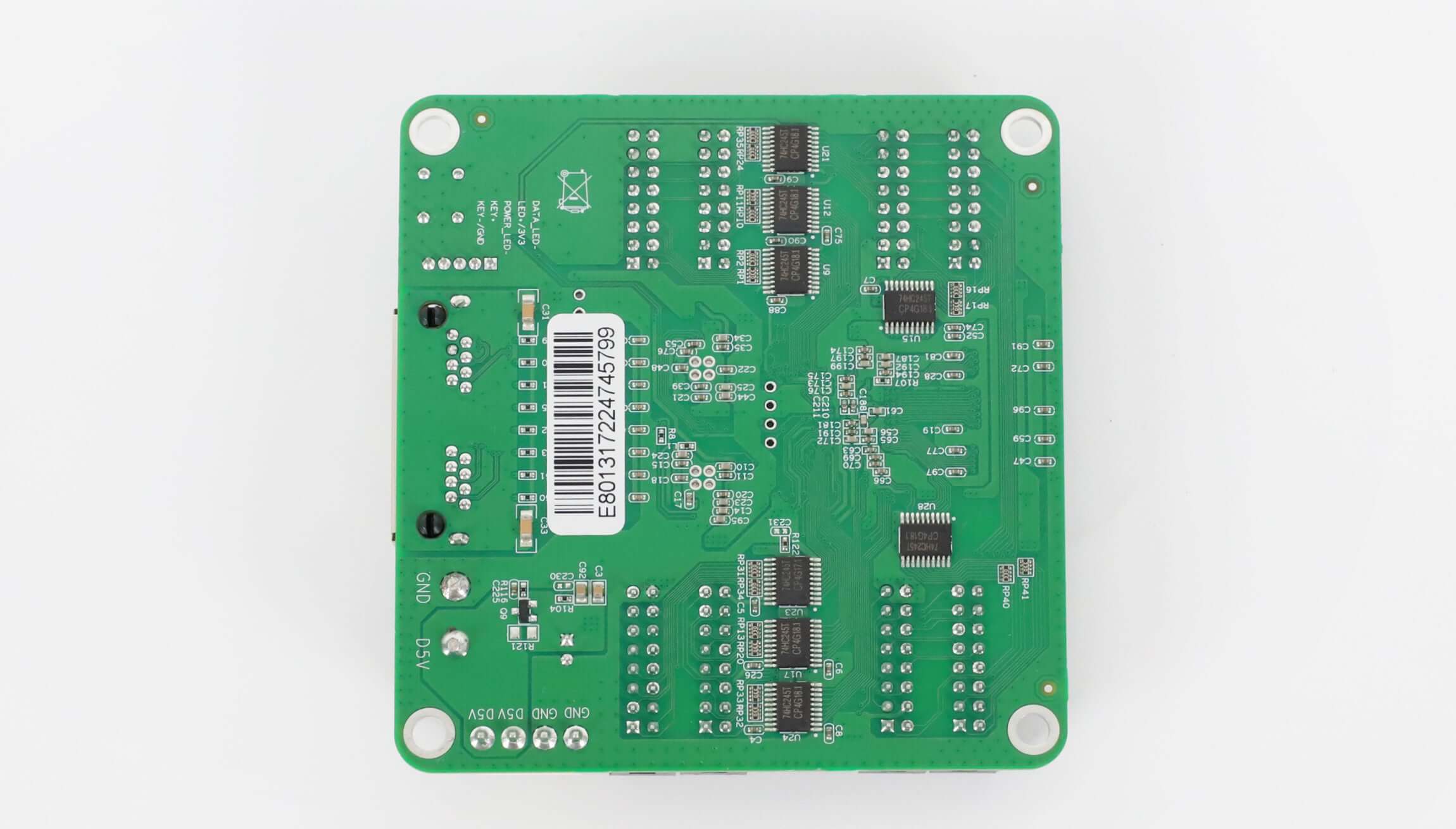

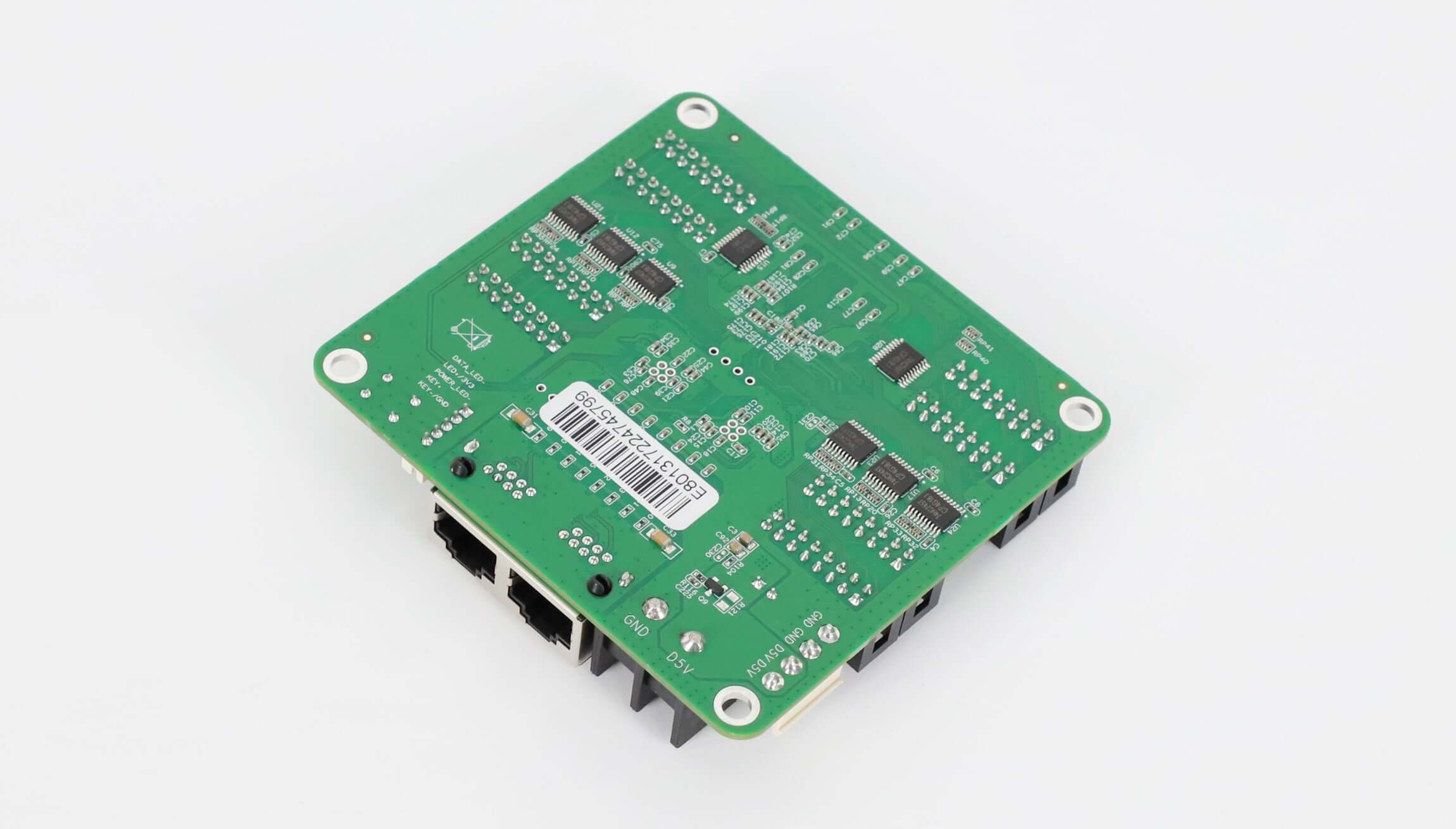

Colorlight E80 LED Receiving Card
The Colorlight E80 is a HUB75 receiving card for LED display modules. It supports 8-bit video, point-by-point brightness and chromaticity calibration, and scan types up to 1/128. Loading capacity depends on the driver chip used in the modules.
Technical Specifications
Parameters follow the attached E80 V4.2.1 specification.
| Parameter | Specification |
|---|---|
| Control area — normal chips | 64 × 1024 pixels |
| Control area — PWM chips | 128 × 1024 pixels |
| Control area — Shixin chips | 81 × 1024 pixels |
| Scan type | Up to 1/128 scan |
| Data groups | 16 parallel RGB; 32 serial RGB, expandable to 128 serial groups |
| Hardware interface | HUB75 |
| Ethernet rate | 1 Gb/s |
| Recommended cable distance | CAT5e ≤100 m |
| Supply voltage / current | DC 3.8–5.5 V / 0.6 A |
| Rated power | 3.0 W |
| Dimensions | 86.8 × 91.7 × 18.4 mm |
| Weight | 61 g |
| Operating environment | −25°C to +75°C; 0–80% RH, non-condensing |
Calibration and Maintenance
The E80 supports 8-bit brightness and chromaticity calibration, cabinet highlighting, Quick OSD and data-group offset. Bit-error monitoring helps identify data-link problems. Loop redundancy requires the corresponding redundant connection; firmware redundancy protects the firmware program during upgrades.
High-frame-rate operation at 120/240 Hz is supported, but affects the available loading capacity. Check the module driver, scan configuration and required frame rate together before choosing a replacement card.
Product Images
Specification Download
Download the Colorlight E80 V4.2.1 specification (PDF) for pin definitions and installation details.
Frequently Asked Questions
What is the loading capacity of the Colorlight E80?
V4.2.1 lists 64 × 1024 pixels with normal chips, 128 × 1024 with PWM chips, and 81 × 1024 with Shixin chips. Loading also depends on operating settings.
Does the E80 support 240 Hz operation?
Yes. The specification lists 120/240 Hz high-frame-rate output and notes that this affects the load. Do not assume maximum loading is available at every frame rate.
What power supply does the E80 require?
The specified supply is DC 3.8–5.5 V at 0.6 A, with rated power of 3.0 W.
Can the E80 correct brightness and color differences?
Yes. It supports point-by-point brightness and chromaticity calibration with 8-bit precision.
Where can I check the E80 price?
The current product price is shown above. Confirm the required quantity and module compatibility before ordering, and review any shipping charges at checkout.
