A-300FAY-5 supply for LED display installations
The CZCL A-300FAY-5 listing describes a 300 W LED display power supply with fan-forced cooling and short-circuit and overload protection. The series is presented for LED displays, signs and video walls.
The original low-voltage input ranges do not agree, and the download link no longer supplies the specification. The table retains those distinctions so the exact unit can be checked before replacement or installation.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | CZCL A-300FAY-5 LED display power supply |
| Listed power | 300 W |
| Input range in overview | 90–132 V AC / 176–264 V AC |
| Conflicting input-range feature | A separate feature line states 90–180 V AC / 176–264 V AC. Confirm the low-voltage range on the supplied unit before connection. |
| Output-voltage reference | The series overview mentions 4.5 V and 5 V versions; it does not provide a complete model-specific output table |
| Operating temperature | −20 to +50°C in the original features |
| Cooling | Fan-forced cooling |
| Protection | Short-circuit and overload protection listed; thresholds and recovery behavior not provided |
| Production test statement | 100% full-load aging stated in the original listing |
| Specification link status | Original download URL retained; it currently resolves to shop content rather than the A-300FAY specification |
| Values needing confirmation | Output current, adjustment range, dimensions, terminal layout and full input/load conditions |

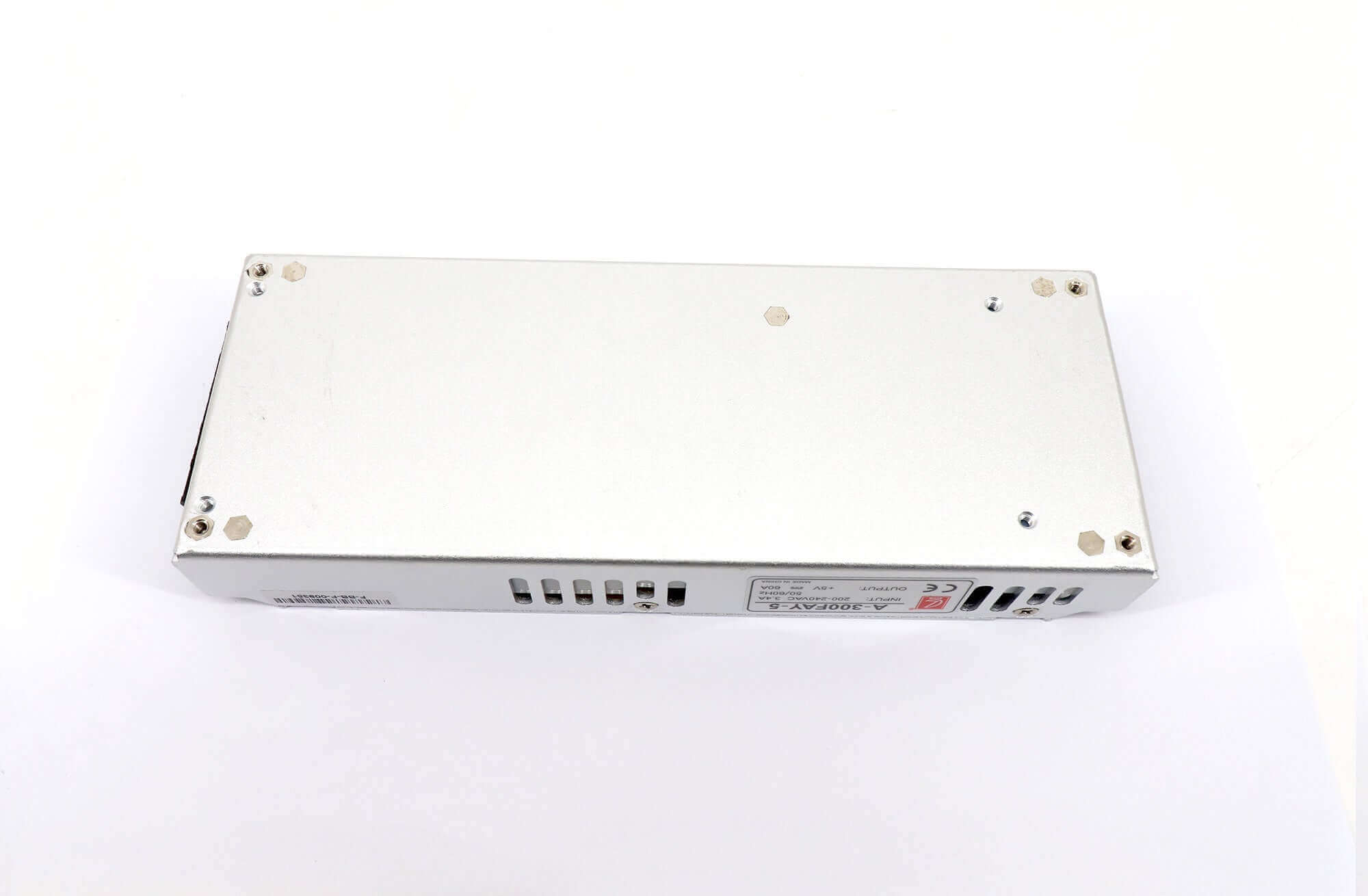

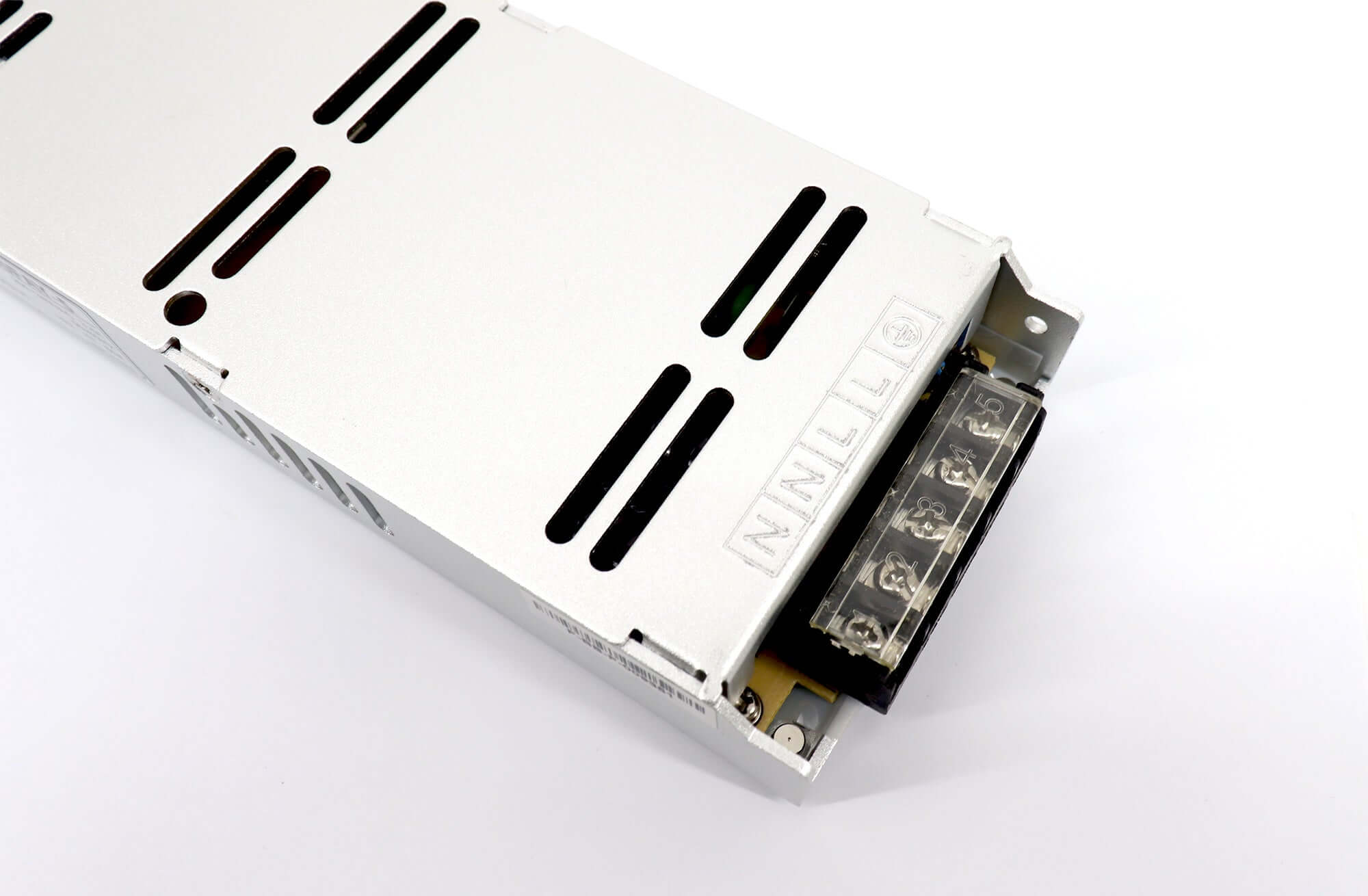

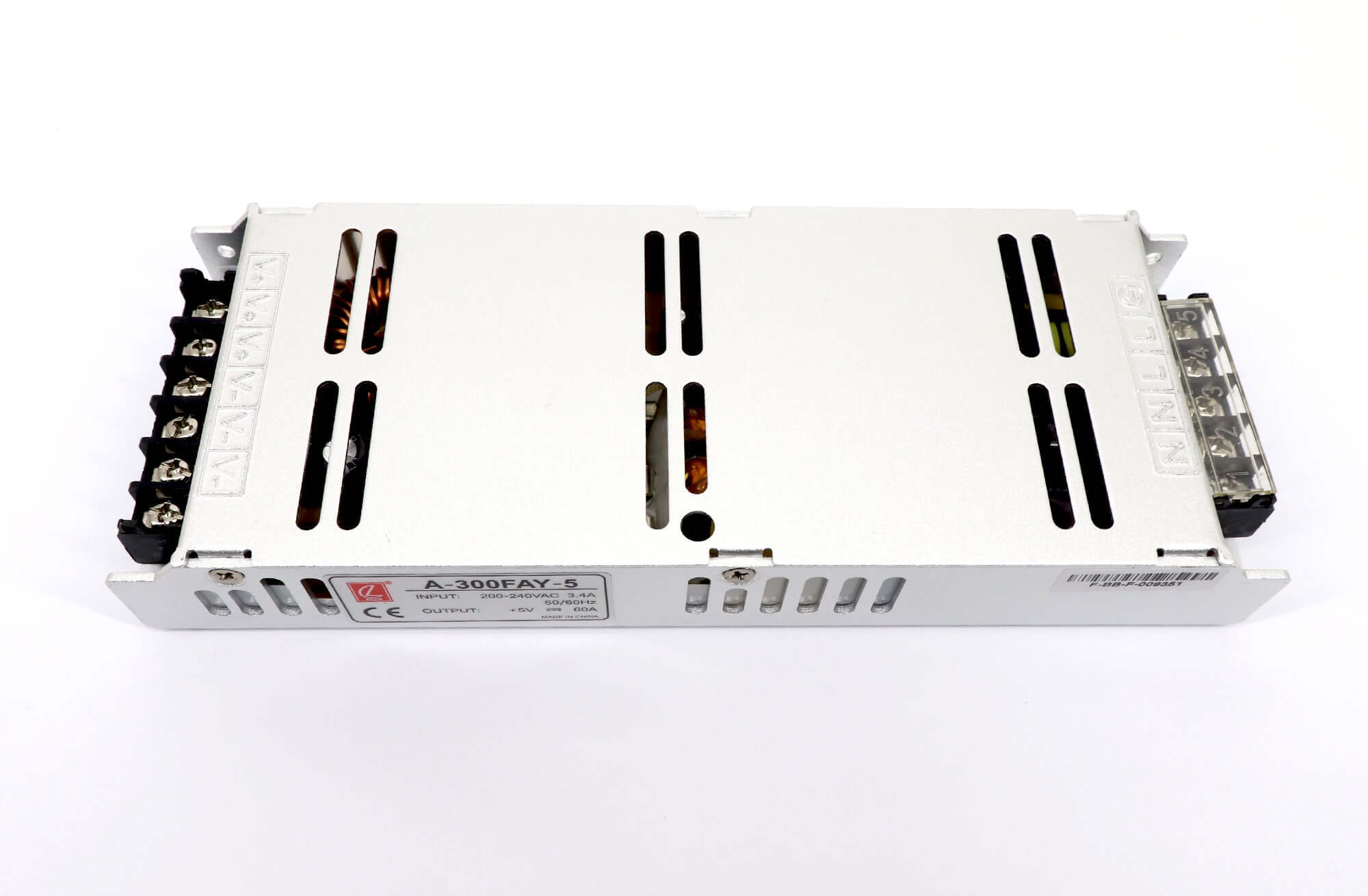

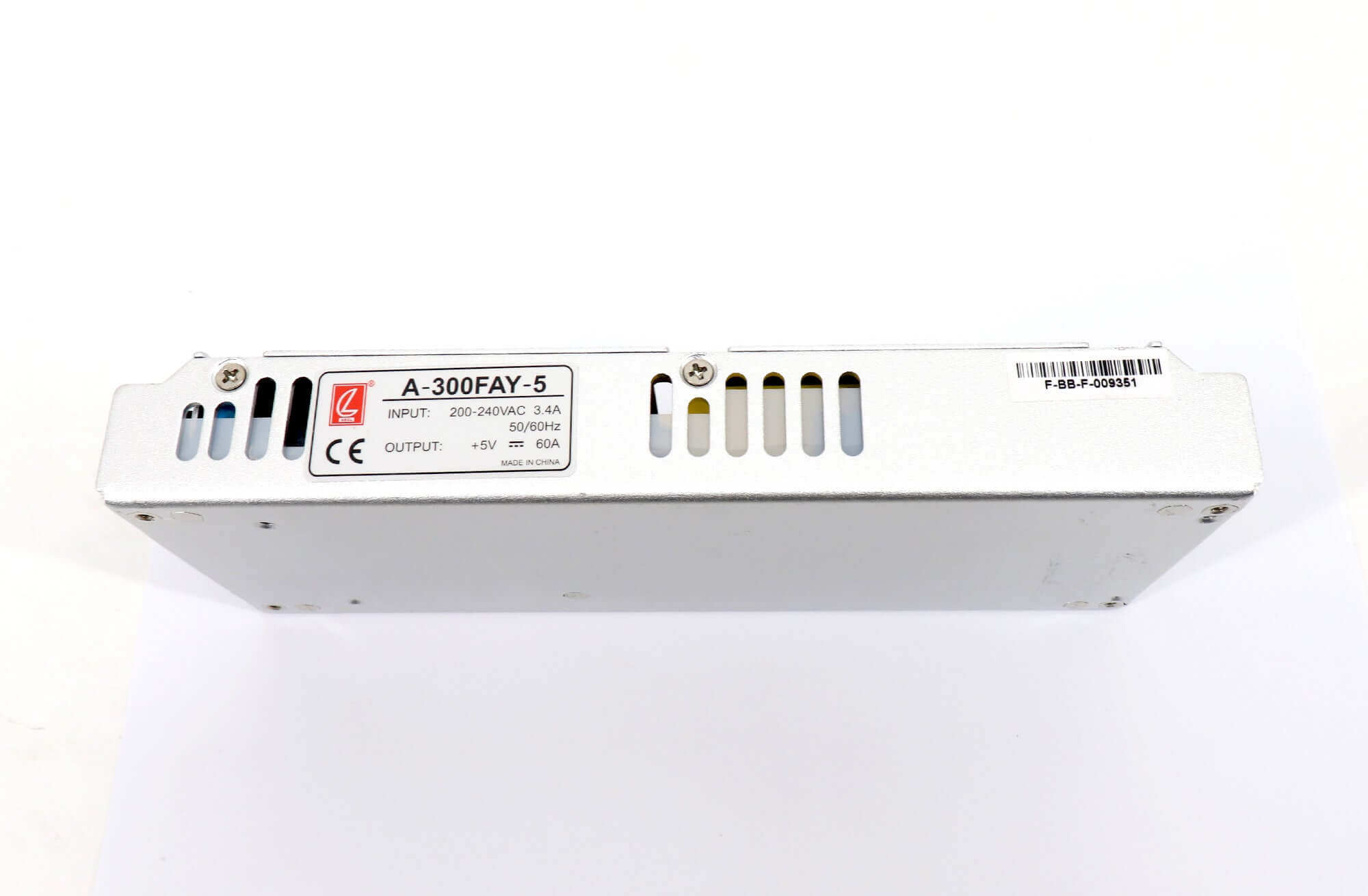

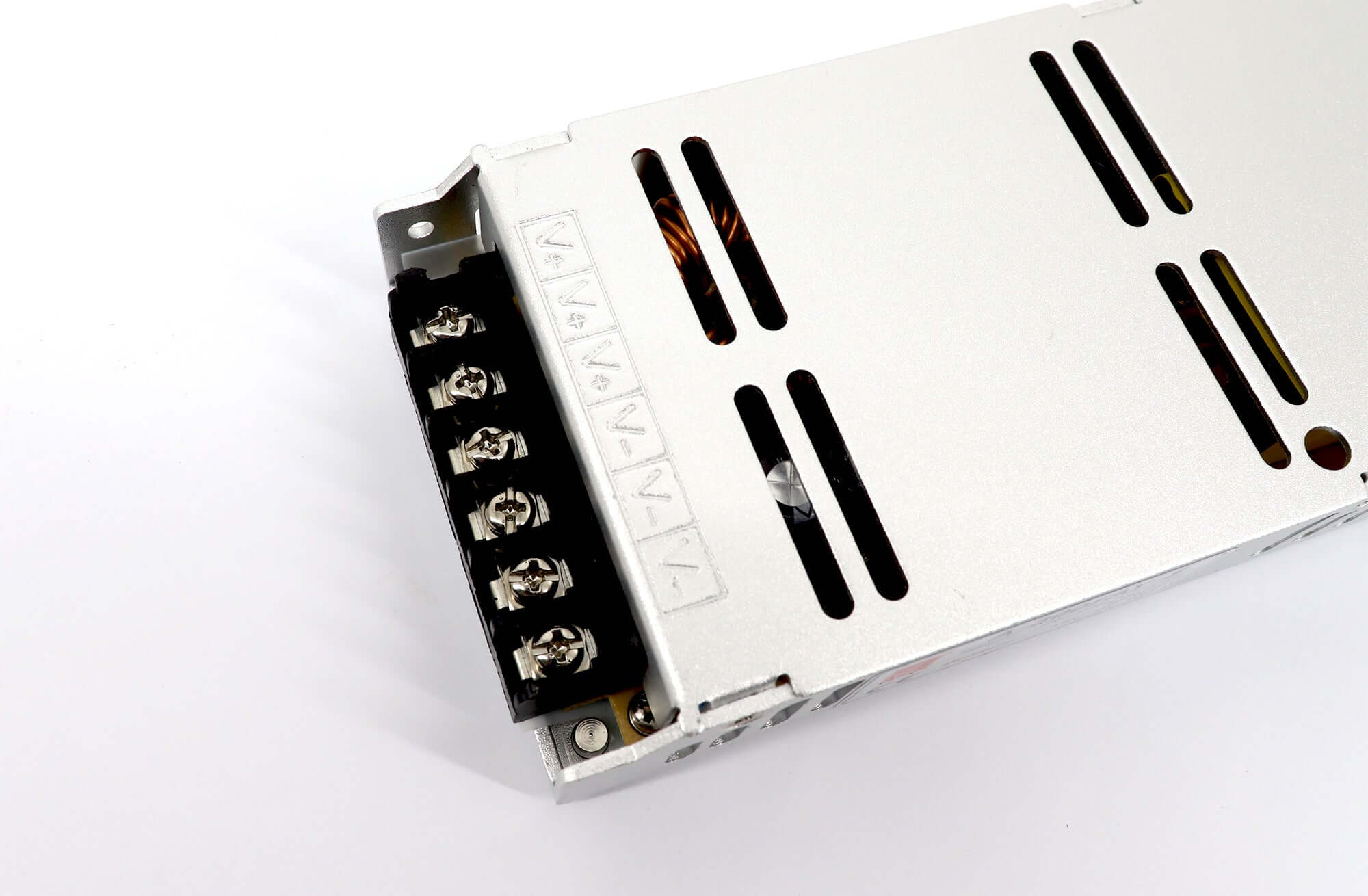

Product images and specification download



A-300FAY-5LED Display Drive Power Supply Specification
Frequently asked questions
What input voltage does the A-300FAY-5 require?
The overview lists 90–132 V AC / 176–264 V AC, while a feature line lists 90–180 V AC / 176–264 V AC. The low-voltage range is inconsistent; verify the supplied unit’s label and input arrangement before connection.
Is this listing for a 4.5 V or 5 V supply?
The product is identified as A-300FAY-5, but the description gives 4.5 V and 5 V as series options without a model-specific output table. Confirm the actual unit’s output label rather than assuming that both voltages are selectable.
Does it use fan cooling?
Yes. The original features specify fan-forced cooling and an operating-temperature range of −20 to +50°C. Confirm the cabinet airflow and loading conditions using the applicable manufacturer instructions.
Which protection functions are listed?
Short-circuit and overload protection are listed. The available text does not state thresholds, recovery behavior or an additional overvoltage-protection function.
Where is the A-300FAY specification?
The original download link is retained below, but it currently resolves to shop content rather than the specification. Request the exact model document to confirm input, output, dimensions and installation requirements.
