Colorlight K10 12-Bit LED Receiving Card for Fine-Pitch Displays
$ 33.00
Colorlight K10 receiving card with 8/10/12-bit video input, HDR10/HLG and 32 parallel or 64 serial data groups. Includes multi-layer calibration and redundancy for configuration parameters and calibration coefficients.
1651 in stock

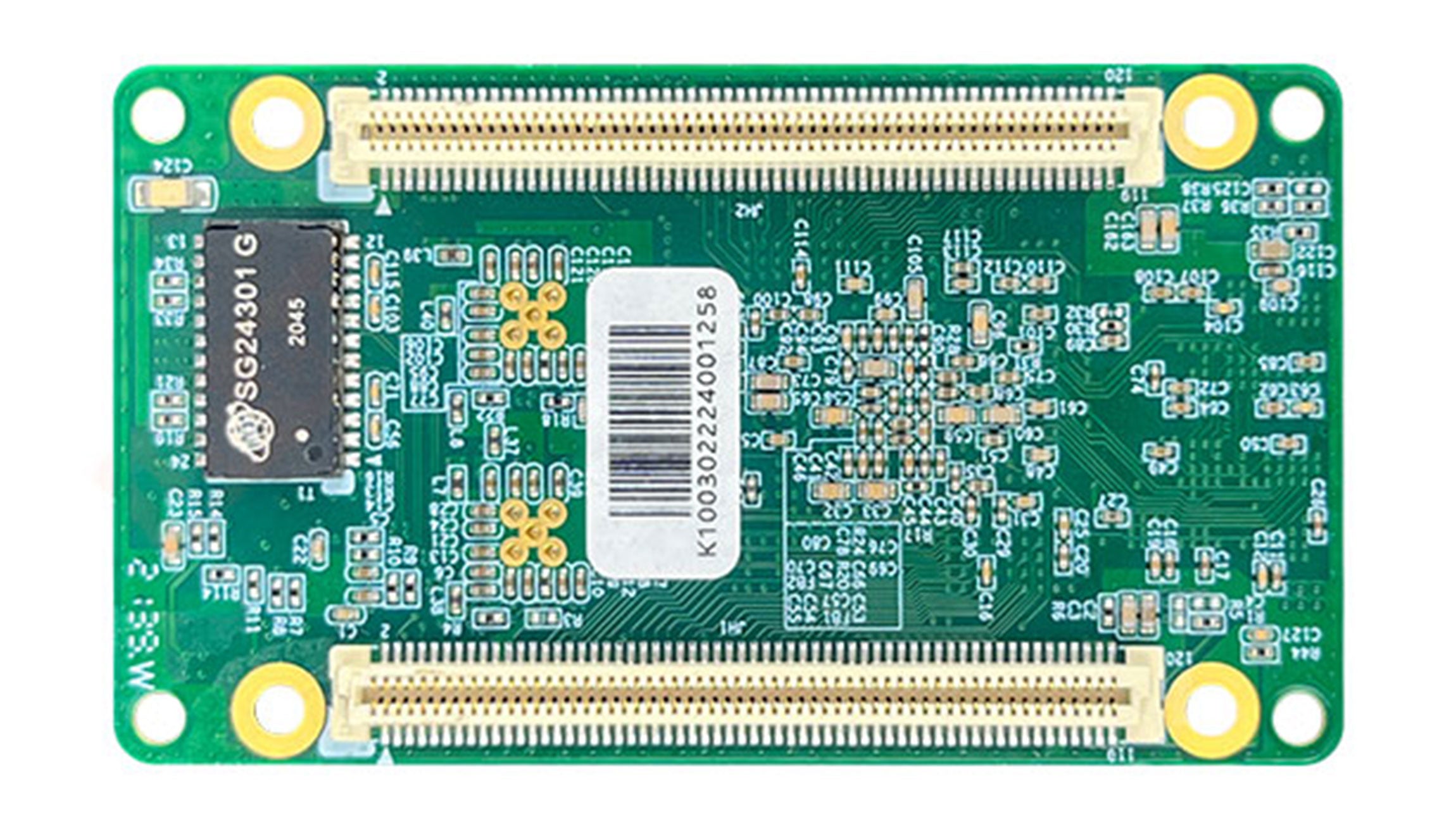

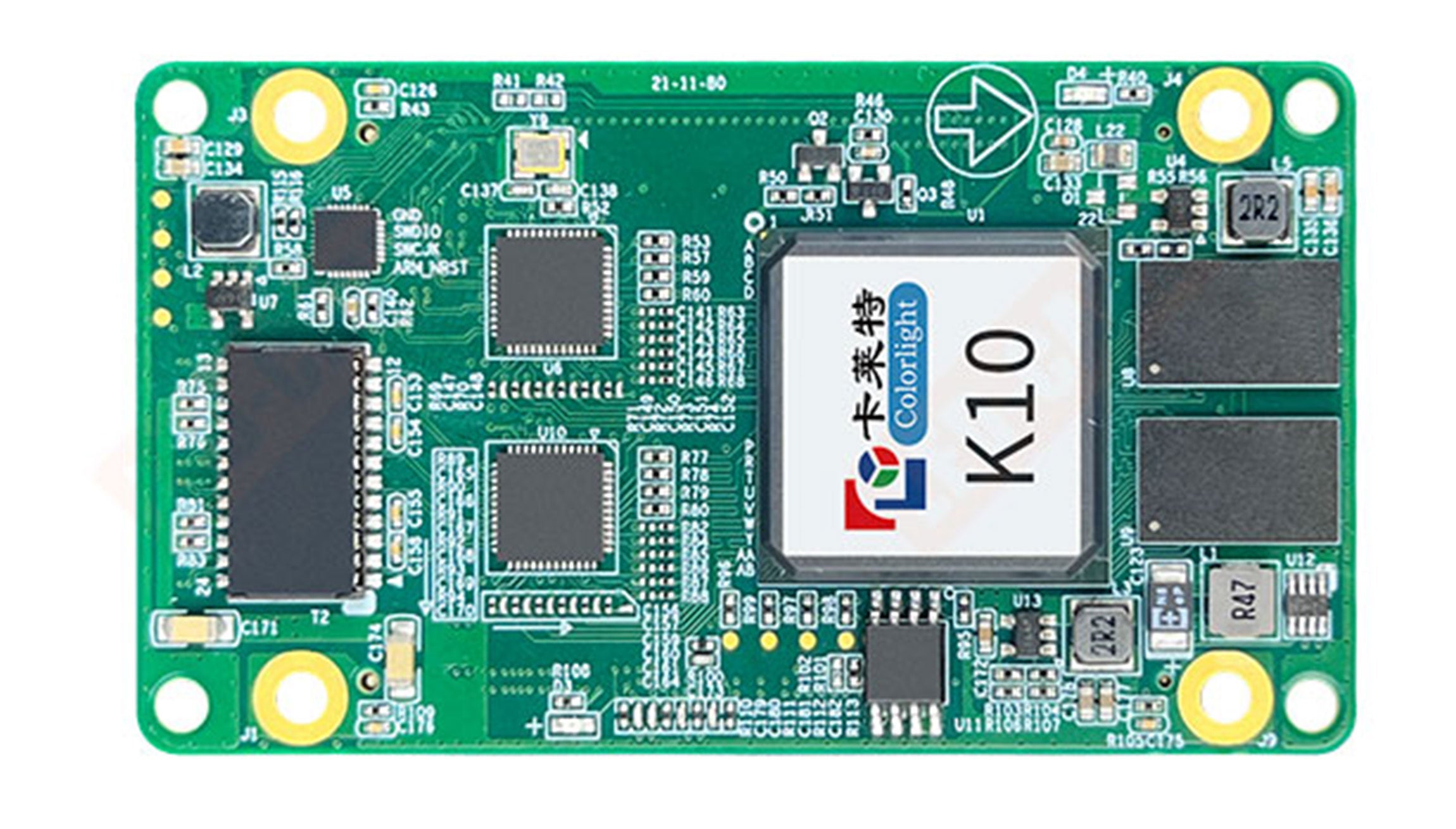

The Colorlight K10 is an LED receiving card for fine-pitch rental and fixed-installation screens. It combines up to 32 parallel or 64 serial data groups with support for 8-bit, 10-bit and 12-bit video input. Its compact format and high-density connectors are designed for cabinet integration.
Video processing and calibration
K10 supports HDR10 and HLG, full gamma adjustment, Infi-bit color extension and grayscale refinement. Its calibration functions include low-grayscale and multi-layer calibration, with per-pixel brightness and chroma adjustment. These tools allow installers to tune screen uniformity and low-brightness performance.
Configuration protection and maintenance
Configuration-parameter and calibration-coefficient redundancy help protect cabinet setup data. Firmware redundancy and readback are also supported. For system backup, K10 provides loop redundancy, dual receiving-card hot backup and PSU redundancy; the cabinet must include the appropriate hardware and connections.
Seam correction, highlighting and OSD, image rotation, a pre-stored picture and firmware upgrades without a power restart assist service work. Up to 16 intelligent modules are supported, with compatible hardware enabling cabinet temperature, humidity, voltage and power monitoring.
K10 technical specifications
Values below follow the linked K10 Specification V2.1.0. High-frame-rate operation affects load capacity, so confirm the required operating mode before finalizing the cabinet layout.
| Parameter | Specification |
|---|---|
| Model | Colorlight K10 receiving card |
| Data groups | Up to 32 parallel or 64 serial groups |
| Video source input | 8-bit / 10-bit / 12-bit |
| Maximum video color depth | 12-bit input and output |
| HDR formats | HDR10 and HLG |
| High frame rates | 120 / 144 / 240 Hz; affects load capacity |
| Calibration | 14-bit calibration coefficients; low-grayscale, multi-layer and per-pixel brightness/chroma calibration |
| Intelligent modules | Up to 16 |
| Stored data backup | Configuration parameters, calibration coefficients and firmware redundancy |
| System backup | Loop redundancy, dual receiving-card hot backup and PSU redundancy |
Frequently Asked Questions
Does Colorlight K10 support 12-bit video?
Yes. The linked K10 V2.1.0 specification lists 8-bit, 10-bit and 12-bit video source input, with a maximum of 12-bit video input and output. Confirm support throughout the signal chain.
How many data groups can K10 drive?
K10 supports up to 32 parallel data groups or 64 serial data groups. The cabinet module layout and wiring must match the chosen configuration.
What does K10 back up?
Its redundancy features cover configuration parameters, calibration coefficients and firmware. It also supports loop redundancy, dual receiving-card hot backup and PSU redundancy when the required hardware and cabling are installed.
Can K10 display 240 Hz content at its full pixel load?
The specification lists 120, 144 and 240 Hz high-frame-rate operation but states that this feature affects load capacity. Do not assume the same pixel load at every frame rate.
What should I check before replacing a receiving card with K10?
Check cabinet connector wiring, module driver and scan settings, the sender and firmware configuration, required frame rate and loading capacity. Keep the existing configuration and calibration files available for commissioning.
Download the K10 specification
Download Specification:
Colorlight K10 LED Display Screen Receiving Card Specification
