Kystar KSV6C LED Video Controller, 6 Outputs
$ 365.00
Kystar KSV6C LED controller with integrated video processing, six network outputs and a 3.9-million-pixel load. Supports HDMI/DVI sources, three-window layouts, EDID management, cropping and flexible cabinet routing.
10000 in stock
KSV6C LED controller with integrated video processing
The Kystar KSV6C is a 2-in-1 LED video controller with six network outputs and a maximum 3.9-million-pixel load. Three digital inputs and flexible three-window layouts let operators combine video sources on an LED display.
Technical specifications
| Parameter | Specification |
|---|---|
| LED network outputs | 6 ports |
| Maximum total load | 3.9 million pixels |
| Maximum load per port | 650,000 pixels |
| Maximum width | 8180 pixels, within the total pixel limit |
| Maximum height | 4090 pixels, within the total pixel limit |
| Video inputs | 1 × HDMI 1.3; 1 × DVI-D; 1 × HDMI 1.4 |
| Window layout | Up to 3 windows with flexible positioning |
| Architecture | Hardware FPGA |
Configure the source and screen layout
Flexible cable routing supports non-rectangular cabinet layouts. EDID management allows source information to be read, changed or customized, and input cropping removes unwanted black borders. Solid-color, gradient and scan-line patterns help check the screen during commissioning.
For day-to-day operation, the KSV6C offers overall brightness and contrast adjustment, one-action black-screen and freeze functions, and a key lock to reduce accidental changes.
Frequently asked questions
How many LED outputs does the KSV6C have?
It has six network outputs, each supporting up to 650,000 pixels. The total maximum LED load is 3.9 million pixels.
Does the KSV6C accept HDMI and DVI sources?
Yes. It provides one HDMI 1.3 input, one HDMI 1.4 input and one DVI-D input. Supported timings depend on the selected connector.
Can it show three sources on one LED screen?
The controller supports up to three display windows with flexible positioning. Check the source and layout settings during configuration.
What should I check when sizing an LED wall?
Check the total pixel count, load assigned to each output and the maximum width and height. The 8180-pixel width and 4090-pixel height are separate limits and do not describe one supported full-size resolution.

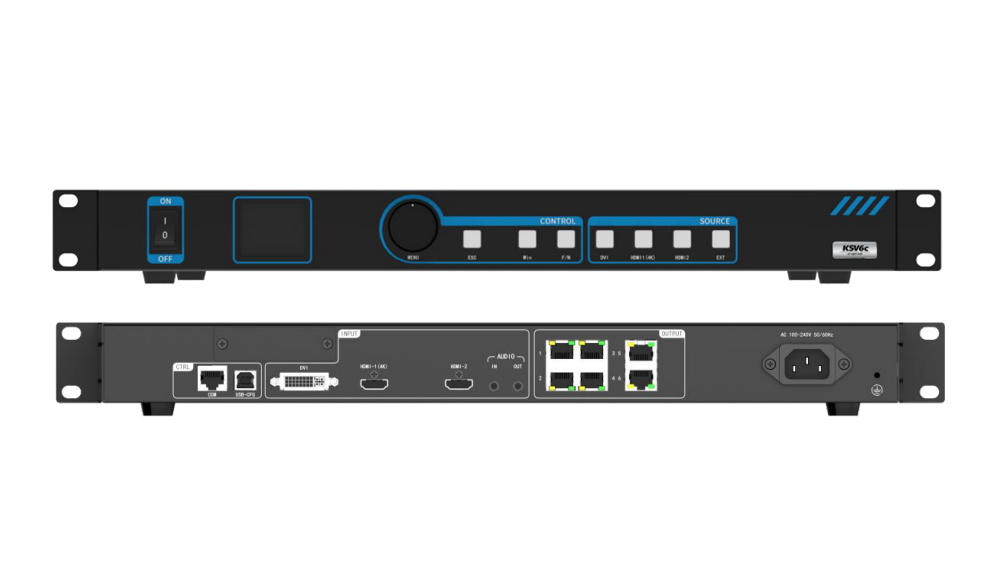

Product image and specification download
| Weight | 4 kg |
|---|
