Colorlight X1 LED Display Controller with HDMI and DVI Inputs
$ 105.00
Colorlight X1 LED controller with 1.31-million-pixel capacity, two Gigabit Ethernet outputs, HDMI and DVI inputs, video scaling and cropping, and USB configuration.
10000 in stock
Colorlight X1 LED Display Controller
The Colorlight X1 is an HDMI and DVI video controller for small LED displays. It provides two Gigabit Ethernet outputs and a total loading capacity of 1.31 million pixels. Video scaling and cropping let you fit a source image to the screen layout.
HD inputs and screen adjustment
Connect one HDMI source and two DVI sources, with input resolution up to 1920 × 1200 at 60 Hz. Switch between sources, scale or crop the picture, and adjust screen offset. Brightness and chromaticity controls are supported, along with improved grayscale performance at low brightness.

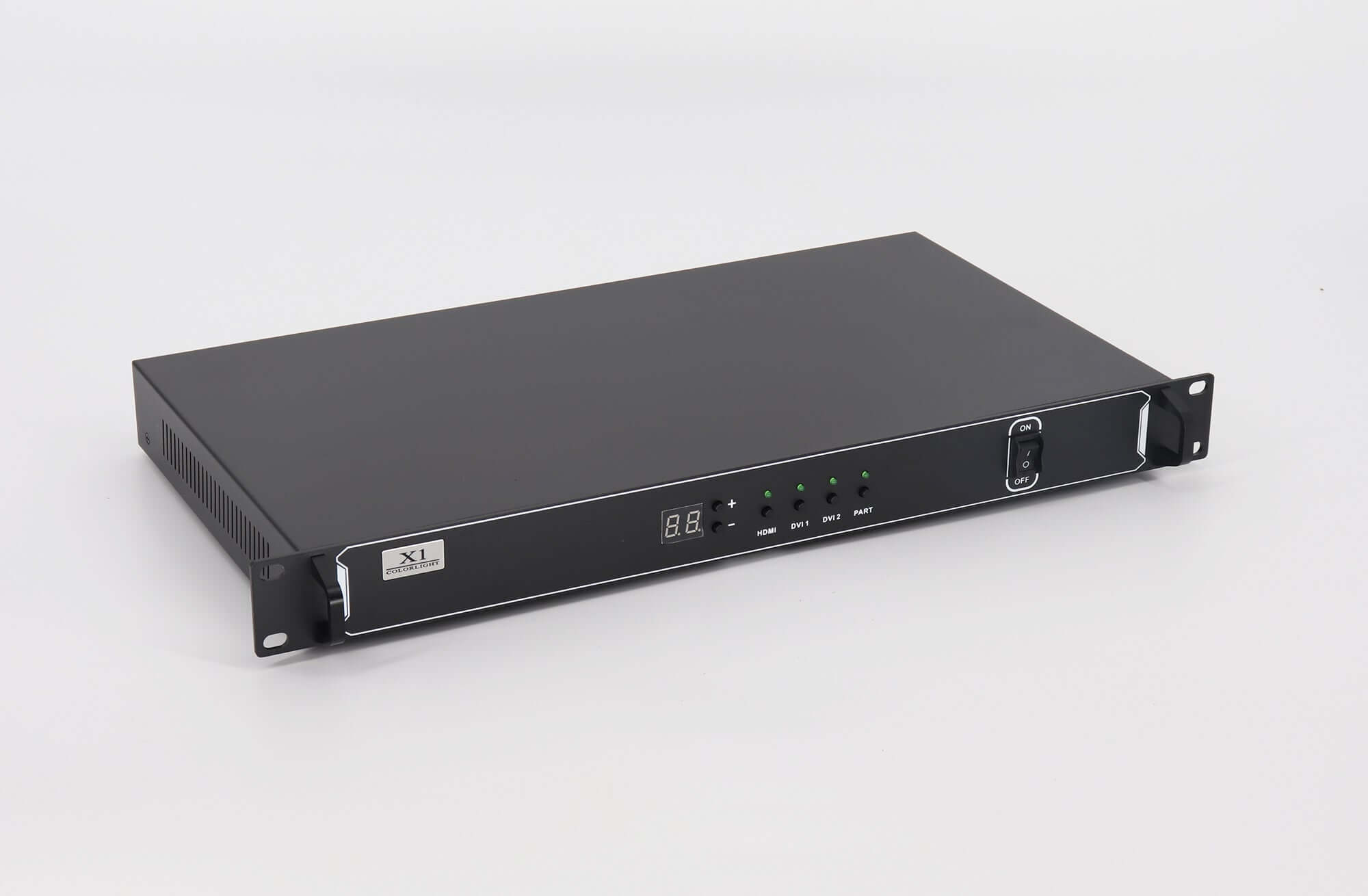

The front-panel keys provide source selection, brightness adjustment and cropping control. USB IN connects a PC for configuration, while USB OUT allows cascading to another controller. The audio input is used with a multifunction card.
Technical specifications
| Parameter | Specification |
|---|---|
| Loading capacity | 1.31 million pixels |
| Maximum screen dimensions | 4096 pixels wide or 2560 pixels high, within total loading capacity |
| Video inputs | 1 × HDMI; 2 × DVI |
| Maximum input resolution | 1920 × 1200 at 60 Hz |
| LED outputs | 2 × Gigabit Ethernet (RJ45) |
| Processing | Source switching, scaling, cropping and screen offset |
| HDCP | HDCP 1.1 listed in the V1.3 specification |
| Control | USB IN for PC configuration; USB OUT for cascading |
| Audio | Audio input for use with a multifunction card |
| Enclosure | 1U standard box |
| Input voltage | AC 100–240 V |
| Rated power consumption | 8 W |
| Working temperature | −20°C to 60°C |
| Weight | 2 kg |

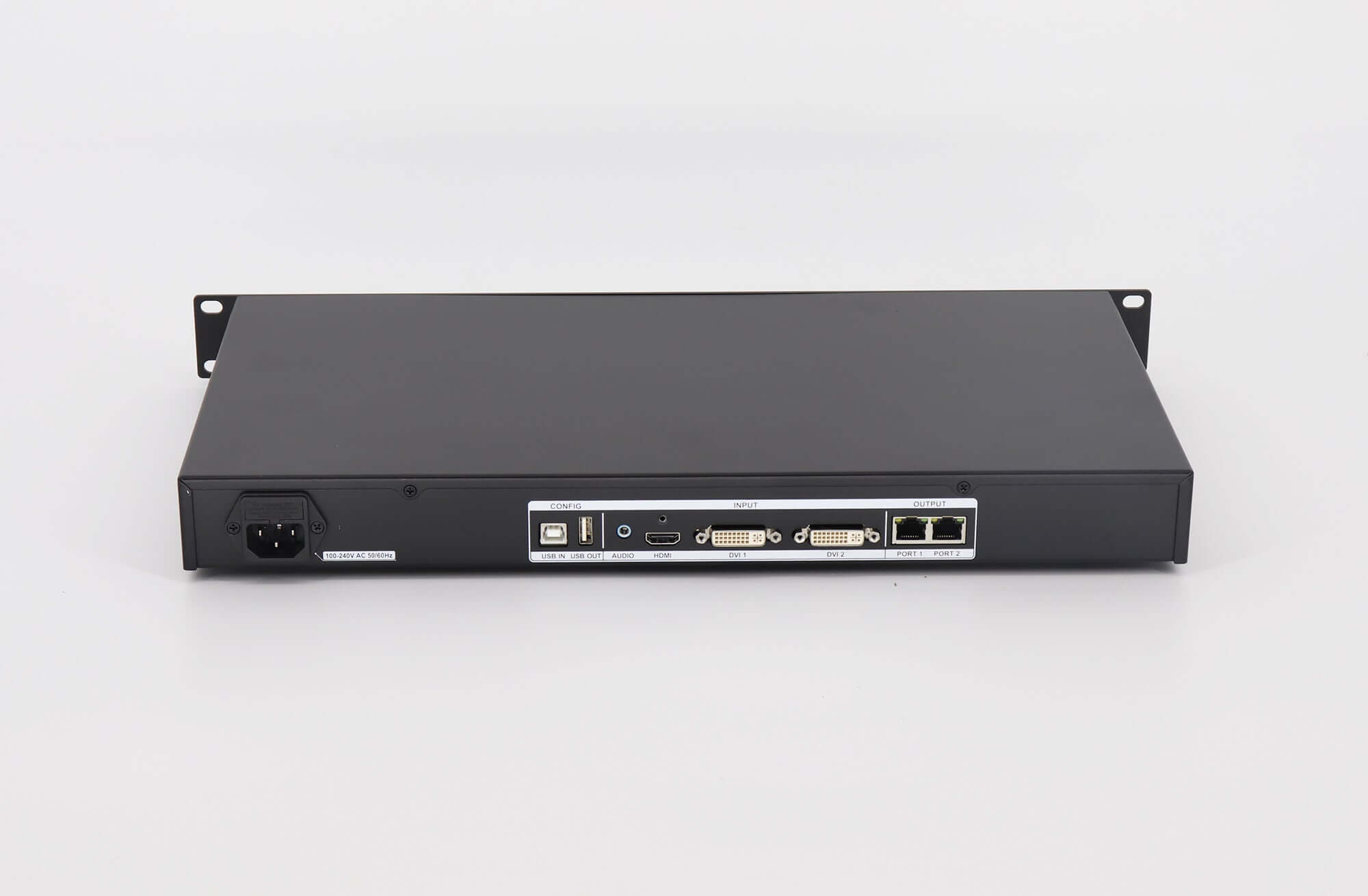

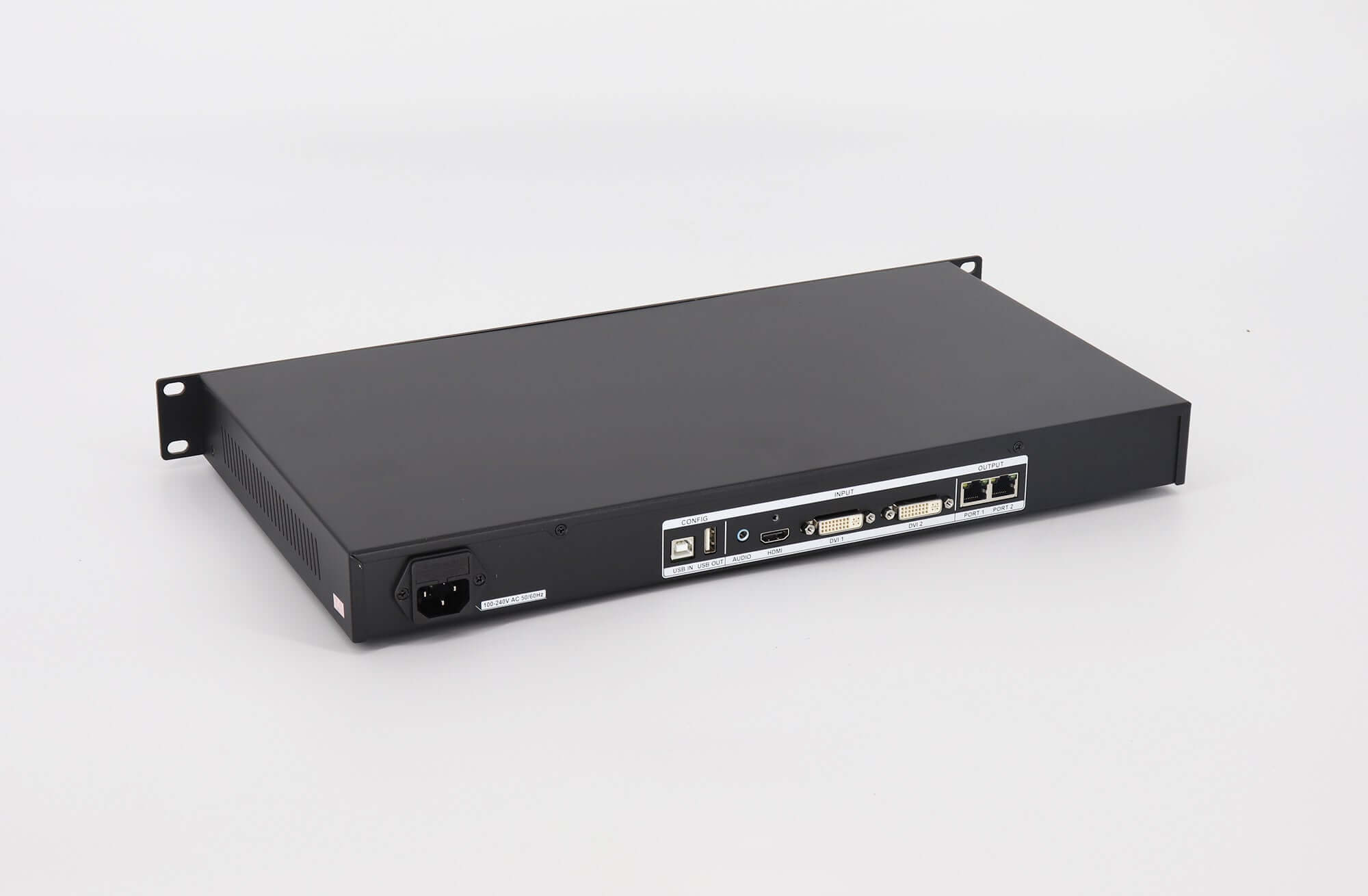

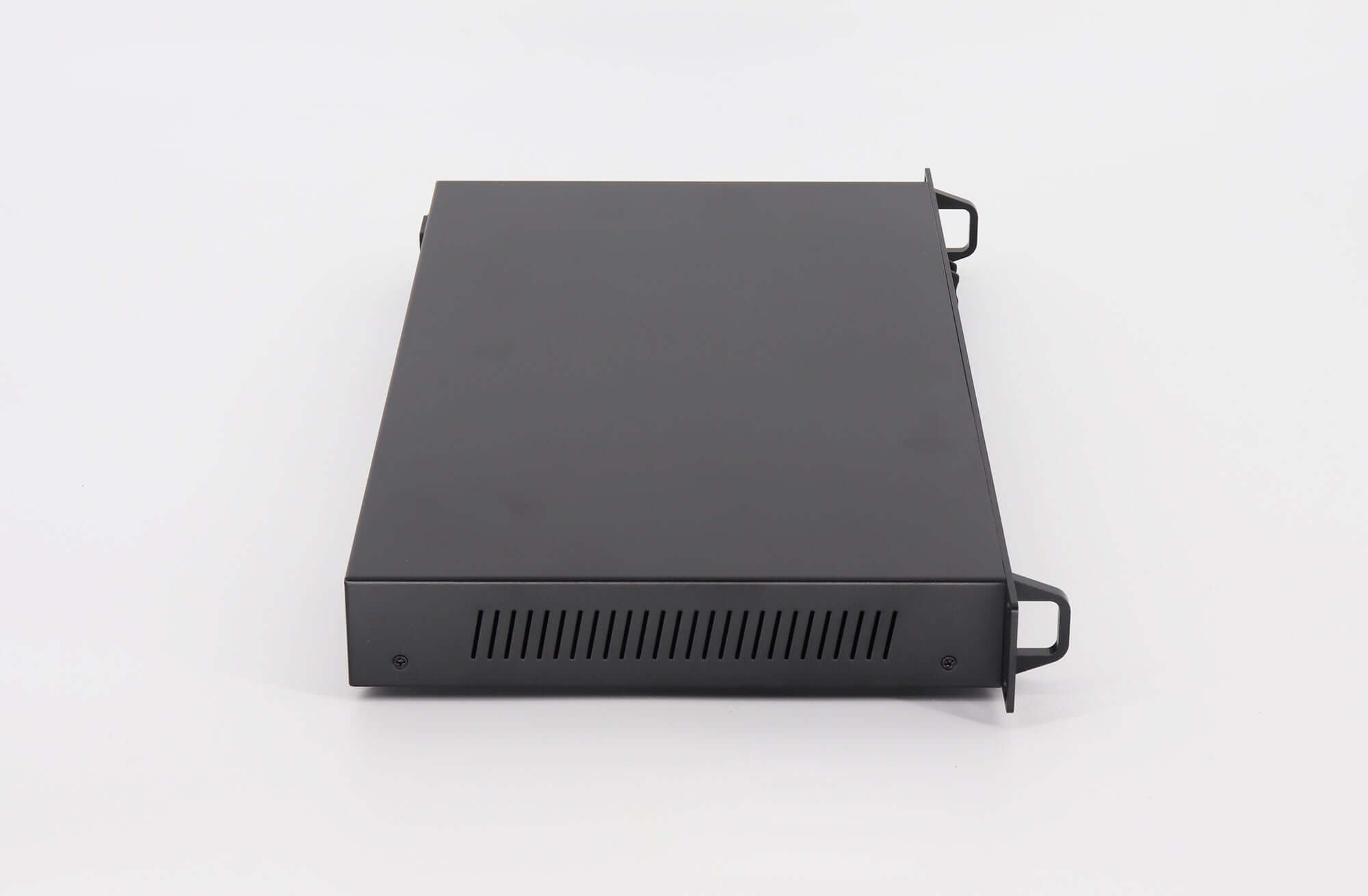

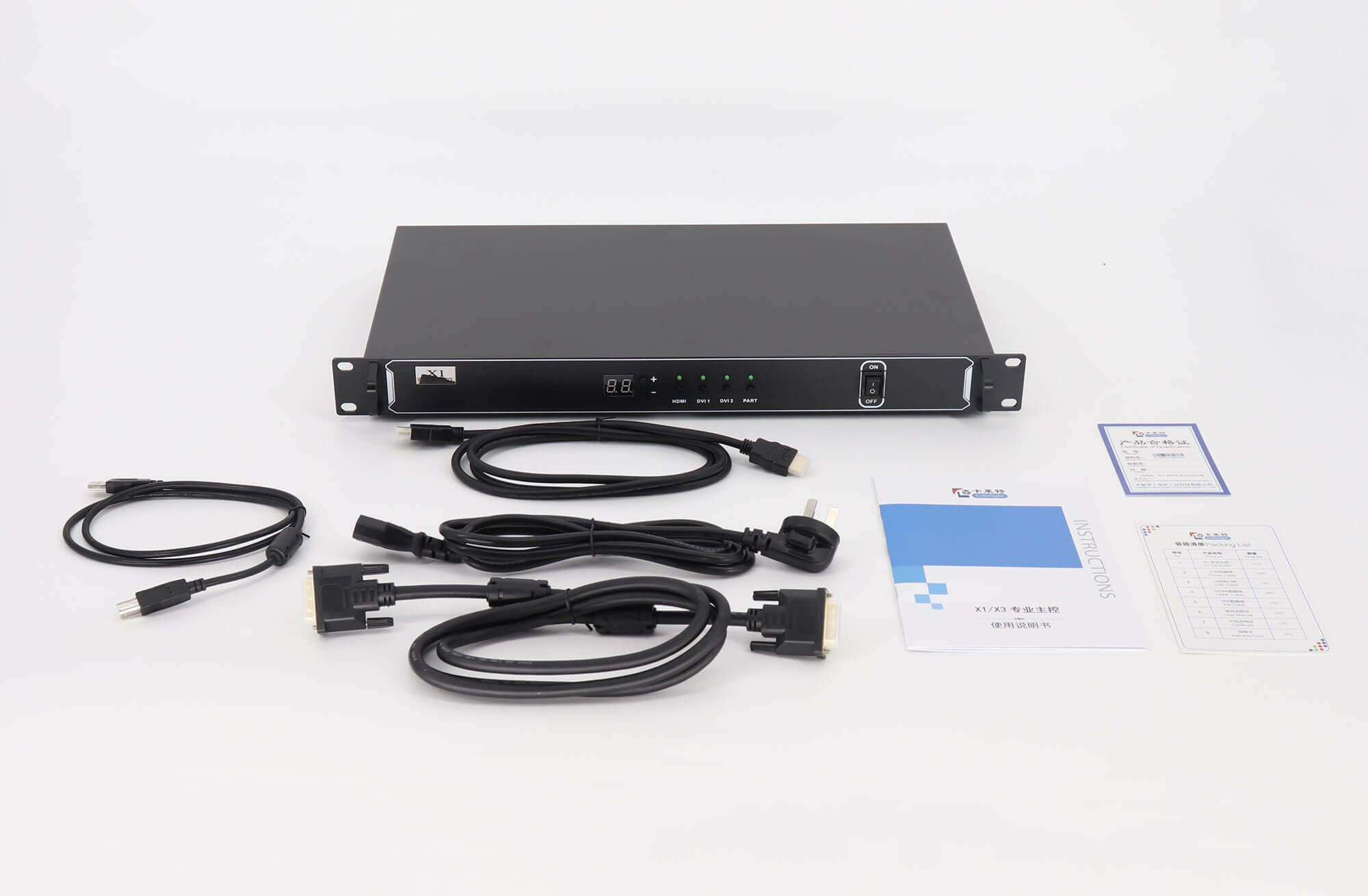

Product photos
Frequently Asked Questions
What is the Colorlight X1 pixel capacity?
The X1 supports 1.31 million pixels. The maximum width is 4096 pixels or maximum height is 2560 pixels, within that total capacity.
Does the X1 have HDMI and DVI inputs?
Yes. It has one HDMI input and two DVI inputs, supporting up to 1920 × 1200 at 60 Hz.
Can the X1 scale and crop video?
Yes. Source switching, scaling, cropping and screen offset are supported.
How do I connect a PC or cascade another controller?
Use USB IN for PC configuration and USB OUT for cascading to the next controller.
Does the X1 support audio?
The V1.3 specification lists an audio input for use with a multifunction card.
