Colorlight X2s LED Video Controller with 2 Ethernet Outputs
$ 96.00
Colorlight X2s LED controller with 2 Gigabit Ethernet outputs and 1.31-million-pixel capacity. HDMI and DVI inputs support up to 1920 × 1200 at 60 Hz, with scaling, cropping and redundant backup.
9997 in stock
The Colorlight X2s is a two-output LED video controller for screens within a 1.31-million-pixel loading capacity. One HDMI input and two DVI inputs accept video up to 1920 × 1200 at 60 Hz, with source switching, scaling and cropping to fit the LED display.
Screen setup and backup
Adjust image position, brightness and color temperature from the control system. The X2s supports single-device or dual-device redundant backup, and USB configuration and cascading for up to 64 devices. Audio output requires a multifunction card.
For screen planning, check total pixel count as well as dimensions. The maximum width is 4096 pixels and the maximum height is 2560 pixels; those independent limits do not mean the controller can load a 4096 × 2560 screen.
Colorlight X2s specifications
| Parameter | Specification |
|---|---|
| Loading capacity | 1.31 million pixels |
| LED outputs | 2 × Gigabit Ethernet |
| Inputs | 1 × HDMI 1.4; 2 × DVI |
| Maximum input resolution | 1920 × 1200 at 60 Hz |
| Input bit depth | 8-bit |
| Input color spaces | RGB 4:4:4, YCbCr 4:4:4 and YCbCr 4:2:2 |
| Maximum screen width / height | 4096 / 2560 pixels, within total loading capacity |
| Image processing | Source switching, scaling, cropping and screen position adjustment |
| Backup | Single-device or dual-device redundancy |
| Control | USB configuration and cascading; up to 64 devices |
| Audio output | Requires a multifunction card |
| Power supply | AC 100–240 V, 50/60 Hz |
| Power consumption | 10 W |
| Enclosure / dimensions | 1U; 482.6 × 44 × 262 mm (W × H × D) |
| Net weight | 2 kg |
| Operating temperature | −20°C to 60°C |

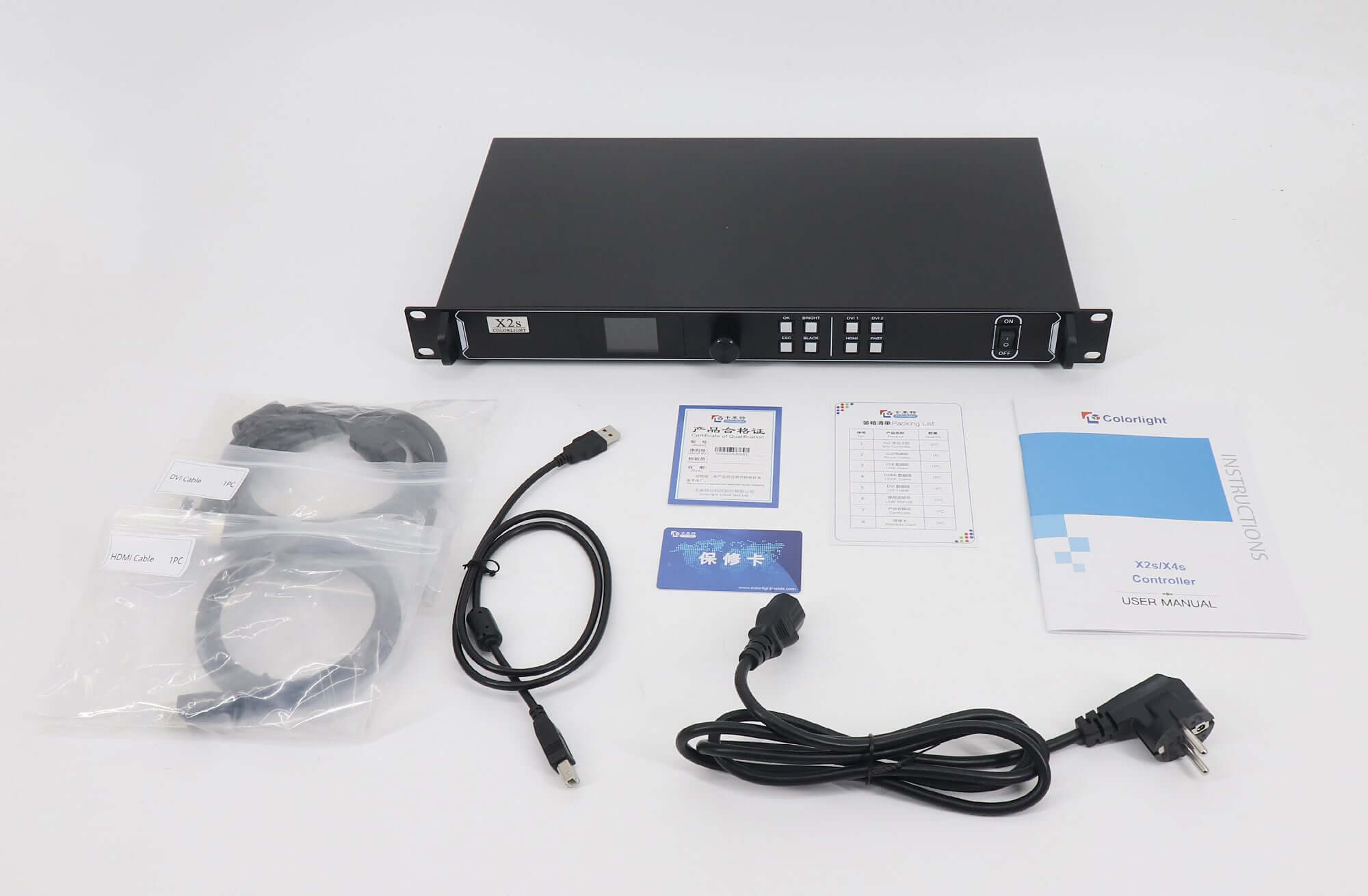

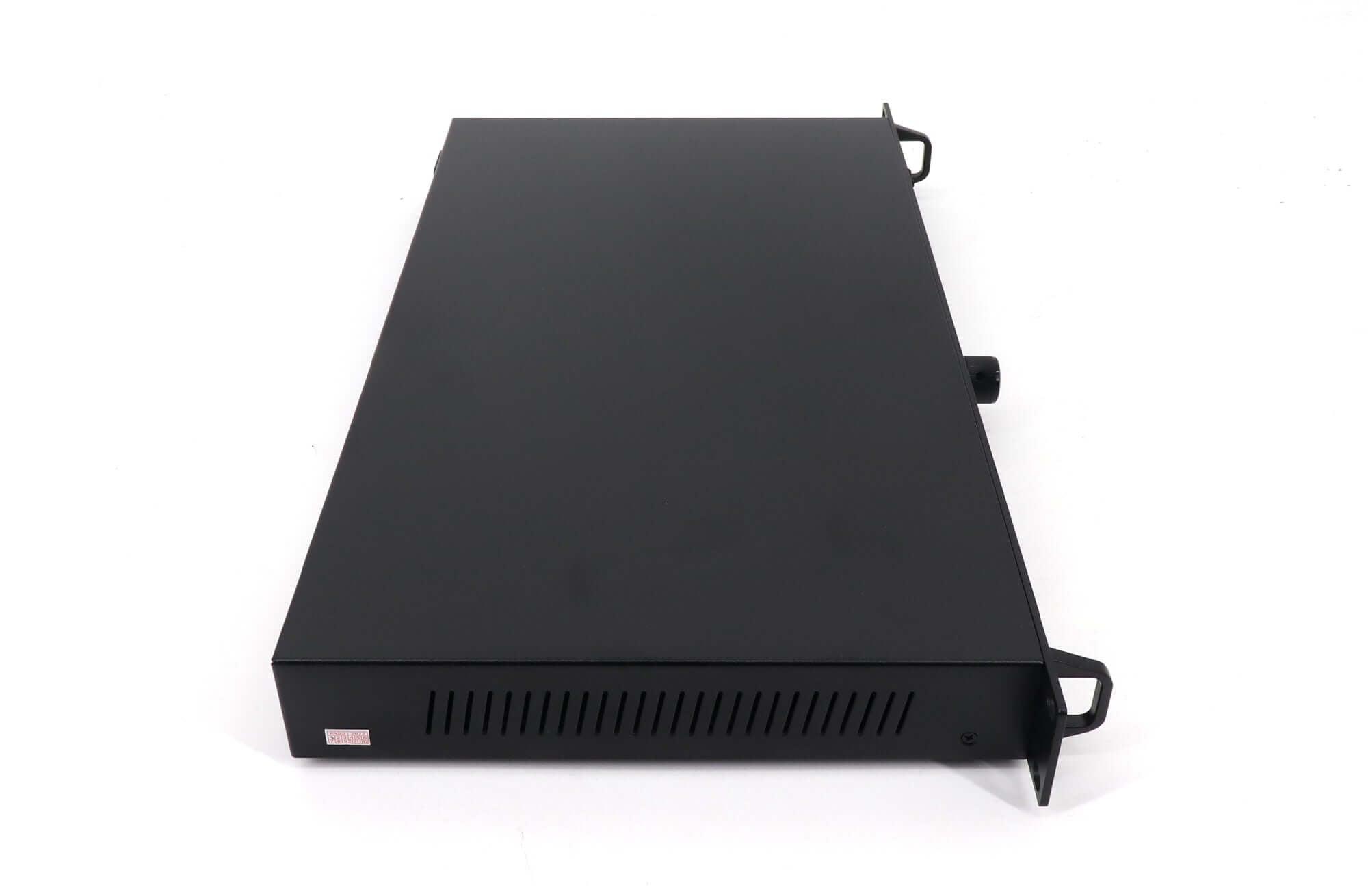

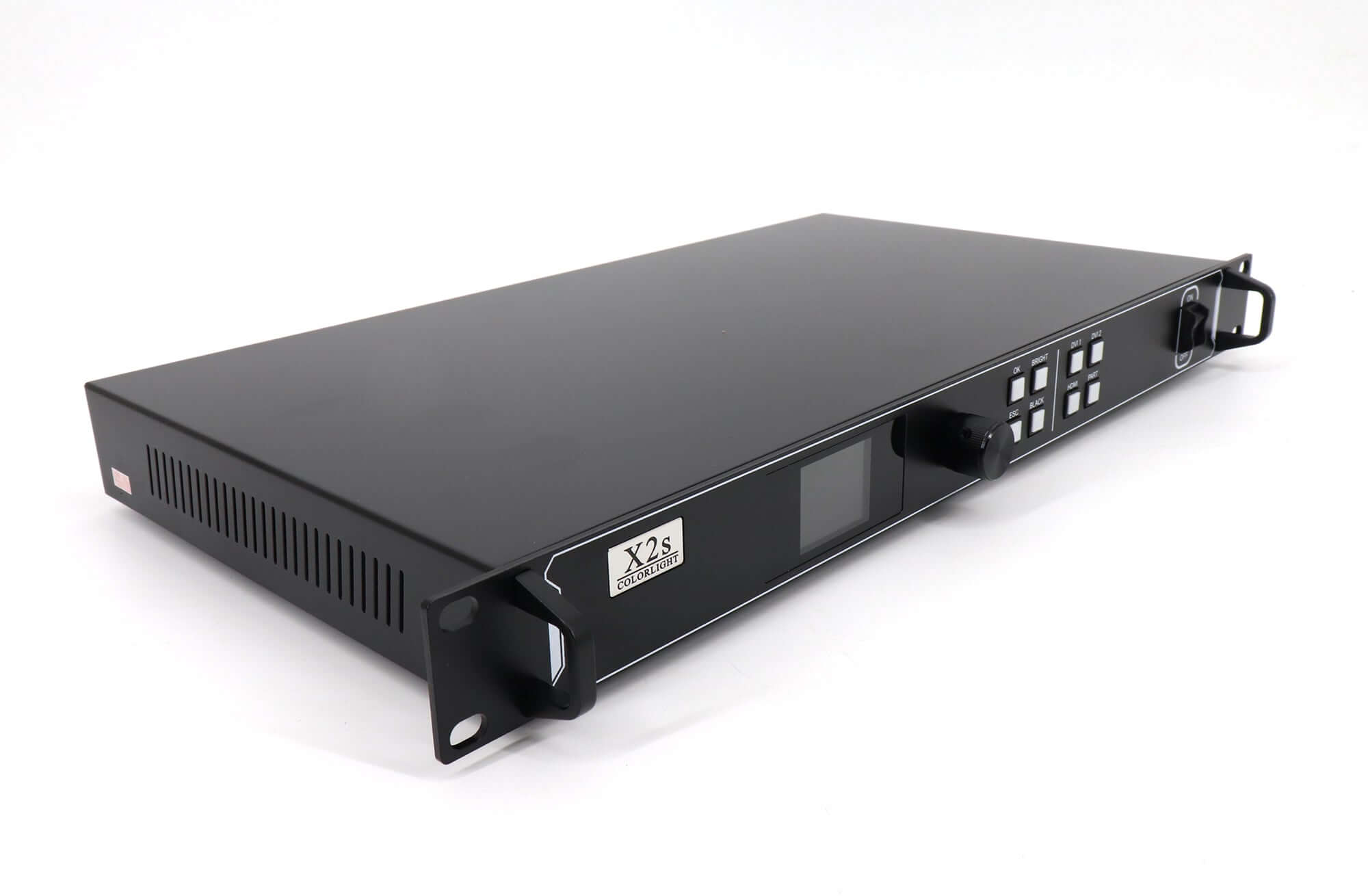

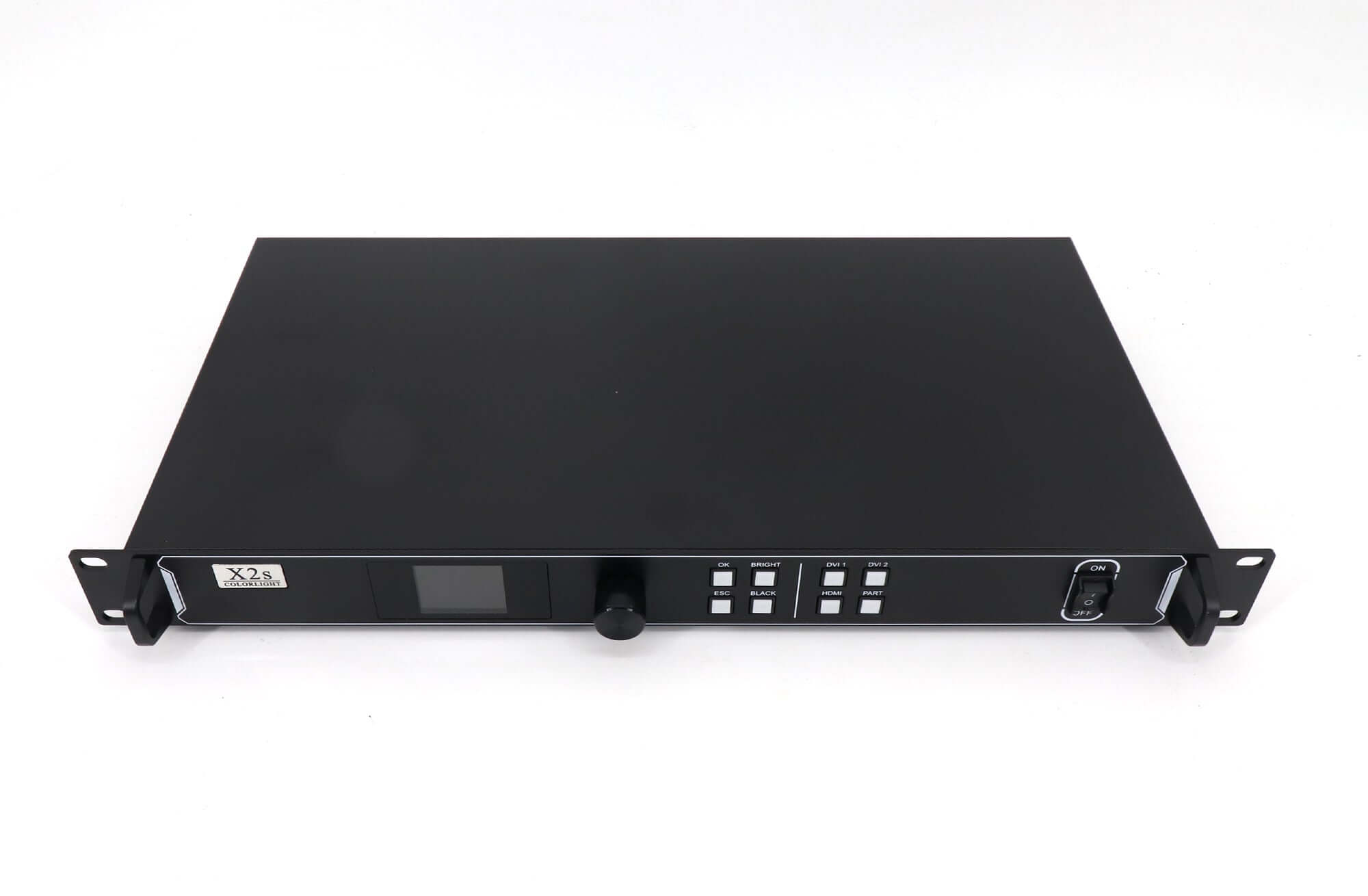

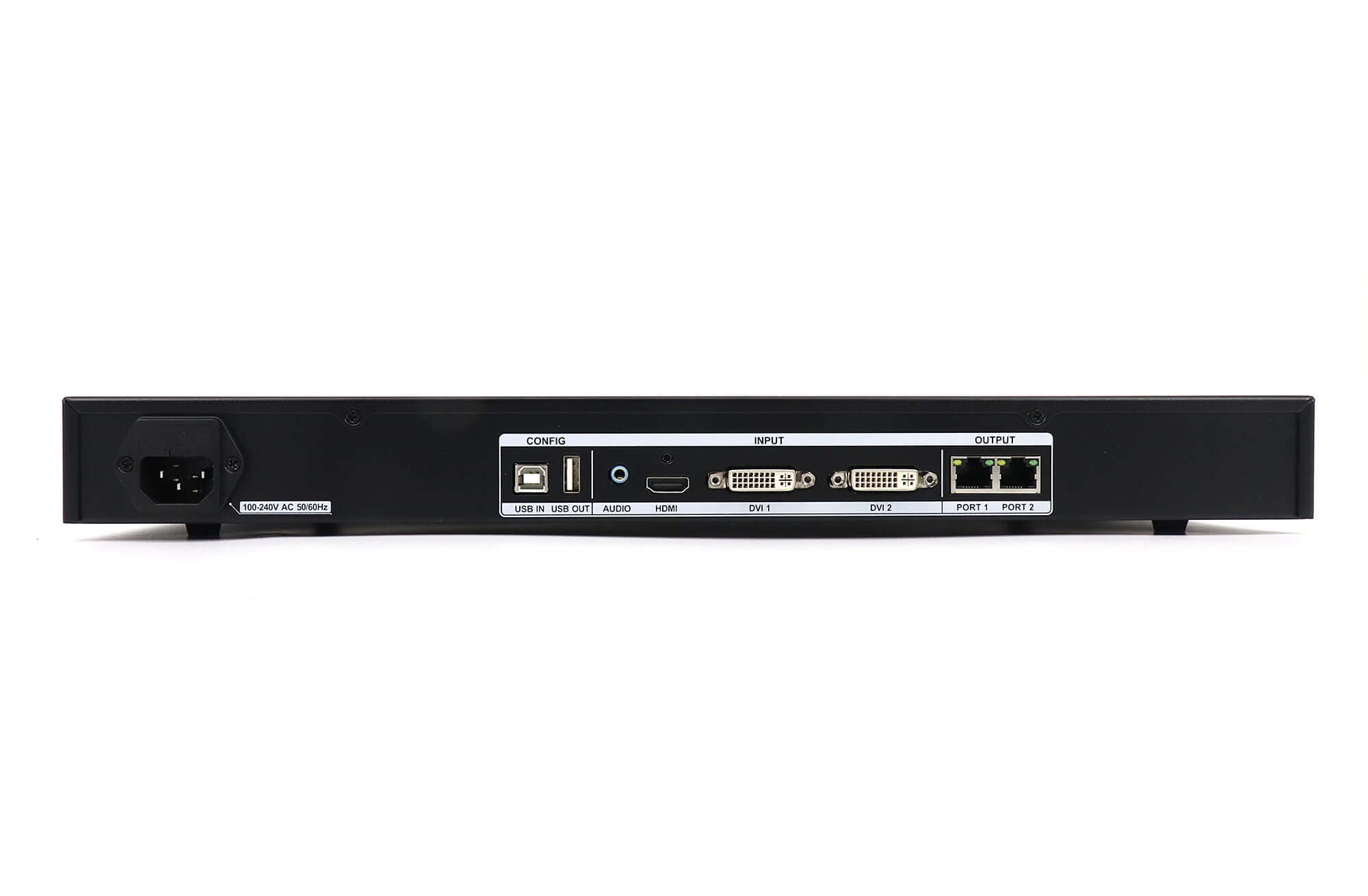

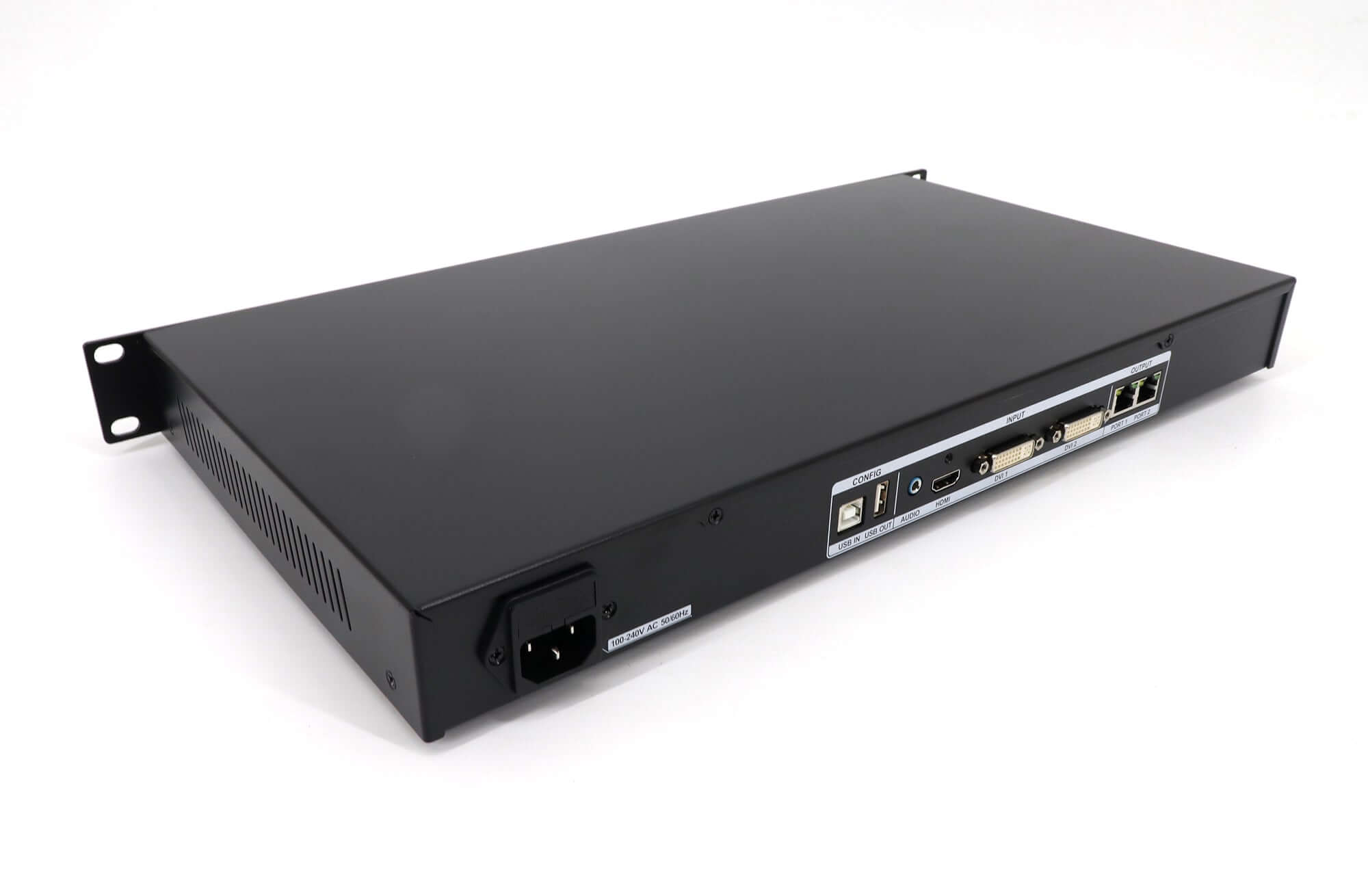

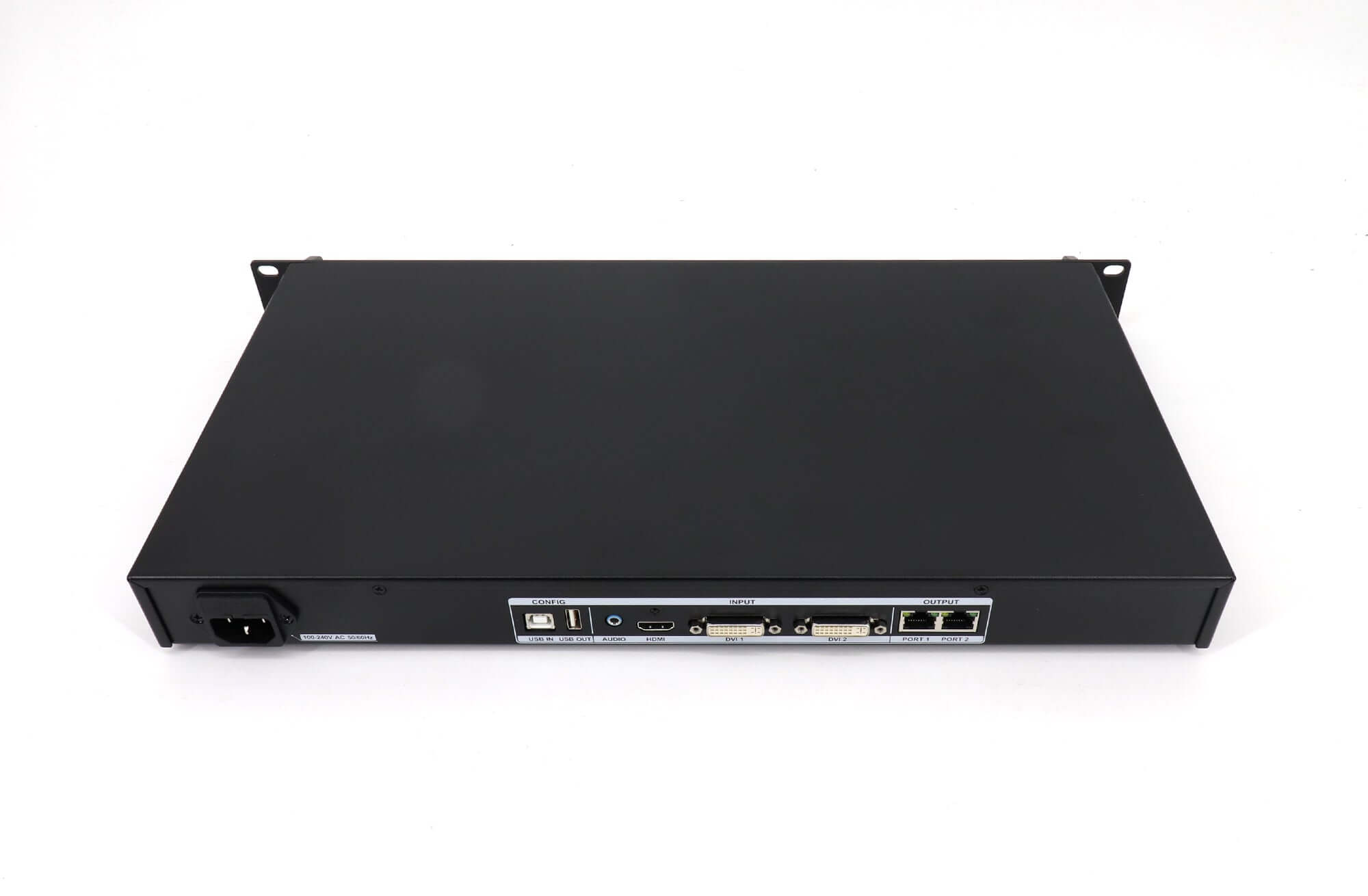

Product photos
Frequently Asked Questions
How many Ethernet outputs does the Colorlight X2s have?
The X2s has two Gigabit Ethernet outputs and a total loading capacity of 1.31 million pixels.
Can the X2s receive HDMI and DVI video?
Yes. It has one HDMI input and two DVI inputs. The supplied V1.3 specification lists a maximum input resolution of 1920 × 1200 at 60 Hz.
Does the X2s support redundant backup?
Yes. The specification lists single-device and dual-device redundant backup. Configure the backup arrangement for the screen system before use.
Can the X2s output audio?
Audio output is supported through a multifunction card. Include the appropriate card when the installation needs audio.
What is the X2s power consumption?
The supplied V1.3 specification lists 10 W power consumption, with an AC 100–240 V, 50/60 Hz supply.
Download the specification
| Weight | 7 kg |
|---|
