Kystar KSV8C LED Video Controller, 8 Outputs
$ 520.00
Kystar KSV8C 2-in-1 video controller with eight LED network outputs and a 5.2-million-pixel capacity. Provides HDMI and DVI inputs, three-window layouts, EDID management, input cropping and flexible cabinet routing.
10000 in stock
KSV8C controller for multi-source LED displays
The Kystar KSV8C combines video processing and LED sending in a 2-in-1 controller. It provides three digital video inputs, eight network outputs and a maximum 5.2-million-pixel LED load. Up to three windows can be arranged on the display.
Technical specifications
| Parameter | Specification |
|---|---|
| Network outputs | 8 ports |
| Maximum total LED load | 5.2 million pixels |
| Maximum load per port | 650,000 pixels |
| Maximum width | 8180 pixels, within the total pixel limit |
| Maximum height | 4090 pixels, within the total pixel limit |
| Video inputs | 1 × HDMI 1.3; 1 × DVI-D; 1 × HDMI 1.4 |
| Display windows | Up to 3, with flexible positioning |
| Architecture | Hardware FPGA |
Fit the source to the screen
EDID management supports reading, modifying and customizing source-resolution information. Input cropping helps remove black borders, while flexible cable routing allows non-rectangular cabinet layouts without treating unused areas as loaded pixels.
Solid-color, gradient and scan-line test patterns support on-site checks. Brightness and contrast can be adjusted for the overall image. Black-screen and freeze controls, together with key locking, provide practical controls during operation.
Frequently asked questions
What is the KSV8C pixel capacity?
The KSV8C supports up to 5.2 million pixels through eight network outputs, with a maximum of 650,000 pixels per port.
Which inputs are available?
It has one HDMI 1.3, one DVI-D and one HDMI 1.4 input. Use an input timing supported by the selected connector and hardware revision.
Does the KSV8C support three video windows?
Yes. It supports up to three windows with flexible positioning on the LED display.
Can the maximum width and maximum height be combined?
No. The 8180-pixel width and 4090-pixel height are separate limits. The screen must also remain within the total 5.2-million-pixel capacity and each port’s load limit.

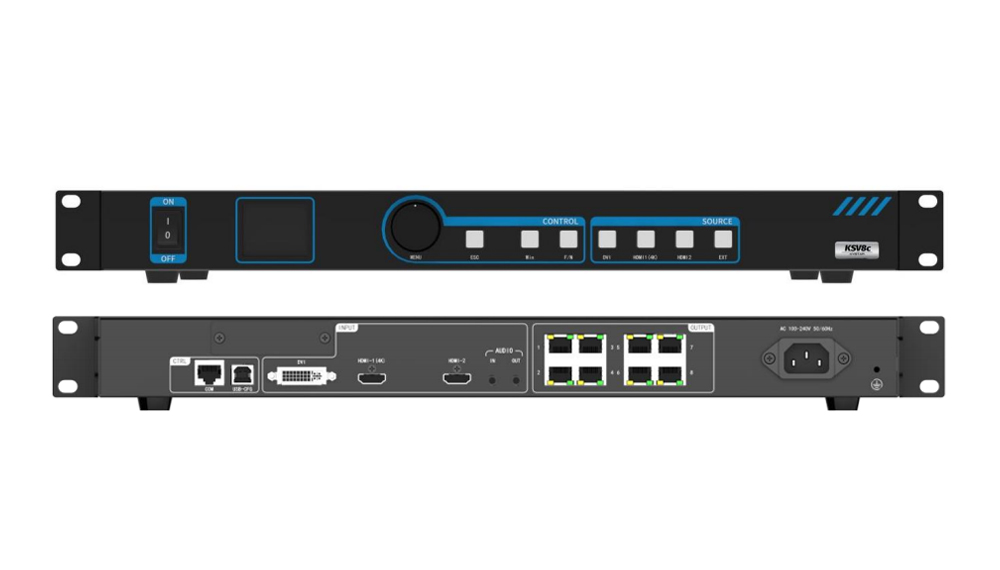

Product image and specification download
Download Specification:
Kystar KSV8C 2-in-1 LED Display Video Controller Specification(Chinese)
| Weight | 4 kg |
|---|
