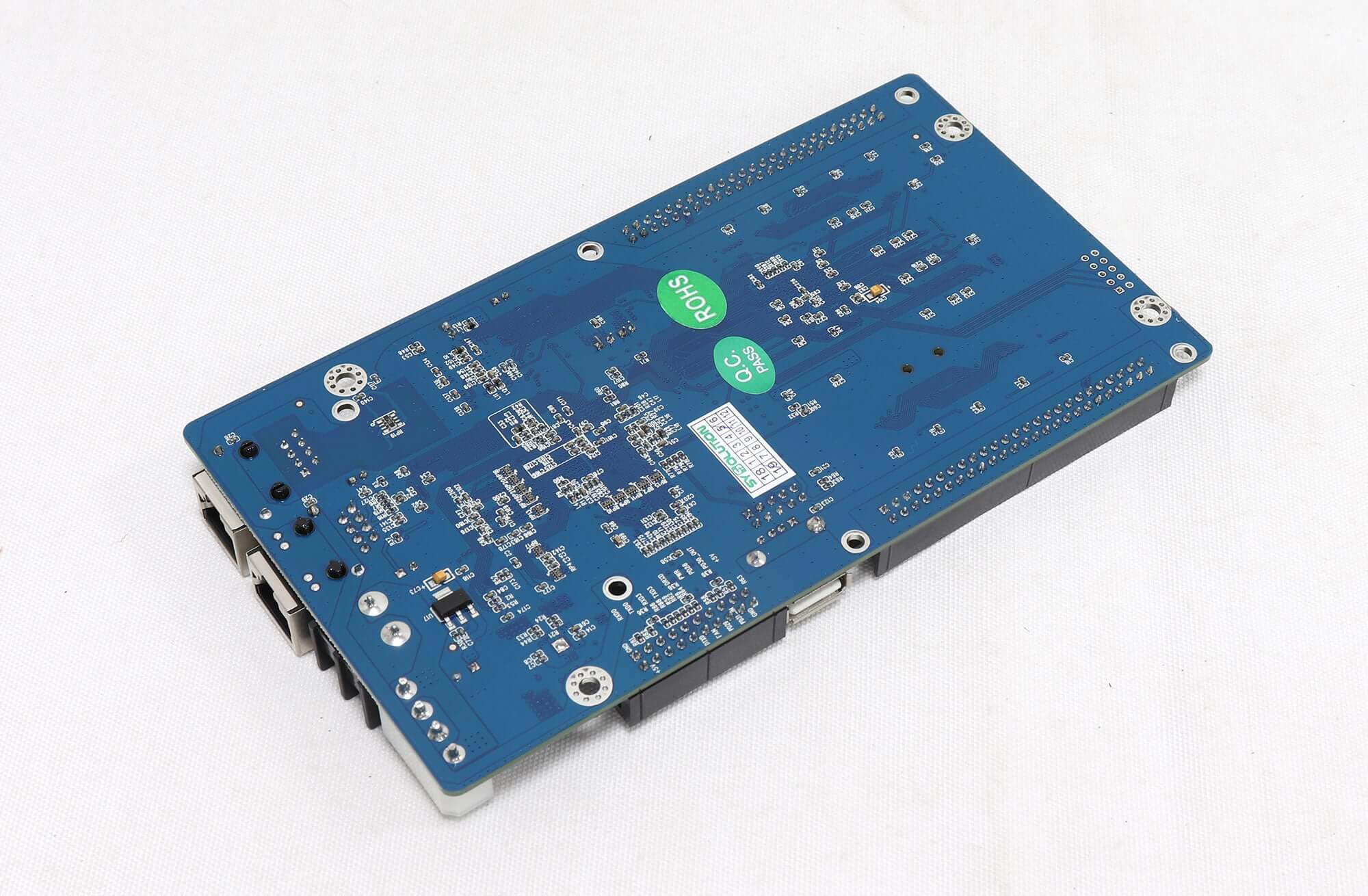

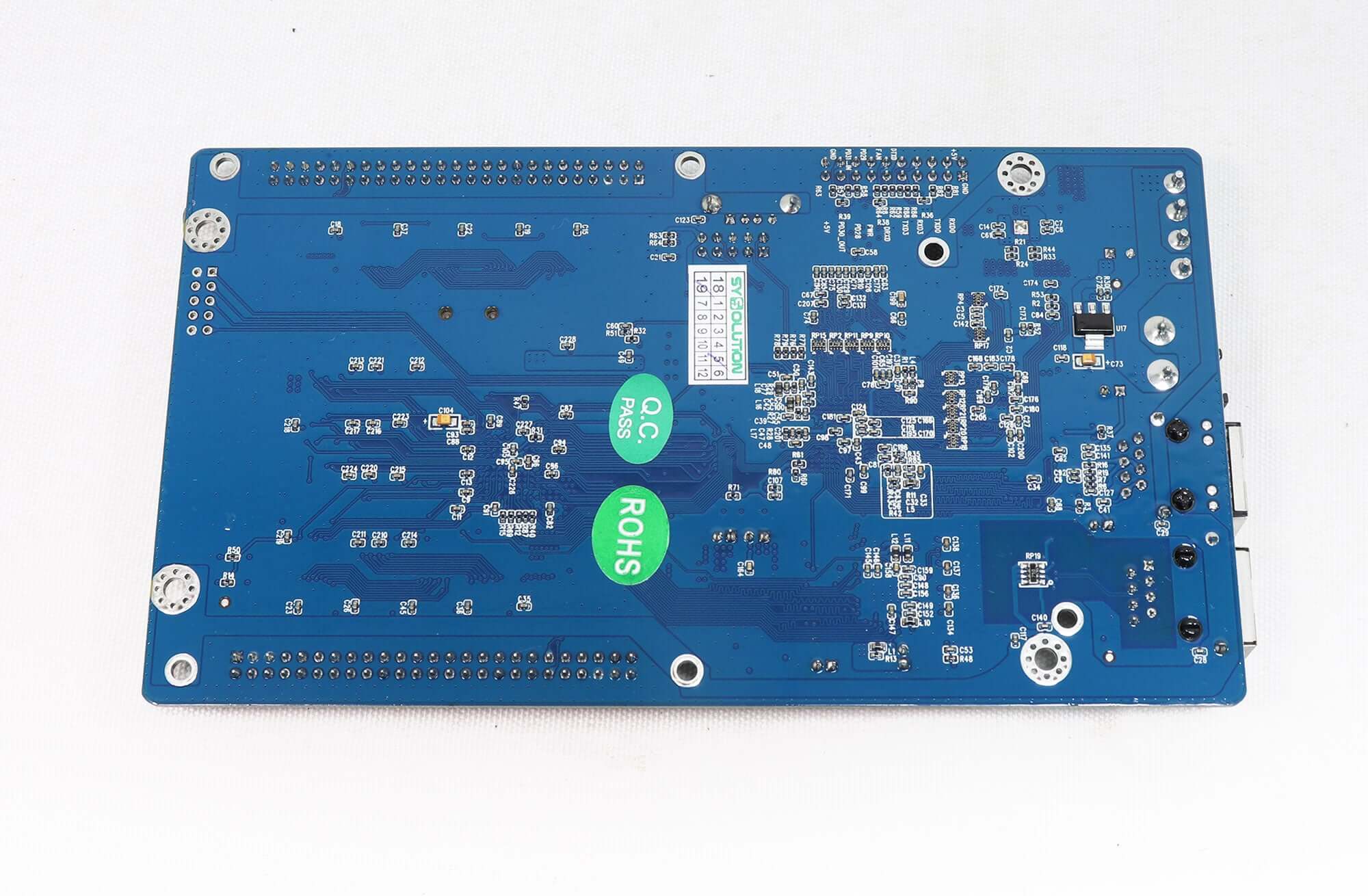

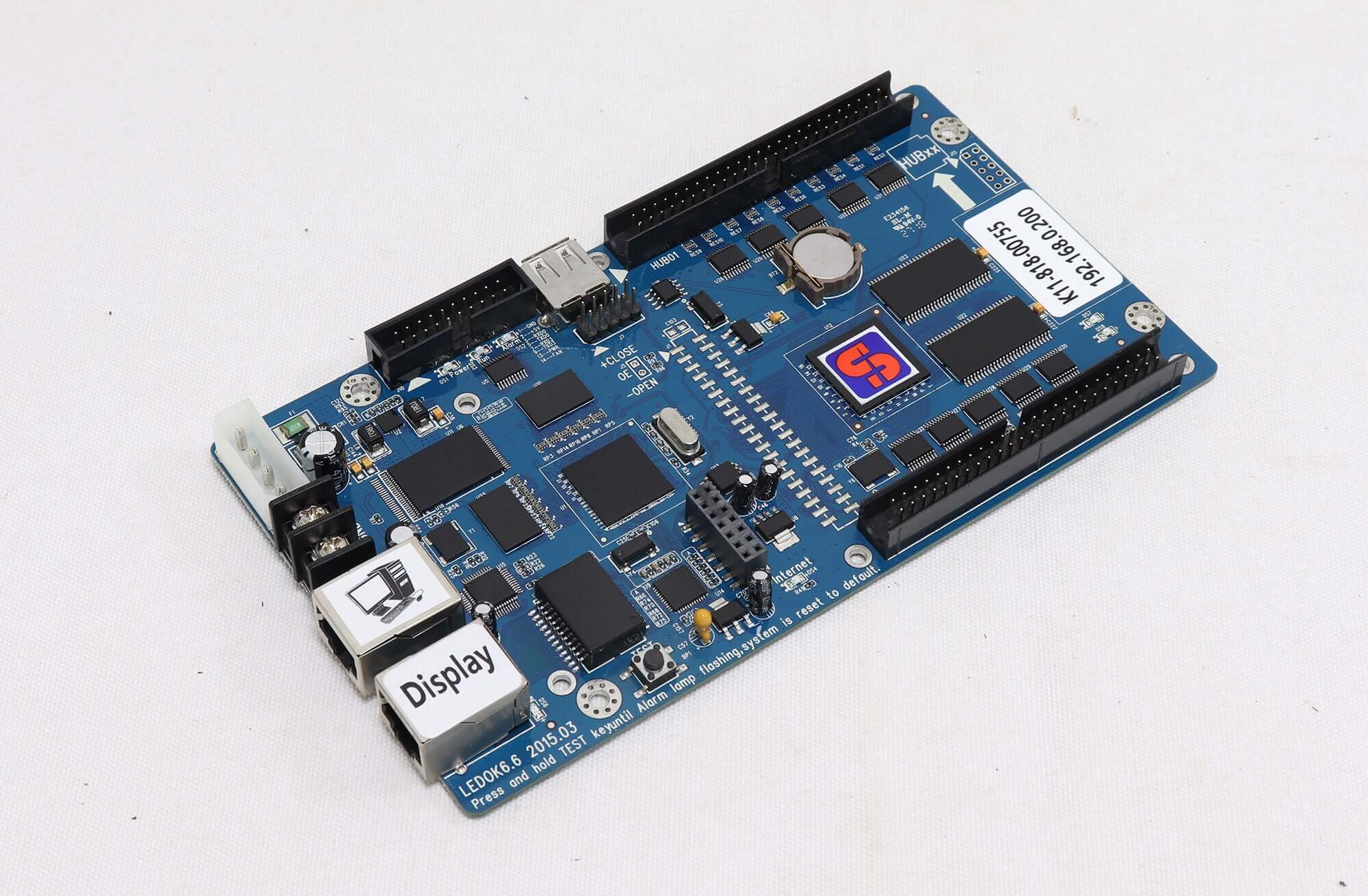

Sysolution K11 Asynchronous LED Control Board with Cascading Function
$ 160.23
Features of Sysolution K11 Asynchronous LED Control Board with Cascading Function:
1)Video hardware decoding to make sure smoothly displaying, while M-series and A-series controller supports software decoding
2) Support 4096 gray level for red, green and blue
3) One card support maximum resolution 640×256 pixels, fixed resolution
4) One sending card supports more than one screen but each screen has the same size, to realize display same content at the same time
5) Supporting read back HCP4 file from led controller
6) Intelligent connection, that is exchange receiving cards in one screen without setup again, the receiving cards will display
the content after exchanging
7) M-series and A-series controller only support 1, 2, 4, 8, 16 scan types, while K-series support random scan types within 1/16 scan, like 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 scan types
8) Support driver IC with PWM, such as MBI5041
9) One sending card can connect one HUB, saving one piece of receiving card
10) It has same installation holes with synchronous controller, so it is easy to change controller
11)Totally new design, setup controller through software in PC
Parameters of Sysolution K11 Asynchronous LED Control Board with Cascading Function:
Type | cascading card |
mode | k11（sending card） |
Maximum pixels | 1200×256 |
Hub | Standard hub, one sending card connects one hub, receiving card connects one hub |
Display type | Full color |
Onboard Flash | 500MB |
Gray level | 4096 |
LED module type | Support random scan type within 1/16 scan |
Communication ports | Ethernet/serial port/USB ports |
Audio | USB sound card optional |
Special Driver IC | Support MBI5041 |
Schedule on time | Support |
Video formats | AVI,WMV,MPG,MOV,DAT,VOB,MP4, FLV and so on |
Animation formats | Support GIF,SWF and so on |
Image formats | Support bmp,jpg,gif,wmf,ico and so on |
Text formats | Support txt，rtf |
Text type | Single line, static text and multi-line text |
Table | Support to editing table |
Date and Time | Support Analog clock and Digital clock |
Timing | Support countdown and Timing |
Sensor | Support temperature, humidity, auto-adjust brightness, Infrared remote to change programs |
Storage port | Support to expanding storage via USB |
Software | LEDEditor_V10/LEDSet2.0 |
Stock | In stock |
| Weight | 0.35 kg |
|---|
