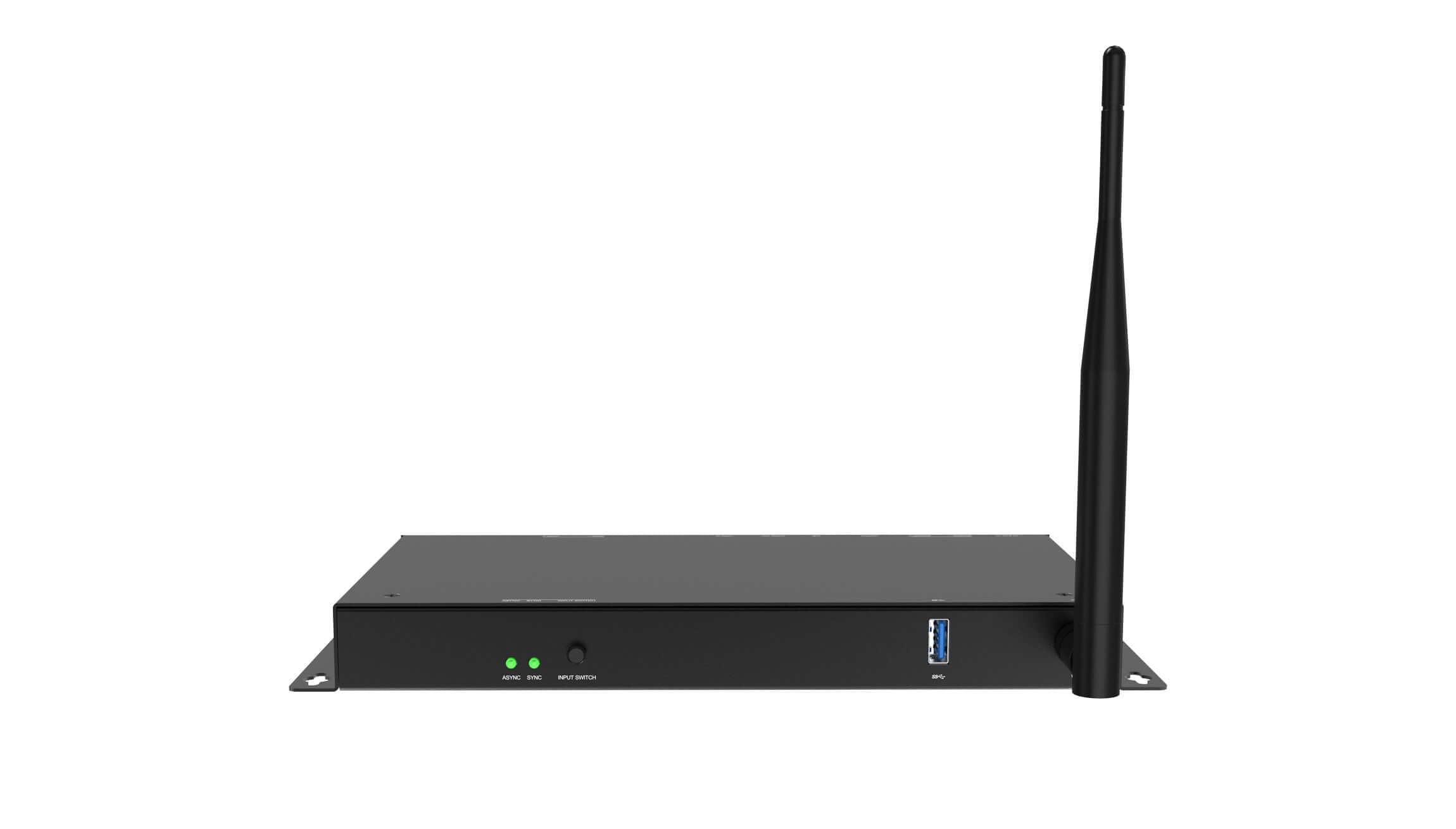

Colorlight A60 LED Player – HDMI & Asynchronous Playback
$ 192.00
Colorlight A60 LED player with 1.3-million-pixel capacity, HDMI input and asynchronous playback. Manage programs through PlayerMaster, LAN, Wi-Fi or USB; sensors are optional.
16526 in stock
Colorlight A60 Synchronous and Asynchronous LED Player
The Colorlight A60 combines HDMI input with stored-program playback for LED displays up to 1.3 million pixels. Switch between a live synchronous source and asynchronous content, with priority settings for the two modes. PlayerMaster provides program editing and scheduling for installations that need both live input and unattended playback.
- Live HDMI input or scheduled, stored-program playback.
- Up to 1.3 million LED pixels through two Gigabit outputs.
- LAN, Wi-Fi and USB program management; optional sensors.
Playback and Display Management
Publish content through LAN, Wi-Fi or a direct USB connection, or use USB storage playback. Layouts support one 1080p video window or up to three 720p video windows, plus images, text, clocks, weather and web content. NTP synchronization supports coordinated playback across multiple screens.
The A60 provides two Gigabit Ethernet outputs to receiving cards and a separate LAN port for management. Its sensor connections support monitoring and ambient-brightness control; sensors must be purchased separately. Scheduled brightness changes, sleep, wake-up and restart functions are also listed in the specification.
Technical Specifications
Specifications below follow the linked Colorlight A60 specification V1.1. The 4,096-pixel width and 2,560-pixel height are separate limits, not a supported 4,096 × 2,560 screen. Total loading must stay within 1.3 million pixels. Confirm the supplied hardware revision and storage before ordering.
| Parameter | Specification |
|---|---|
| LED loading capacity | 1.3 million pixels |
| Maximum width / height | 4,096 pixels / 2,560 pixels |
| Playback modes | Synchronous HDMI input and asynchronous playback; configurable priority |
| HDMI input | HDMI 1.4 |
| LED outputs | 2 × Gigabit Ethernet ports |
| Storage | 8 GB installed; 4 GB available to users |
| Video windows | 1 × 1080p or up to 3 × 720p |
| USB | USB-A 3.0 for storage or USB camera; USB-B CONFIG for PC setup |
| Network | Fast Ethernet LAN; Wi-Fi hotspot or router connection |
| Audio | 3.5 mm TRS stereo output |
| Sensor ports | 2 × RJ11; sensors purchased separately |
| Management software | PlayerMaster; LED Assistant |
| Dimensions | 256.4 × 127.6 × 26.2 mm, excluding antenna |
| Net weight | 0.88 kg |
| Power input / rated power | DC 12 V / 9 W |
| Operating temperature | −30°C to 80°C |
| Humidity | 0–95%, non-condensing |
Check Your LED Screen Before Ordering
Start with the screen’s actual pixel width and height. Multiply them to check the total load: a 1,280 × 720 screen contains 921,600 pixels, within the stated overall capacity. The receiving-card configuration and output-port distribution must also be checked for your installation.
- Choose the playback workflow: a live HDMI source, scheduled content, or both.
- Confirm the receiving-card model, screen mapping and required program layout.
- Check the supplied storage revision, power supply and any optional sensors.
Ask LED-Mall to check your A60 configuration — send your screen pixel dimensions, receiving-card model and playback requirements. You can also browse our LED controller categories or contact our team.
Frequently Asked Questions
Can the Colorlight A60 switch between HDMI and stored content?
Yes. It supports synchronous HDMI input and asynchronous playback, with selectable priority between the two modes.
What is the A60 pixel capacity?
The overall capacity is 1.3 million pixels. Maximum width is 4,096 pixels and maximum height is 2,560 pixels, subject to that total capacity.
Which software manages the A60?
The V1.1 specification lists PlayerMaster and LED Assistant. PlayerMaster supports program editing, multi-window layouts and scheduling.
How much storage is available for A60 programs?
The linked V1.1 specification lists 8 GB installed and 4 GB available to users. It also supports USB-storage playback. Confirm the storage supplied with your hardware revision before ordering.
Are brightness and environmental sensors included?
The specification states that sensors must be purchased separately. Compatible sensors enable ambient-brightness adjustment and monitoring through the sensor interfaces.
