Sysolution D70-16 LED Receiving Card, 16 HUB75E Ports
$ 19.00
The Sysolution D70-16 listing specifies 16 HUB75E interfaces, up to 32 parallel RGB data groups and a 512 × 256-pixel load. The retained specification download is labeled D70-75; confirm the exact hardware documentation before installation.
9980 in stock
D70-16 receiving card with integrated HUB75E interfaces
The Sysolution D70-16 product listing describes a standard receiving card with 16 HUB75E interfaces, up to 32 groups of RGB parallel data and hardware online reset. The table below organizes the specifications stated in that original product description.
Document identity notice: this page is named D70-16, but its original PDF download is a D70-75 Ver.1.0 datasheet. The link is retained for reference. The two model names have not been established as equivalent, so additional D70-75 electrical, dimensional and correction-mode figures have not been assigned to D70-16.
Technical specifications
| Parameter | Specification |
|---|---|
| Listed model | Sysolution D70-16 |
| Product type | Standard LED receiving card |
| Module interfaces | 16 standard HUB75E interfaces |
| Parallel RGB data | Up to 32 groups |
| Listed pixel load | Up to 512 × 256 pixels |
| Hardware design | MCU design |
| Reset function | Hardware online reset supported |
| Driver chips | Compatibility stated in the original listing; no chip-model list supplied |
| Linked document identity | D70-75 Product Datasheet Ver.1.0; the PDF is not labeled D70-16 |

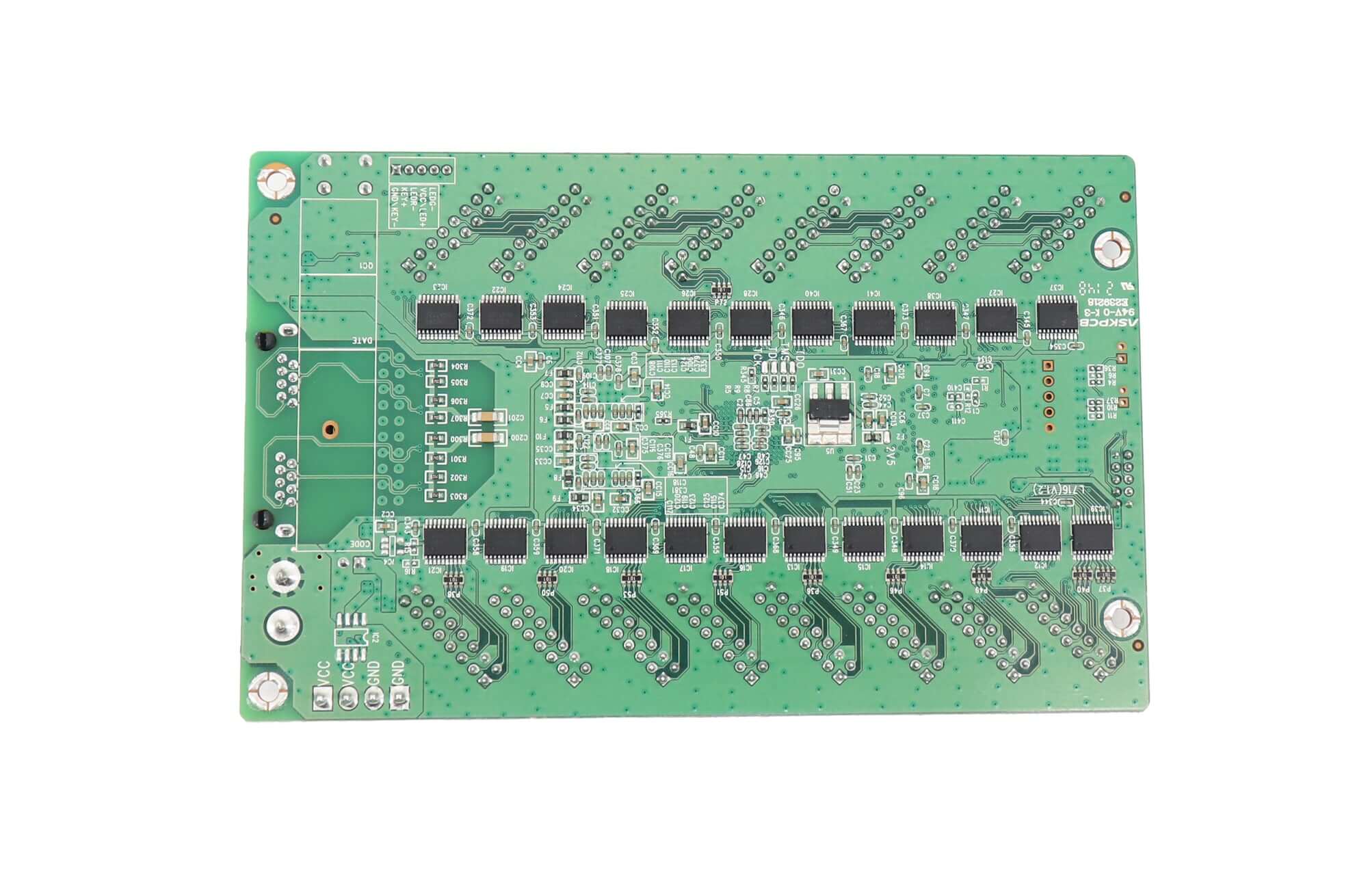

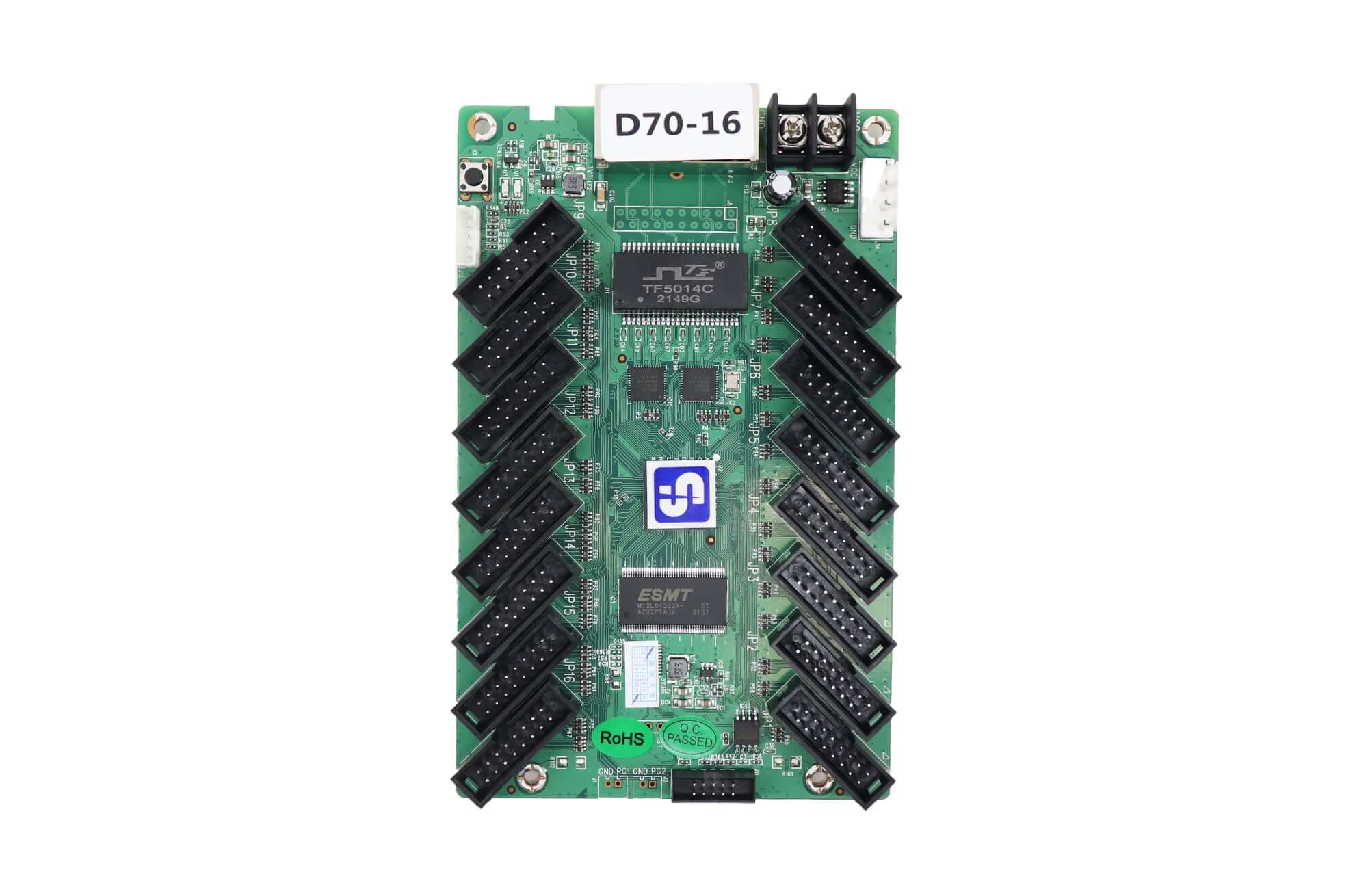

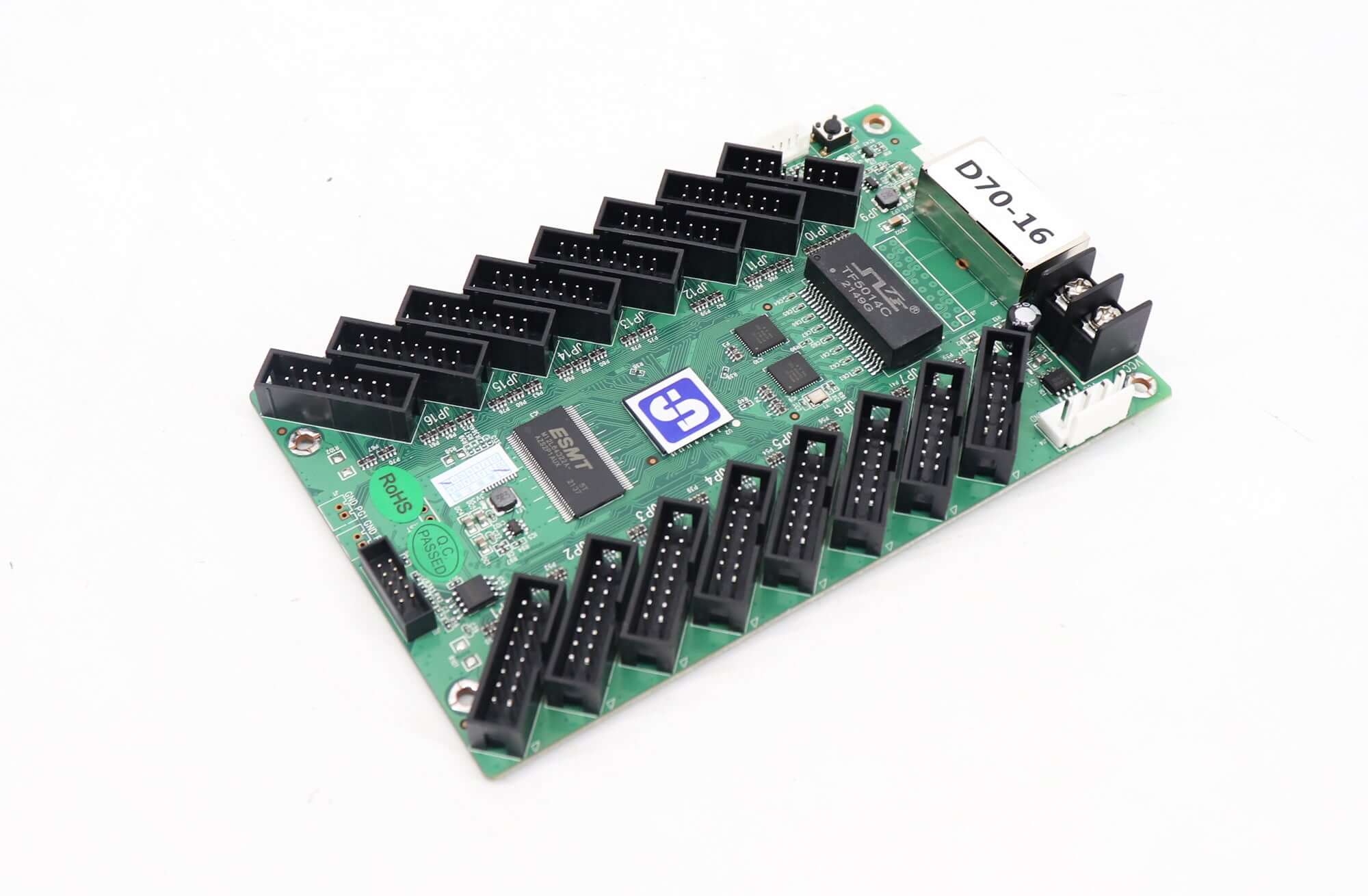

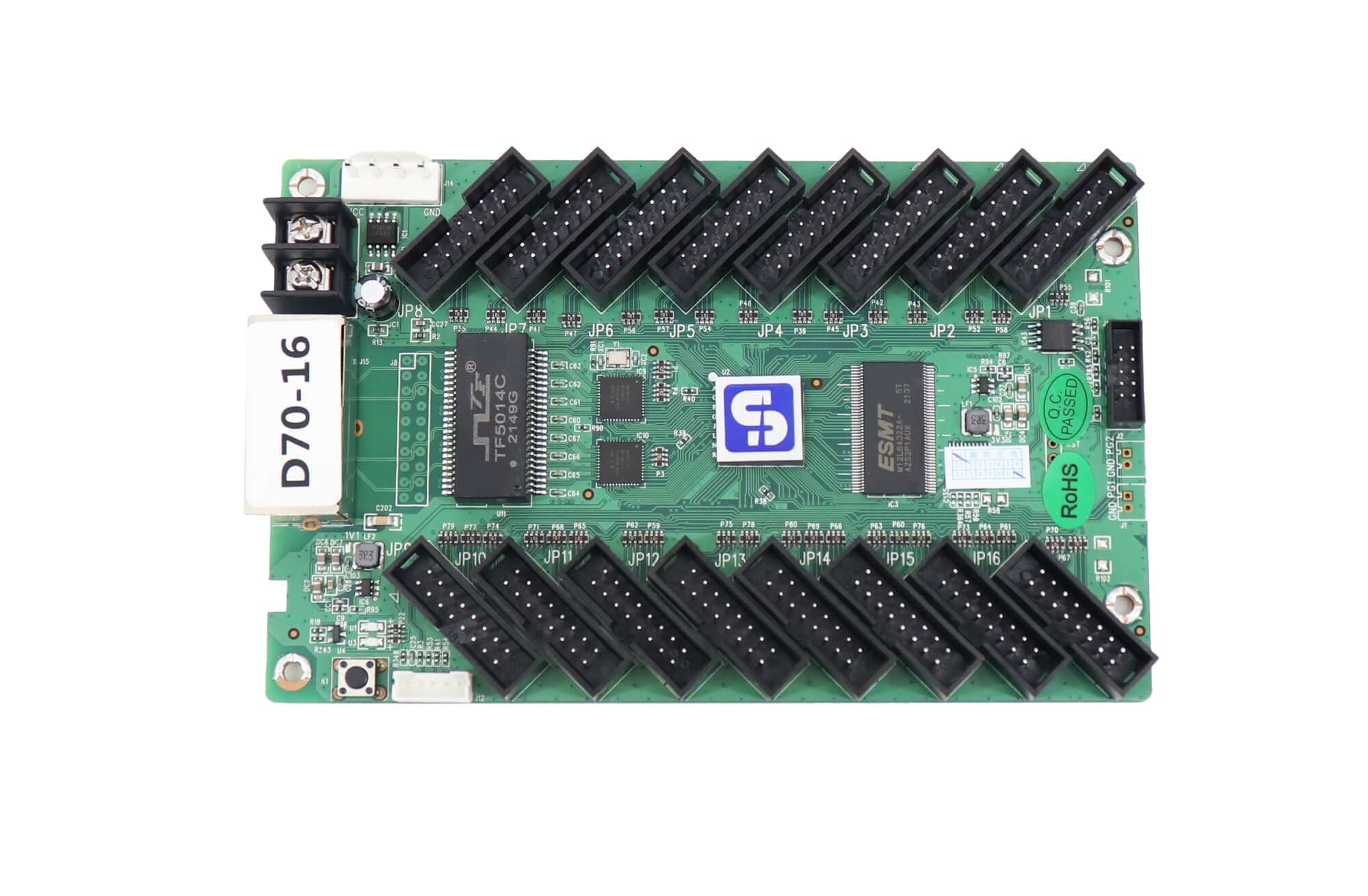

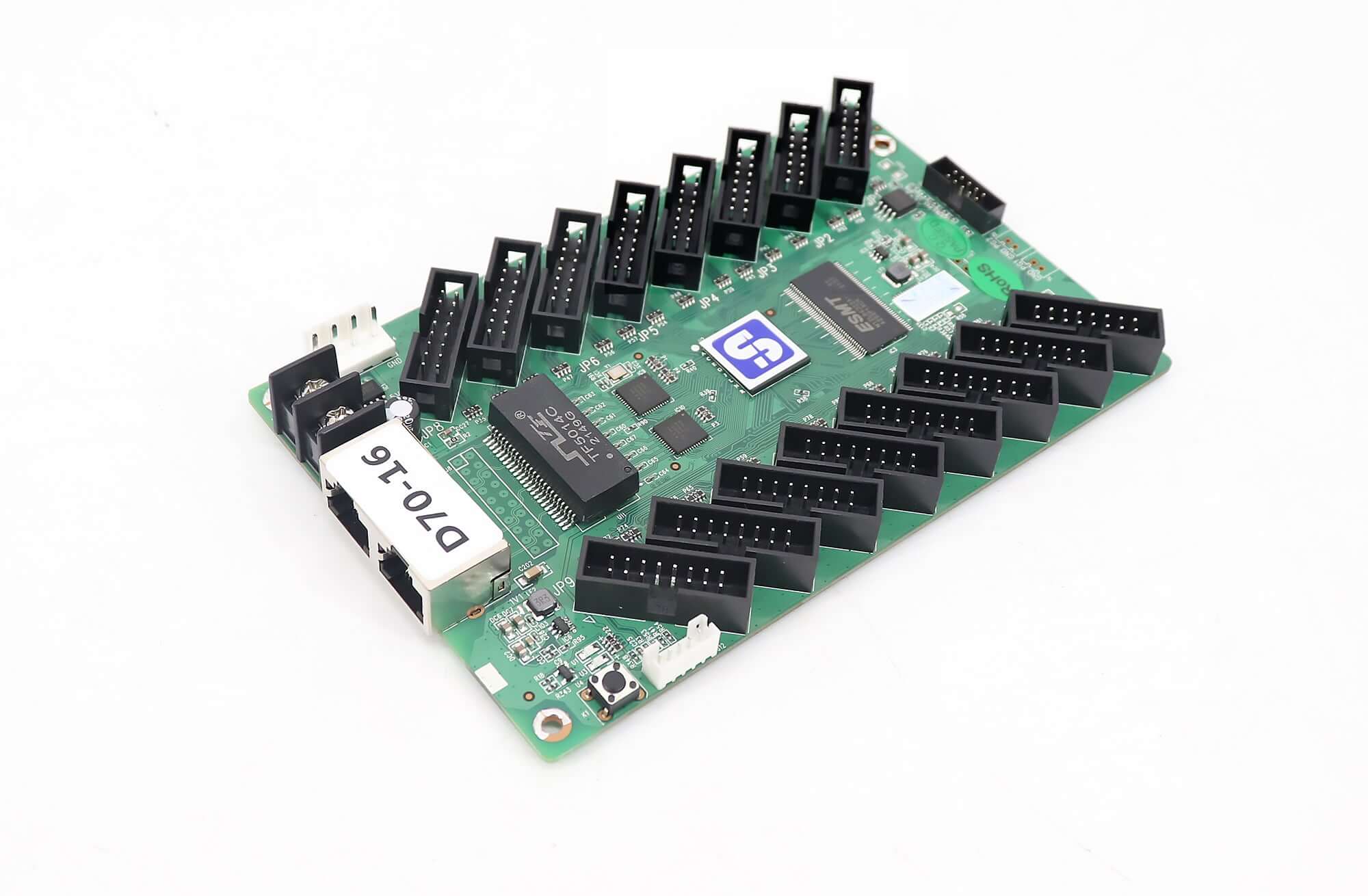

Product images and specification download
Original linked D70-75 datasheet — model differs from this D70-16 listing
Frequently asked questions
How many HUB75E ports does the D70-16 listing specify?
The original product description specifies 16 standard HUB75E interfaces and up to 32 groups of parallel RGB data. Match the actual board and module pinout before installation.
What is the listed pixel capacity?
The D70-16 product description states up to 512 × 256 pixels. Confirm the module scan mode and required configuration for the screen; the listing does not provide a separate correction-mode capacity table for D70-16.
Is the linked PDF for D70-16 or D70-75?
The retained PDF is titled D70-75 Product Datasheet Ver.1.0. The page is listed as D70-16, so the document mismatch remains unresolved. Electrical ratings, dimensions and correction-mode limits from that PDF are not presented here as verified D70-16 specifications.
Does the D70-16 support an online hardware reset?
Yes. The original D70-16 product description explicitly lists hardware online reset support. Confirm the applicable setup procedure for the actual board revision.
What should I confirm before replacing an existing receiving card?
Check the board model, HUB75E pinout, module scan requirements and power-supply rating. Obtain documentation matching D70-16 before relying on the linked D70-75 document for wiring or electrical limits.
| Weight | 0.3 kg |
|---|
